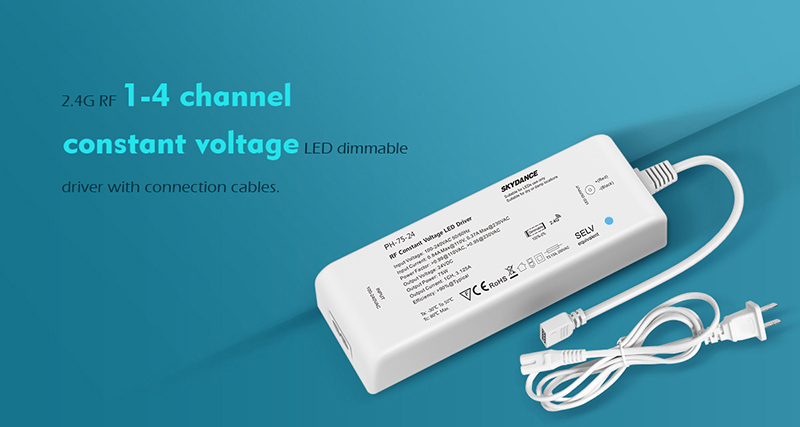

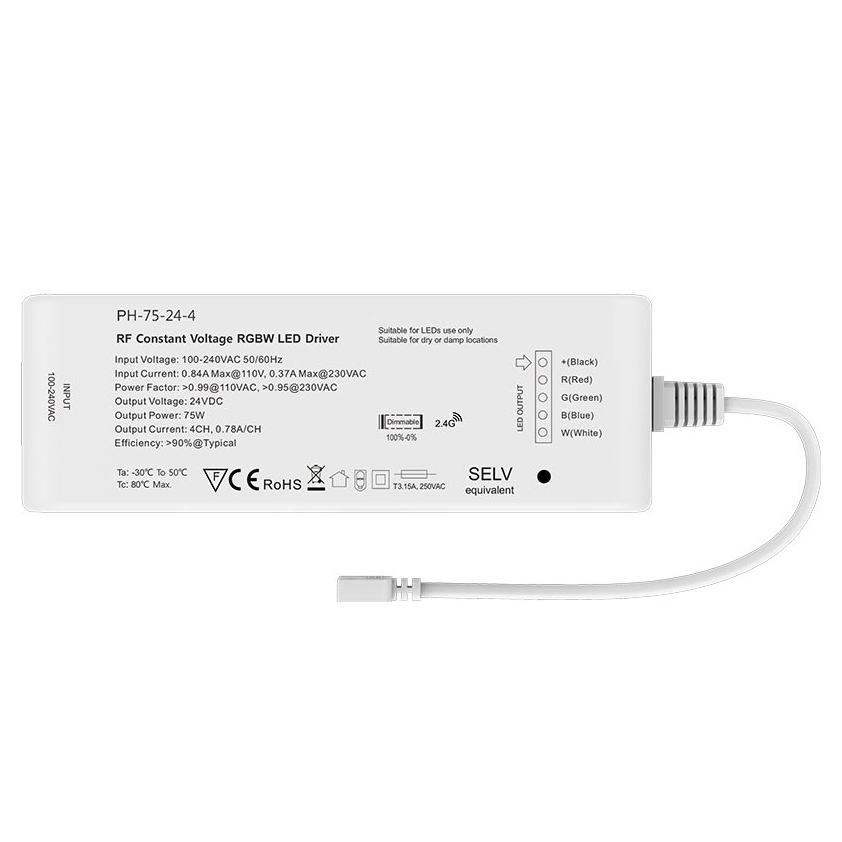

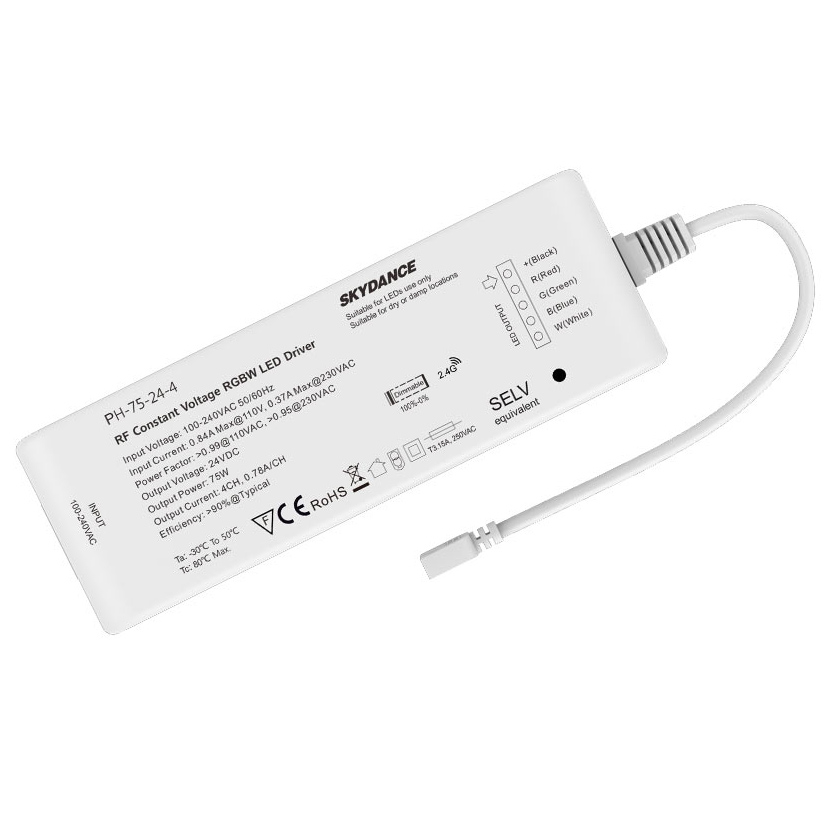

24V 75W 4CH RF Dimmable LED Driver PH-75-24-4
Dimmable LED driver with RF control, apply to a single color, dual color or RGB/RGBW LED constant voltage strip

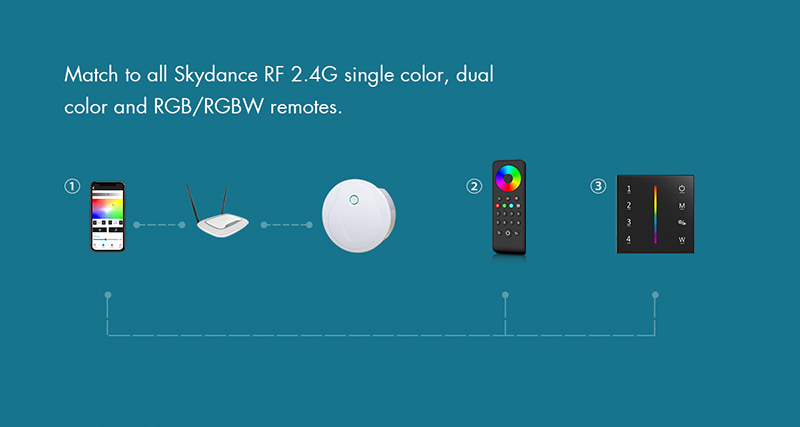

● Match with Skydance’s 2.4G single color, dual color and RGB/RGBW remote.
One RF LED driver accepts up to several remote controls
● Universal AC input / Full range
● 1-4 channel constant voltage output, Max. total output power 75W
● When using with RGB/RGBW light, built-in 10 dynamic modes, include jump or gradual change style
● Auto-transmitting function: LED driver automatically transmit a signal to another LED driver with a 30m control distance
● Synchronize on multiple numbers of LED drivers

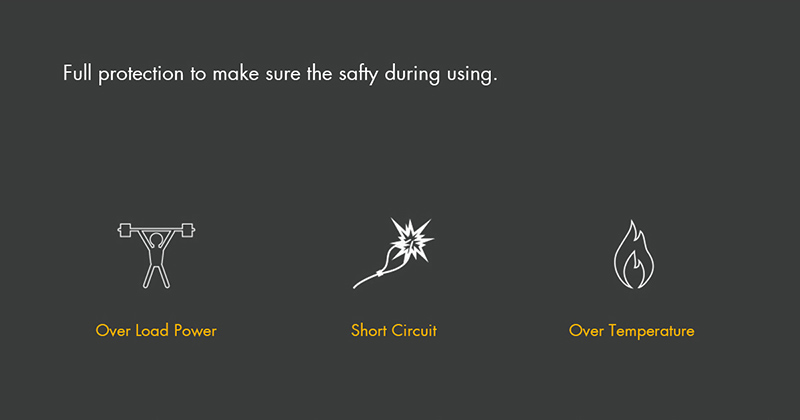

● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
Input Voltage: 100-240VAC 50/60HZ
Input Current: 0.84A Max@110V,0.37A Max@230VAC
Power Factor: >0.99@110VAC,>0.95@230VAC
Output Voltage: 24VDC
Output power: 75w
Output Current: 3CH,1.04A/CH
