WS2814 addressable RGBW LED strip supports DC24V low voltage input, harmless to the human body, energy-saving and environmental protection, 8-10m without voltage drop.

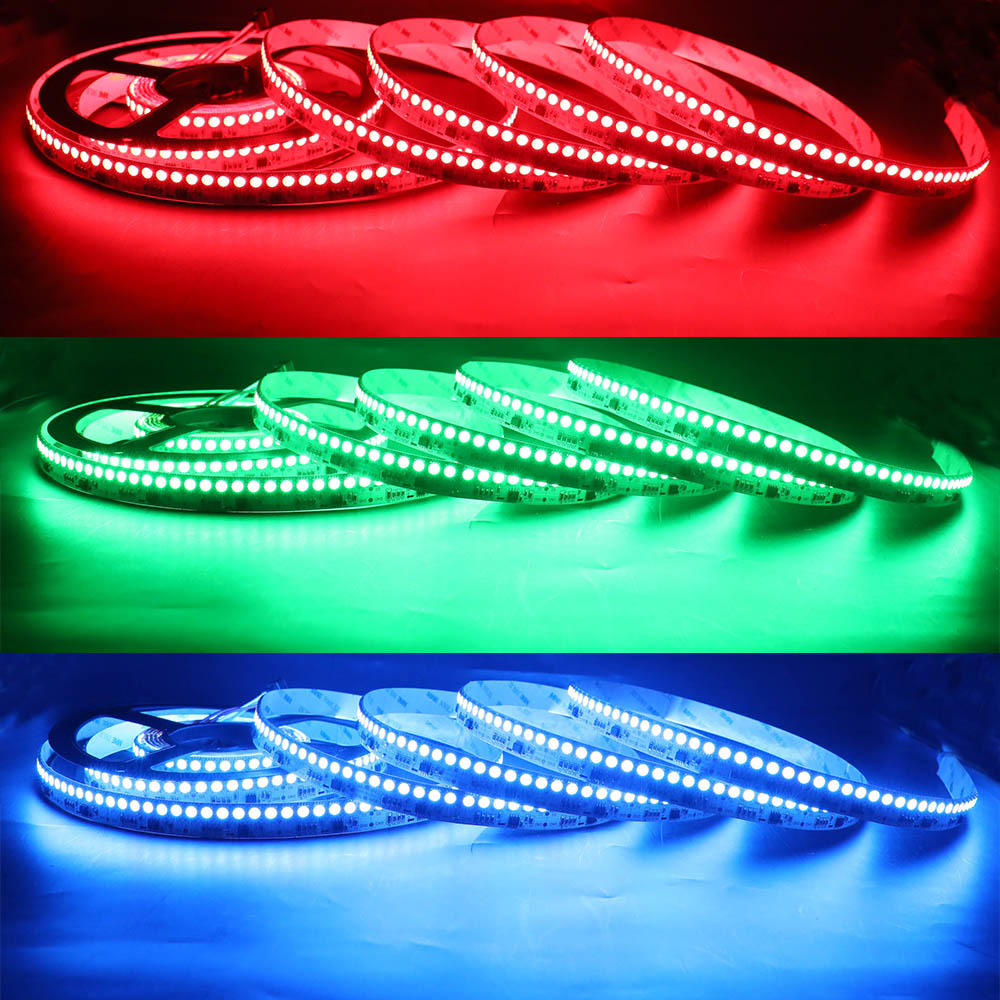

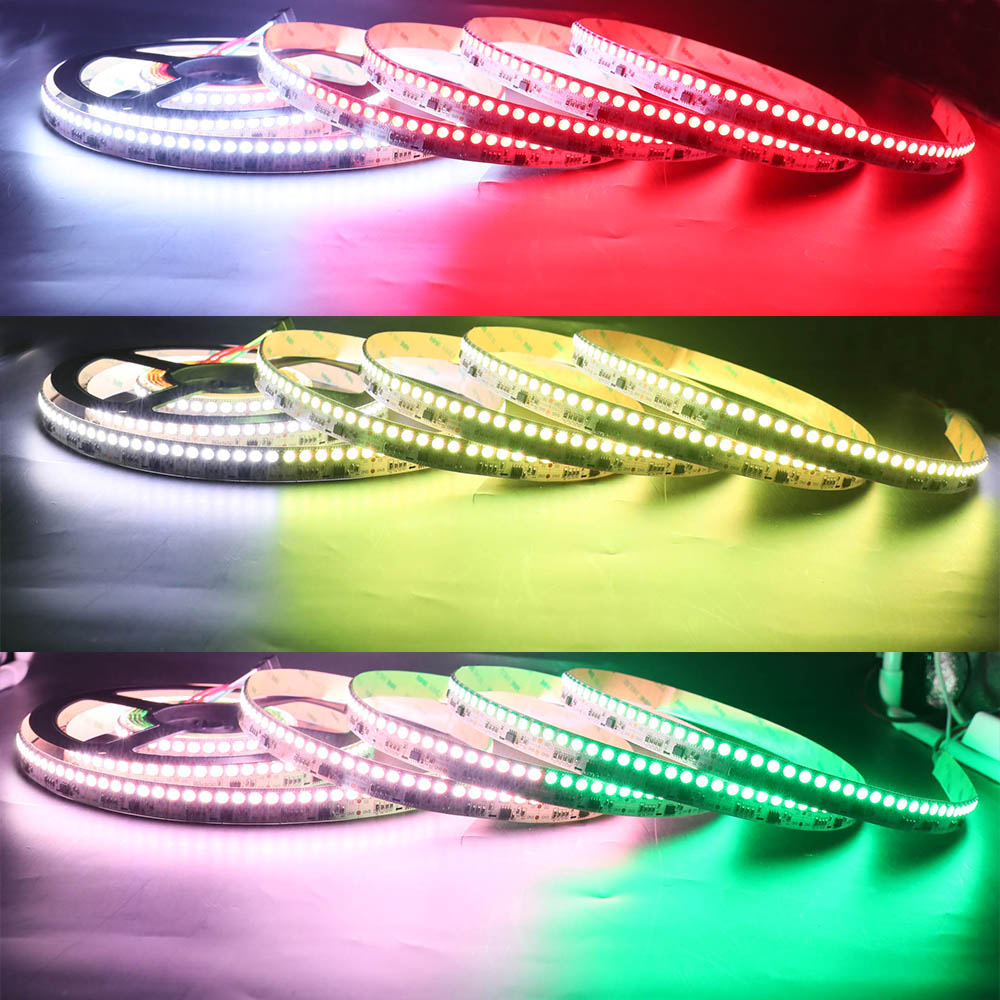

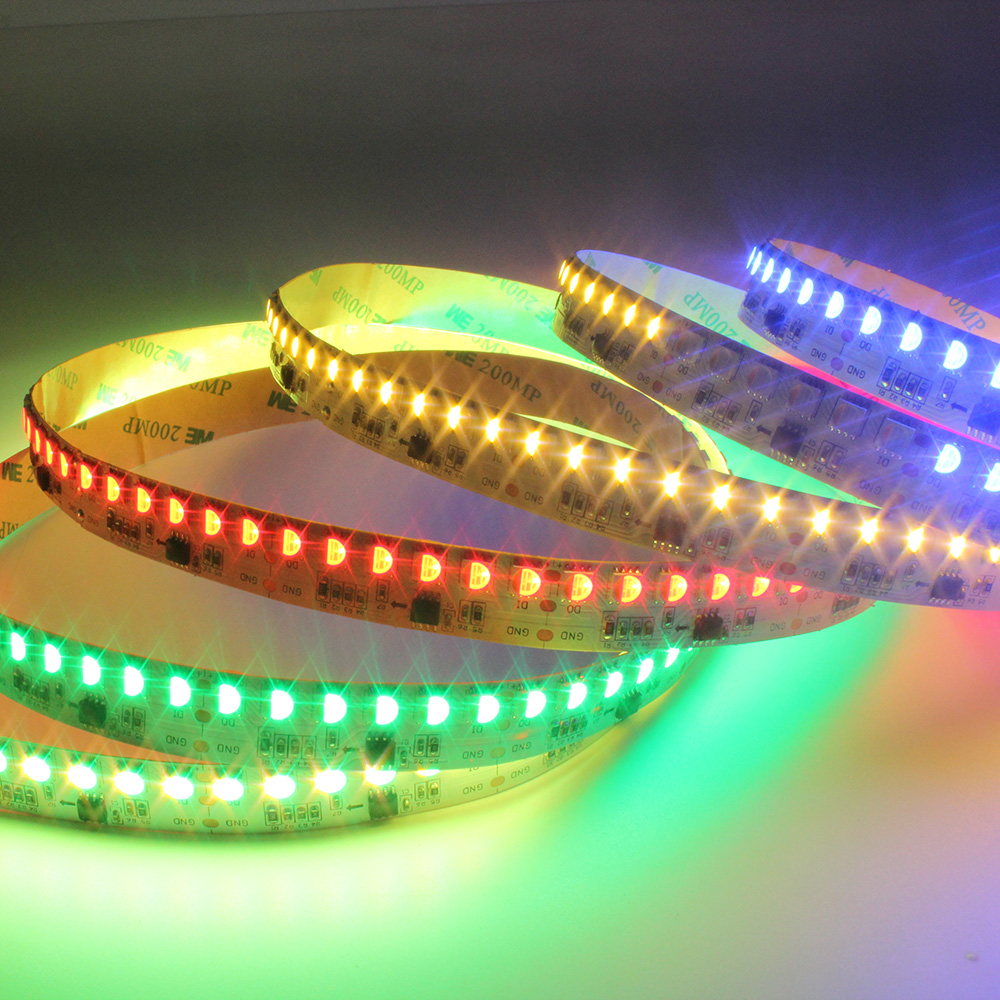

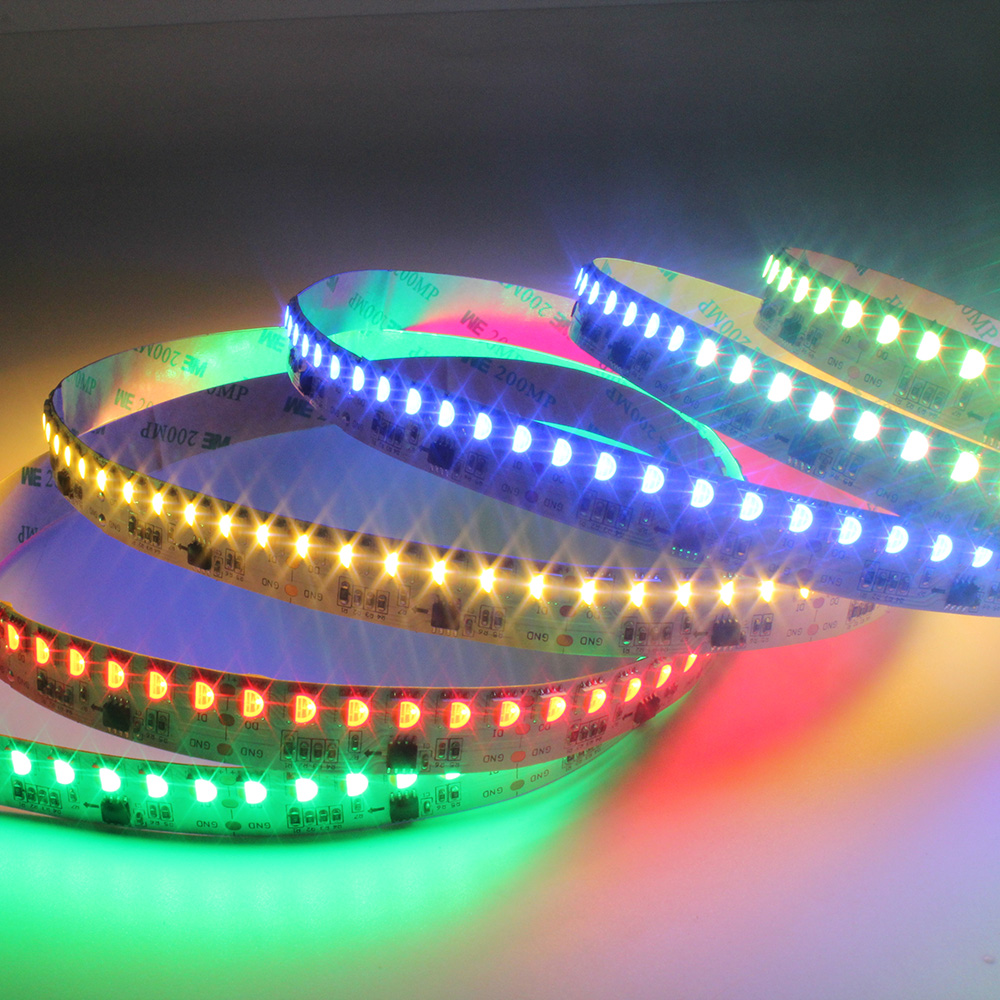

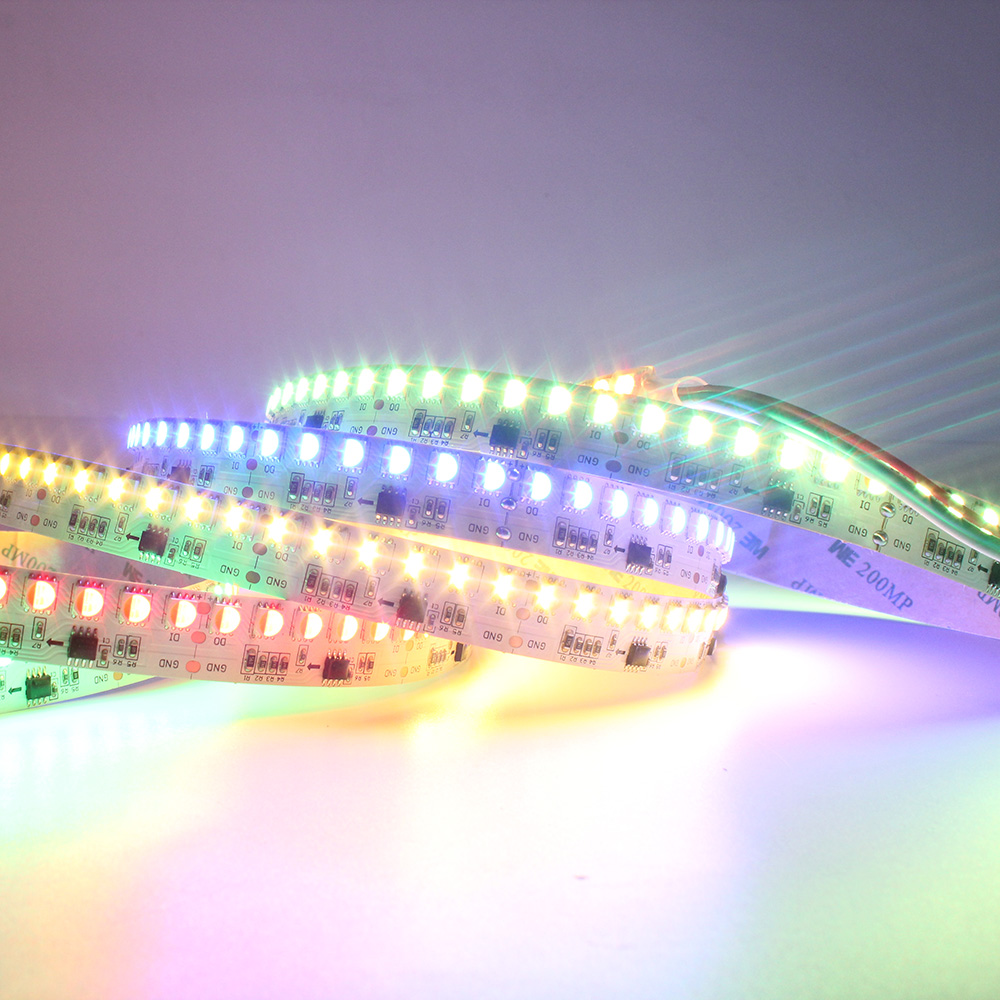

RGB mixing produces 16 million colors, matching the dream color WS2814 RGBW LED controller WT-SPI and LC2000B-TY01 to achieve dynamic running water and static single R/G/B/W controllable, works with LED neon tubes, the whole roll without light spot.

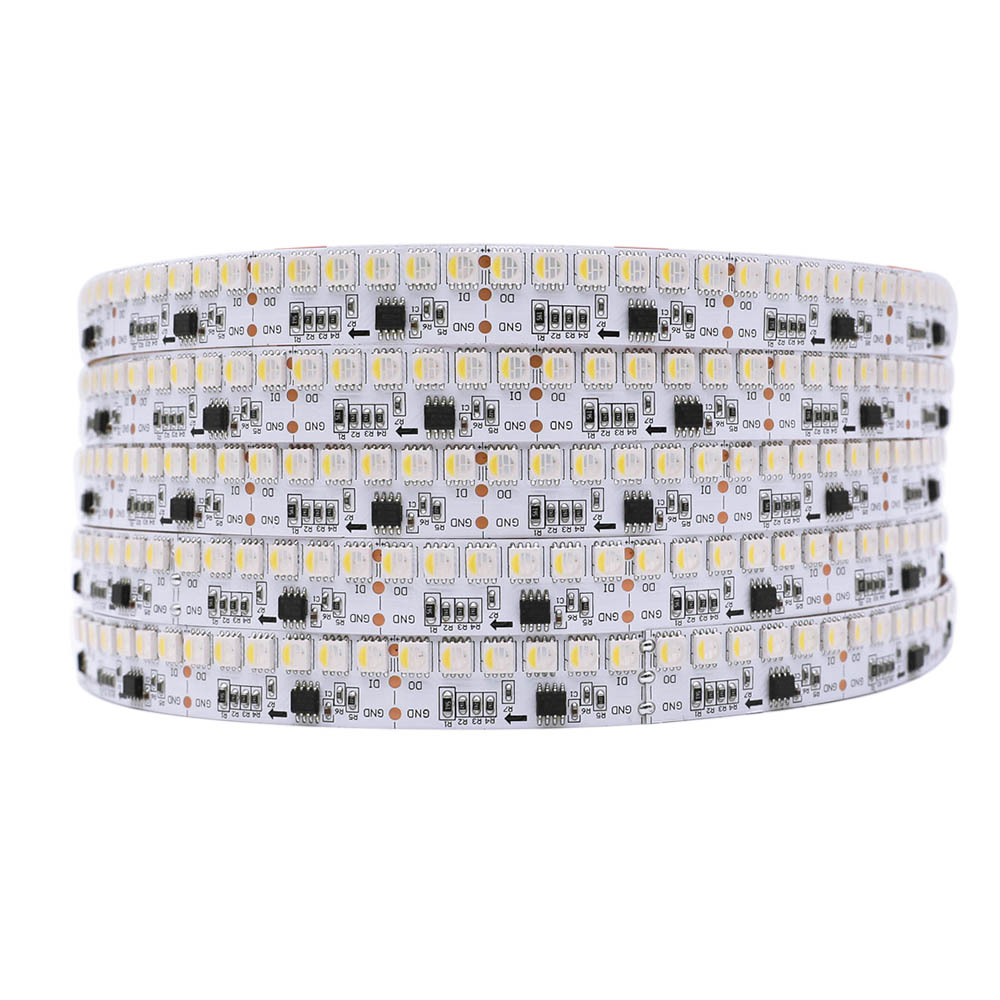

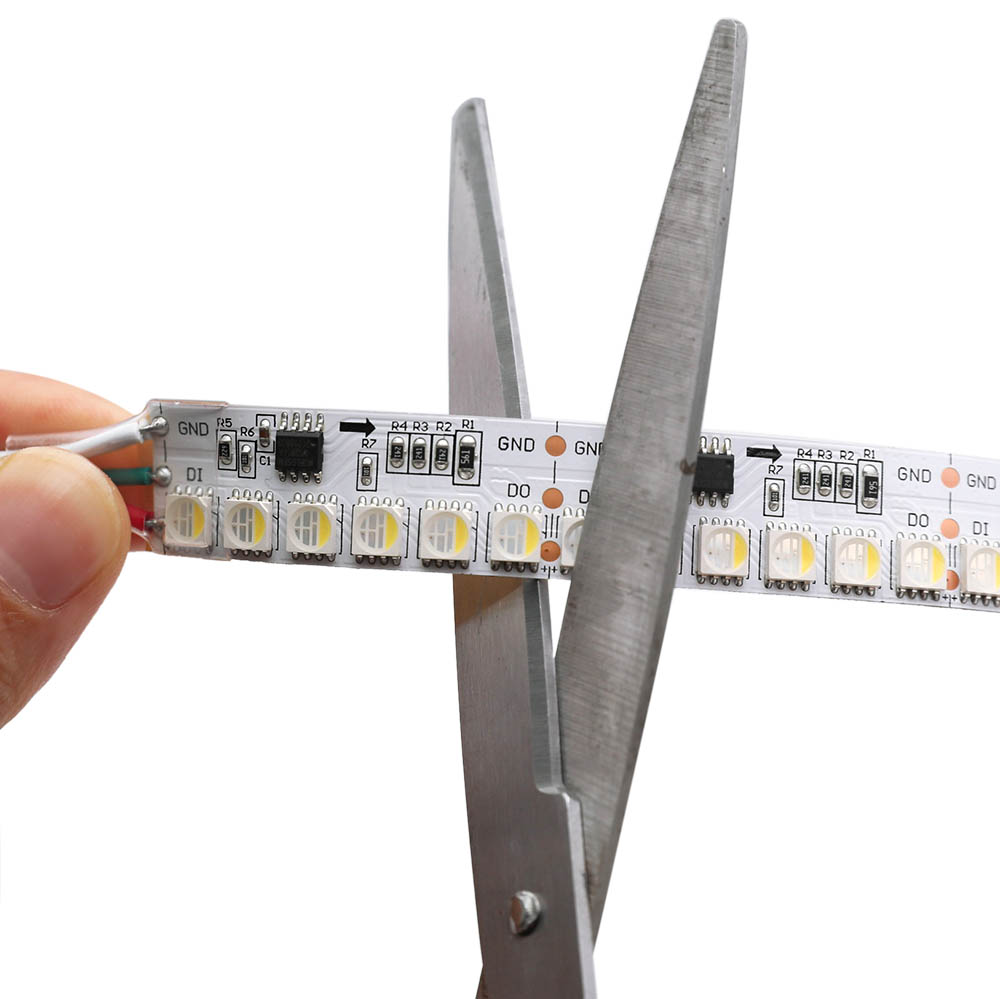

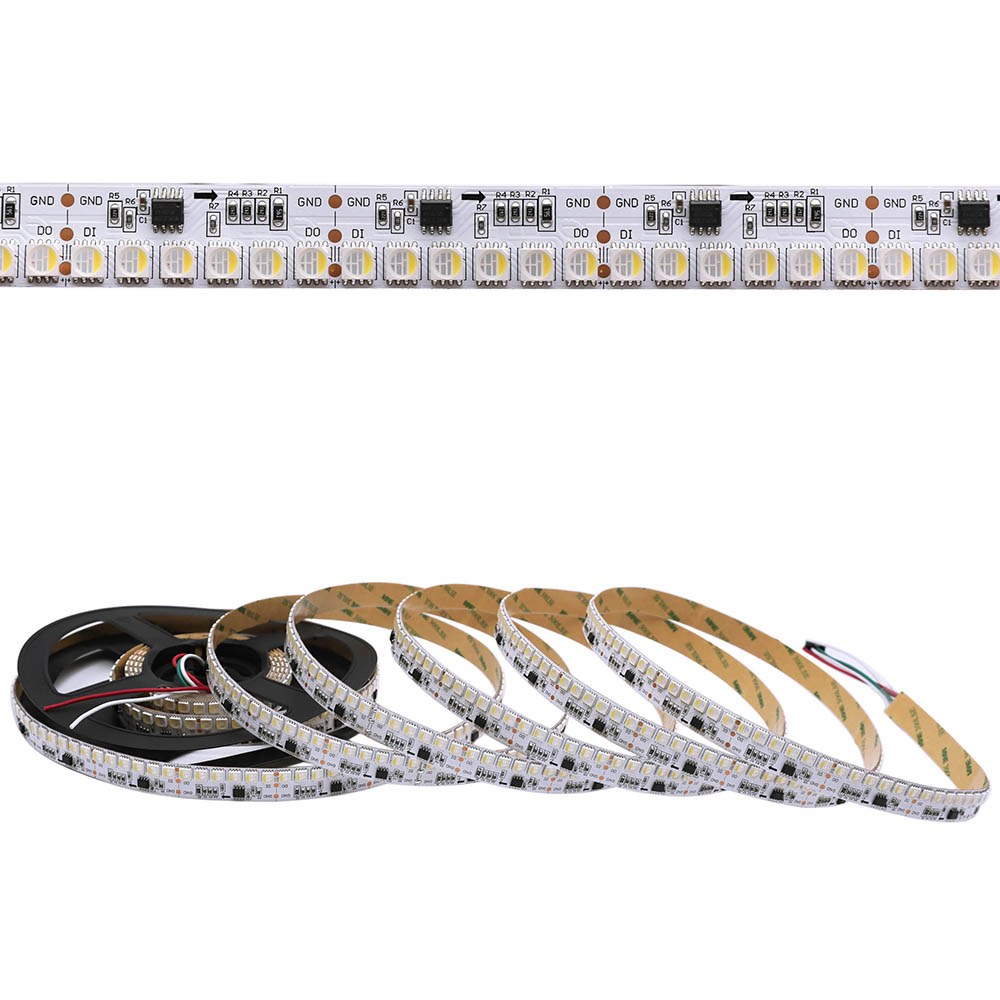

LED density is 144LEDs per meter high density optional, integrated SMD5050 LEDs and 8 PIN external ICs are evenly arranged on the PCB, one IC control 6LEDs cuttable, cut the LED strip along the cuttable line to customize the length of the digital LED strip light.

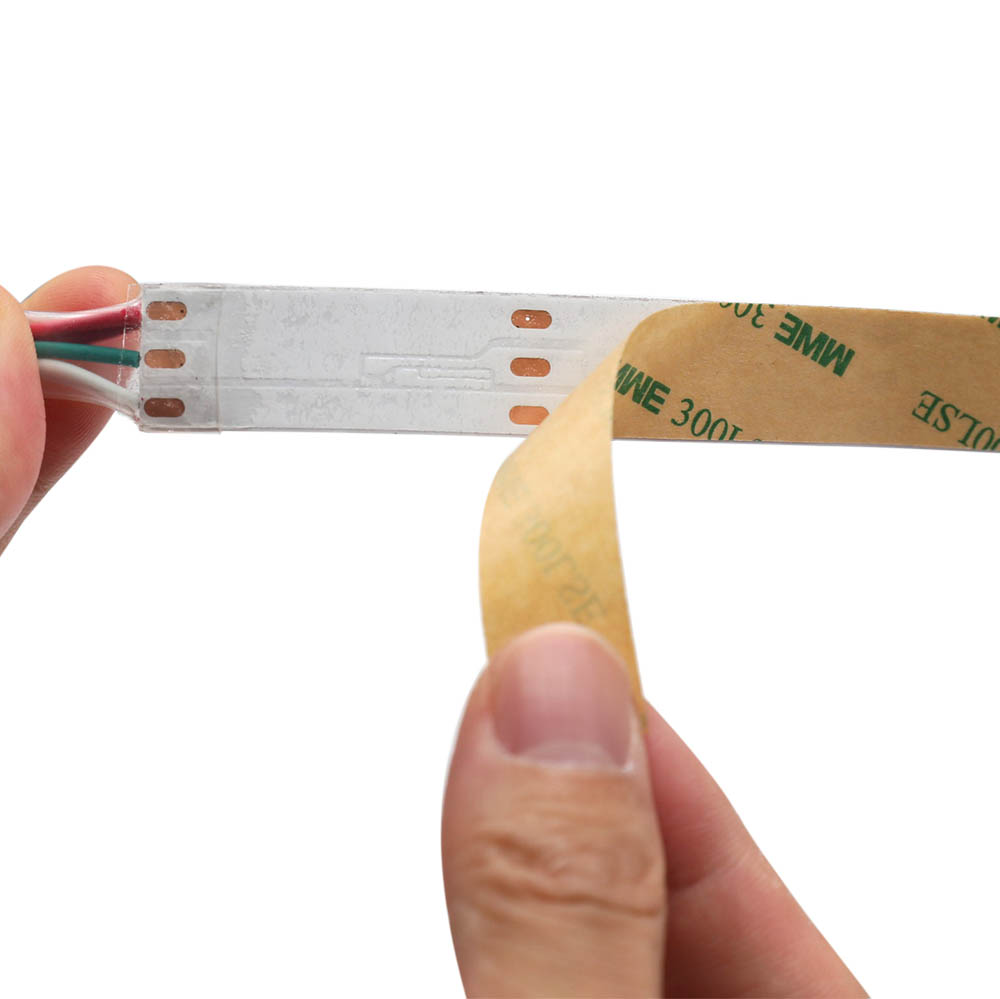

Customized waterproof grade, externally wrapped with high-quality silicone sleeve, waterproof grade reaches IP67, strong adhesive 3M tape on the back, easy to install, suitable for indoor & outdoor lighting environment.
Product Feature
-
DC24V low-voltage input
-
44LEDs per foot high density optional
-
6LEDs cuttable
-
Customize length
-
8 PIN external IC
-
WS2814 addressable LED
-
SMD5050 high brightness LED
-
IP67 waterproof optional
-
8-10m without voltage drop
-
RGB+W single signal wire LED strip
-
Compitable with SK6812 RGBW LED controller
-
3M tape, easy to install
Standards and Certifications
Product Specifications
Input Voltage: DC24V
Power: 34.56W/M, 172.8Watt/16.4Ft
LED Chip: WS2814 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED Chip Model: SMD 5050
IC Model: WS2814 IC (1 IC drives 6 LEDs)
Channel: 3 channels(VCC; DAT, GND)
IC Type: 8PIN external IC
Q'ty of LED: 44LEDs/Ft, 720LEDs/16.4Ft optional
Q'ty of IC: 24 pixels /Meter

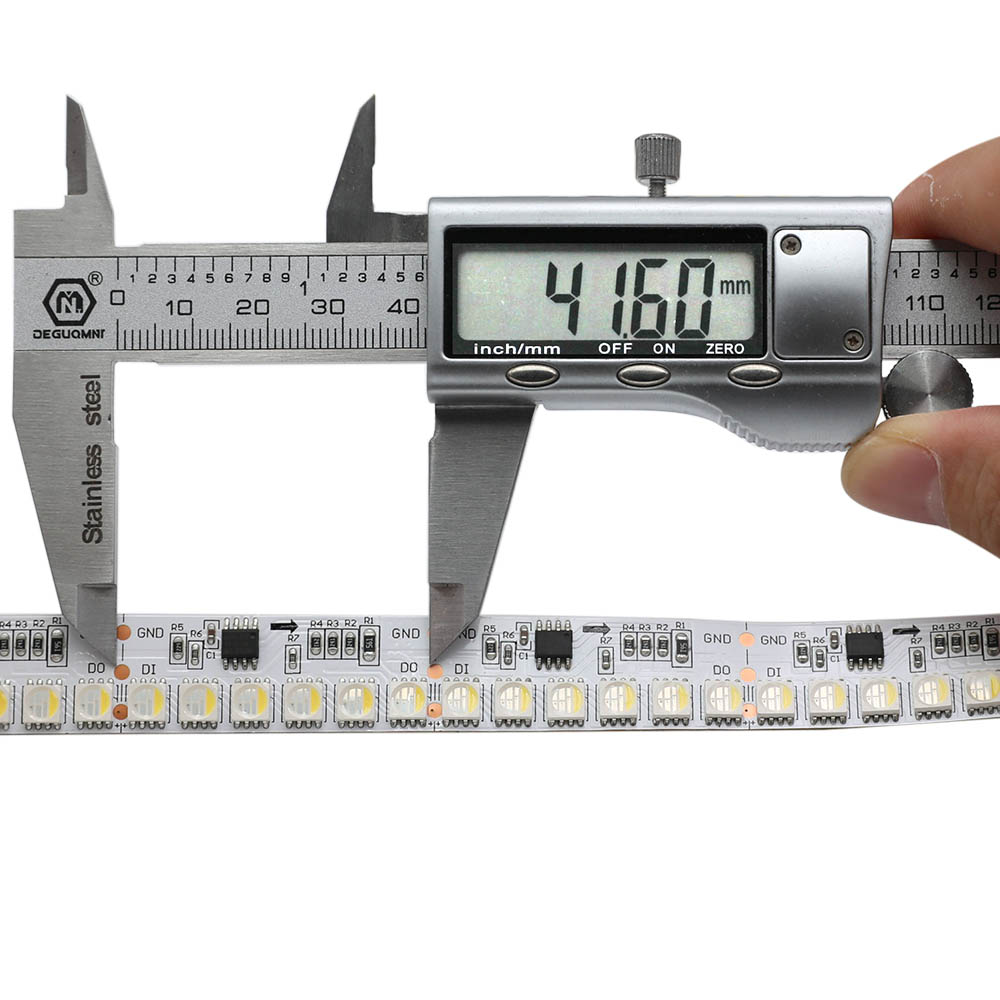

Cuttable: 6LEDs

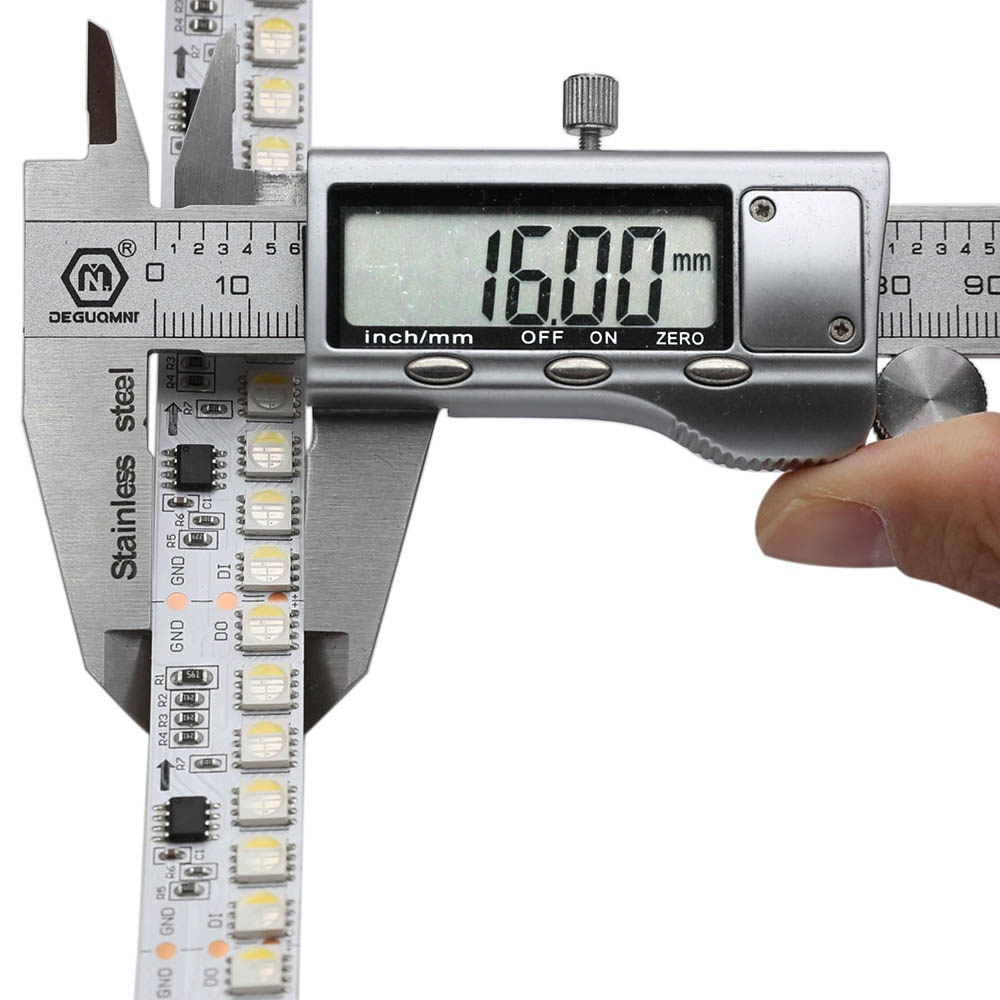

PCB wide: 16mm/0.63in
Color Temp(K): RGBW full color
FPC color: White
Length: 5m/16.4Ft
Beam Pattern: 120 degree
Protection Rate: Non-waterproof/ IP67 Wateproof
Grey Scale: 256
Average Life (hrs): 50000Hours+
Product List
1* 5m/16.4Ft WS2814 RGBW LED strip light
If you choose the LED controller in the kit, we will send you CONFULL-SP107E addressable LED controller.
If you choose the LED power supply in the kit, we will send you 24V 200W MW UL-Listed IP20 LED power supply (including an AC plug)
For outdoor environmnt, you can choose our 200W MW UL-LIsted IP67 power supply or 200W waterproof LED power supply.
You can also choose our waterproof BOX to protect the LED controller.
How to connect and control
Similar to other single signal wire address LED strip lights, the WS2814 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. The WS2814 LED strip light compitable with SK6812 RGBW LED controller. An addressable RGBW LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations and single white light can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.
This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer, 8-10m without voltage drop, you need to choose DC24V LED power supply to power it.
We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

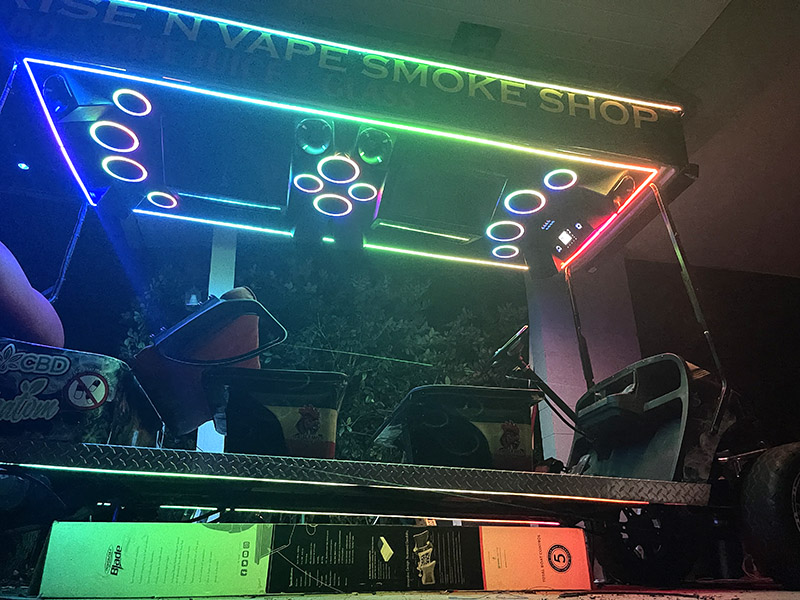

Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
