DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights

Model: WS2814-RGBW-12V-300
DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights
  • DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights

Select Specifications:

Starting at: $59.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$59.99
10-24
$58.79
25-49
$56.99
50+
$54.59
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    1. WS2814 RGBW addressable LED strip light support DC12/24V low voltage input optional, safe and stable, environmental protection and energy-saving, integrated WS2814 external IC and high-quality SMD5050 LEDs are evenly arranged on the PCB, and a single IC controls 3/6 LEDs, which has the advantages of low power consumption and low heat generation.

    2. RGB mixing can produce 16 million colors, compatible with SK6812 RGBW LED controller to produce extra single color (R/G/B/W), which produces purer white than ordinary addressable RGB, matching dream color LED controller like WT-SPI and LC2000B-TY01, with APP/Amazon Alexa/Google Assistant, various control methods.

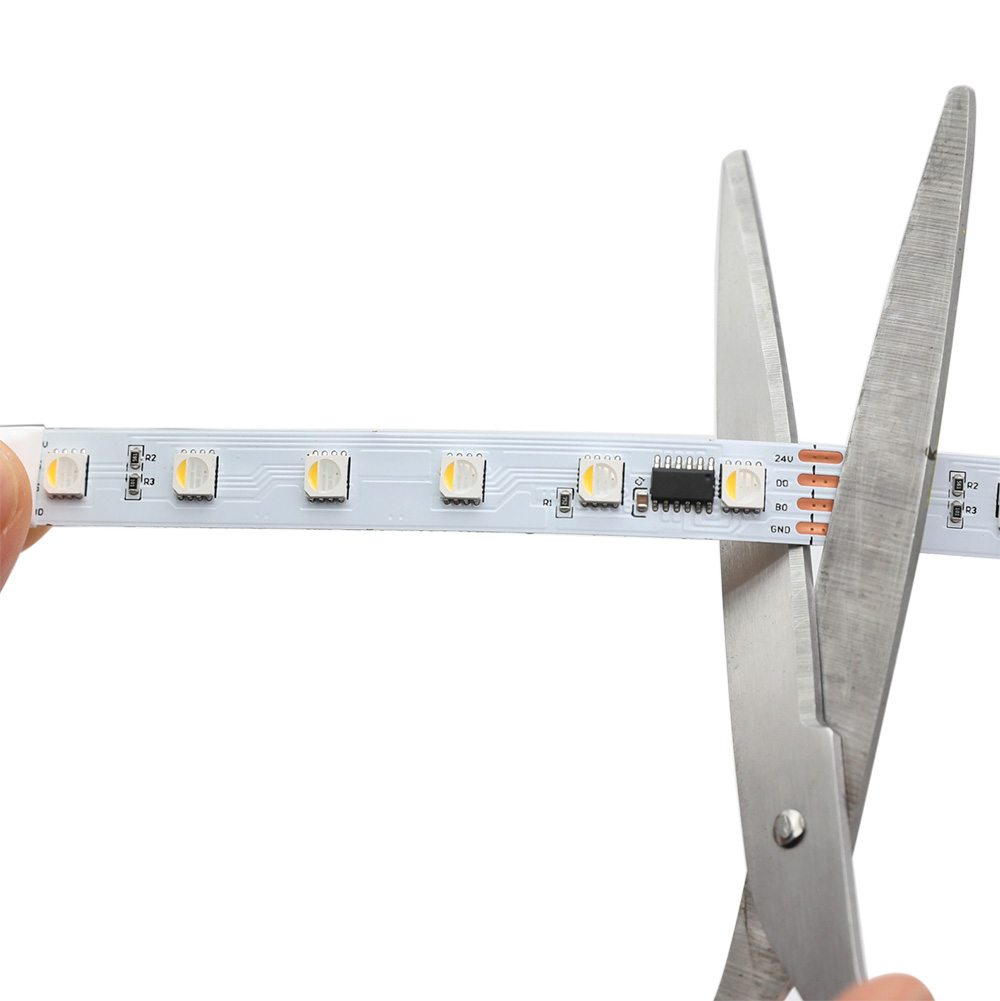

    3. 3 LEDs form a loop, cut along the cuttable line to customize the length of the dream color LED strip light. The LED strip adopts serial cascading mode, which can be cascaded infinitely, 5-7m without voltage drop, more than 7m requires power supply from both ends of the LED strip light.

    4. Dual data lines (DI and BI), one more spare data line than single signal wire digital LED strip light, using breakpoint resumable transmission control method, single pixel damage, will not affect the normal working of other pixels

    5. The flexible FPCB board is used as the substrate, which can be docked, bent, cut and fixed on the uneven surface at will. The back is made of high-quality 3M tape, which is easy to install; the LED externally wrapped silicone sleeve to customize IP67 waterproof, suitable for indoor & outdoor lighting environments.



    Please note: The width of DC12V WS2814 LED strip is 10mm, DC24V LED strip light is 12mm



    Product Feature

    • DC12/24V low-voltage input

    • 18LEDs per foot high density optional

    • 3/6LEDs cuttable

    • Customize length

    • 10 PIN WS2814 external IC

    • SMD5050 high brightness LED

    • IP67 waterproof optional

    • 5-7m without voltage drop

    • RGB+W breakpoint resume LED strip

    • Compitable with SK6812 RGBW LED controller

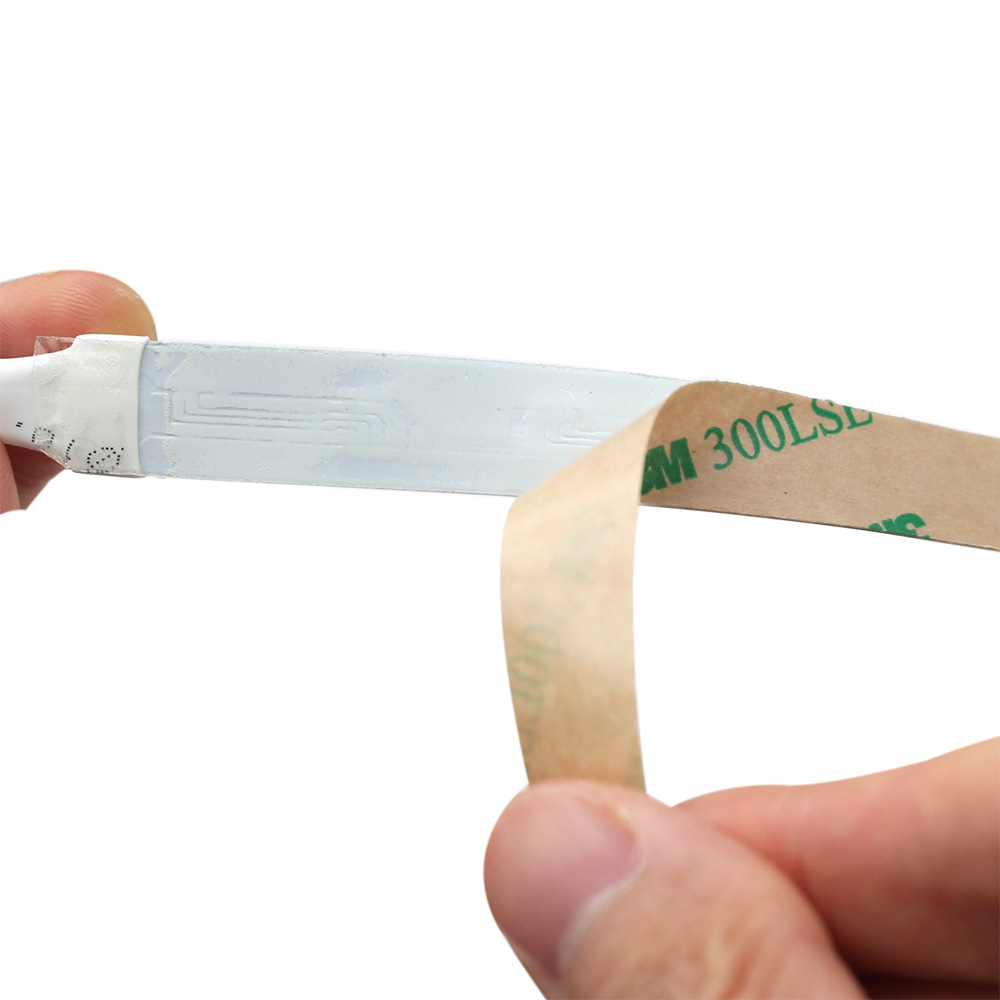

    • 3M tape, easy to install



    WS2814 RGBW LED IC Datasheet Download PDF



    Control principle

    One IC controls 3/6 LEDs to form a loop (a group). The controller controls the circuit in the FPCB through the control IC, thereby controlling the LED light strip to produce 16 million dynamic effects; the change effect of this LED strip light is not limited to the 300 effects built into the controller at present, you can write it yourself according to needs; it can be displayed in the form of a screen, text, pictures, animation, and so on.



    Standards and Certifications

    DC12V CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

    Product Specifications

    Input Voltage:  DC12/24V

    Power:  19.2W/M, 96Watt/16.4Ft

    LED Chip:   WS2814 IC super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    LED Chip Model:  SMD 5050

    IC Model:   WS2814 IC (1 IC drives 3LEDs(DC12V), one IC drives 6LEDs(DC24V))

    Channel:   4 channels(VCC; DAT, BI, GND)

    IC Type:   10PIN external IC

    Q'ty of LED:   18LEDs/Ft, 300LEDs/16.4Ft optional

    Q'ty of IC:   10/20 pixels /Meter

    Cuttable:   3/6LEDs

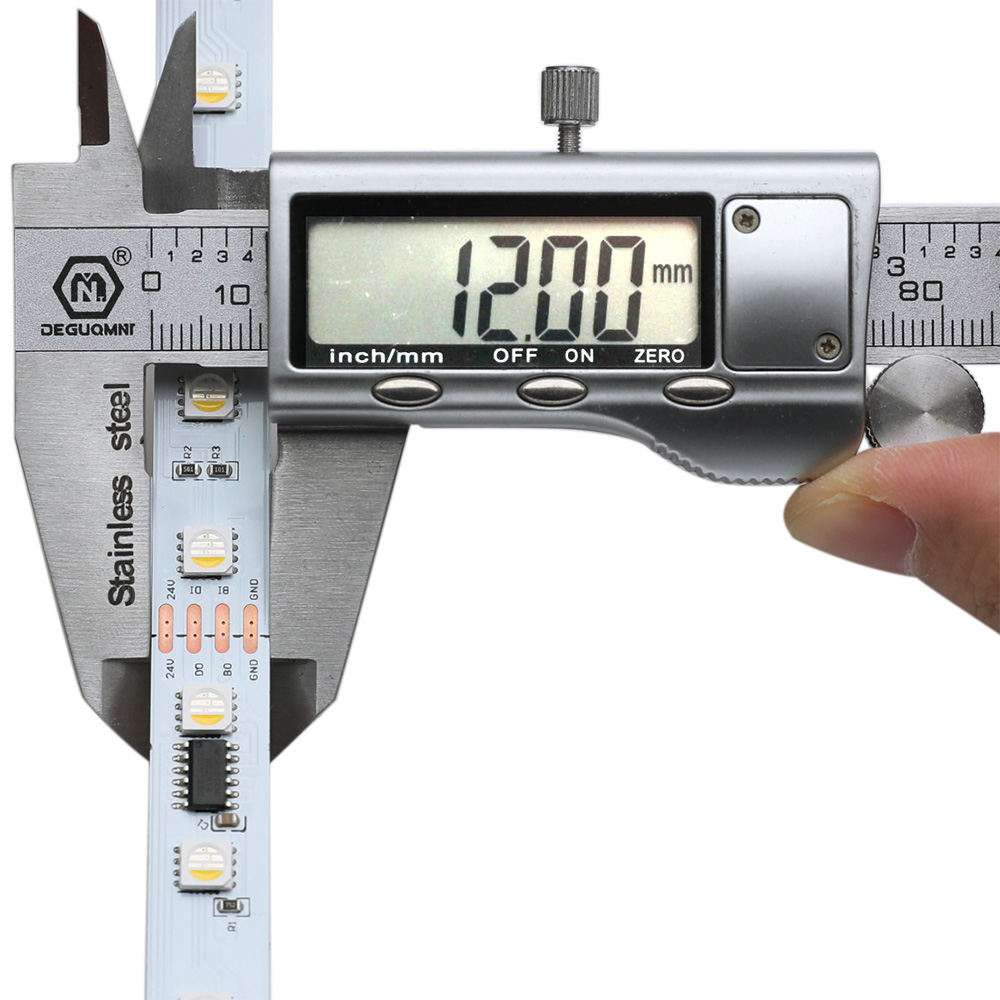

    PCB Width:   12mm/0.47in

    Color Temp(K):   RGBW full color

    FPC Color:   White

    Length:   5m/16.4Ft

    Beam Pattern:   120 degree

    Protection Rate:   Non-waterproof/ IP67 Wateproof

    Grey Scale:   256

    Average Life (hrs):   50000Hours+



    Product List

    1* 5m/16.4Ft WS2814 RGBW LED strip light

    If you choose the LED controller in the kit, we will send you CONFULL-SP107E addressable LED controller.

    You can also choose our waterproof BOX to protect the LED controller.

    If you choose the LED power supply in the kit, we will send you 12V 150W MW UL-Listed IP20 LED power supply or 24V 150W MW UL-Listed IP20 LED power supply(including an AC plug)

    For outdoor environmnt, you can choose our DC12V 120W waterproof LED power supply and DC24V 120W waterproof LED power supply

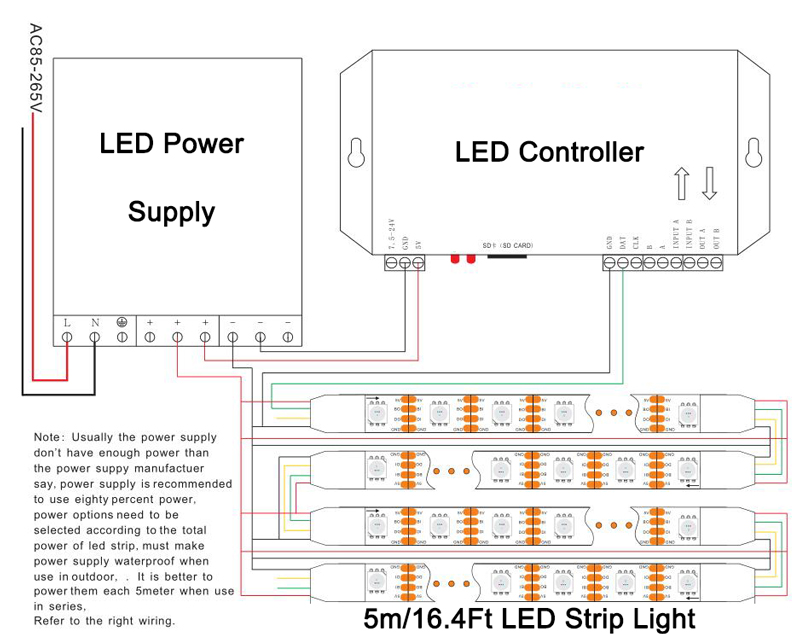

    How to connect the addressable LED strip light to a LED controller

    Breakpoint Resume Series: VCC, DAT, B1, GND(B1 can be connected to the DAT/CLK/GND interface).



    Applications

    These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.

    LED programmable digital screen

    Hotels decoration lighting

    Backlighting decoration

    Concealed lighting, Cove decoration

    led wall, advertising board

    Outdoor advertising signs,

    Hotel, KTV, bars,

    Wedding party lighting,

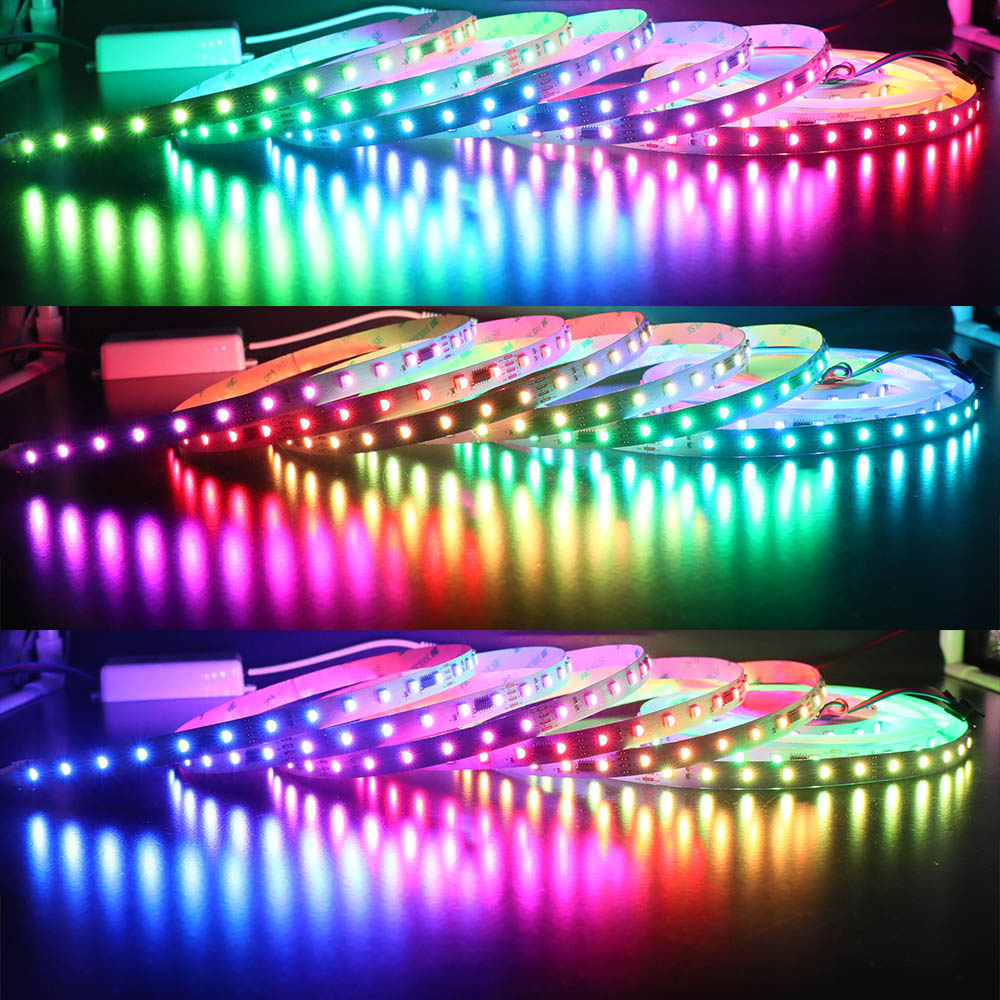

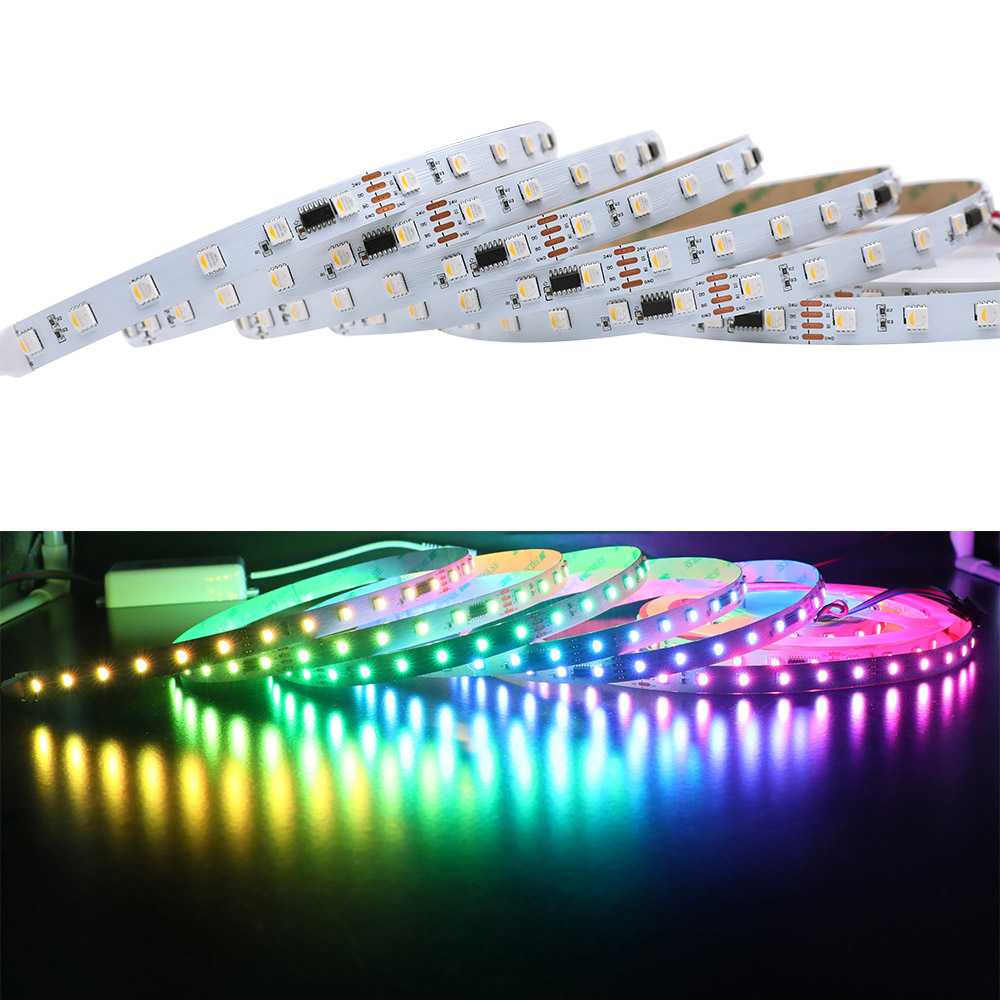

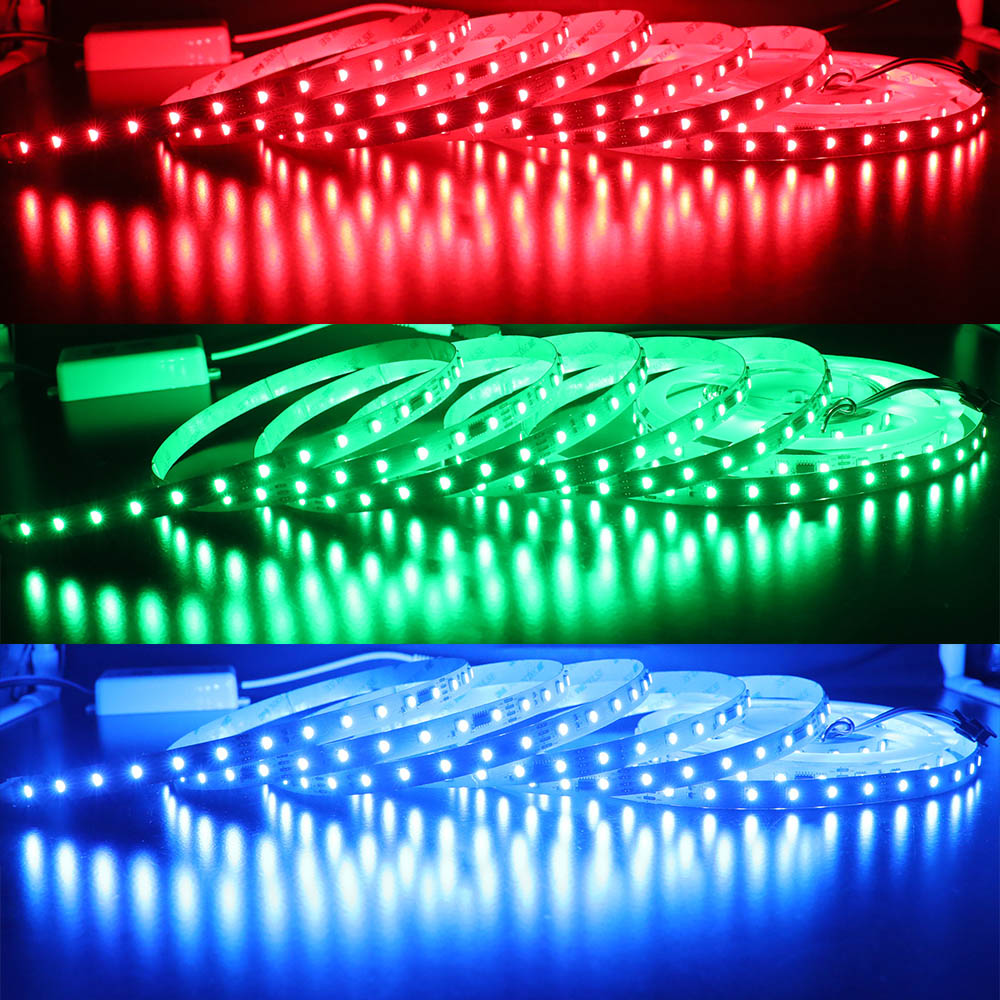

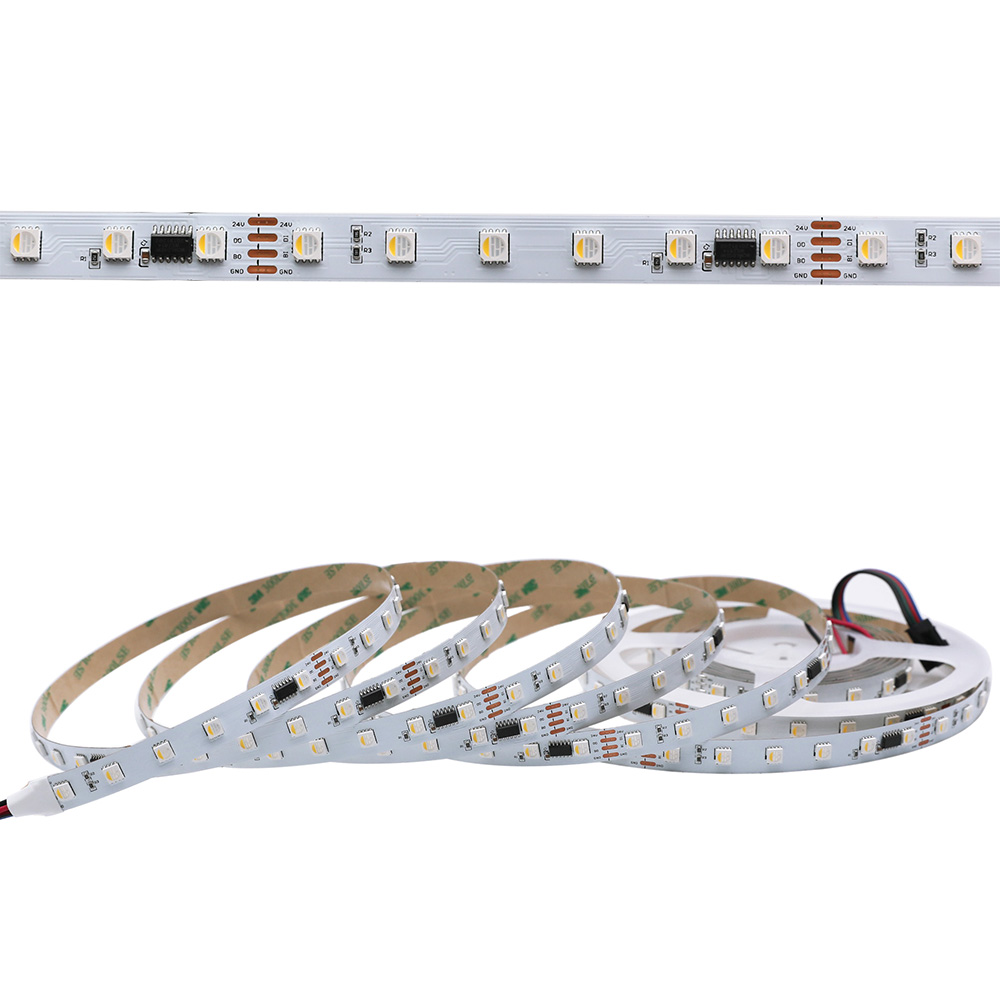

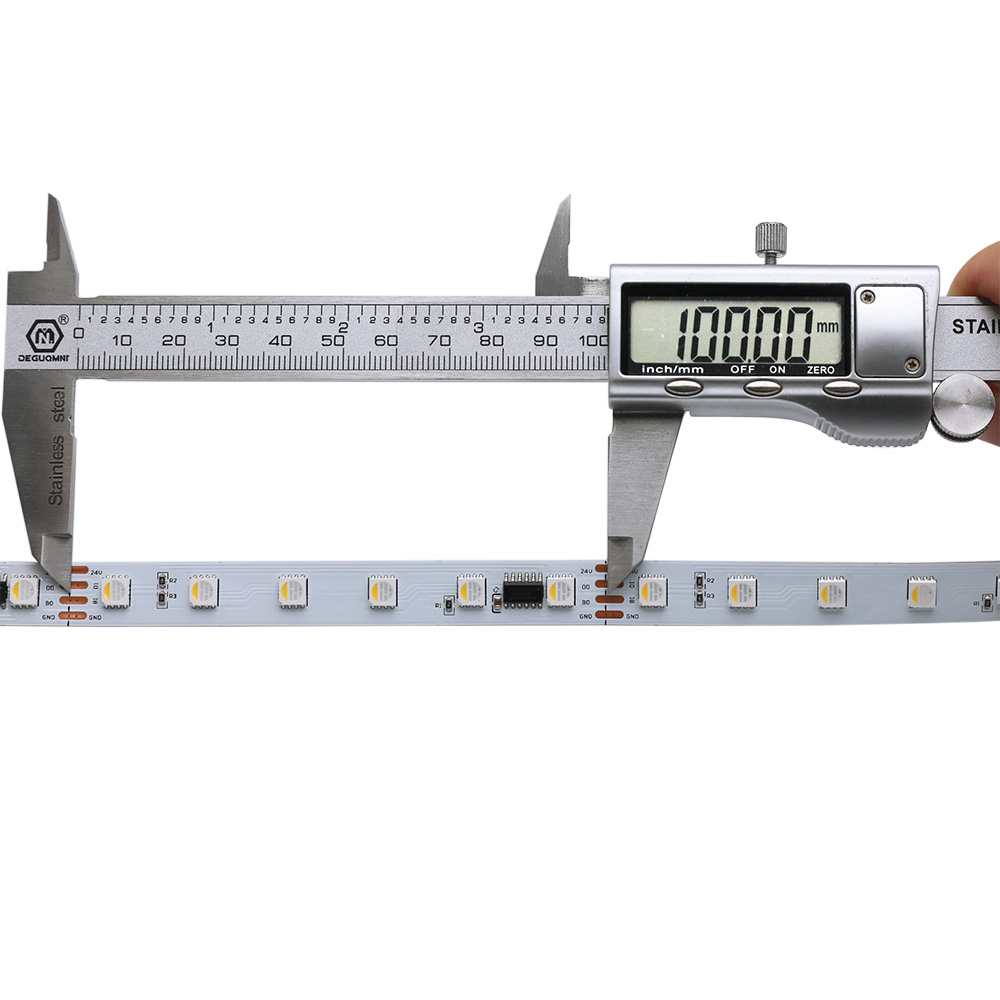

    DC12/24V WS2814 External IC RGBW 16.4Ft 300LEDs Breakpoint Resume Addressable LED Strip Lights

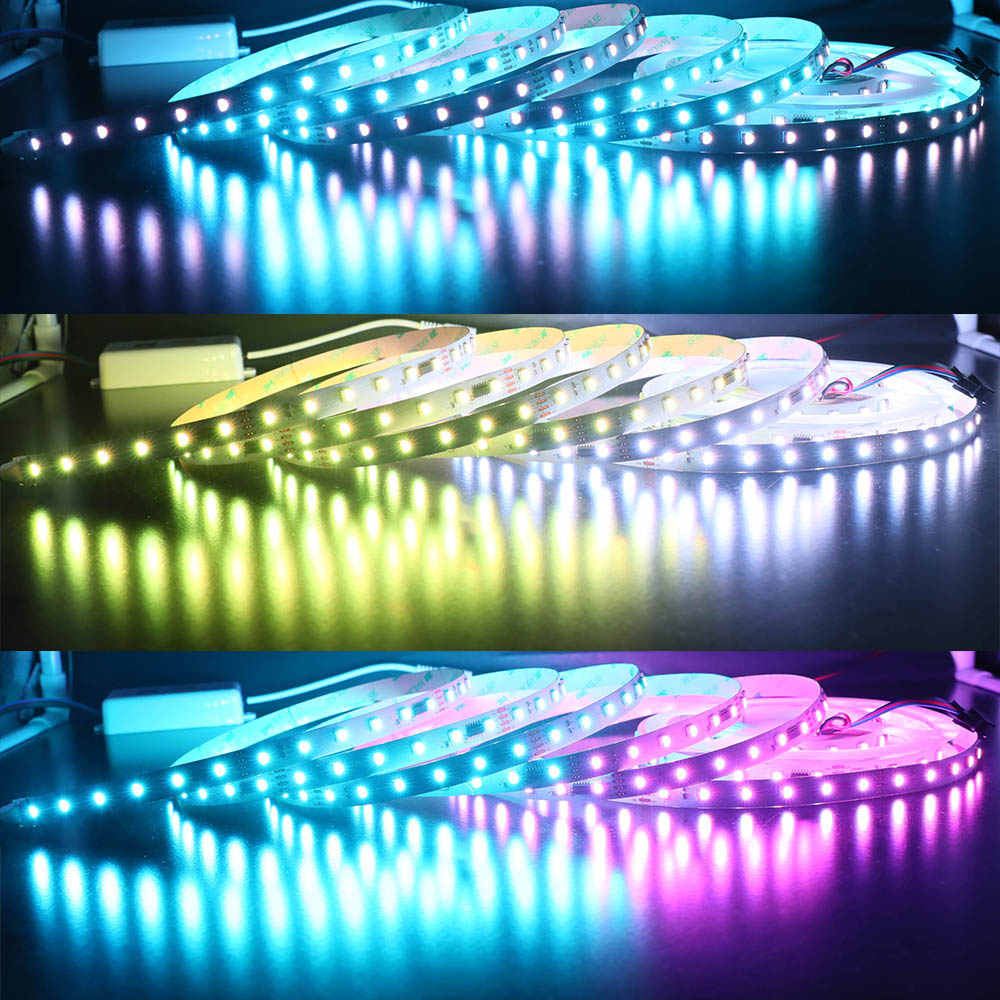

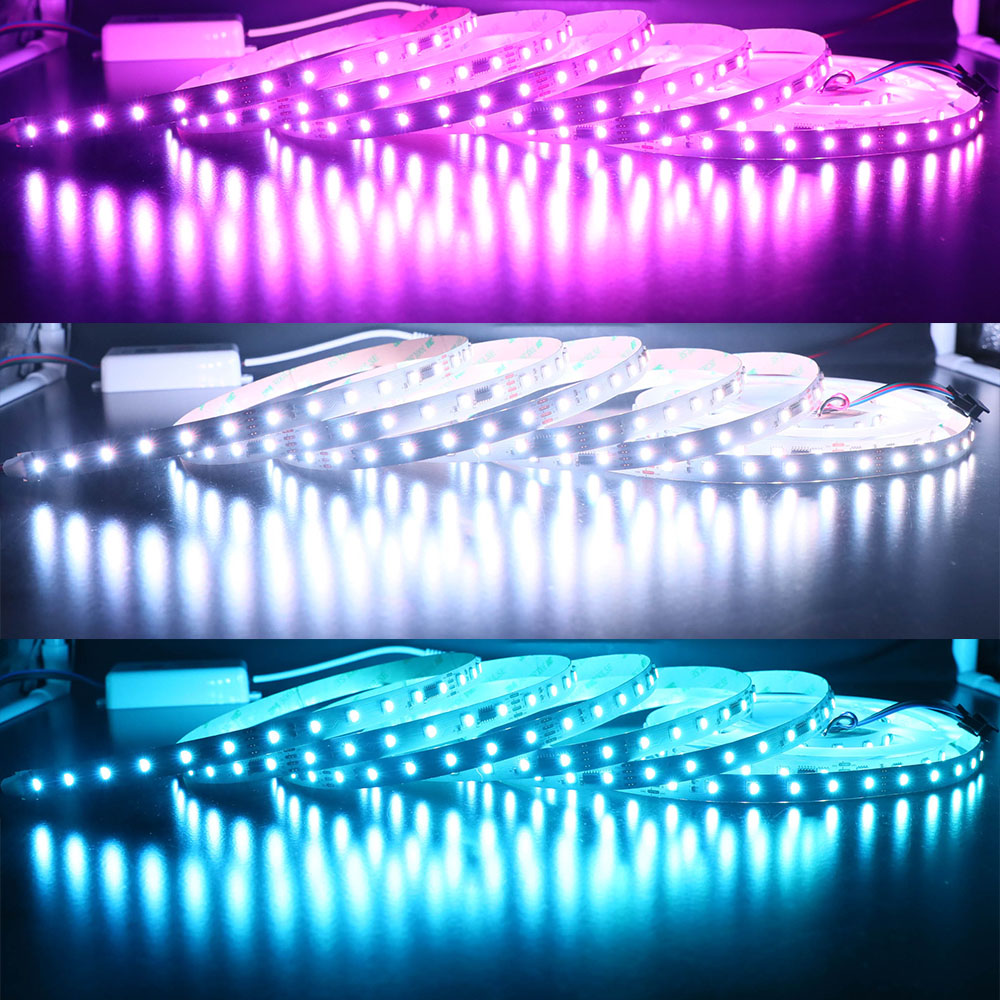

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
