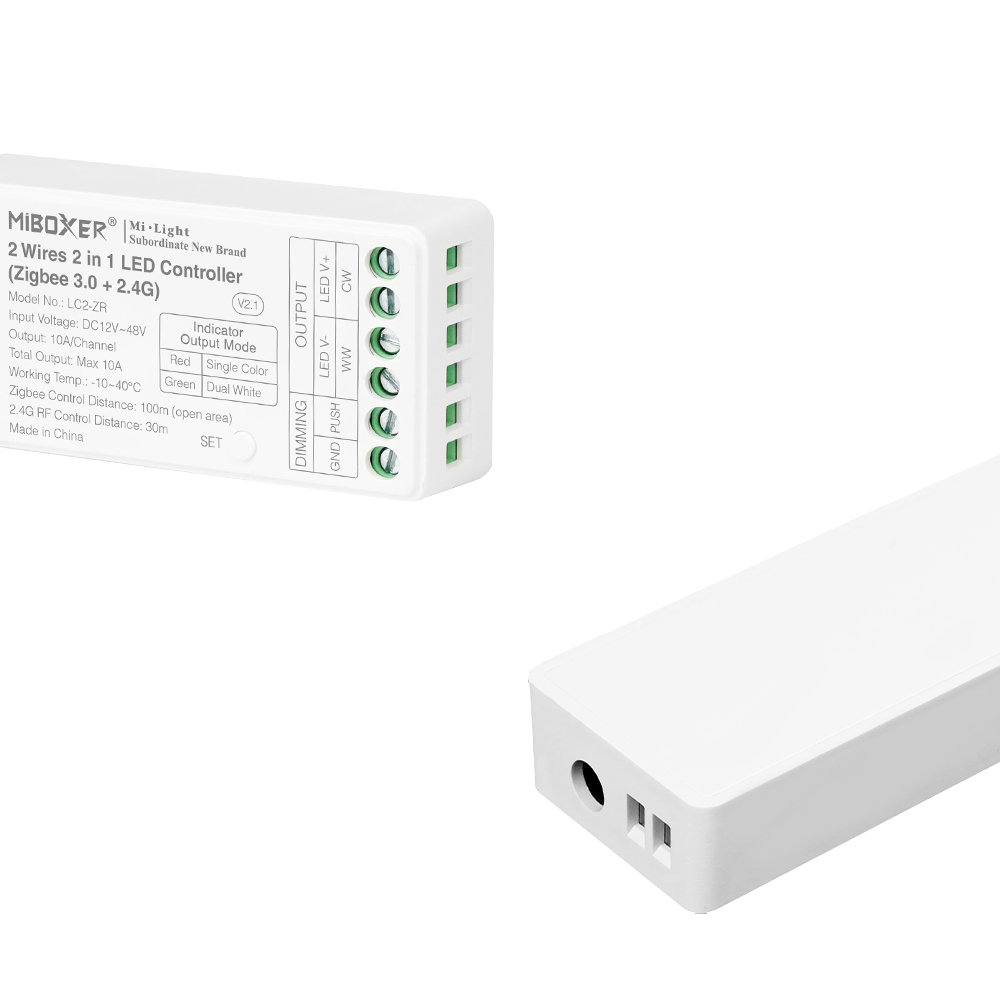

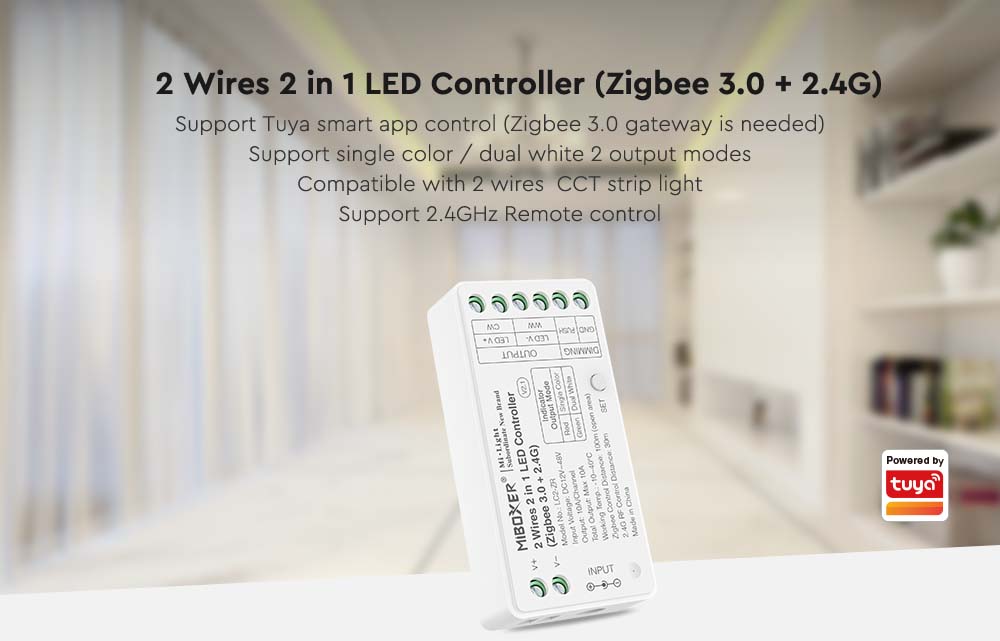

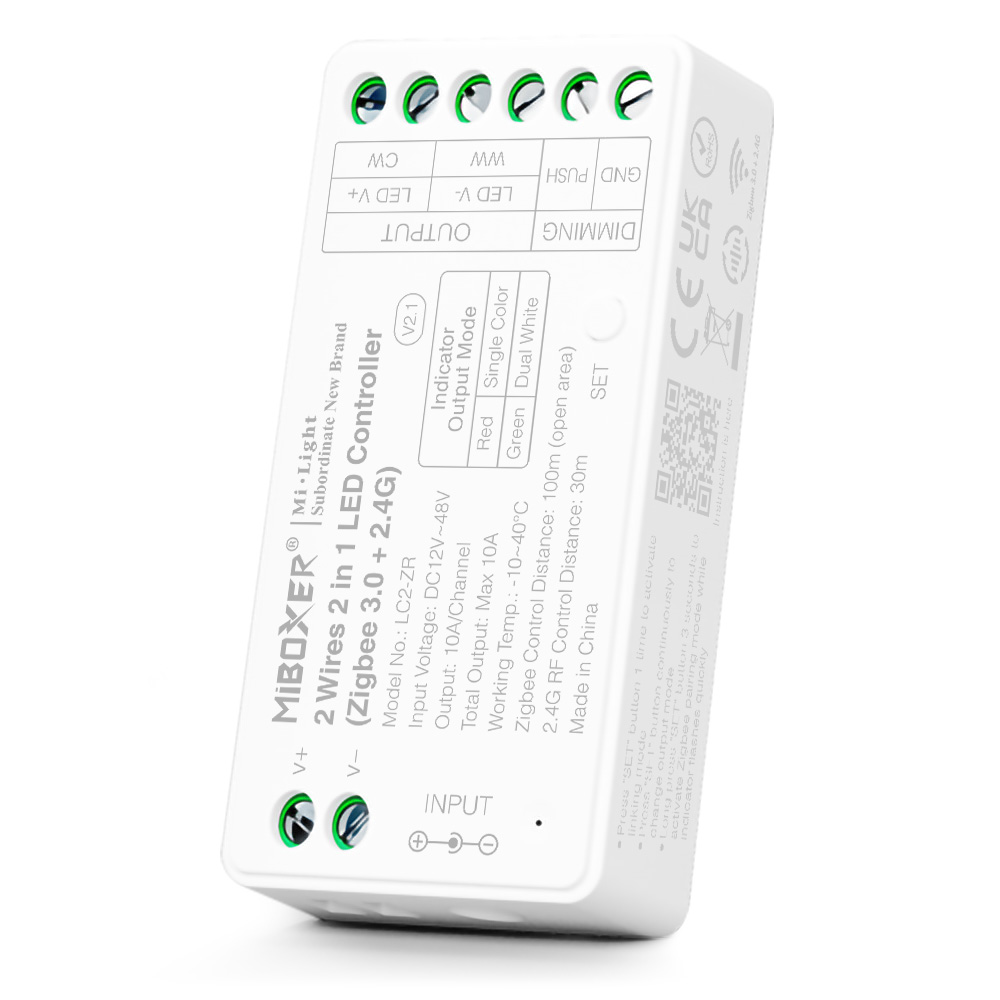

LC2-ZR Tuya 2 Wires 2 in 1 Tunable White LED Controller - Zigbee 3.0+2.4G
This CCT 2wires 2in1 LED controller is used for single color/CCT LED strip lights, which supports zigbee 3.0 standard protocol, third-party voice control, smart APP control, working with Zigbee Box, 2.4GHz remote control, available group seeting and timer function.
• Compatible with 2 wires CCT strip light
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)

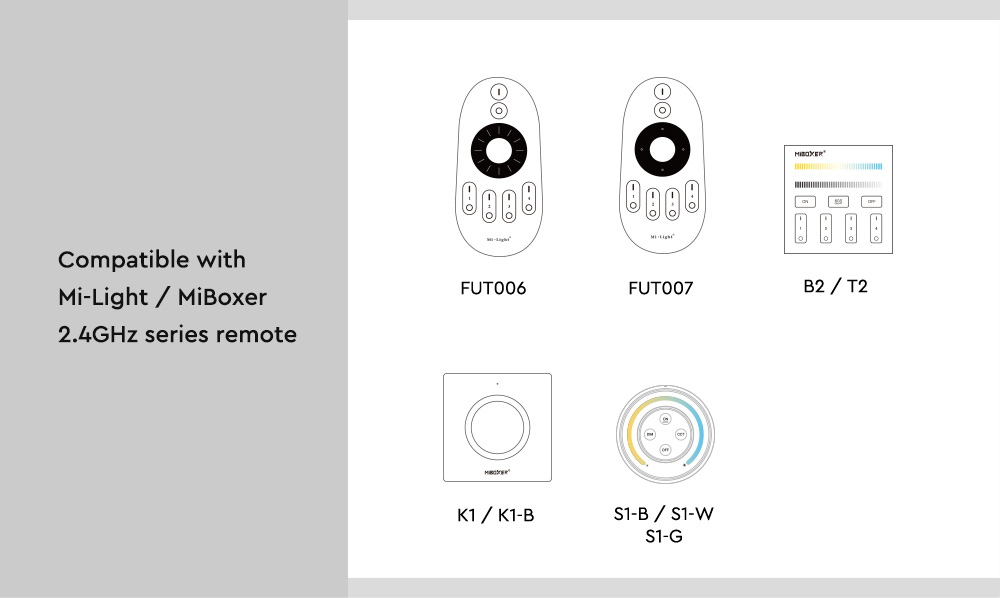

• Compatible with Mi-Light / MiBoxer 2.4GHz series remote

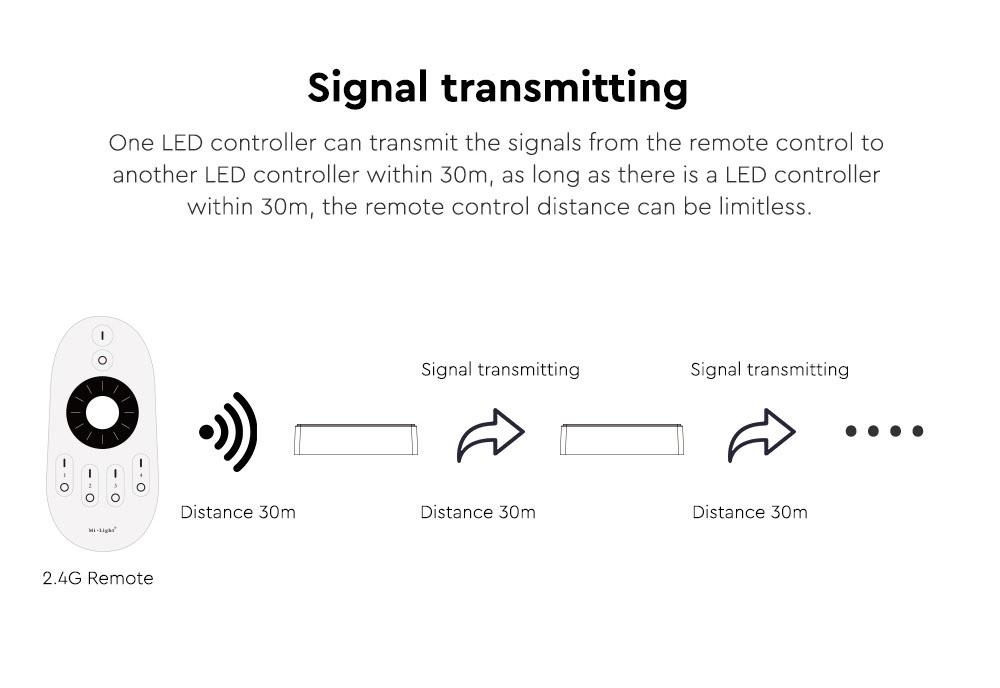

• 2.4G RF Remote Control Distance: 30m
• Brightness and color temperature adjustable

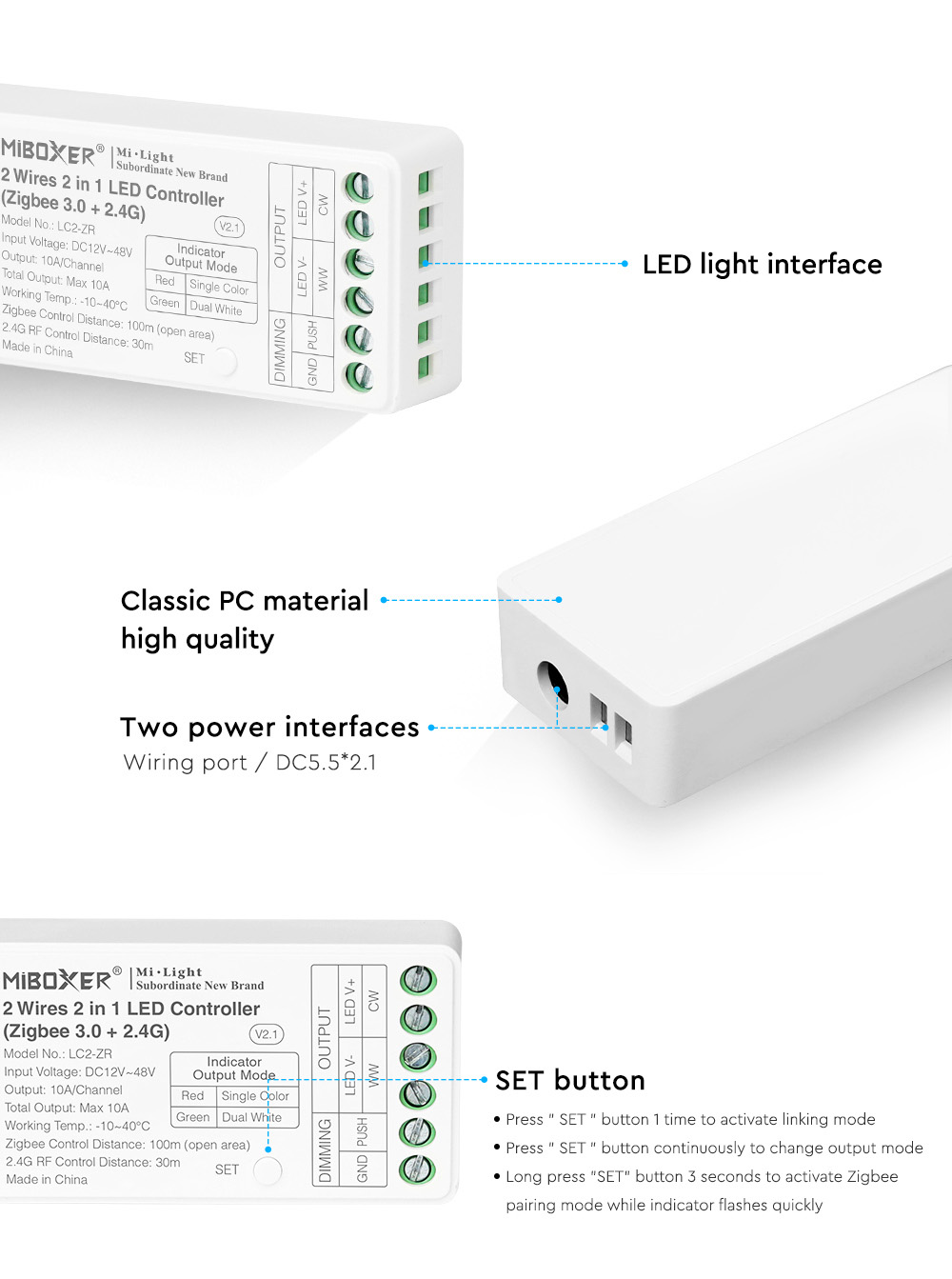

• Switching 2 output mode via one button (Single color / Dual white)
Product Name: 2 Wires 2 in 1 LED Controller (Zigbee 3.0+ 2.4G)
Model No.: LC2-ZR
Working Voltage: DC12~48V
Total Output: Max 10A
Work Temperature: -10~40℃
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Zigbee Control Distance: 100m (open area)
2.4G RF Remote Control Distance: 30m
