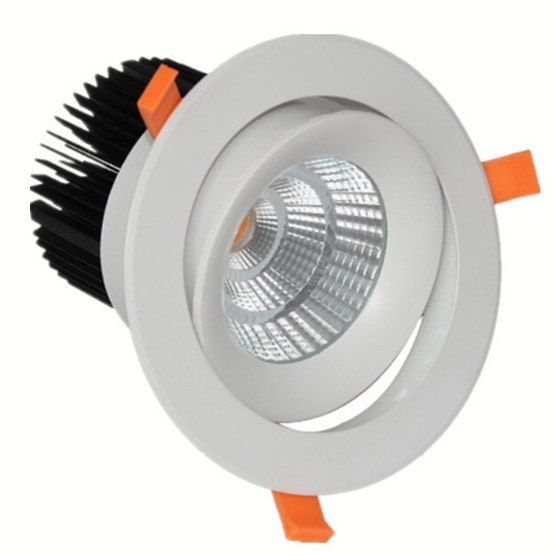

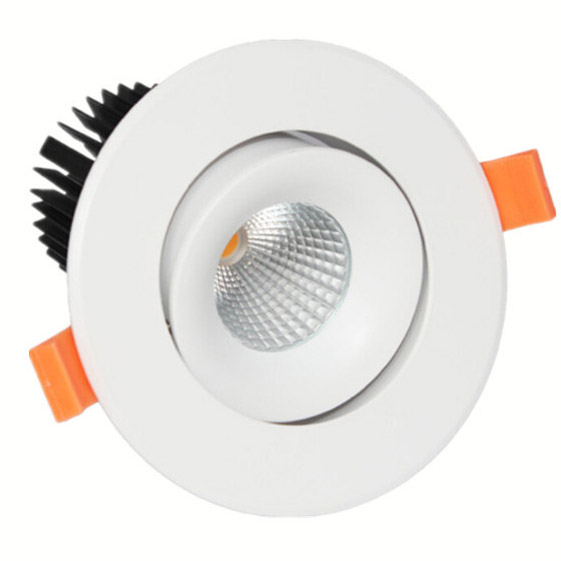

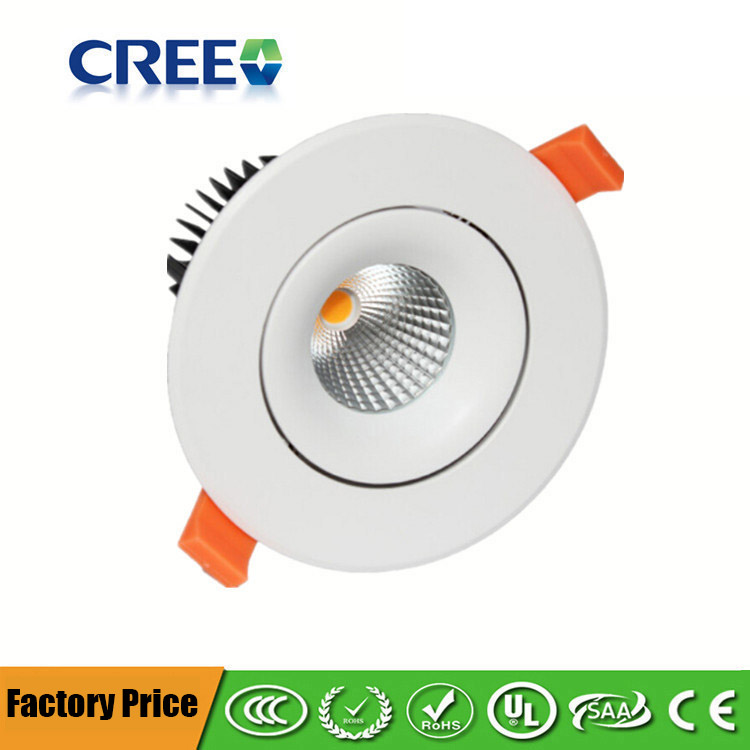

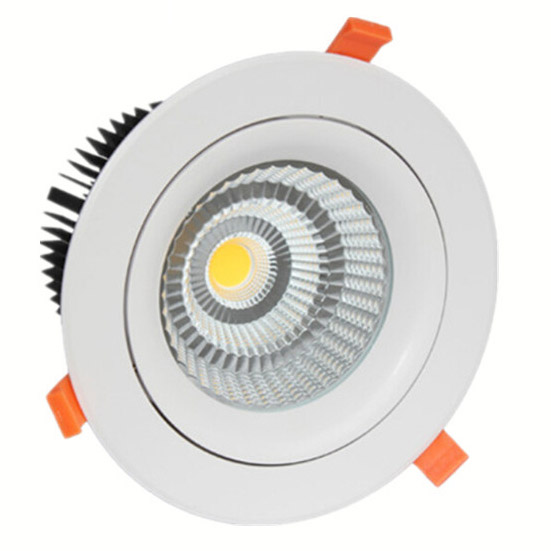

3.54in 20W, 4.33in 30W LED COB Ceiling Light - Flush Mount LED Downlight-1600LM-24/60°Light speed angle
Photoelectric technology parameters:
LED light source: CREE COB
Color temperature: 2700k/3000k/3500k/4000k/5000k/5700k
Voltage: AC 85~265V 50/60Hz
Power factor: >0.9
Luminous flux: 1600 lm ± 5%
Color temperature: 3000K/ 4000K,/5700K
Color rendering index: >80 or >90Ra
Light speed angle: 24°/60°
Certification: CE, ROHS
IP rating: IP42
20W: Surface diameter: Φ119mm/4.69"*High103mm/4.06" Opening Hole: Φ90mm/3.54"
30W: Surface diameter: Φ142mm/5.59"*High118mm/4.65" Opening Hole: Φ110mm/4.33"
This LED downlights support AC Triac dimming, please use our Triac dimmer controller
Imported LED COB Celling lights source.
Installation method: embedded, spring bracket fixed.
High color rendering index, strong color reproduction, suitable for high-end commercial lighting applications.
Light speed angle: 24°60°
Materials and processes
Lamp body: LED COB Downlight is extruded with aluminum anodizing to make the heat dissipation better.
Adopting the original imported light source from the United States, the specific brightness is high, LED COB Downlight decay is small, the current margin is large, and the quality is guaranteed.
Commodity display, commercial lighting, such as car display, jewelry display, brand clothing display and star hotel, high-end club, cultural relics exhibition hall, chain dealer, Key lighting, wall-washing lighting, and ambient lighting for leisure and entertainment venues, such as venues, brand offices, boutique windows and walls.
