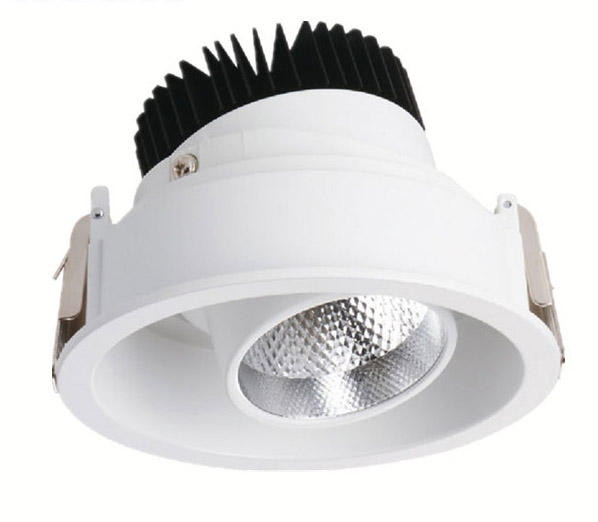

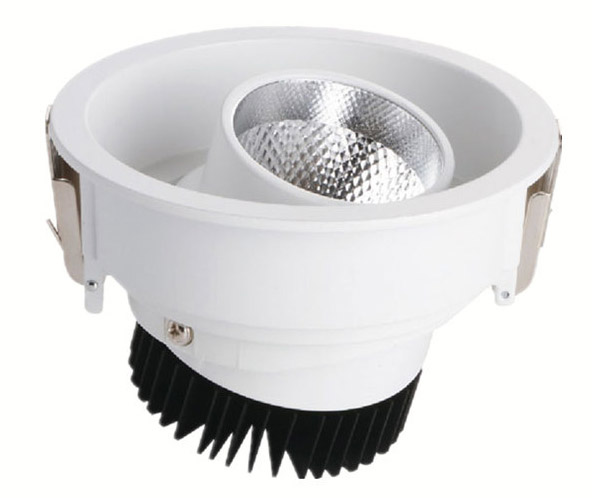

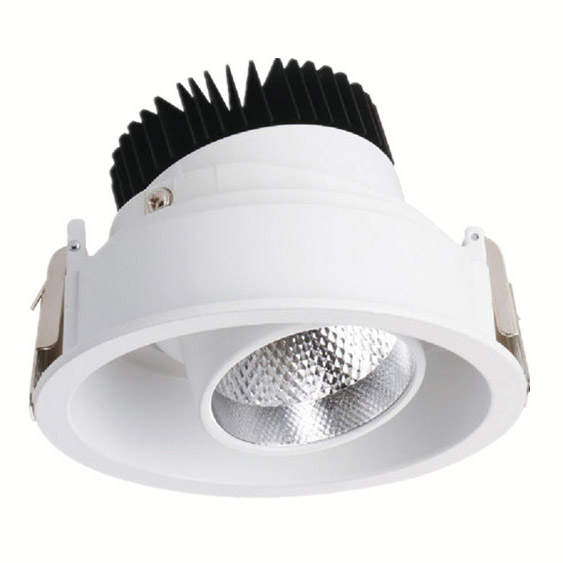

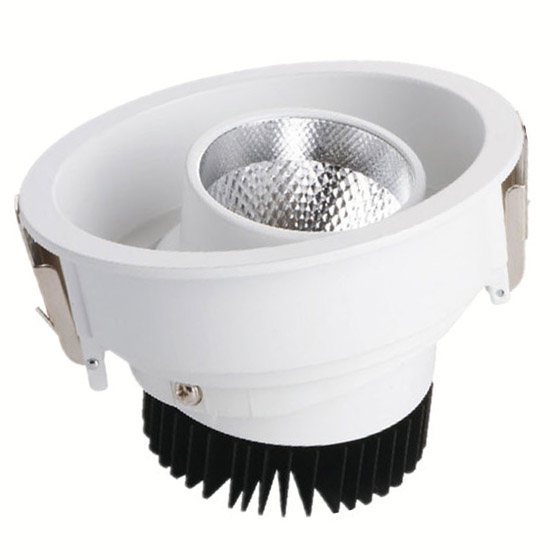

4.5in 12/18W, 5.71in 30WLED COB Ceiling Light - Flush Mount LED Downlight-1600LM-24°Light speed angle
Photoelectric technology parameters:
LED light source: COB CREE
Color temperature: 3000k/4000k/5700k
Voltage: AC 85~265V 50/60Hz
Power factor: >0.9
Luminous flux: 1600 lm ± 5%
Color temperature: 3000K, 4000K, 5700K
Color rendering index: >80 or >90Ra
Light speed angle: 24°
Certification: CE, ROHS
IP rating: IP42
This LED downlights support AC Triac dimming, please use our Triac dimmer controller
Power: 12W Surface diameter: Φ125mm/4.92" Opening Hole: Φ115mm/4.53"
Power: 18W Surface diameter: Φ125mm/4.92" Opening Hole: Φ115mm/4.53"
Power: 30W Surface diameter: Φ155mm/6.1" Opening Hole: Φ145mm/5.71"
Imported American CREE LED COB Downlights source.
Installation method: embedded, spring bracket fixed.
High color rendering index, strong color reproduction, suitable for high-end commercial lighting applications.
Light speed angle: 24°
LED COB Downlights have passed the CE certification and RoHS certification.
Materials and processes
Lamp body: LED COB Celling light is extruded with aluminum anodizing to make the heat dissipation better.
Adopting the original imported light source from the United States, the specific brightness is high, LED COB Celling light decay is small, the current margin is large, and the quality is guaranteed.
Commodity display, commercial lighting, such as car display, jewelry display, brand clothing display and star-rated hotels, high-end clubs, cultural relics, chain stores, brand business halls, boutique windows, walls and other key lighting, wall washing and leisure Atmosphere lighting in entertainment venues.
