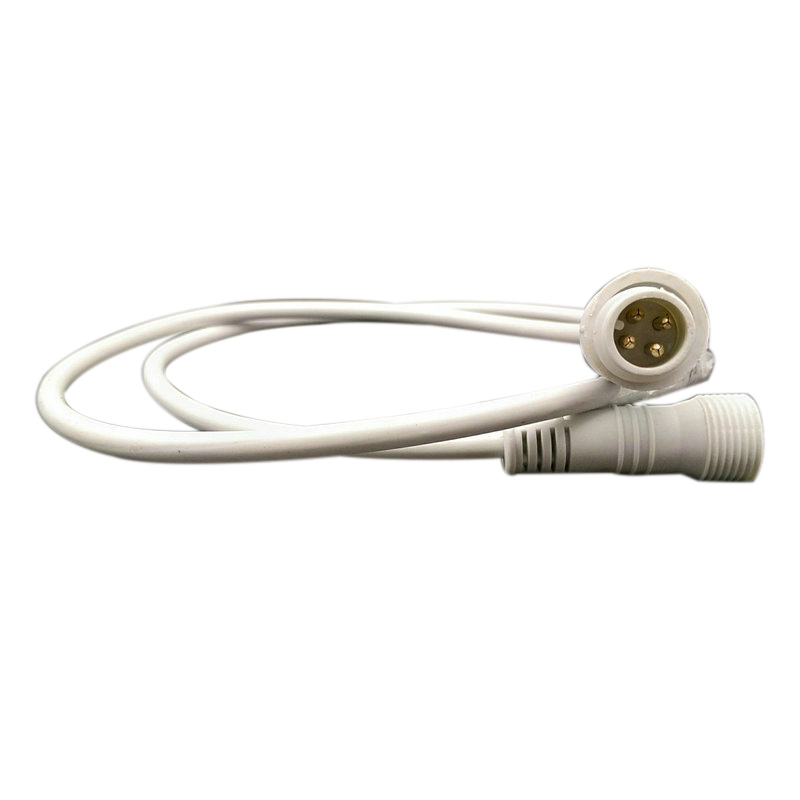

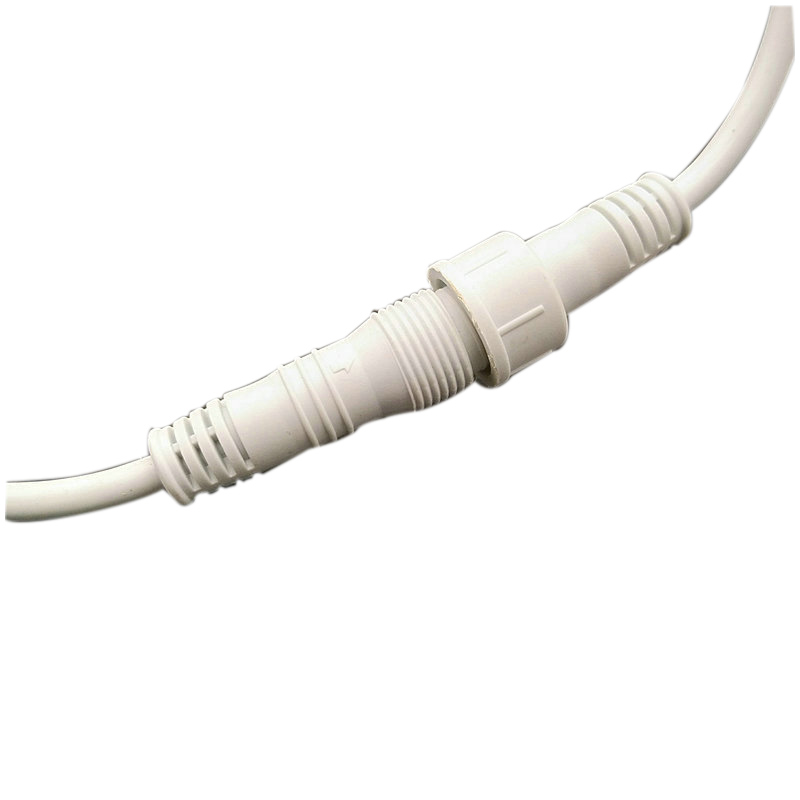

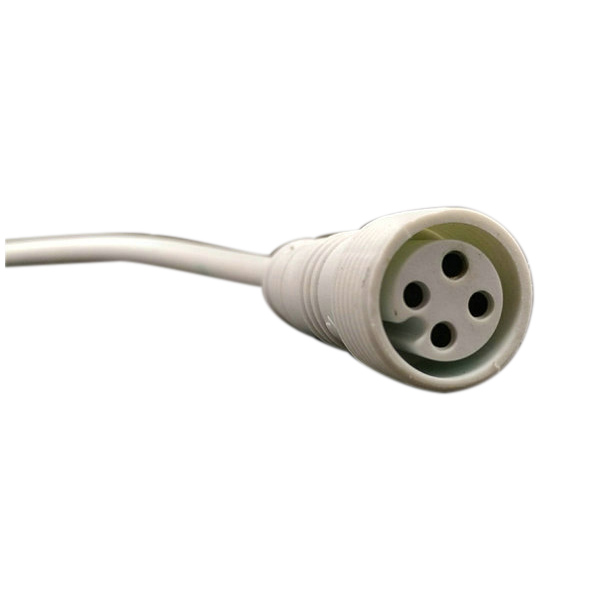

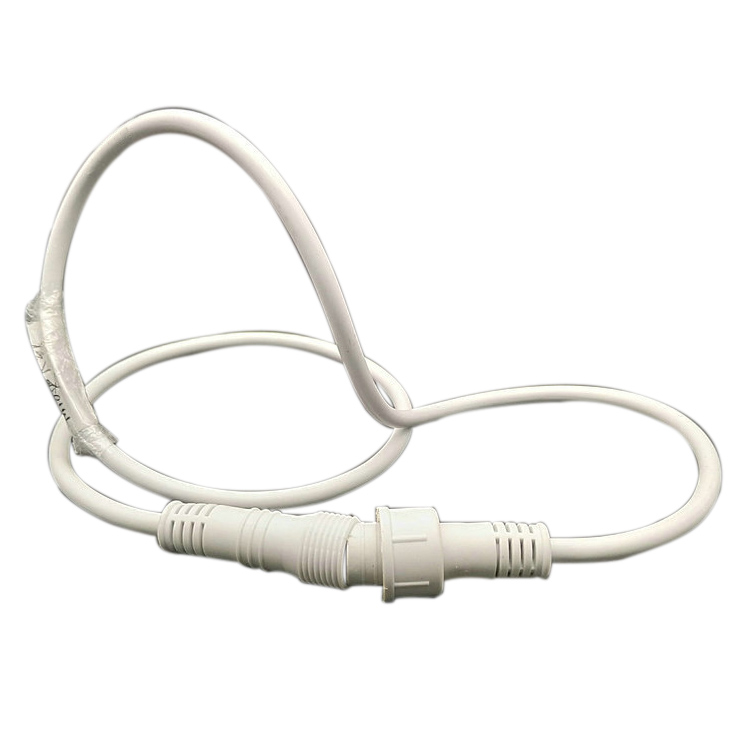

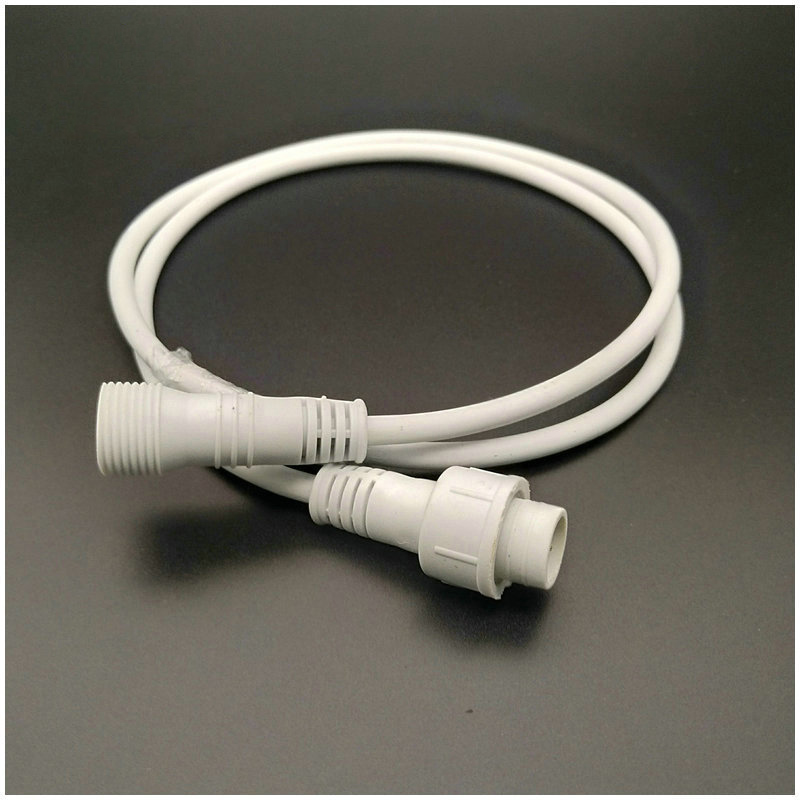

4PIN M18 Transparent Waterproof Male And Female Plug Terminal Connector
Connector Type: Wire to wire
Working Frequency: high frequency
Interface Type: AC/DC
Line length: 160 (mm)
Line material: copper
Insulator material: PVC
Core Quantity: 5
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
