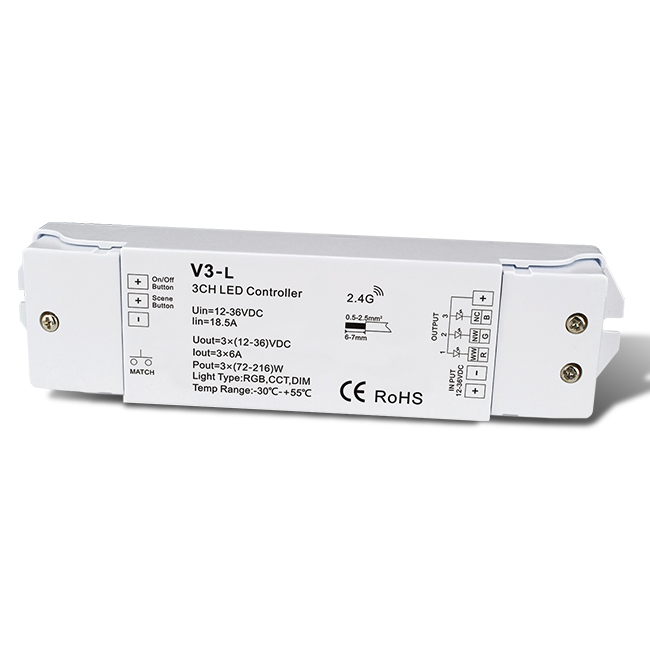

3CH 6A Constant Voltage RF 2.4G RGB controller CCT Receiver V3-L For make an led strip light
The product default as RGB controller,need match remoter, create colorful static or dynamic effect.
The product can also be used as color temperature or dimmer controller, good compatibility.

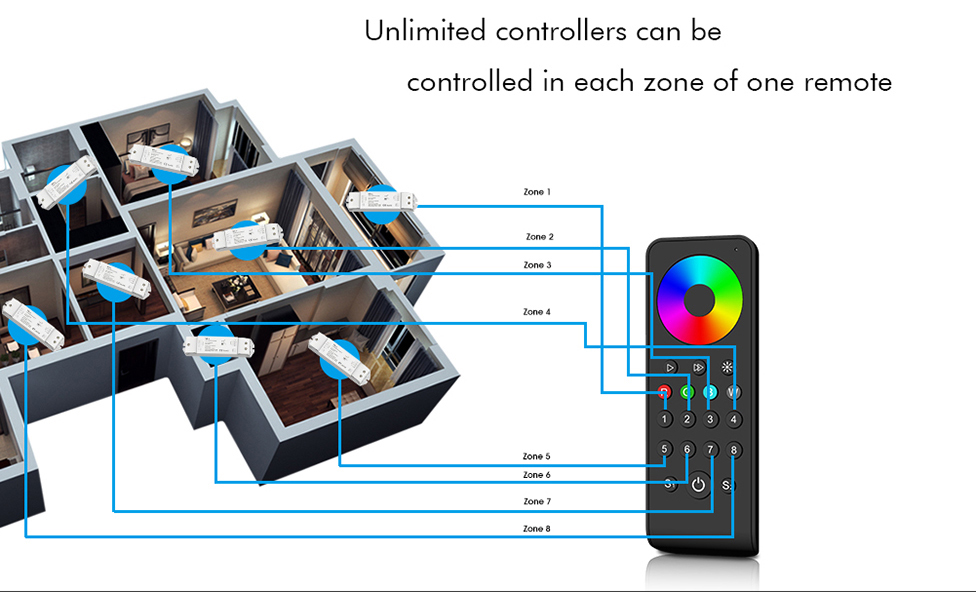

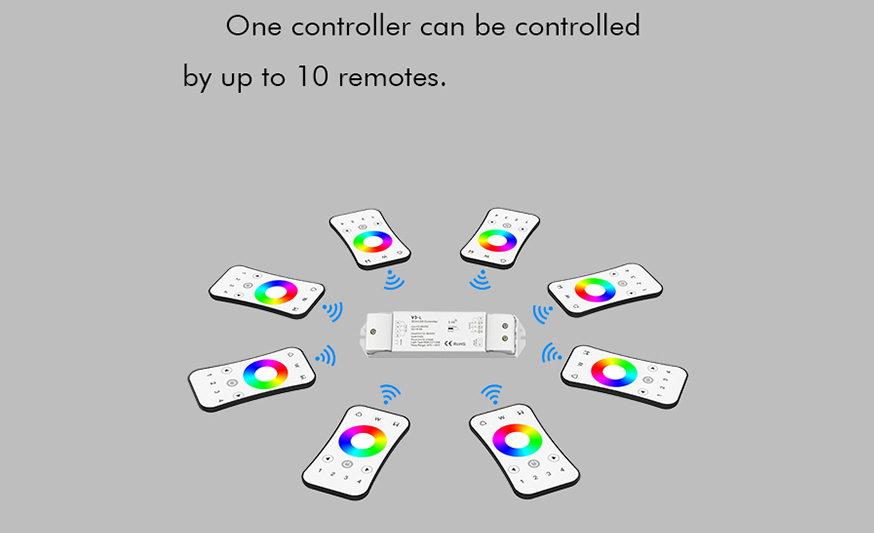

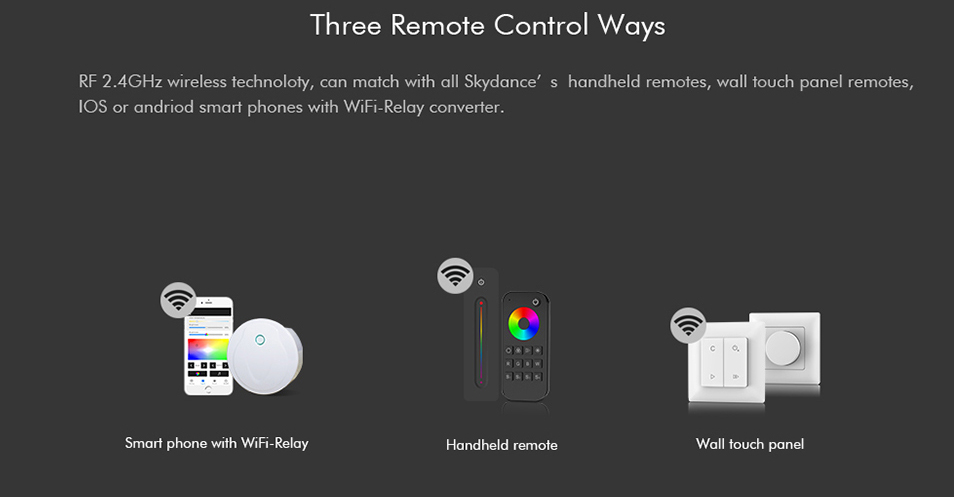

Adopt 2.4GHz wireless technology,can accept up to 10 remoter control. Can connect with external switches to achieve on/off and scene change function.

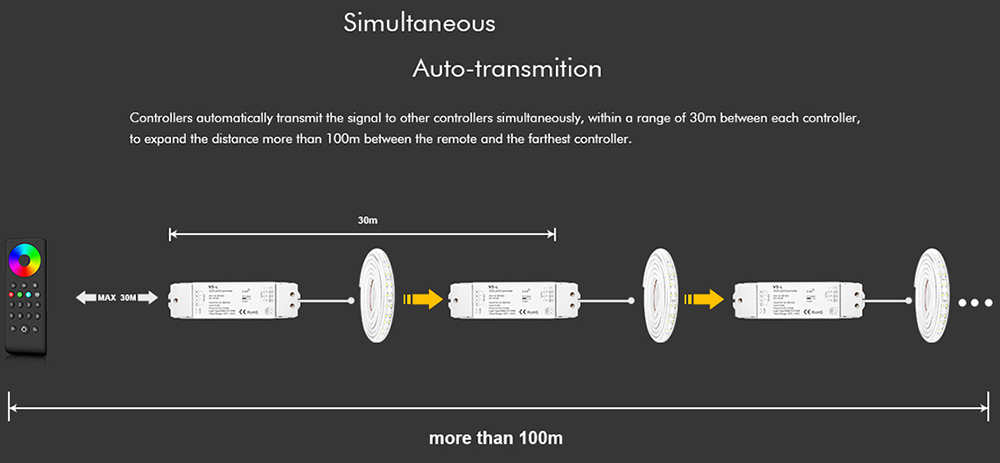

When control RGB lamp,Built in 10 change mode optional. Work with power repeater to expand output unlimitedly.
PWM achieve 4096 levels flicker-less dimming.
Standards and Certifications
Input voltage: 12-36VDC
Output type: PWM constant voltage
Output current: 3CH, 6A/CH
Output power: 90-648W
Grey levels: 4096/CH
Dimming range: 0-100%
Remote distance: 20-40m
Working temperature: -30℃~55℃

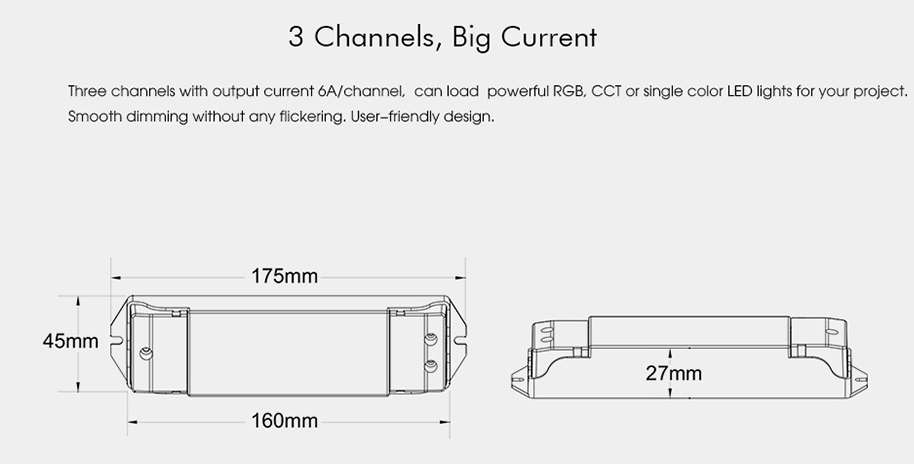

Product size: L175×W45×H27mm
Net weight: 110g
