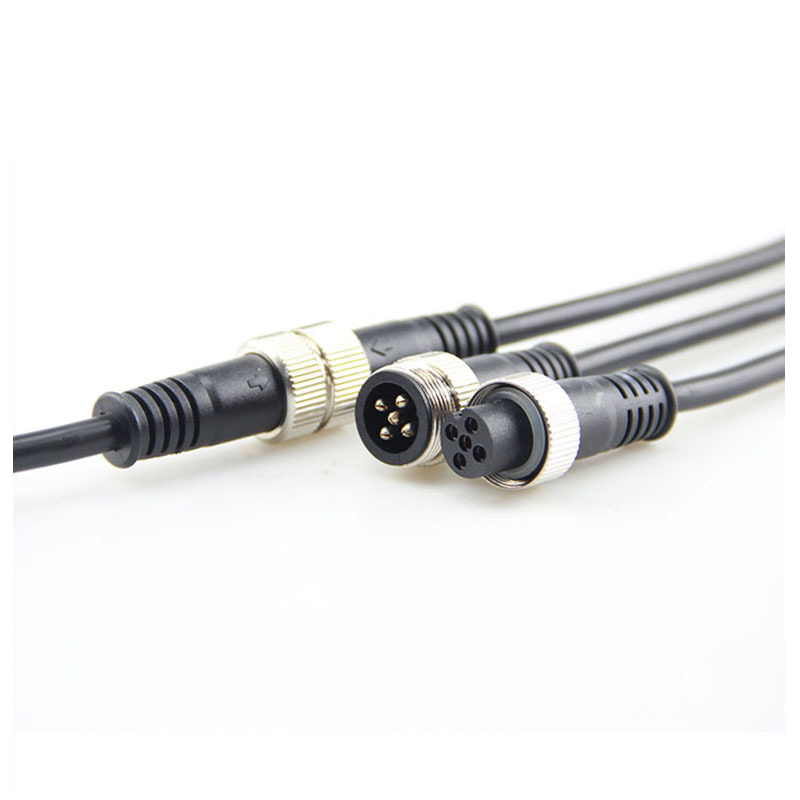

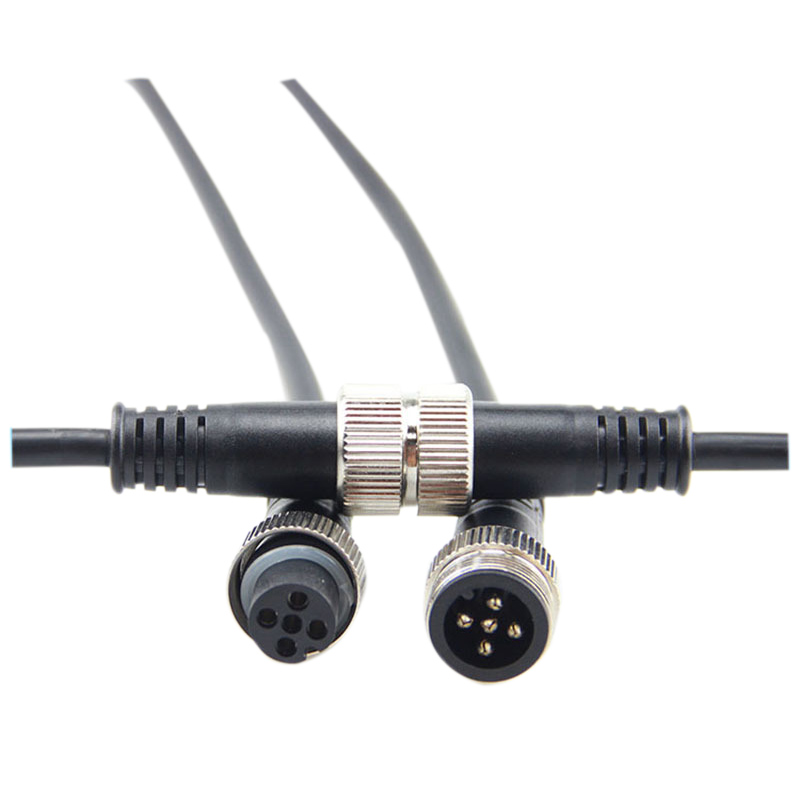

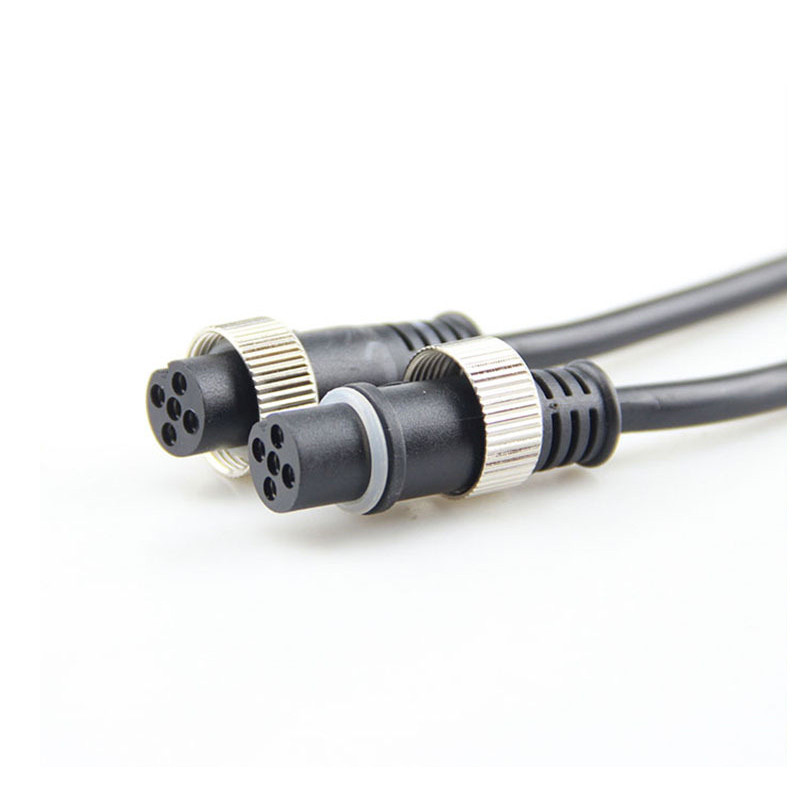

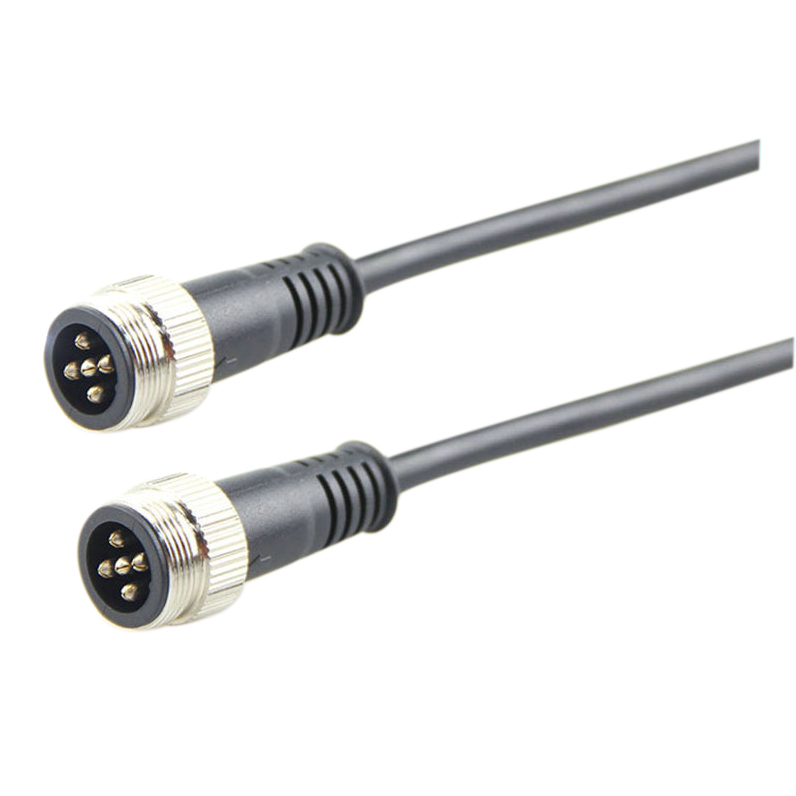

5PIN Transparent Waterproof Male And Female Plug Connector
Working Temperature: -20-90°C
Product Type: socket, stamping, injection molding after terminal.
Product Features: Waterproof, Moisture-proof, Sun-proof, Corrosion-proof, Flame-retardant, Cold-resistant, Environmentally Friendly
Type: Waterproof male and female plug. Waterproof connector. Waterproof T-type
Color: black, white, transparent, or other colors
Wire Core: single core or multiple cores.
Line Length: 240mm(default choice)can be customized according to customer requirements
Protection Level: IP67-IP68
Wire Material: PVC, Rubber, Nylon
Connect Type: Wire to wire
Working Frequency: high frequency
Interface Type: AC/DC
Insulator material: PVC
Core Quantity: 5
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
