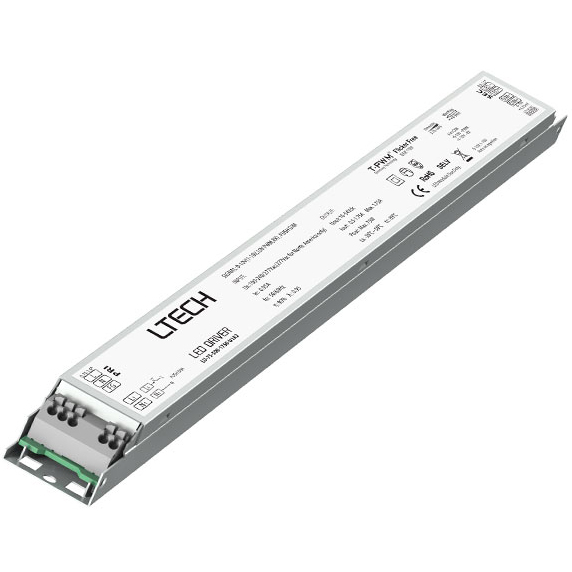

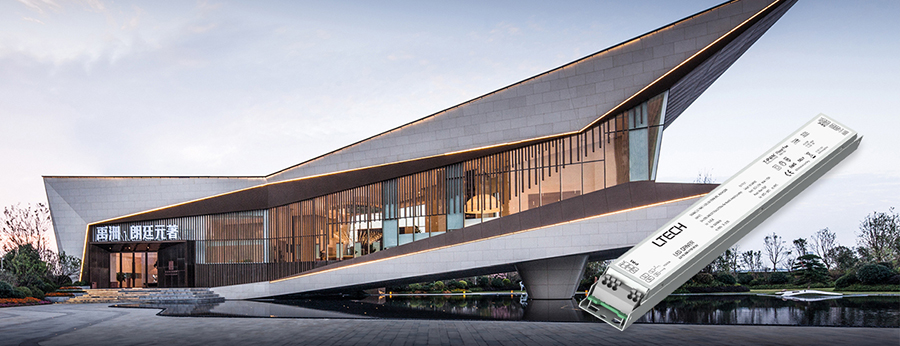

75W 500-1750mA CC 0-10V Programmable Driver LU-75-500-1750-U1A2

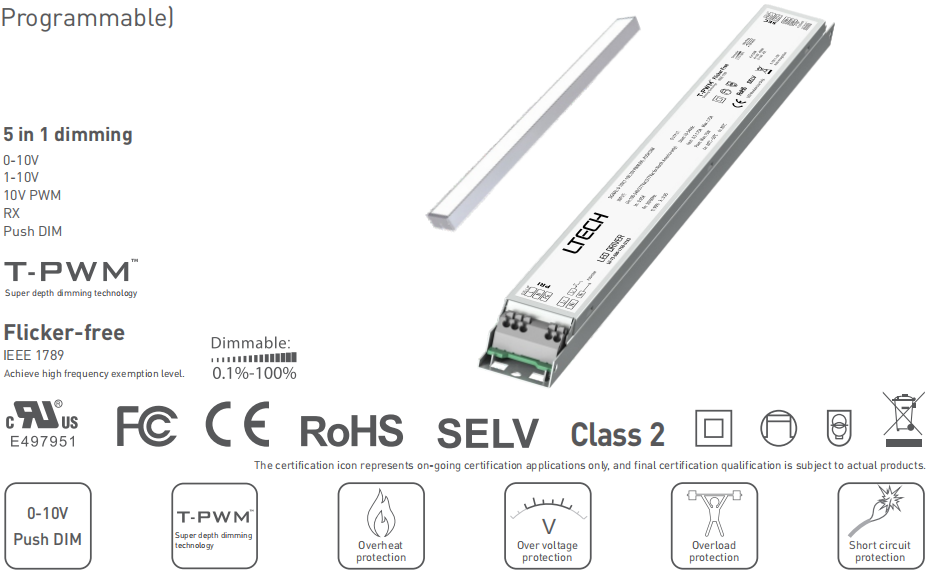

Intelligent LED Driver (Constant Current & Programmable)

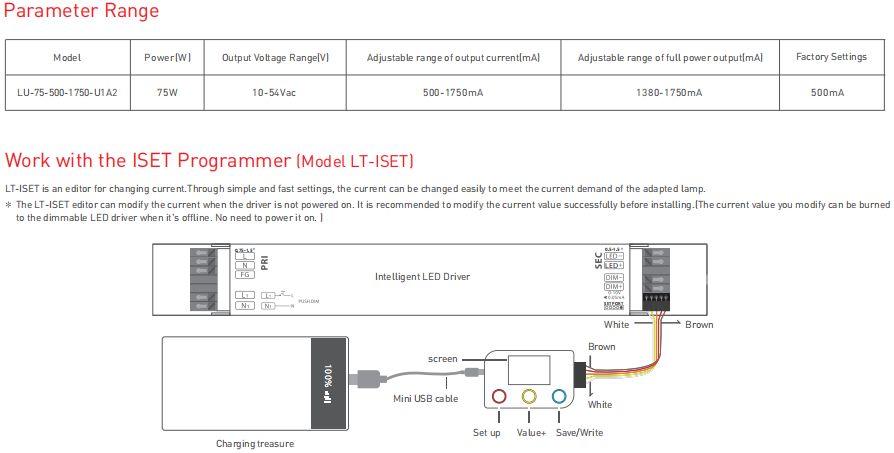

The output programming is adjustable and the output voltage is automatically adapted.
With soft-on and fade-in dimming function enhancing visual comfort.

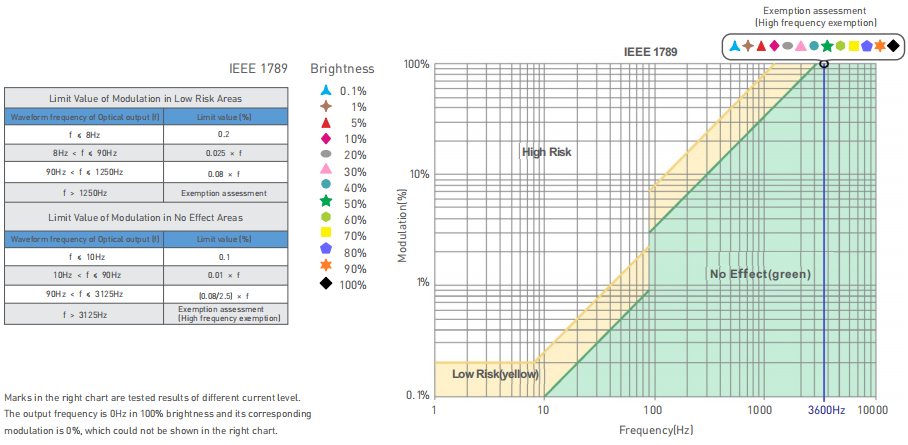

T-PWM™ dimming technology allows continuous and flicker-free images under high-speed shooting.
0-100% flicker-free dimming with a high-frequency exemption level.
Dimming from 0~100%, down to 0.1%.

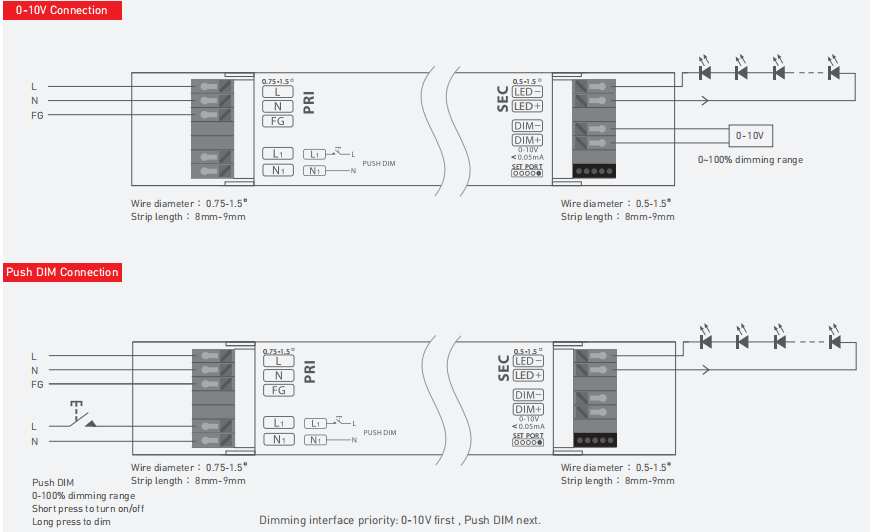

Automatically recognize 0-10V and 1-10V input signals.
Ultra-low consumption of 0-10V ports < 0.05mA.

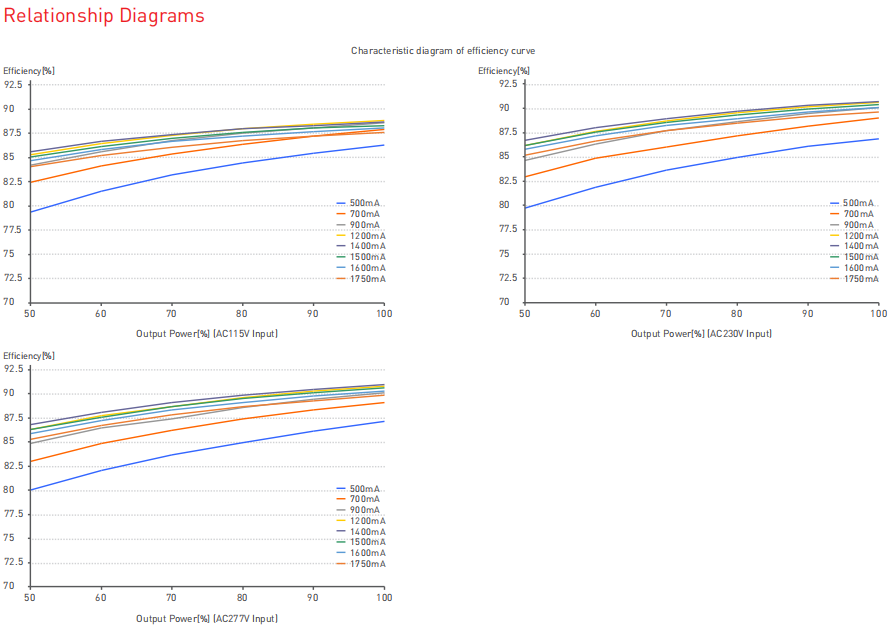

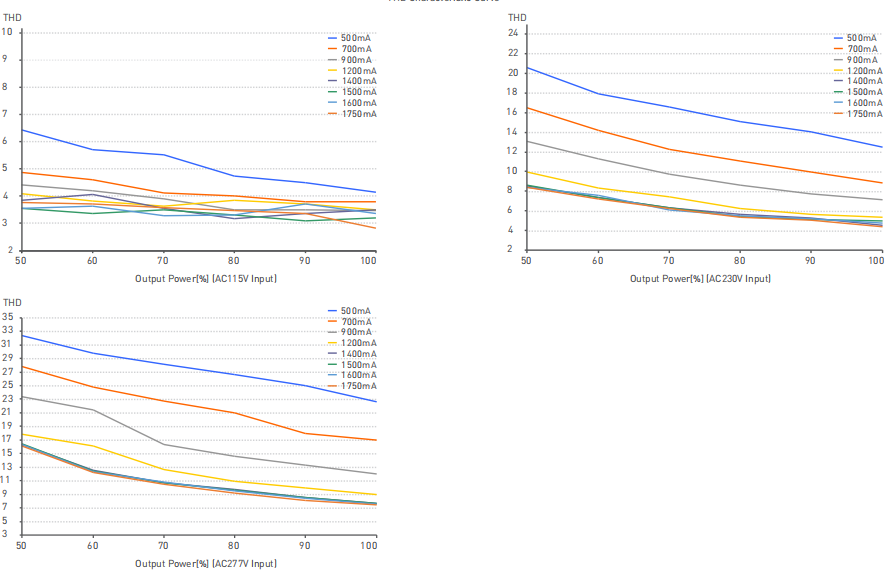

Energy-efficient driver: Efficiency 89%, PF>0.9, THD<10%.
Comply with the EU’s ErP Directive, standby power consumption<0.5W.
Innovative thermal management technology protects the power life intelligently.
Overheat, over-voltage, overload, short circuit protection and automatic recovery.
Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲ type.
Up to 50,000-hour lifetime.
5-year warranty (Rubycon capacitor).
