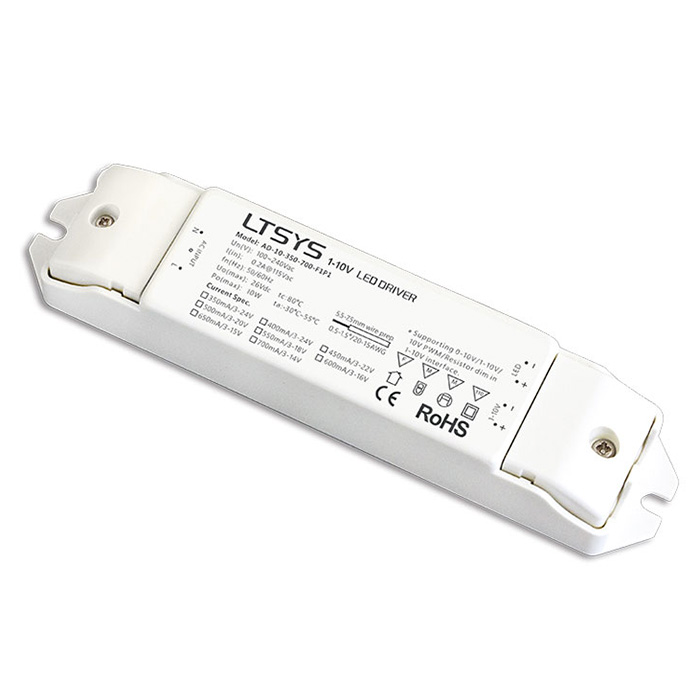

AD-10-350-700-F1P1 10W 350-700mA (100-240Vac) LED driver
Dimming interface: 0-10V(1-10V/10VPWM/RX), Push DIM
Built-in SCM, dimming curve and smoothing time can be customized.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.01% possible.
Automatic recognition of 0-10V, 1-10V input signal.
0~100% flicker-free, achieve the level of exemption assessment.
Over load / Over-heat / Short circuit protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Dimming interface: 0-10V, 1-10V, 10VPWM, Resistor
Dimming range :0-100%
Input Voltage: 100-240VAC
Current Accuracy :±3%
Output Voltage :3-24VDC
constant current output :350mA-700mA
Output Power :1.05W-10W
Working temperature: -30℃～55℃
Package size :L140×W34×H23(mm)
