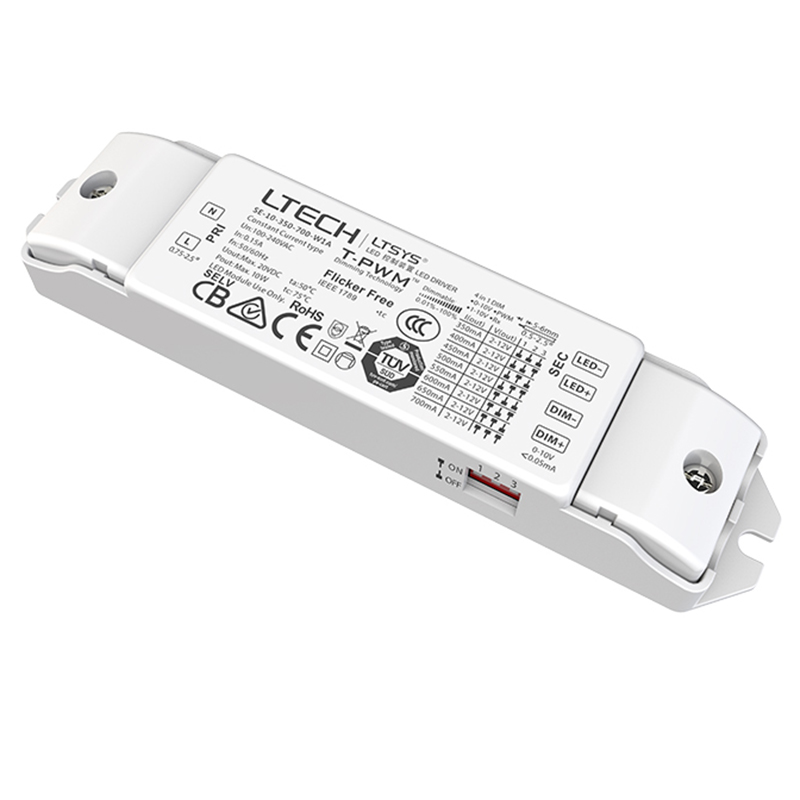

SE-10-350-700-W1A 10W 350-700mA(100-240Vac) 4 in 1 LED Intelligent Driver
Dimming interface:0-10V (1-10V/10VPWM/RX).
T-PWM digital dimming,present a perfect visual experience.
With soft-on and fade in function, visual more comfortable.
Automatic recognition of 0-10V, 1-10V input signal.
DIP switch for multiple optional currents' quick selection.
Dimming range: 0~100%, LED start at 0.01% possible.
0-100% flicker-free, High frequency exemption level.
Ultra-low consumption of 0-10V ports: < 0.05mA.
Innovative thermal management technology, intelligent power
Over-heat / Over load / Short circuit protection, recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor).
Output Voltage: DC2-12V
Max Output Voltage: DC20V
Output Current: 350-700mA
Output Power Range: 0.7W~8.4W
Strobe Level: No video flicker / High frequency exemption assessment level
Dimming Range: 0~100%, 0.01% dimming depth.
LF current ripple(<120Hz): <1%
Current Accuracy: ±5%
Ripple & Noise: ≤2V
PWM Dimming Frequency: ≤3600Hz
Dimming Interface: 0-10V (1-10V/10VPWM/RX
Input Voltage: 100-240Vac
Leakage Current: <0.35mA/230Vac
Working Temperature: ta: -30°C ~ 50°C tc: 75°C
