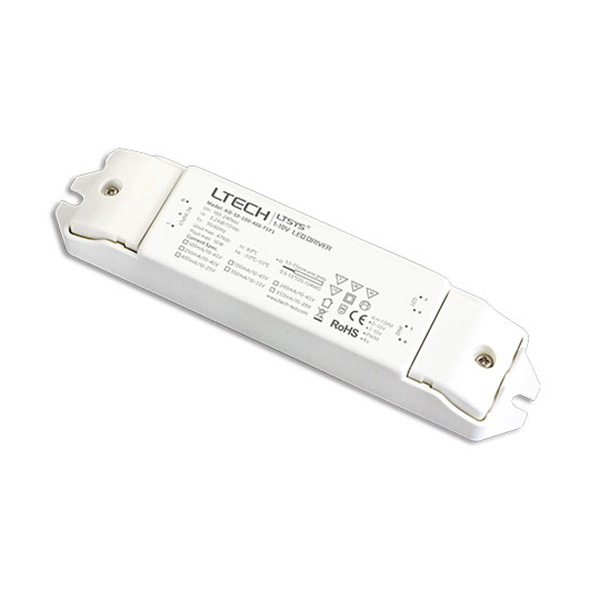

AD-10-100-400-F1P1 10W 100-400mA (100-240Vac) led strip light dimming driver

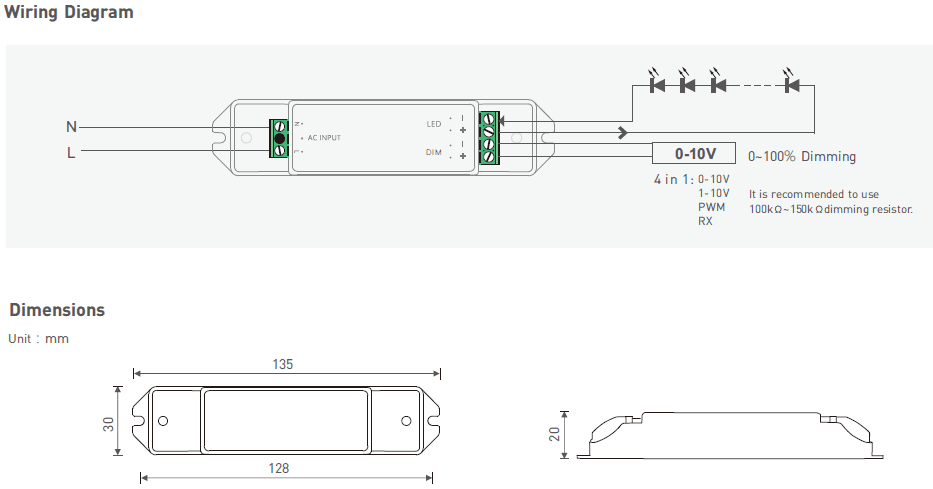

Dimming interface: 0-10V(1-10V/10VPWM/RX), Push DIM
Built-in SCM, dimming curve and smoothing time can be customized.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.01% possible.
Automatic recognition of 0-10V, 1-10V input signal.
0~100% flicker-free, achieve the level of exemption assessment.
Over load / Over-heat / Short circuit protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Dimming interface :0-10V (1-10V/PWM/RX)
Dimming range :0~100%, LED start at 0.1% possible.
Input Voltage :100-240Vac ±10%
Current Accuracy :±3%
Output Voltage :10-45VDC
constant current output :100mA-400mA
Output Power :Max. 10W
Working temperature: tc: 80°C ta: -30°C ~ 55°C
Package size :L140×W34×H23(mm)
