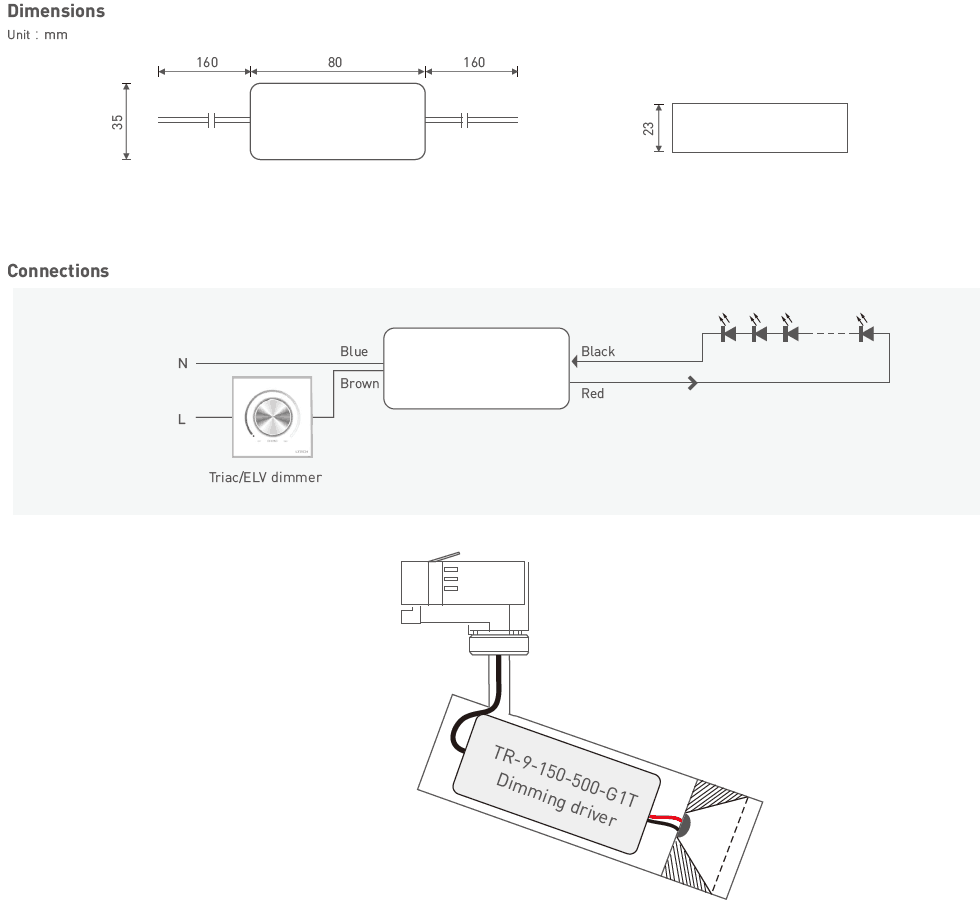

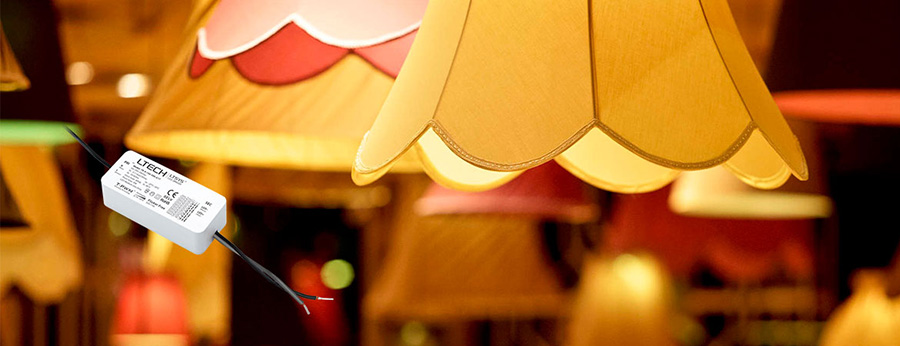

9W 150-500mA(200-240Vac) LED Intelligent Driver TR-9-150-500-G1T
LED Intelligent Driver
Support Triac leading edge, ELV trailing edge phase-cut dimming.
Super small size can be built-in the guide rail shooting light.
T-PWM digital dimming, present a perfect visual experience.
Dimming range: 0~100%, LED start dimming from < 0.1%.
Flicker-free (IEEE-PAR 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power life protection.
Multi-current & wide voltage, suitable for different power LED.
Over load / Over-heat / Short circuit / Over voltage protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Output Voltage: 9-36Vdc
Max Output Voltage: 40Vdc
Output Current: 150-500mA
Output Power Range: 1.35W~9W
Fluctuation Level: Exemption assessment level.
Dimming Range: 0~100%, dimming depth: <0.1%
PWM Frequency: ≤3600z
