TD-50-500-1750-E1P1 50W 500-1750mA（200-240Vac）PWM digital dimming

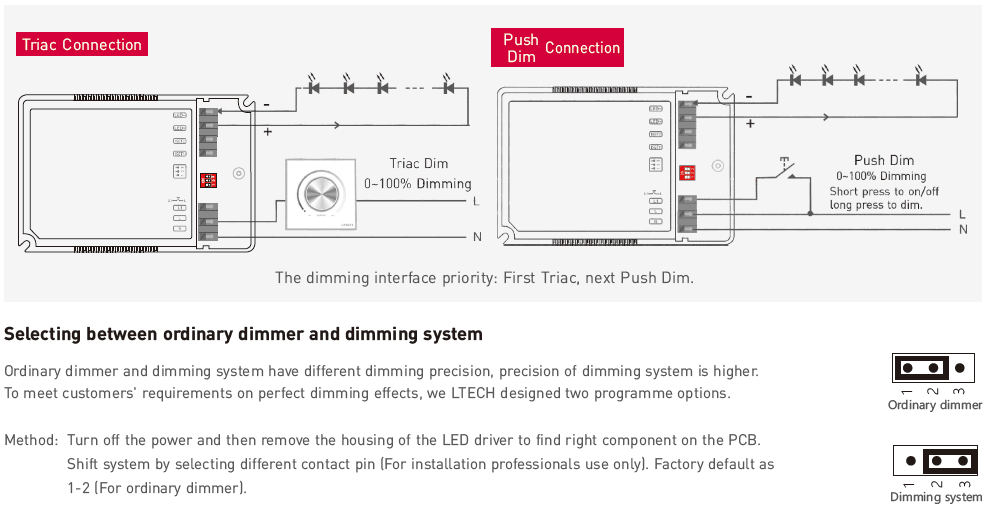

1、Dimming interface: Triac/ELV, Push DIM
2、Apply to the leading edge and trailing edge TRIAC dimmers
3、Built-in high-performance MCU, the dimming curve can be customized.
4、PWM digital dimming, no alter LED color rendering index.
5、Dimming range: Max. 0.1~100%.
6、Multiple current, wide voltage, compatible with a variety of LED lights.
7、Short circuit / Over-temperature / Overload / Non-load protection.
8、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
9、Class 2 power supply. Full protective plastic housing.
10、Compliant with Safety Extra Low Voltage standard.
11、Suitable for indoor environments.
SPI Controller TD-50-500-1750-E1P1
Dimming interface： Triac/ELV, Push DIM
Dimming range: Max. 0.1~100%
Input voltage： 200-240Vac ±10%
Output voltage ：10-54VDC

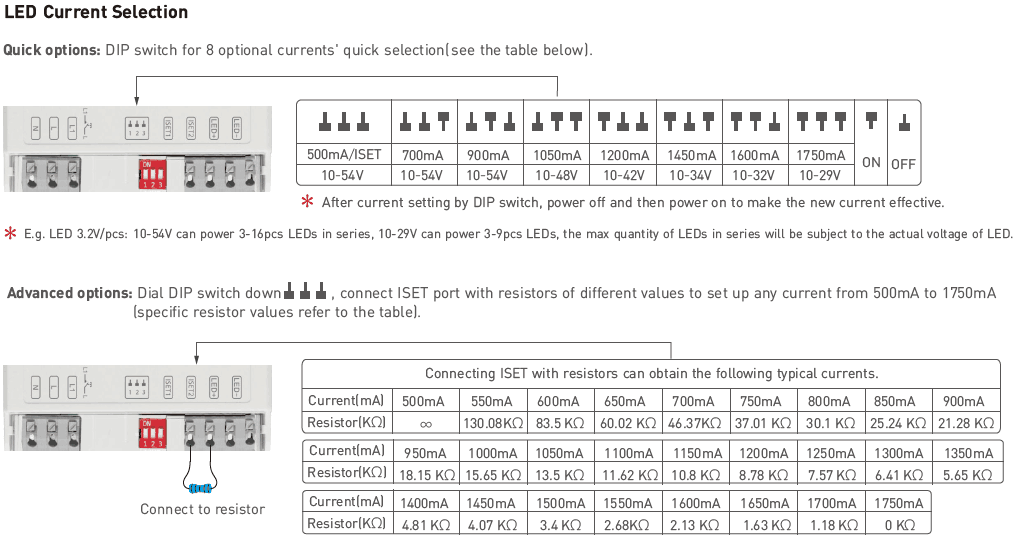

CC output: 500mA-1750mA
Output power ：5W-50W
working temperature to: 85°C ta -30°C ~ 55°C
Package Size： 135×90×35mm(L×W×H)
Weight (G.W) ：240g±10g
