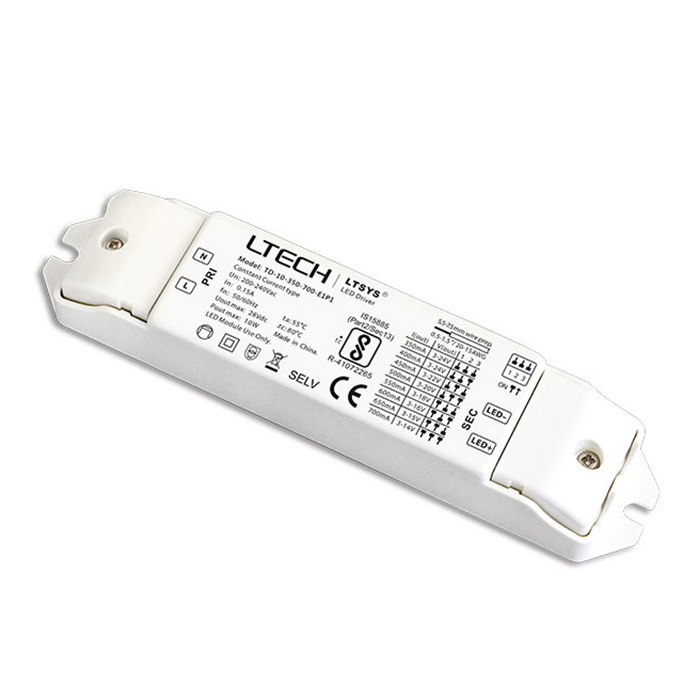

TD-10-350-700-E1P1 10W 350-700mA (200-240Vac) Dimmable Driver
1、Dimming interface: Triac/ELV
2、Apply to leading edge / trailing edge Triac dimmers and dimming system.
3、Built-in high-performance MCU, the dimming curve can be customized.
4、Dimming range: 0~100%, LED start at 0.1% possible .
5、Multi-current & wide voltage, suitable for different power LED.
6、Short circuit / Over-heat / Overload protection.
7、Class 2 power supply. Full protective plastic housing.
8、Compliant with Safety Extra Low Voltage standard.
9、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

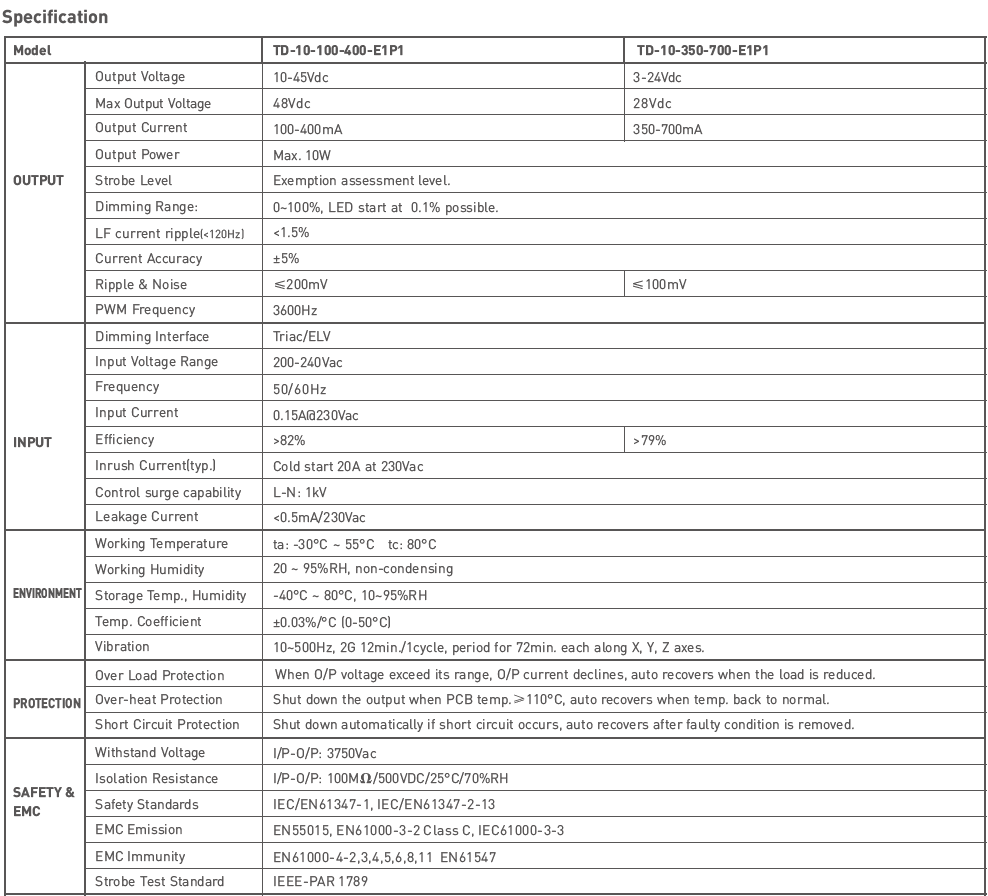

SPI Controller TD-10-350-700-E1P1
Dimming interface: Triac/ELV
Dimming range: 0~100%, LED start at 0.1% possible.
Input Voltage: 200-240VAC
Output Voltage: 3-24VDC
constant current output: 350mA-700mA
Output Power: Max. 10W
Working temperature: ta: -30 ~ 55°C tc: 80°C

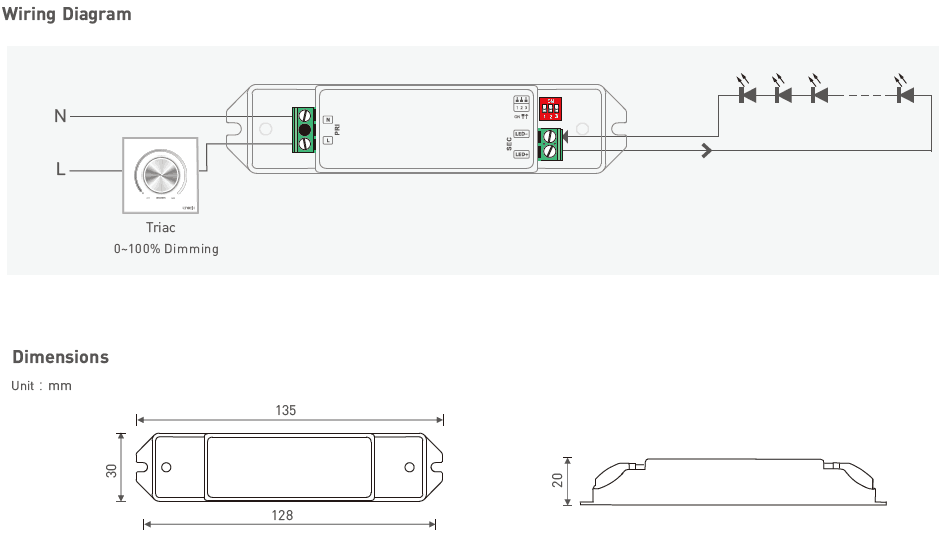

Package size: 140x34x23mm(LxWxH)
