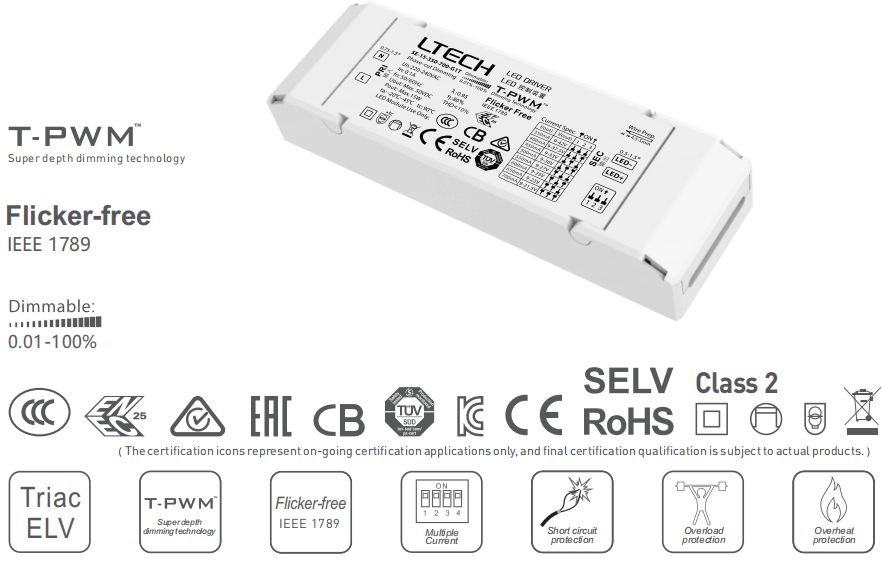

12W 100-400mA CC Triac Driver SE-12-100-400-G1T
Intelligent LED Driver
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.

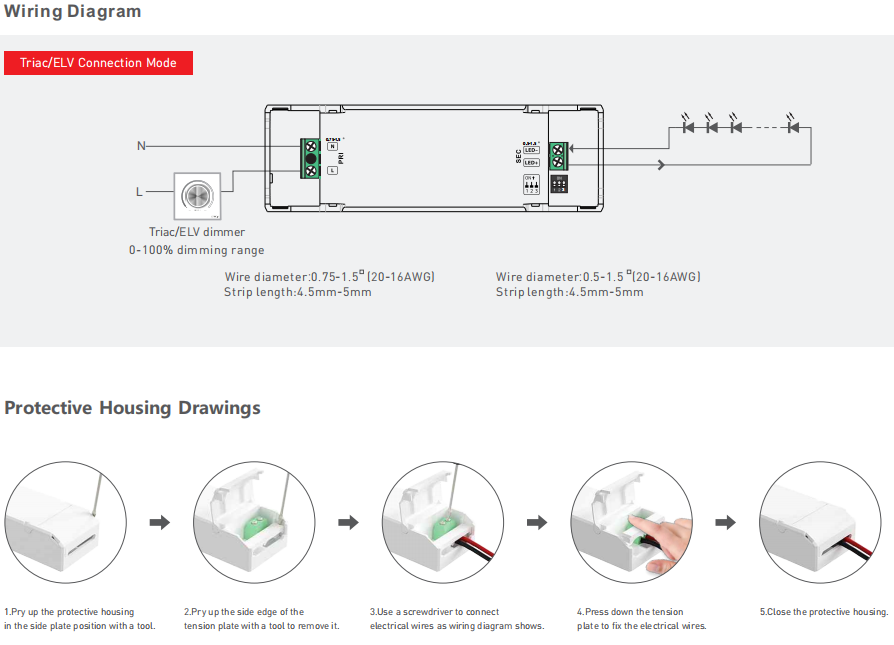

The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm²wire diameter 60N tensile test, and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting.
Dimming from 0~100%, down to 0.01%.

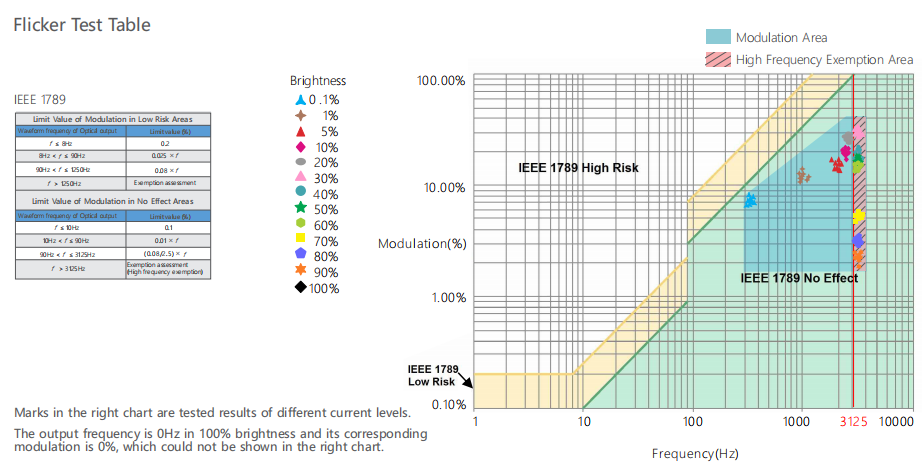

0-100% flicker-free dimming with high frequency exemption level.
Innovative thermal management technology protects the power life intelligently.

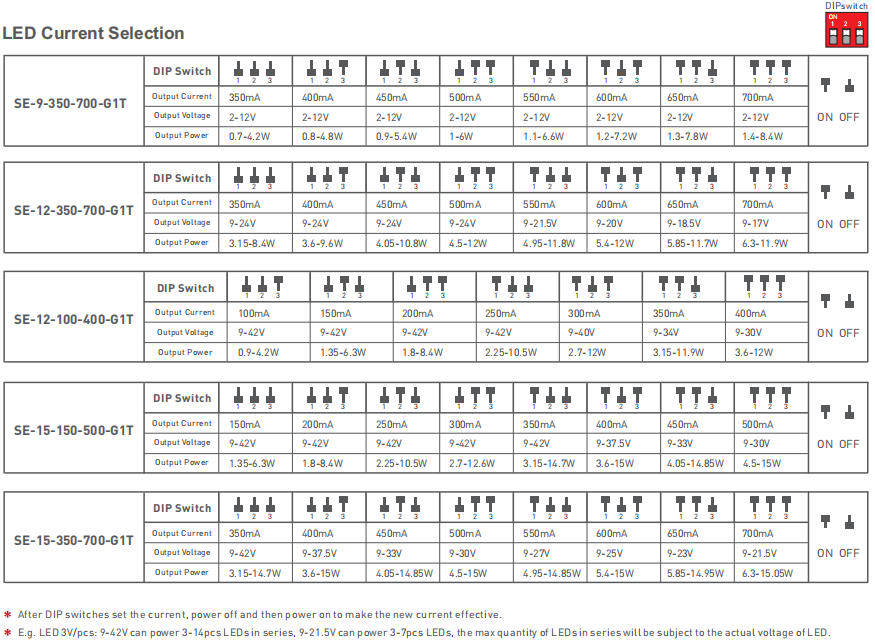

Multi-current & wide voltage, suitable for different power LEDs.
Class 2 LED driver, full protective plastic housing.
Comply with Safety Extra Low Voltage standard.
Overvoltage, overload, short circuit protection and automatic recovery.
Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲtype.
Up to 50000-hour life time.
5 -year warranty (Rubycon capacitor).
Products shall be installed by qualified professionals.
LTECH products are non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
Good heat dissipation will extend the working life of products. Please ensure good ventilation.
Please check if the working voltage used complies with the parameter requirements of products.
The diameter of wire used must be able to load the light fixtures you connect and ensure the firm wiring.
Before you power on products, please make sure all the wiring is correct in case of incorrect connection that causes damage to light fixtures.
If a fault occurs, please do not attempt to fix products by yourself. If you have any question, please contact your suppliers.
Warranty periods from the date of delivery : 5 years.
Free repair or replacement services for quality problems are provided within warranty periods.
Warranty exclusions below:
Beyond warranty periods.
Any artificial damage caused by high voltage, overload, or improper operations.
Products with severe physical damage.
Damage caused by natural disasters and force majeure.
Warranty labels and barcodes have been damaged.

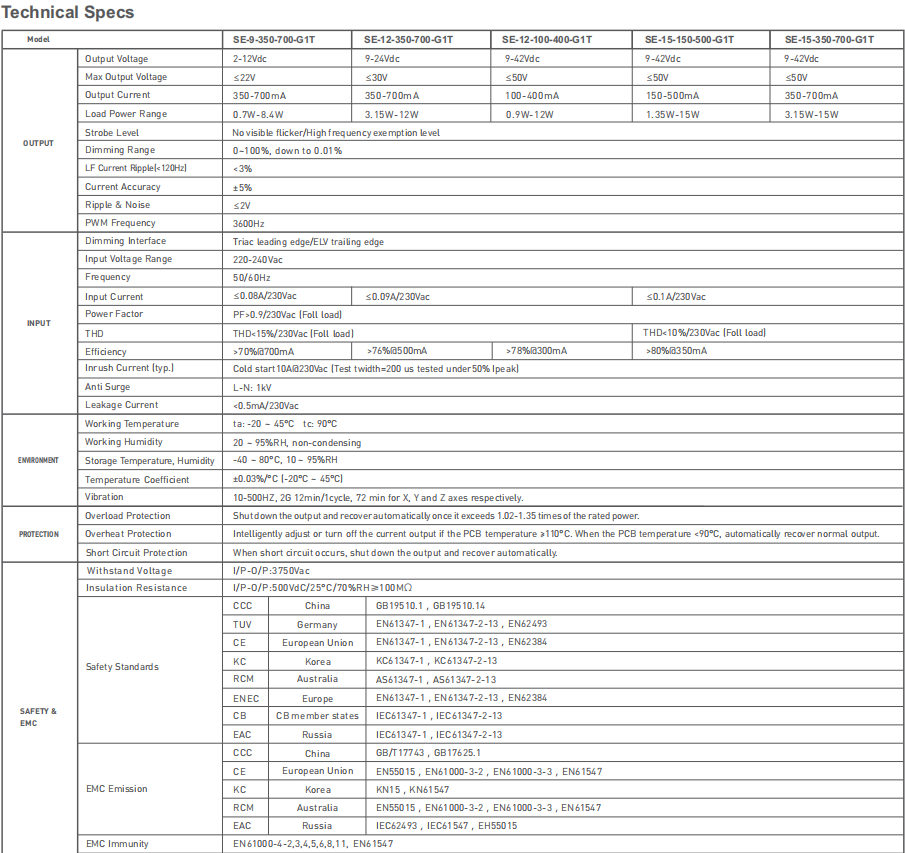

Dimming interface: Triac leading edge/ELV trailing edge
Dimming range: 0~100%, down to 0.01%
Input Voltage: 200-240Vac
Output Voltage: 9-42Vdc
Load Power Range: 0.9W-12W
Working temperature: ta: -25 ~ 45°C tc: 90°C

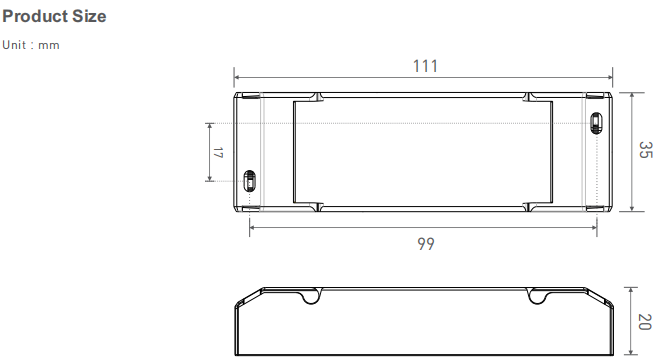

Package size: 122×36×22mm(L×W×H)
