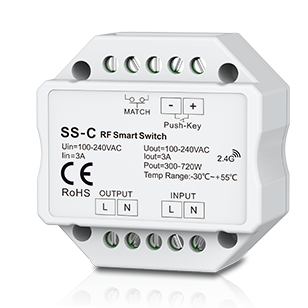

AC RF Switch & Push Switch SS-C

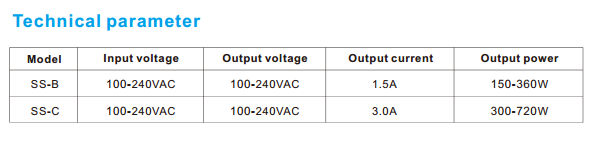

The SS-B / SS-C is a RF switch designed with 100-240VAC input and 100-240VAC output, to switch on/off single color LED lamps, traditional incandescent and halogen lights. The RF switch comes with 1 channel and maximum 1.5A or 3A output and can be compatible with a variety of RF series remote controls. Push function is available while the RF switch is connected with a push switch.
RF smart switch with relay output, without dimming function.
Suitable to insert standard panel bottom box.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
One RF switch can accept up to 10 remote control.

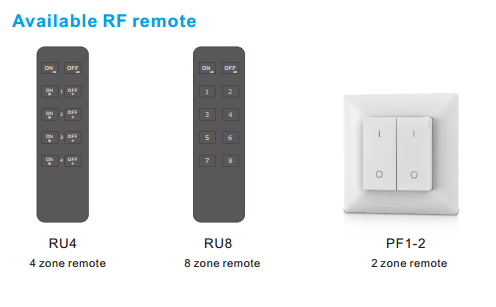

Great compatibility with a variety of dimming remote.
To switch single color LED lamps, traditional incandescent and halogen lights.

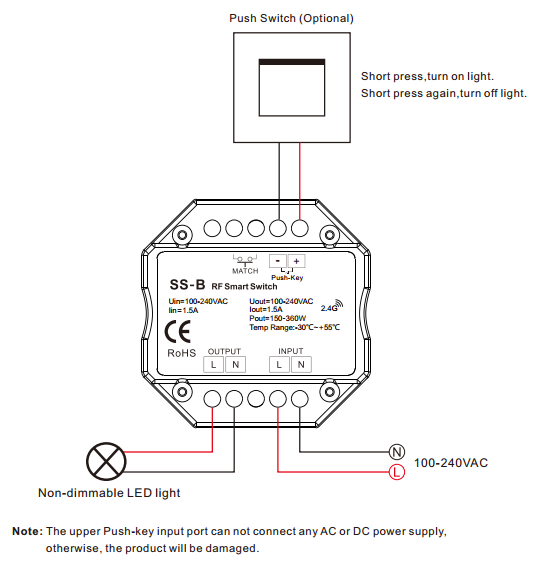

Connect with external push switch optional.
Standards and Certifications
