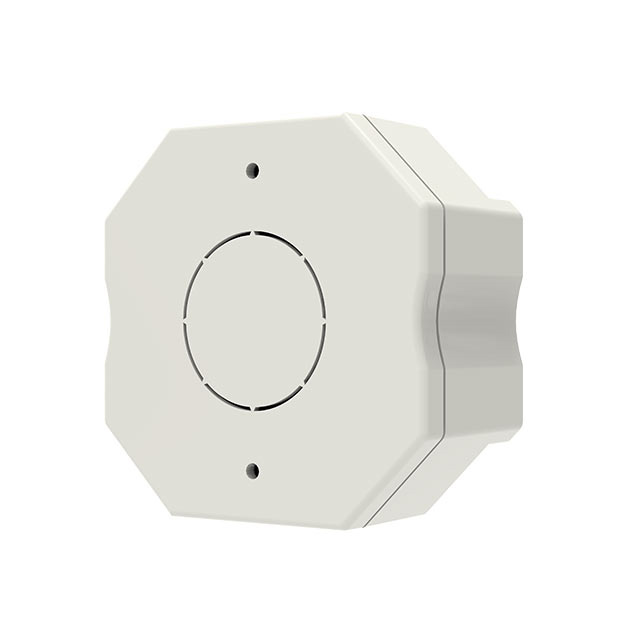

100-240VAC 1.5A WiFi+RF+Push Switch SS-B(WT)
WIFI+RF+PUSH AC phase smart switch, without dimming function.
To dim and switch single color LED lamps , traditional incandescent and halogen lights.
Tuya APP cloud control, support on/off, delay turn on/off light,timer run function.
Voice control, support amazon ECHO and TmallGenie smart sperker.
Compatibility with RF 2.4G dimming remote control
Each S1-B(WT) controller can also work as WIFI-RF converter,
then use Tuya APP to control one or more RF switch or controller or driver synchronously.
Over-heat/Over-load protection, recover automatically.
Input and Output
Output current:MAX 1.5A
Input signal:TUYE APP+RF+PUSH SWITCH
Safety and EMC
EMC Standard (EMC): EN55015,EN61547,EN61000
Safety Standard(LVD): EN61347, EN62493
