AC100-130V, T4 GY8.6 LED Bulb, 2.3 Watts, 20W Equivalent, 5-Pack
Input voltage is 100-130V AC
Power consumption is 2.3 Watts
Uses 17 pcs SMD 2835 LEDs
Luminous flux up to 230 lumens maximum
Nearly equivalent to standard 20W halogen/incandescent bulb
Optional colors are daylight white and warm white
360-degree wide beam floodlight
0.47-inch diameter x 1.46-inch total length

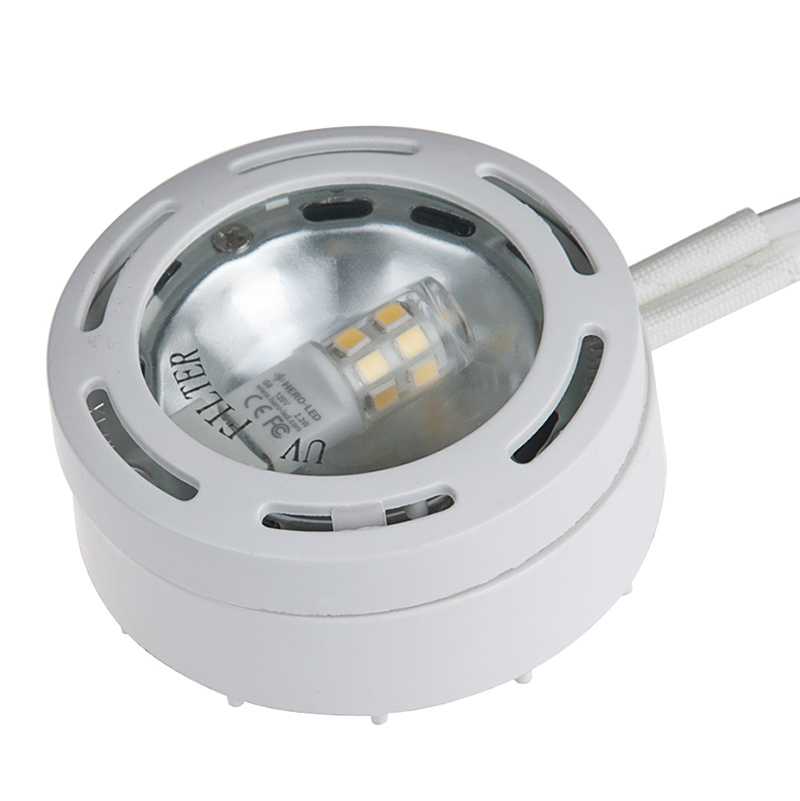

For use in under counter, kitchen lighting, under-cabinet lighting, accent lights, puck lights, desk lamps, pendant lights, bathroom vanity lighting or landscape lighting, etc.
The package includes 5 pcs bulbs
Standards and Certifications
Wattage: 2.3 Watt
Halogen Equivalent: 20 Watt
Voltage: 100-130V AC
Bulb Base: GY8.6
Bulb Shape: T4
Luminous Flux: Max.230 Lumen
Beam Angle: 360 Degree
LED Brand: Epistar
LED Type: Tri-chip 2835 SMD LEDs
LED Quantity: 17 Pcs
LED Color(s): Daylight White / Warm White
CCT or Wavelength: 5000K / 3000K / 2700K
Color Rendering Index: 80
Diameter: 12mm (0.47 in.)
Length (M.O.L.): 37mm (1.46 in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hours
