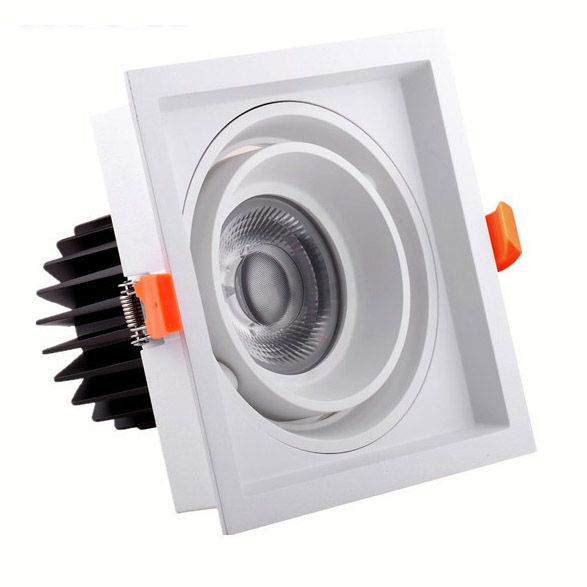

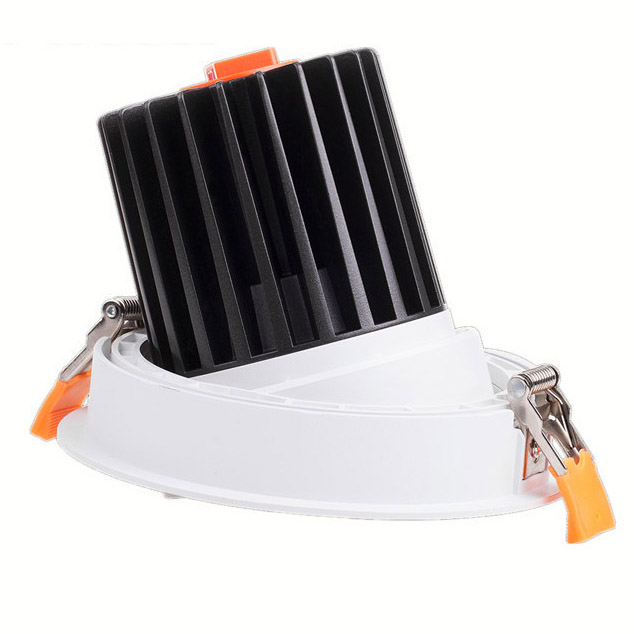

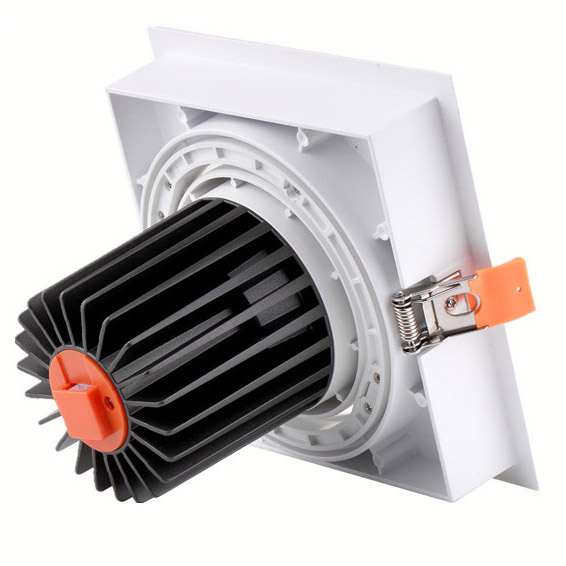

6.3in 30W LED COB Ceiling Light - Flush Mount LED Downlight - 120W Equivalent - 360°Rotation-Anti-glare Cover - 2400 Lumens
LED Light Source: US CREE COB
Working Voltage: AC85~265V 50/60Hz Applicable to most power environment
Conventional Color Temperature: 3000K, 3500K, 4000K, 5000K, 5700K
Color Rendering Index: RA>80
Power Factor: >0.9
Light Speed Angle: 15°24°36°
Light Flux: Full Light Flux 80-90LM/W
Main material: Die-cast aluminum + cold forged aluminum + reflector + glass
Appearance Color: White + Gray
Lamp Head Form: Wiring
Installation Method: Embedded Installation
Adjustable Angle: 360 degree rotation
Drive Mode: External Power Supply
Protection Level: IP42
Power Supply: Isolated, constant current power supply
Environmental Temperature: -20 ° C ~ +45 ° C
Related Certification: EU ce certification, hazardous substances (RoHS)
This LED downlights support AC Triac dimming, please use our Triac dimmer controller
LED COB downlights are superior to traditional lighting fixtures in terms of radiation method, color rendering, visual sensitivity, power standard, brightness control, etc.
With the advancement and development of industrial skills, it is gradually developing lighting fixtures that become mainstream.
Compared to general downlights, LED COB downlights have a common advantage:
1. High-pressure sodium lamps, fluorescent lamps, and electrodeless lamps contain chemical pollutants such as mercury and lead, while cob downlights do not contain chemically contaminated substances.
Environmentally friendly light source.
2. LED COB downlights have high reliability, low maintenance and repair costs, and uniform MTBF of up to 20,000 hours, while high pressure sodium lamps and
The uniformity of the fluorescent tube (MTBF) is less than 10,000 hours.
3. LED COB Ceiling lights consume less power and save energy. Compared with traditional high-pressure sodium lamps, their energy consumption exceeds 40%.
4. LED COB Ceiling lights can complete the instant launch, which is convenient for brightness conditioning. It has the advantages of no stroboscopic, wide range of starting voltage, and can complete various energy saving methods.
For example, according to climate, environment and other intelligent conditioning illumination.
5. LED COB Ceiling lights has a long life, and there are 100,000 hours under the ambition, while the life of the high-pressure sodium lamp and the fluorescent tube is only 10,000 to 30,000 hours.
Downlight: Surface diameter: 160mm/6.3" * 126mm/5" Opening Hole: 150mm/5.9"
Round bracket downlight: Surface diameter: Length178mm/7"*High126mm/5" Opening Hole: 160mm/6.3"
Square bracket downlight: Surface diameter: Length330mm/13"*Width175mm/6.89" Opening Hole: Length220mm/8.66"*Width160mm/6.3"
