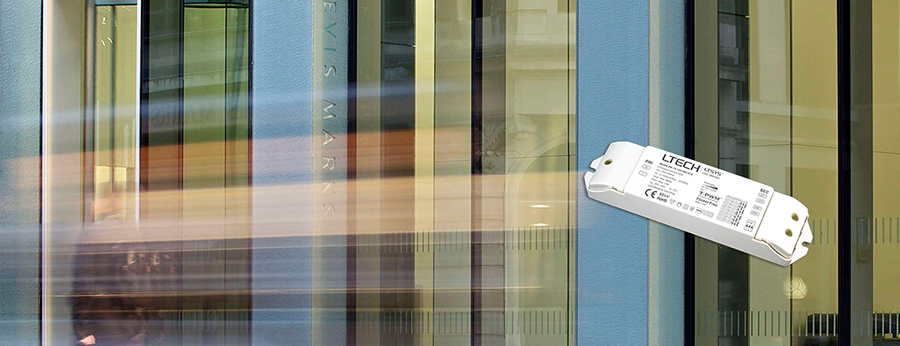

LED Intelligent Driver, 15W 150-500mA(200-240Vac) AD-15-150-500-G1A
LED Intelligent Driver

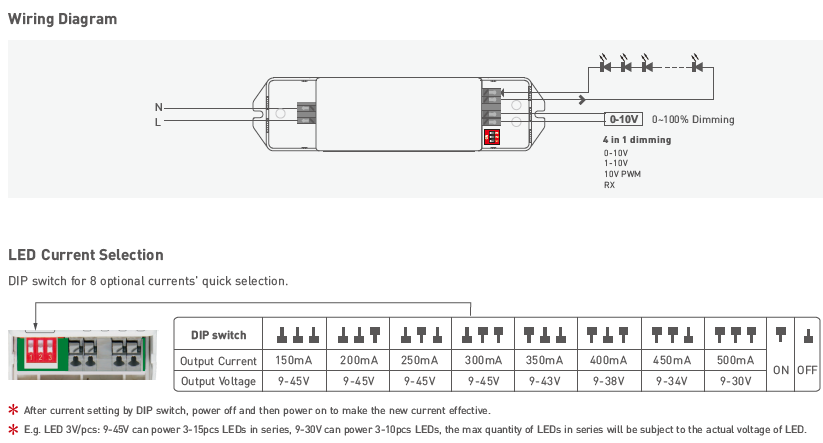

Dimming interface: 0-10V (1-10V/PWM/RX).
Built-in single chip automatic recognition of 0-10V, 1-10V input signal.
T-PWM digital dimming, present a perfect visual experience.
Flicker-free (IEEE-PAR 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power life protection.
Dimming range: 0~100%, LED start dimming from < 0.1%.
Multi-current & wide voltage, suitable for different power LED.
Over load / Over-heat / Short circuit / Over voltage protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Output Voltage: 9-45Vdc
Max Output Voltage: 48Vdc
Output Current: 150-500mA
Output Power Range: 1.35W~13W
Fluctuation Level: Exemption assessment level.
Dimming Range: 0~100%, dimming depth: <0.1%
PWM Frequency: ≤3600z
LF current ripple(<120Hz): <2%
Current Accuracy: ±5%
Dimming Interface: 0-10V(1-10V/PWM/RX)
Input Voltage Range: 200-240Vac
Input Current: 0.16A@230Vac
Efficiency (typ.): 83%
Inrush Current(typ.): Cold start 45A at 230Vac (twidth=120μs measured at 50% Ipeak)
Control surge capability: L-N: 1kV
Leakage Current: <0.24mA/230Vac
