AD-20-200-700-F1A1 20W 200-700mA(100-240Vac) 5 in 1 LED Driver
Dimming interface: 0-10V (1-10V/PWM/RX), Push DIM.
T-PWM digital dimming.
With soft-on and fade in function, visual more comfortable.
Automatic recognition of 0-10V, 1-10V input signal.
Dimming range: 0~100%, LED start at 0.01% possible.
0-100% flicker-free,High Frequency Exemption
Innovative thermal management technology, intelligent power life protection.
Multi-current & wide voltage, suitable for different power LED.
Over load / Over-heat / Short circuit protection.

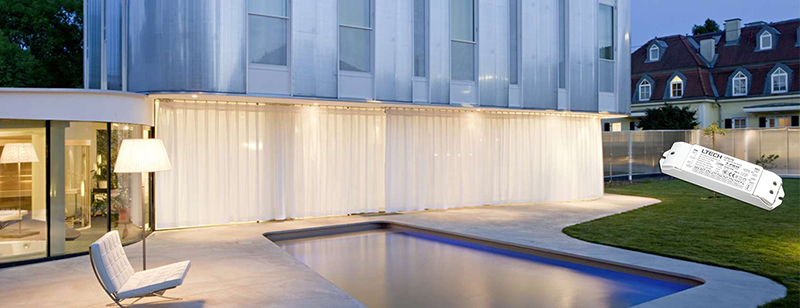

Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Output Voltage: DC10-42V
Max Output Voltage: DC48V
Output Current: 200-700mA
Output Power Range: 2W~20W
Fluctuation Depth: Almost flicker-free / High frequency exemption assessment level.
Dimming Range: 0~100%, dimming depth: 0.01%
LF current ripple(<120Hz): <1%
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

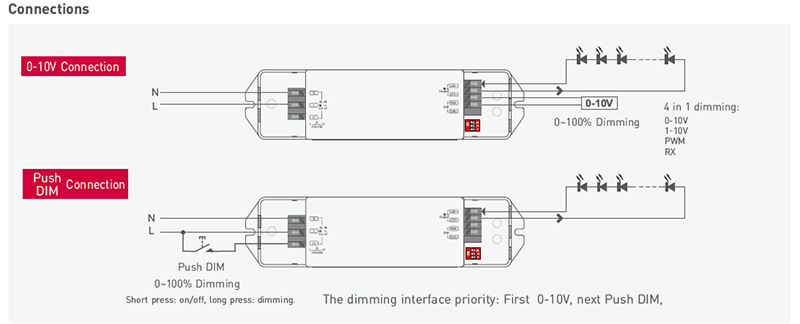

Dimming Interface: 0-10V(1-10V/10VPWM/RX), Push DIM
Input Voltage Range: 100-240Vac, 127-250Vdc (Push Dim is unsupported for DC input)
Input Current: 115Vac≤0.21A, 230Vac≤0.13A
Power Factor: 115Vac>0.98，230Vac>0.91
Leakage Current: <0.5mA/230Vac
Working Temperature: ta: -20°C ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -40°C ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C (0-50°C)
