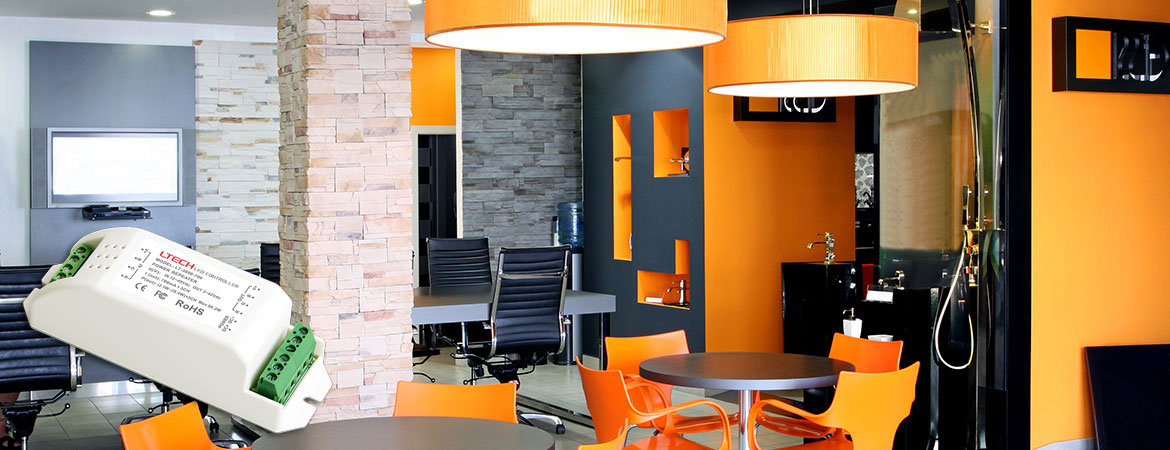

CC Power Repeater LT-3090-700( Has Been Discontinued, Can Use the BC-990-700 For Replacement)
LT-3090-700 CC Power Repeater
Has Been Discontinued, Can Use the BC-990-700 For Replacement
Input signal: PWM(200-2000Hz)
Input voltage: DC12V~DC48V
Output voltage: 3~46Vdc
Output current: CC 700mA ×3CH
Output power: (2.1W~32.2W) × 3CH Max 96.6W
Output signal: CC PWM
working temperature: -30℃~55℃
Package Size: L123×W42×H42(mm)
Weight (G.W): 115g
