DC5/12/24V 10Ax1CH, LETCH Warranty 5 years LED Single Color ABS shell Amplifier For 3528 5050 SC LED Light Strips
The LM LED Strip Dimmer Controller & Rotary Dimmer Combo is the perfect solution for dimming your LED strip by using the standard rotary dimmer mechanism.
Using a 0-10V dimming potentiometer and our 0-10V dimming controller you can adjust the mood of your LED strip lighting to the perfect level.
Standards and Certifications
Input signal: 0-10V Rotary Dimmer
Input power voltage: DC12V~DC48V
Max current load: 12A x1CH Max 12A
Max output power: 144W/288W (12V/24V)
Working temperature: -30℃～55℃
Dimming Range: 0-100%
Led lighting NO: 1-13 pieces lighting 1w/3w/5w
Dimensions: L 175 × W 44 × H 30mm
Each set of 0-10V LED strip dimmer controller and rotary wall mechanism allows you to adjust the brightness of your LED strip without the need for remote controls or additional wall switches, making it by far the easiest dimmer combo for an existing home.
Switching from mains power the LED strip will fade onto the previous dimmer setting providing a soft start to lighting up your area.
Installation is easy, the in-wall rotary dimmer is installed by simply fitting the dimmer into an existing standard Clipsal or HPM switch plate and wiring back to the controller which can be conveniently hidden in a wall cavity or in cupboard spaces.

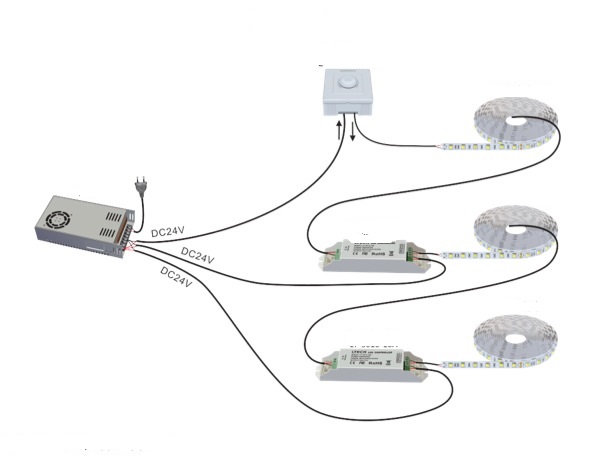

Connecting your LED strip is also easy, with simple screw terminals on the controller the LM 0-10V dimming controller accepts 12 or 24 low voltage DC power input and can power both 12 and 24 volt LED strips. Then by connecting the 0-10V rotary dimmer allows the magic to happen which results in smooth dimming of the LED strip from your wall switch.
