DALI-50-500-1750-F1P2 50W 500-1750mA (100-240Vac) 6 in 1

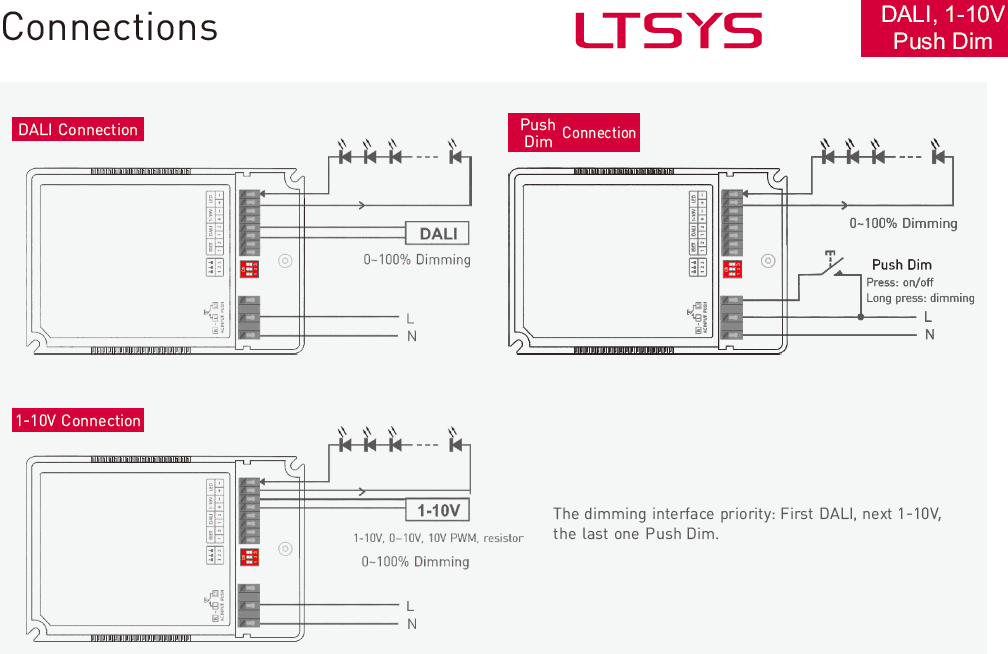

1、Dimming interface:DALI, 1-10 (0-10V,10V PWM,resistor) Push Dim.
2、PWM digital dimming, no alter LED color rendering index.
3、Power factor > 0.99, Efficiency > 85%.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Multiple current, wide voltage, compatible with a variety of LED lights.
6、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
7、Multi-current & wide voltage, suitable for different power LED.
8、Class 2 power supply. Full protective plastic housing.
9、DALI bus standard: IEC62386-101, 102, 207.
10、Compliant with Safety Extra Low Voltage standard.
11、Suitable for indoor environments.
Dimming interface : DALI, 1 10 (0-10V,10V PWM,resistor) Push Dim.
Dimming range: 0-100% LED Startup Current<0.1%
Input voltage: 100-240Vac ±10%
Power factor :PF>0.99/115Vac, PF>0.95/230Vac, at full load
Current Accuracy :±3%
Output voltage : 10-54V

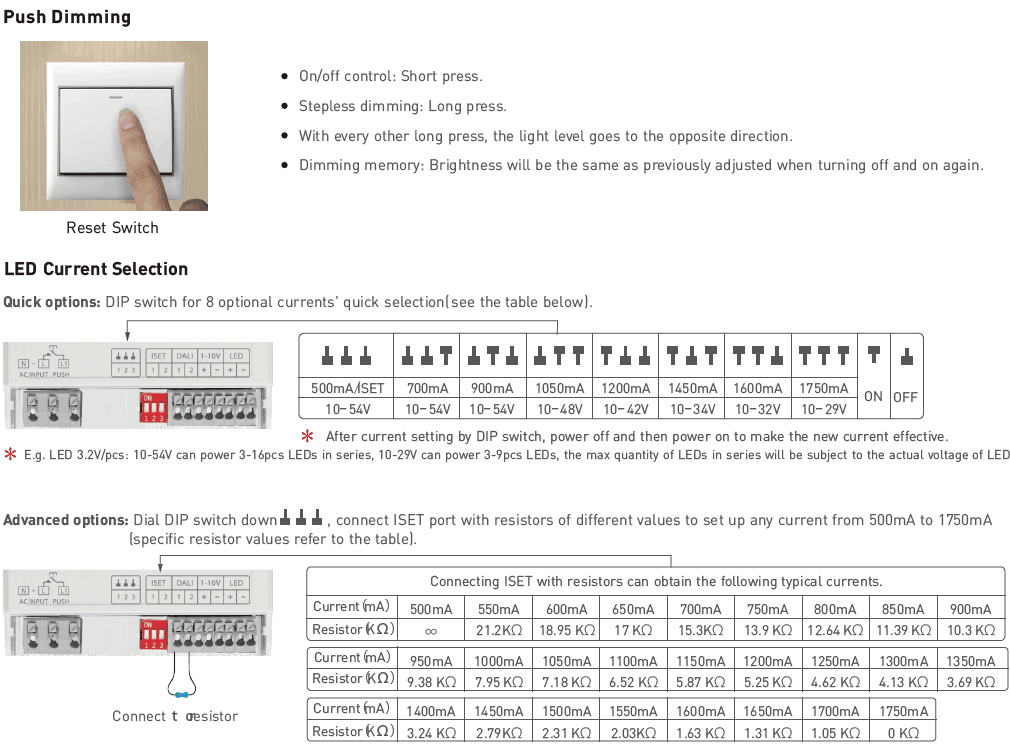

CC output: 500mA-1750mA
Output power: 5W-50W
working temperature tc: 80°C ta: -30°C ~ 55°C
Package Size :135×90×35mm(L×W×H)
Weight (G.W) :320g±10g
