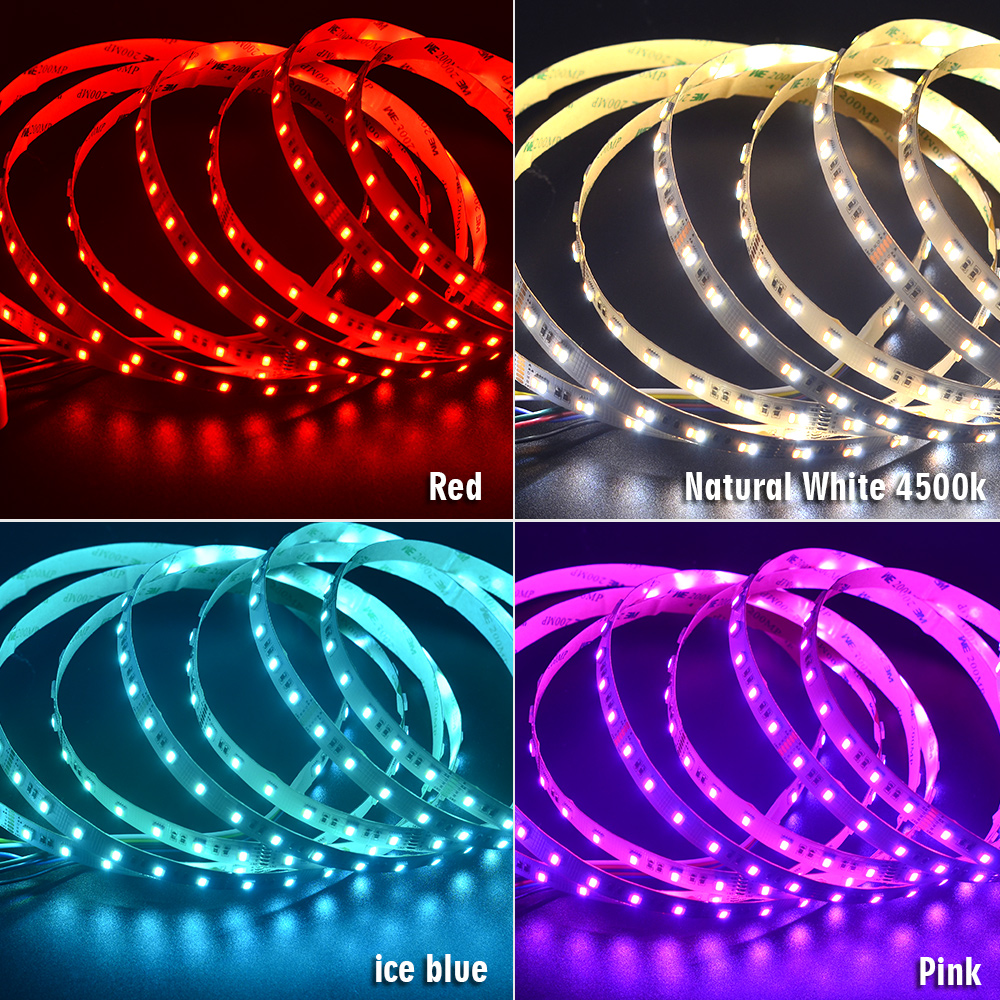

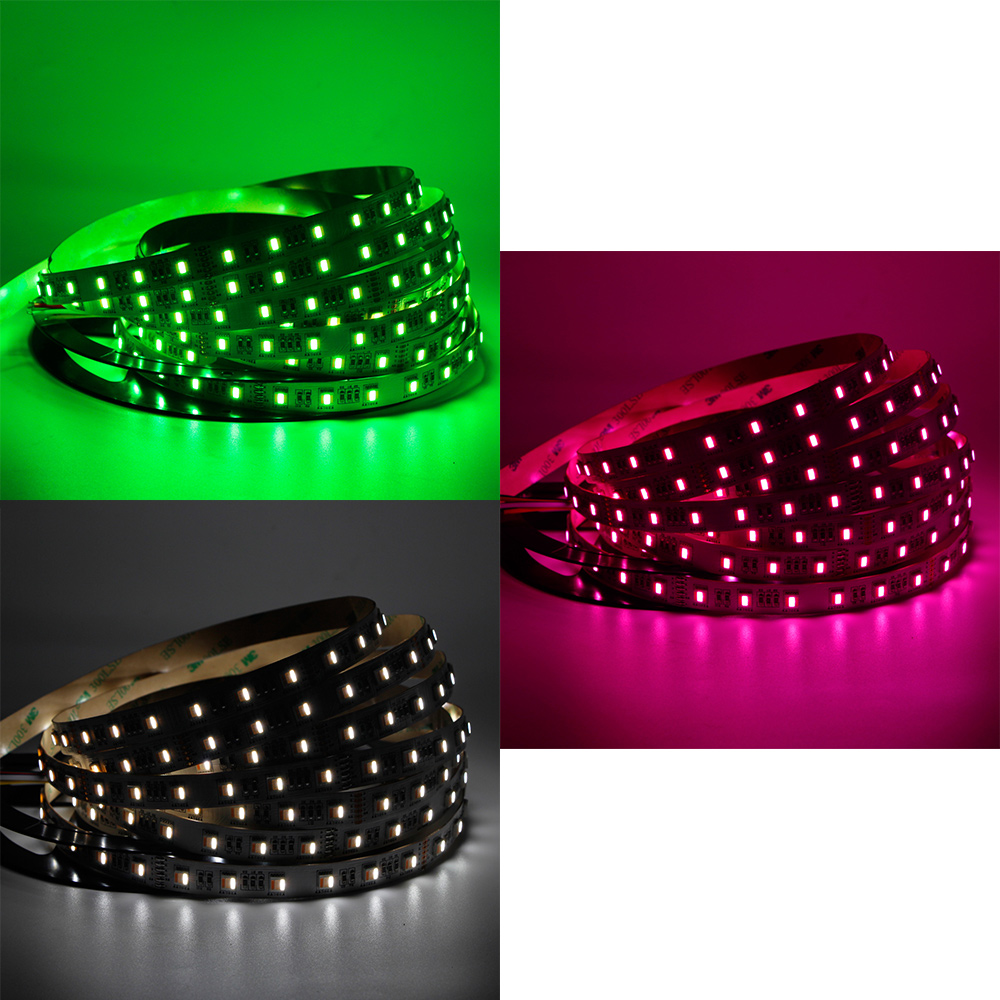

RGBCCT color changing led strip lights with 5in1 5050 SMD LEDs have both RGB color and dimmable white light color, integrate red color, green color, blue color, warm white color, and daylight white color five colors in one LED. They have purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 12V power supply. (LED Strip Kit Products: WL5 controller, LRS-100-12 or LRS-100-24 Meanwell switching power supply + AC plug)

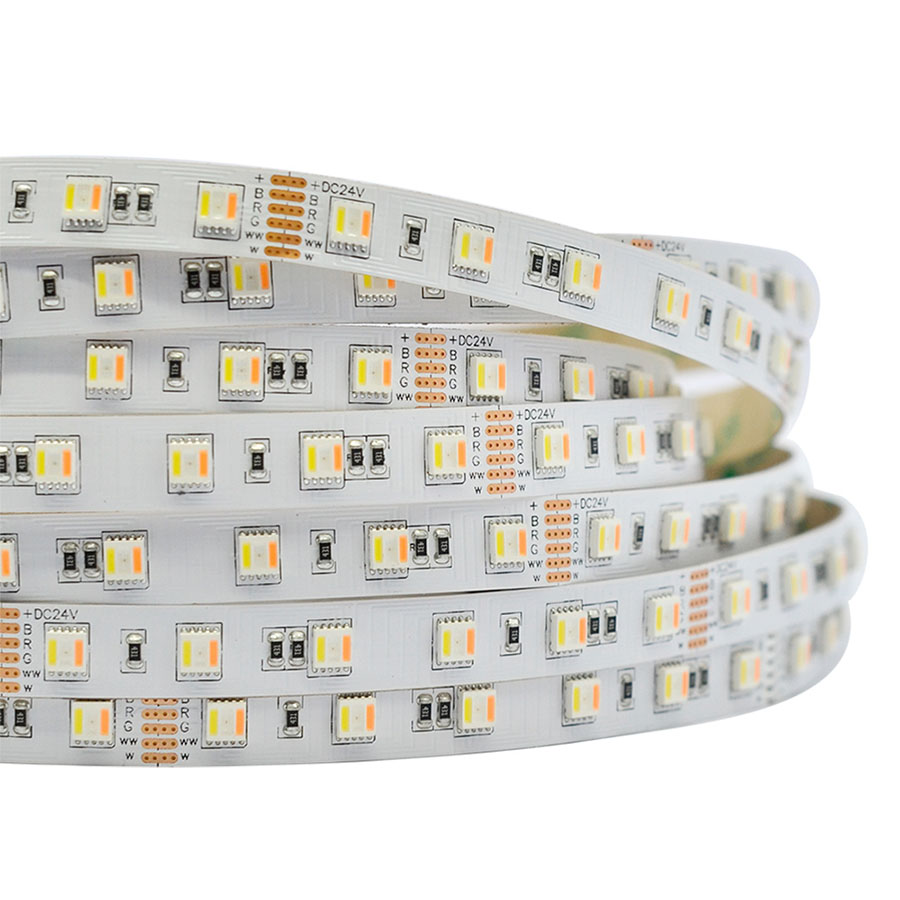

The use of the best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending.

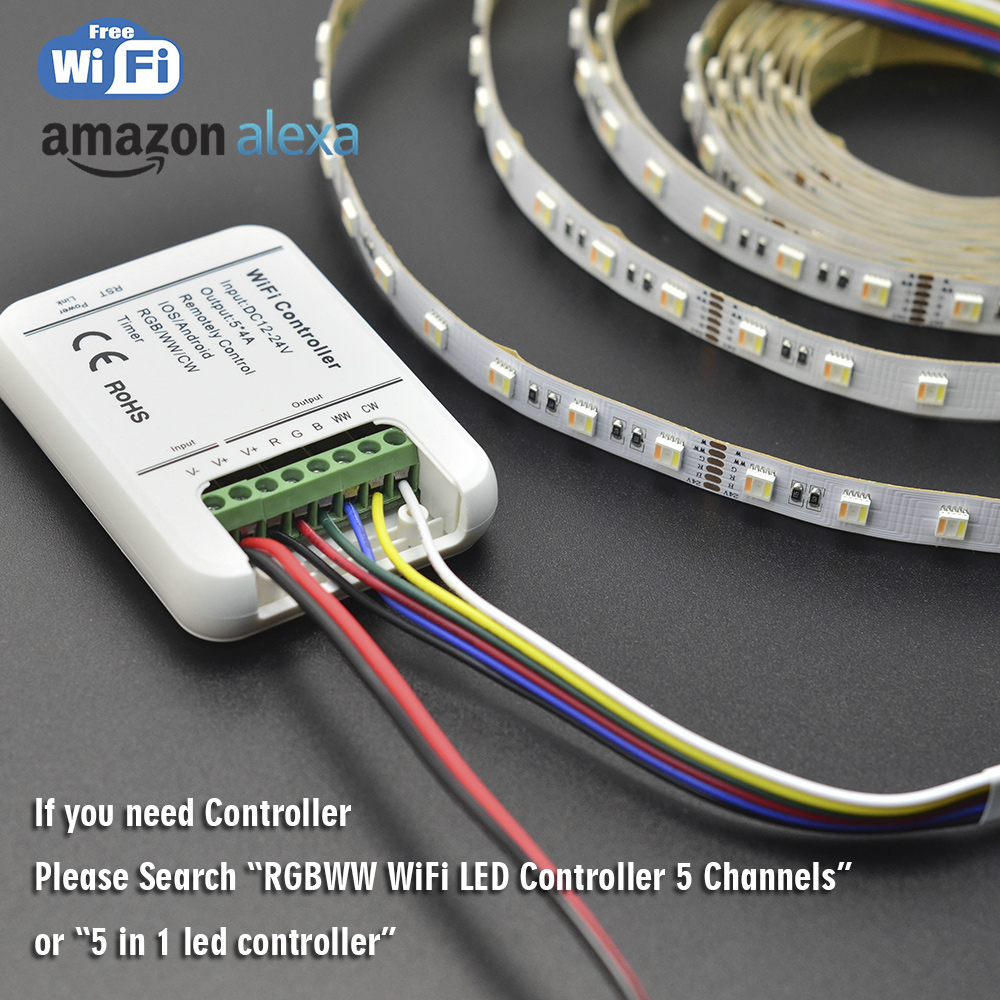

Through the RGBWW Remote controller programming to achieve any of Flashing effects.
Different waterproof ratings, Glue Cover waterproof (IP65), all-inclusive casing waterproof (IP67), casing injection (IP68), as well as the latest process extrusion (IP68).
The difference between 12V and 24V RGBCCT LED strip lights:
DC12V and DC24V are consistent in power and LED quantity. In addition to the difference in voltage, the biggest difference is:
DC12V integrates 3LEDs between the two PCB cut lines, each 50mm/1.97in can be cut (3LEDs cuttable)

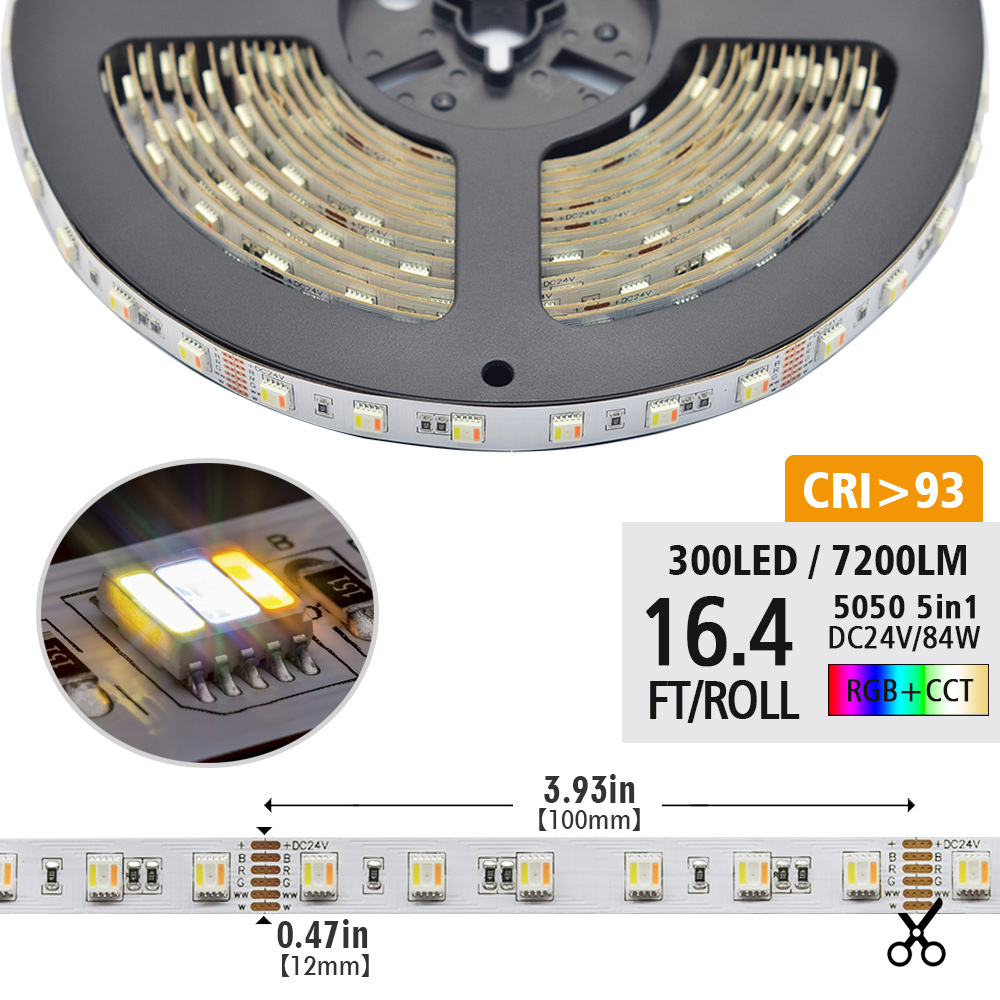

DC24V integrates 6LEDs between the two PCB cut lines, each 100mm/3.94in can be cut (6LEDs cuttable)
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBWW 300LEDs/16.4ft|

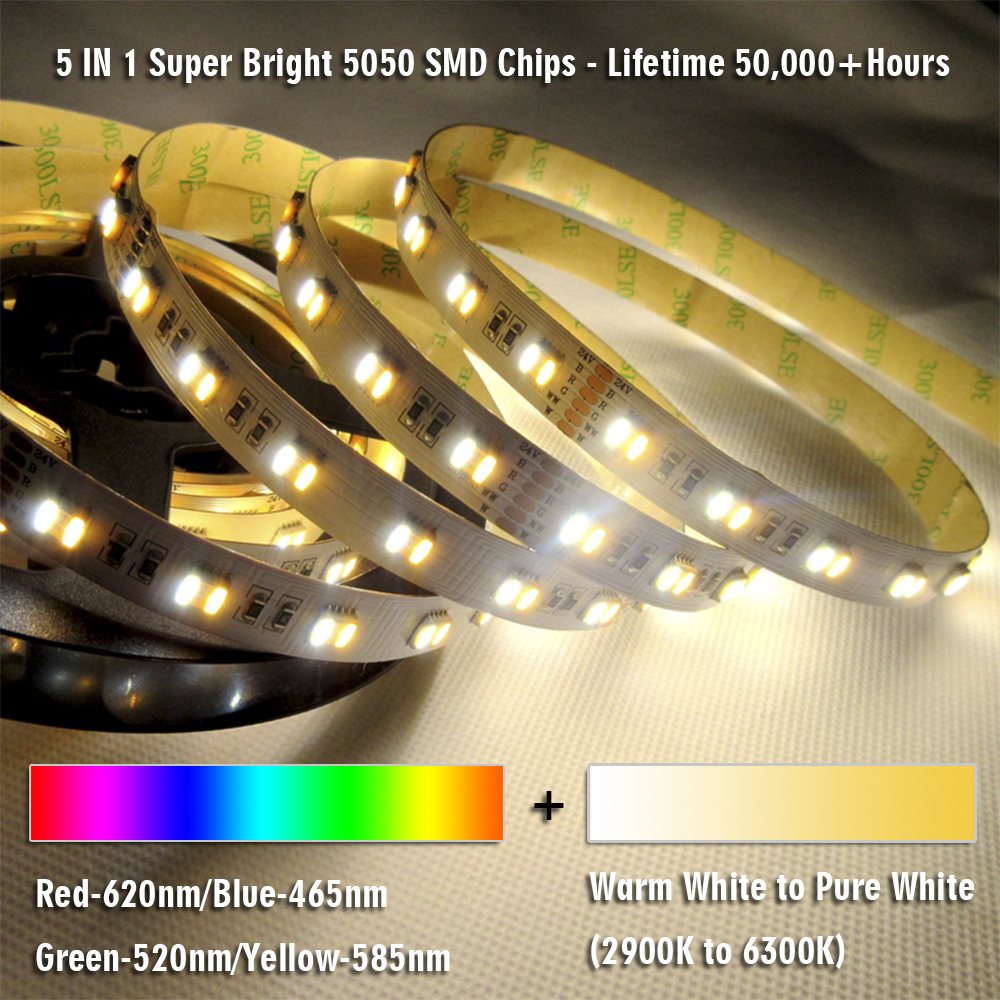

|LED Chip:||Epistar Chip (SMD5050 5 IN 1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

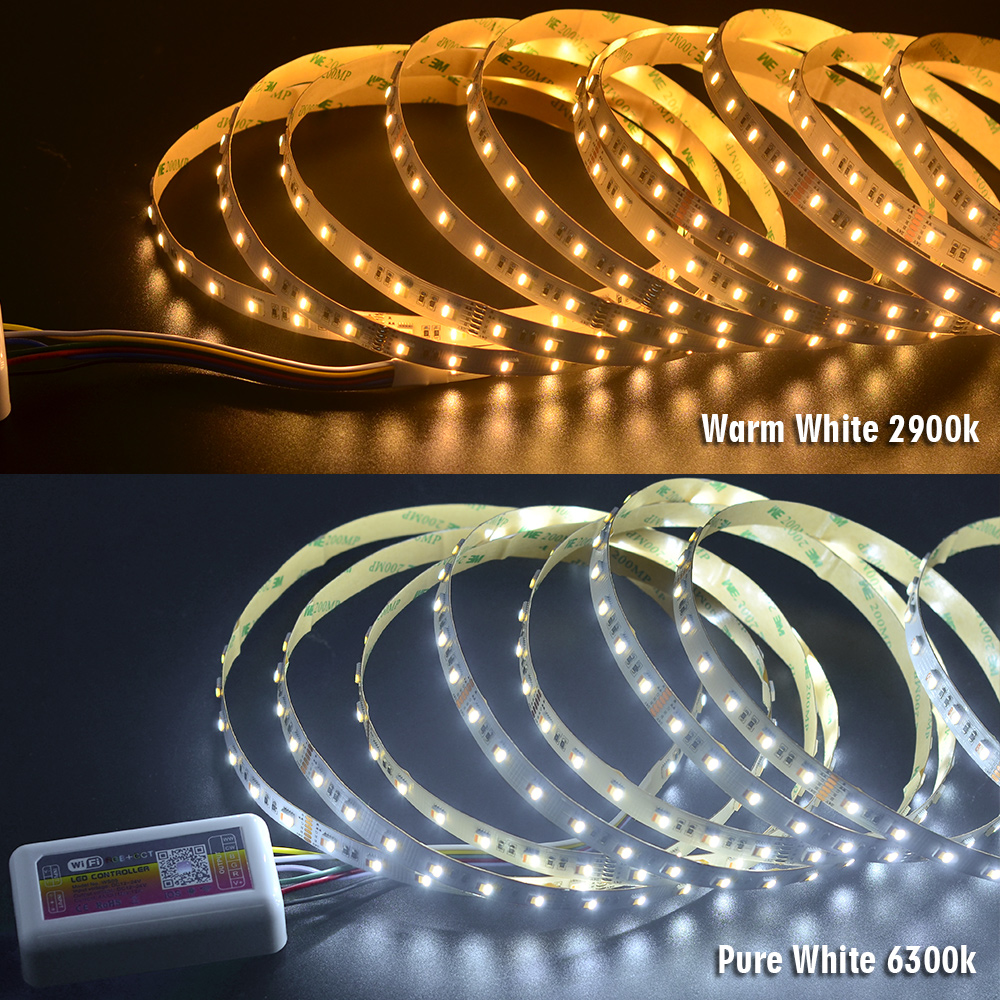

|Light Color:||RGB CCT (2700K-6500K color temperature)|

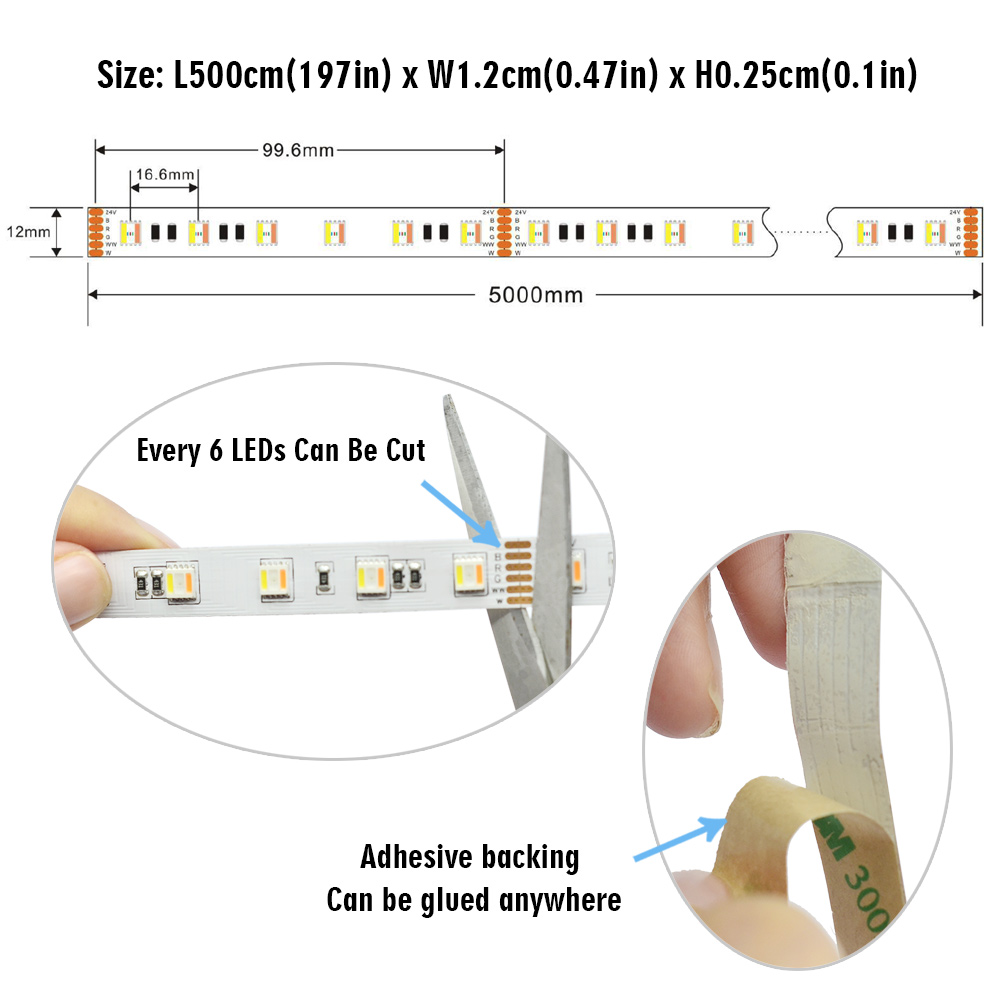

|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||84W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGB CCT led strip wiring diagram:
2. LED light strip accessories: RGB CCT led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
|By : NarrowMargin Date Added: 03/20/2019|
|First and foremost I gotta say these strips are awesome, they're bright, the colors are rich, and the color consistency looks great across the strip. My only complaint is the limited CCT range, I would love for these LEDs to have a range of 2000k-6500k. Other than that the adhesive is alright, it's holding up so far but don't expect it to hold up cable weight.|
|By : Ace-Man Date Added: 02/21/2019|
|Bright white lights, and nice colors. I replaced a 12v color strip with these lights and they are, in my opinion, better than Phillips Hue light strip.|
|By : Mr James N Spearman Date Added: 10/08/2018|
|Product is good, I bought 4 x 5m strips but already one has lost the rgb chip in one spot. Adhesive is OK, but not amazing, will have to go back and glue gun a few areas. Colour wise they are great and the whites are good with nice control. I hooked it up to Alexa enabled milight controller which works well. Power hungry on Amps though so buy the right size transformer|
