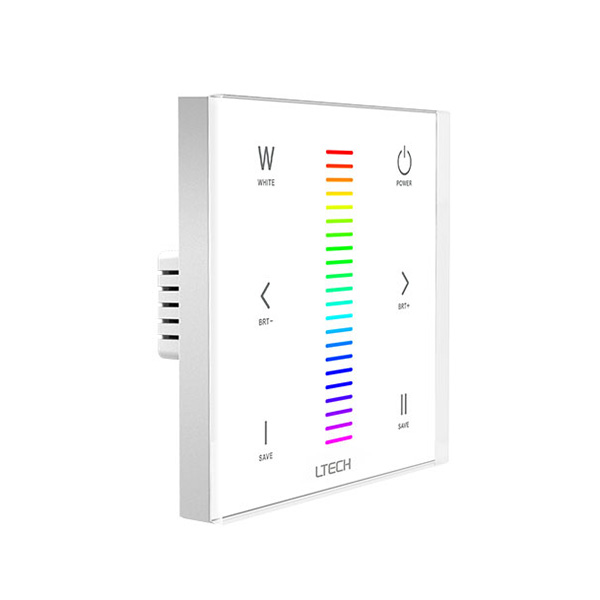

DC12-24V E3 RGB Touch Panel LED Controller (Replacement by E4 RGBW Panell Controller)
E3 RGB Touch Panel
Input Voltage: 12-24Vdc
Current Load:4A×3CH Max. 12A
Output Power: (0~48W...96W)×3CH Max. 288W
Package Size: L113×W112×H50(mm)
Please Note: E3 LED panel controller has been discontinued, now we use the E4 RGBW LED panel controller to replace it, if you still purchase the E3 LED controller, we will send you the E4 RGBW LED panel controller.
