DC12-48V 3CH Constant Current (3 in 1) Power Repeater EC3 For RGB Lamp

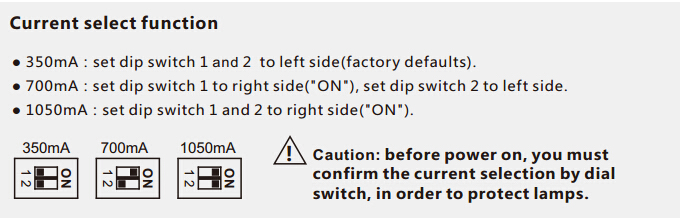

The product set three kinds of current(350/700/1050mA) output by dip switch, compatible with a variety of constant current lamps.

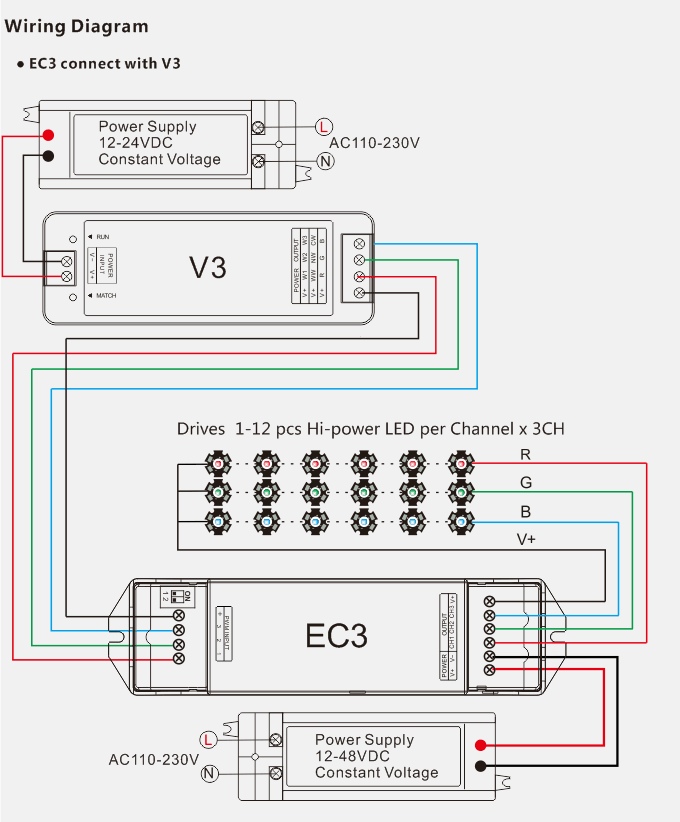

.Used with various LED PWM constant voltage controller, expand output power of the controller to control more lamps.
. A controller can connect unlimited number of LED power repeaters in series or in parallel, and achieve the synchronous control effects..
Input voltage: 12-48VDC
Load current: 3CH, 350,700,1050mA/CH
Output power: 12.6-50.4W/25.2-100.8W/37.8-151.2W
Working temperature: -30℃~55℃

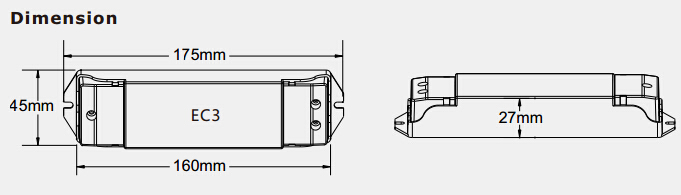

Product size: L175×W45×H27mm
Net weight: 127g
