CV Power Repeater LT-3063-3A

Model: LT-3063-3A Review stars 0.0 (0 Reviews) Various options in stock
Price$23.99
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The LTECH LT-3063-3A is an IP68 fully sealed constant voltage power repeater engineered to duplicate pulse-width modulation (PWM) dimming signals across extended low-voltage LED strip installations. Operating on an input range of DC 5V to DC 24V, this 3-channel unit delivers up to 3A per channel (9A total load capacity), enabling a power throughput of 45W at 5V, 108W at 12V, or 216W at 24V. Designed for exterior façades, landscape runs, poolsides, and damp architectural coves, the LT-3063-3A eliminates voltage drop and signal degradation without introducing control latency. Each repeater receives the synchronous PWM output from primary RGB LED controllers and redistributes full driving power from a supplementary power supply. Multiple repeaters can be connected in series or parallel without theoretical limit to expand total lighting runs across commercial and residential sites.

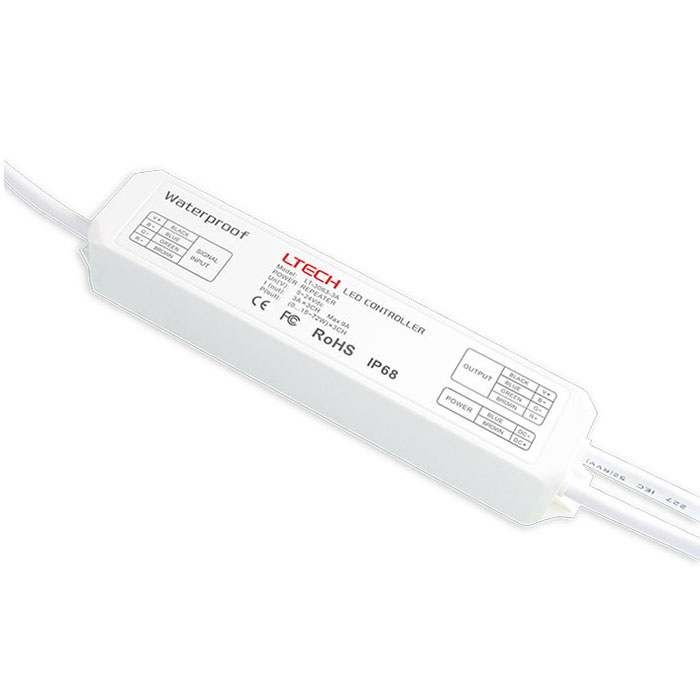

CV Power Repeater LT-3063-3A - photo 21
LTECH LT-3063-3A IP68 waterproof 3-channel CV power repeater housing

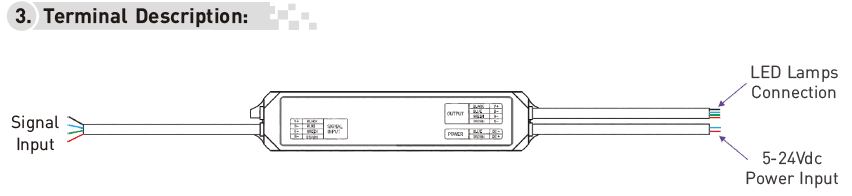

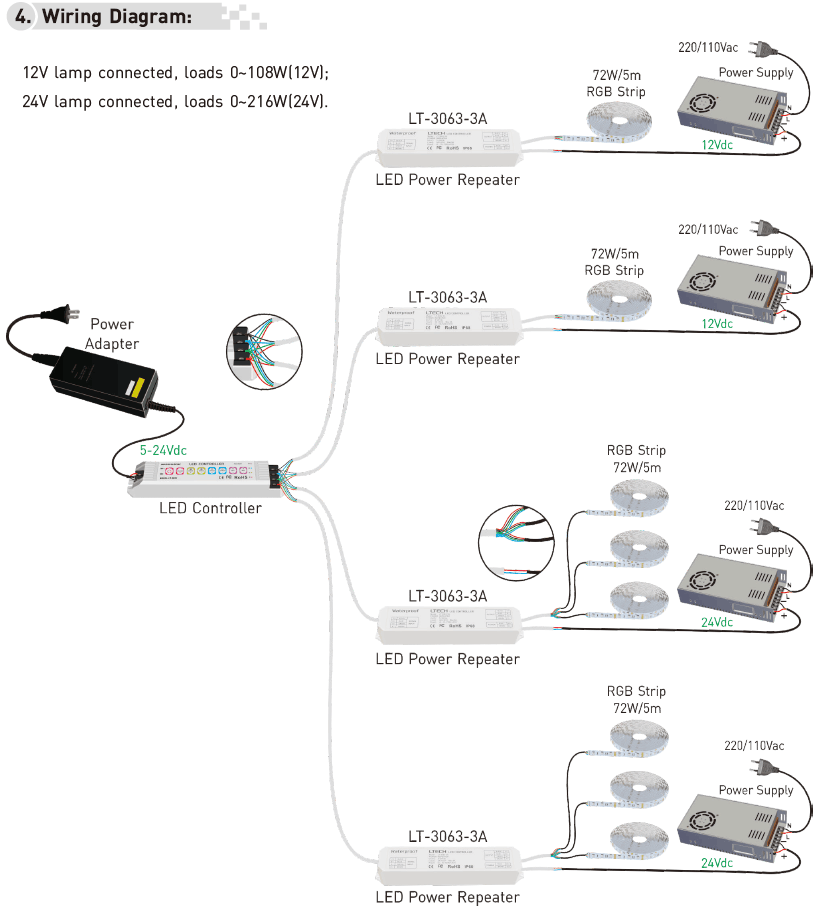

CV Power Repeater LT-3063-3A - photo 22
Input and output lead identification and wiring diagram for DC 5V-24V setups

Core Capabilities

IP68 Submersible Ingress Protection

Solid potted resin enclosure safeguards internal circuitry against continuous outdoor exposure, rain, soil moisture, and harsh exterior conditions.

Wide DC 5V to 24V Operation

Compatible with standard 5V, 12V, and 24V constant voltage circuits to match diverse constant-voltage LED strip runs.

3-Channel 9A Total Output

Supports 3A per channel across Red, Green, and Blue outputs, accommodating up to 216W of lighting load at 24V DC.

Unlimited Theoretical Expansion

Accepts standard CV PWM signals and connects in daisy-chain or star configurations to multiply installation scale indefinitely.

Zero Latency Signal Replication

Mirrors frequency and dimming changes instantaneously, maintaining color balance across long runs without color lag or strobe.

Compact Inline Footprint

Measuring 181 mm by 35 mm by 28 mm, the narrow casing integrates seamlessly into landscape trenches, raceways, and linear extrusions.

Technical Highlights

  • Fully encapsulated solid-potted IP68 casing prevents water ingress, dust intrusion, and internal condensation in humid or outdoor environments.
  • Delivers synchronous PWM amplification to prevent power strip light flickering and color distortion caused by circuit resistance over long linear runs.
  • Permits localized supplementary power feeds, allowing contractors to route compact low-voltage wiring without pulling heavy copper bus lines across extensive runs.
  • Built-in thermal tolerance engineered for continuous operation in temperatures from -30℃ up to 55℃.
  • Common anode (+) circuit architecture compatible with industry-standard 4-pin constant voltage RGB LED strip lights.
  • Pre-stripped, factory-sealed waterproof wire pigtails eliminate exposed screw terminals for dependable field splicing.

Product Specifications

ParameterDetails
Product ModelLT-3063-3A
ManufacturerLTECH
Product TypeConstant Voltage (CV) Power Repeater / Data Amplifier
Input Voltage RangeDC 5V - DC 24V
Input SignalPWM (Pulse Width Modulation)
Output SignalCV PWM (Common Anode)
Output Channels3 Channels (Red, Green, Blue)
Max Output Current3A per channel (9A total across 3 channels)
Max Output Power (5V)45W
Max Output Power (12V)108W
Max Output Power (24V)216W
Ingress Protection RatingIP68 (Outdoor / Wet Location Rated)
Operating Temperature Range-30℃ to 55℃
Housing ConstructionPotted flame-retardant polymer
Physical Dimensions181 mm (L) × 35 mm (W) × 28 mm (H)
Package Dimensions213 mm (L) × 44 mm (W) × 38 mm (H)
Gross Weight235 g
Wiring ConnectionFactory-sealed pre-wired waterproof pigtails
Theoretical ScalabilityUnlimited repeater cascading
Circuit PolarityCommon Anode (V+)
CV Power Repeater LT-3063-3A - photo 1
Dimensional overview of the potted 181 x 35 x 28 mm enclosure

Application Scenarios

Outdoor Architectural Façades Powers long linear runs along building perimeters and rooflines where lighting loads exceed the master controller capacity. The IP68 resin-filled body endures direct exposure to heavy rainfall and humidity while maintaining uniform color synchronization.
Landscape & Pathway Illumination Installs directly inside ground junction boxes, exterior planter boxes, or low-voltage garden distribution networks. Prevents voltage drop over extended yard distances by allowing local power insertion alongside exterior pathway LED strip lights.
Perimeter Patio & Pool Deck Lighting Drives color-changing perimeter lighting for wet patio boundaries, gazebos, and water-feature perimeters. Replicates dynamic lighting scenes without risk of water seepage or moisture-induced shorts.
Commercial Signage & Lightbox Arrays Expands driver power across large outdoor advertising channel letters and illuminated billboard borders. Enables unified PWM dimming from a single master console without overloading individual control channels.

How to Control & Use This Controller

  1. Select an external DC power supply that matches the working voltage (5V, 12V, or 24V) of your connected LED strip lights.
  2. Identify the pre-wired leads on the LT-3063-3A: signal input pigtails, DC power input pigtails, and LED load output pigtails.
  3. Connect the Signal Input side to the output terminals of your primary RGB master controller or from the output of a preceding repeater (V+, R-, G-, B-).
  4. Connect the DC Power Input cables (V+ Red, V- Black) directly to your secondary DC 5V-24V power supply, observing correct electrical polarity.
  5. Connect the LED Output side to the incoming leads of the secondary RGB LED strip section (Black for V+, Red for R, Green for G, Blue for B).
  6. Inspect all wire splices and seal them inside gel-filled waterproof wire nuts or heat-shrink tubing to protect exterior terminations.
  7. Power on the secondary driver first, then activate the master controller to verify unified color mixing and smooth PWM dimming transitions.
⚠ Precautions
  • Never connect an AC line directly to the LT-3063-3A; it operates strictly on low-voltage DC 5V to 24V.
  • Ensure the working voltage of your secondary power source matches the voltage of your LED strip lights exactly.
  • Do not exceed the maximum load rating of 3A per channel (9A total, or 216W at 24V DC). Calculate total LED light power consumption before powering on.
  • Always isolate and seal every power terminal and wire joint with exterior-grade waterproof enclosures or heat-shrink sleeves to preserve the IP68 barrier in damp locations.
  • When cascading multiple repeaters, ensure each repeater has its own dedicated DC power supply line to avoid pulling excessive current across a single feeder cable.

What's in the Box

  • ✓1 × LTECH LT-3063-3A IP68 Waterproof CV Power Repeater
  • ✓1 × Factory Wiring Diagram & Technical Data Sheet

⇩ Downloads & Documents

PDFLT-3063-3A

Frequently Asked Questions

Q: How many LT-3063-3A power repeaters can be connected together?

A:Theoretically, an unlimited number of LT-3063-3A repeaters can be connected to expand a single control system. Each repeater draws minimal signal current from the PWM line and supplies isolated power to its downstream LED strip segment.

Q: How do I calculate total LED light power consumption for driver sizing?

A:Multiply the rated wattage per meter of your LED strip by the total run length in meters, then add a 20% safety margin. For example, a 10-meter 24V strip drawing 14.4W per meter requires 144W of load capacity, which pairs within the 216W limit of the LT-3063-3A.

Q: Can the LT-3063-3A be used for single-color or dual-white LED strips?

A:Yes. While designed with 3 channels for RGB lighting, you can connect each of the 3 channels to separate single-color circuits (up to 3A each) or use two channels for tunable white, provided the dimming signal from the master unit matches.

Q: What type of power terminal or connection does this repeater use?

A:The LT-3063-3A uses integrated, potted wire leads extending directly from both ends of the housing. This eliminates open screw terminals, ensuring continuous IP68 ingress protection in wet and outdoor environments.
