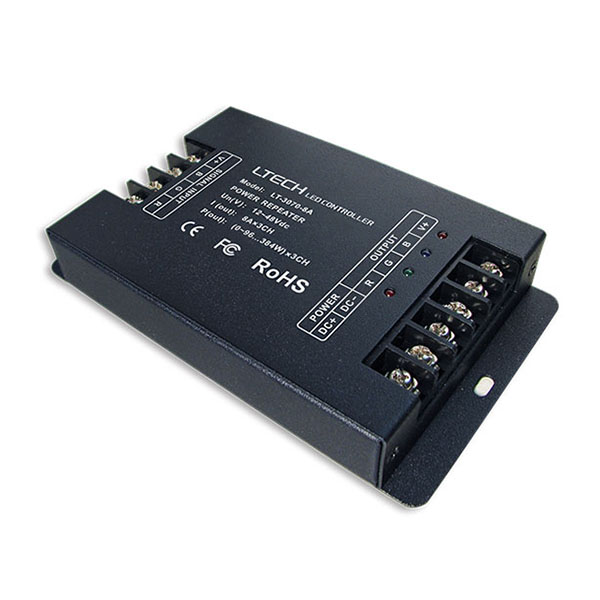

CV Power Repeater LT-3070-8A
LT-3070-8A CV Power Repeater
Input signal: PWM
Input voltage :DC12V~DC48V
Max load current: 8A ×3CH Max 24A
Max output power: 288W/576W/864W/1152W(12V/24V/36V/48V)
Output signal :CV PWM
working temperature :-30℃~65℃
Package Size: L158×W94×H31(mm)
Weight (G.W) :380g
