DC12V/24V 2835SMD 600LEDs Flexible LED Strips - Color Temperature Pure White+Warm White Series

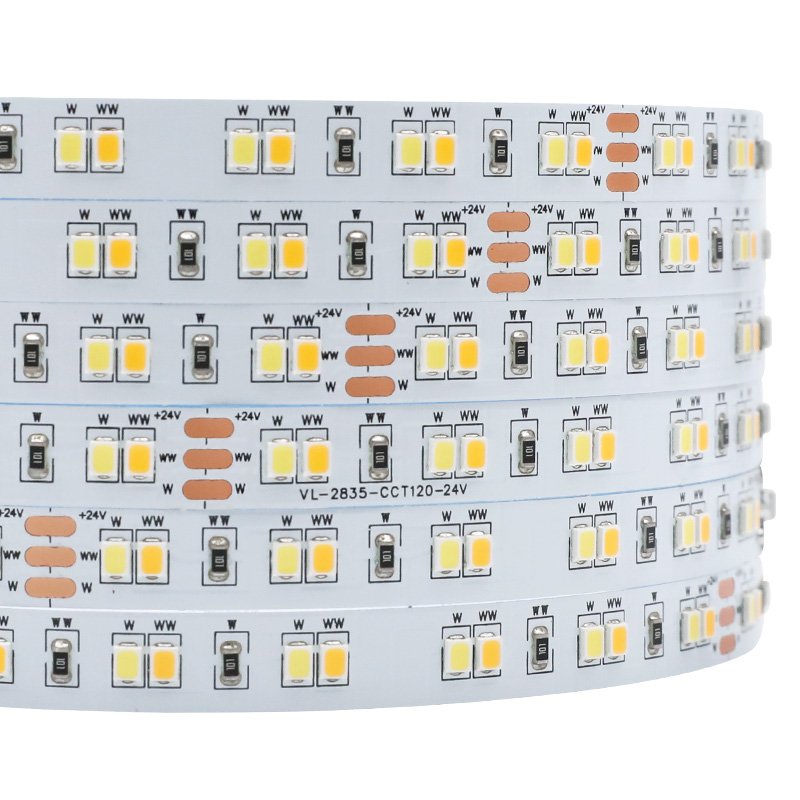

►2835SMD white LED: two 2835SMD white LEDs are a group, one is a warm white LED, one is a pure white/daylight white LED. Super bright white colors 2835 SMD flexible LED tape lights, Epistar chip, 600LEDs/roll, 16.4ft(5 meters)Per Reel By Sale.
►12V vs 24V CCT adjustable led strip lights:

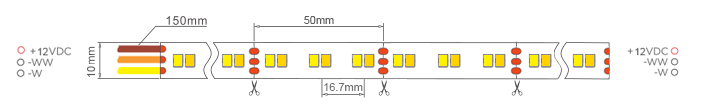

12V DC operation. The minimum cutting length of this CCT tunable white led strip is 6 LED lights (3 groups of one warm white LED and one pure white LED).

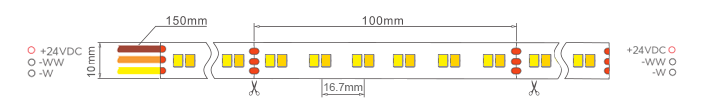

24V DC operation. 12 LEDs can be cut (6 groups of one warm white LED and one pure white LED).
So you could cut a different light strip length for your led lighting project and request.

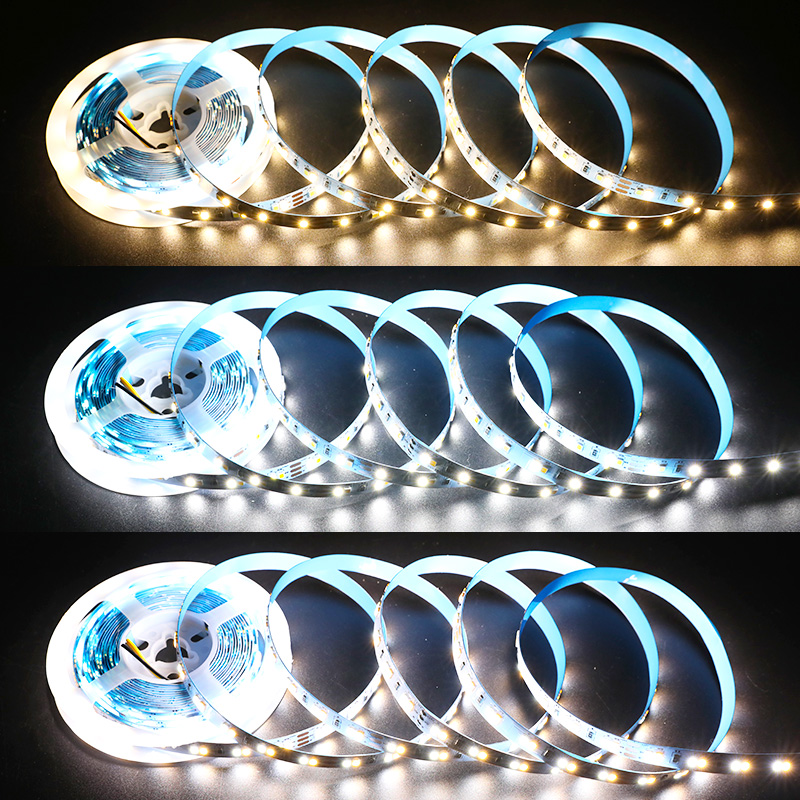

►CCT tunable white light color temperature from warm white to cool white: This dimmable white led strip can individually light up warm white LEDs or daylight/pure white LEDs. Work with the CCT LED controller, you can adjust the white color temperature from 2600K to 6800K and adjust LED brightness from 0% to 100%.
►Waterproof optional - IP20 vs IP67 waterproof LED strip: IP65, IP67, and IP68 Outdoor waterproof dimmable white led strip lights are available.
►High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.

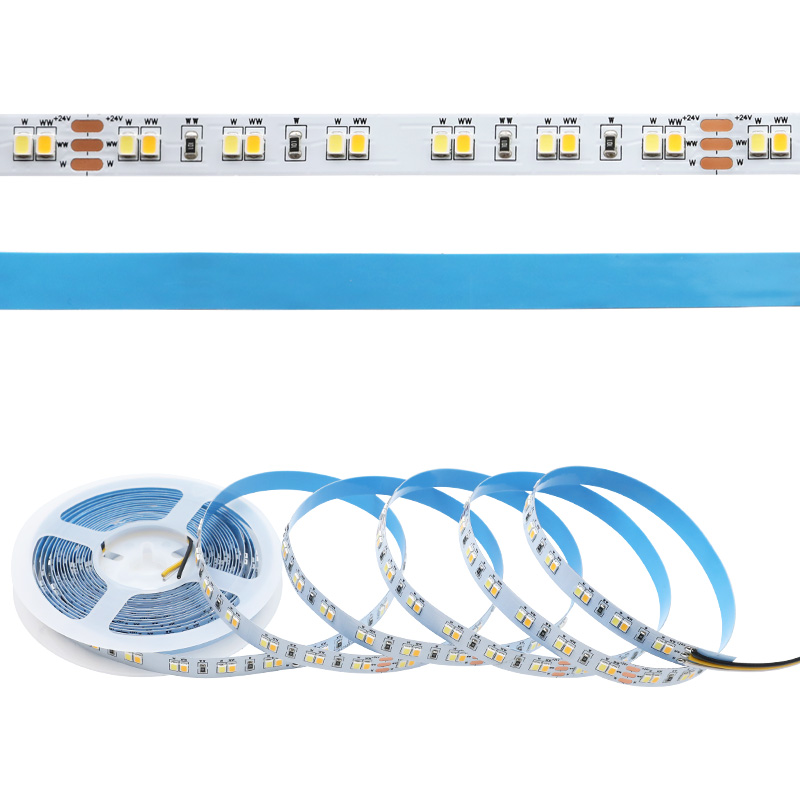

Our brightest super flexible LED dual white color light strips are soft and easy bent for installation. Available in 5 meters (197 in) flexible led strip lights with adhesive backing and can be stuck just about anywhere.
This tunable white LED lighting strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.
Standards and Certifications
LED Strip Type: SMD 2835
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White

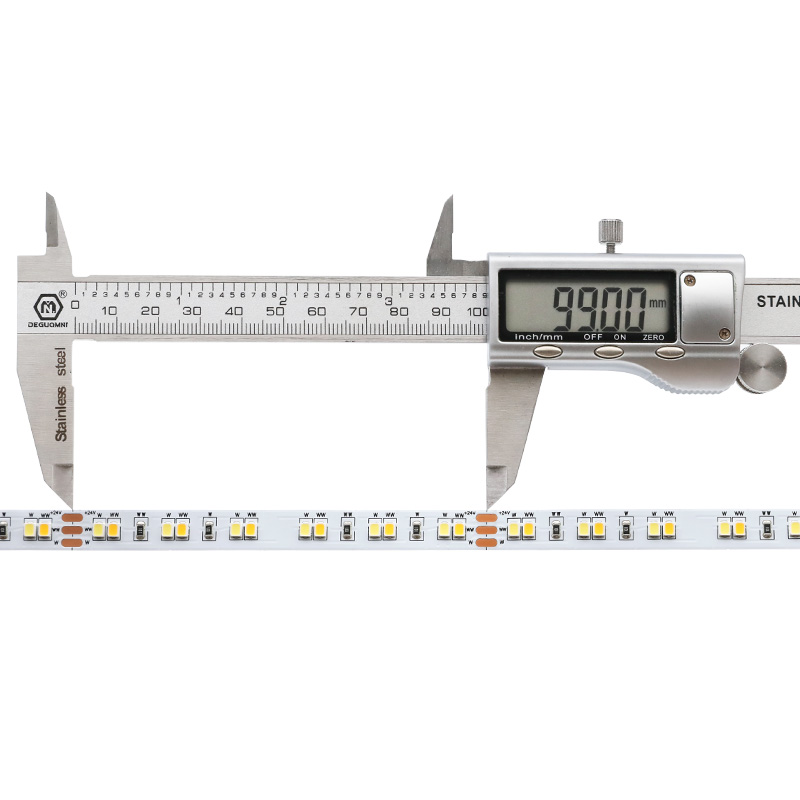

Dimension: 16.4ft/roll, every 12 PCS LED can be cut(DC 24V)/ every 6 PCS LED can be cut(DC 12V)
LED Quantity: 600 LEDs per 5meter (16.4 ft)
Warantty: 3 years

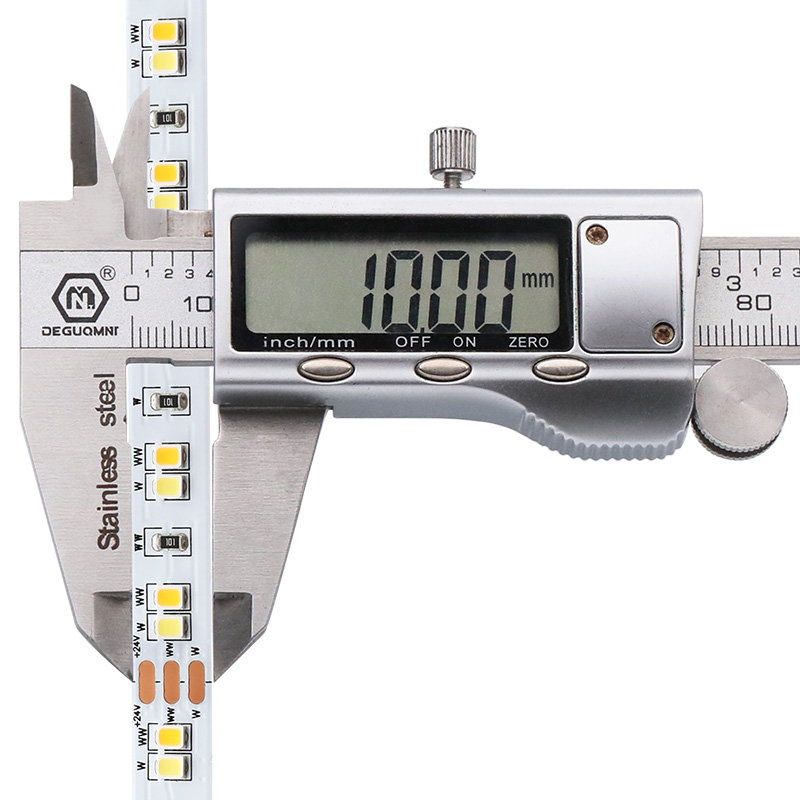

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12V/24V DC
Working Power: 10A 120W /16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 4600Lumens/16.4ft, 281Lumens/Ft, 38.3Lumens/watt
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k),Nature White(4000-5000k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:

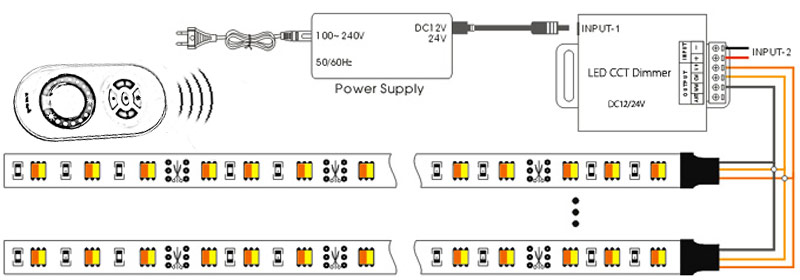

►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram

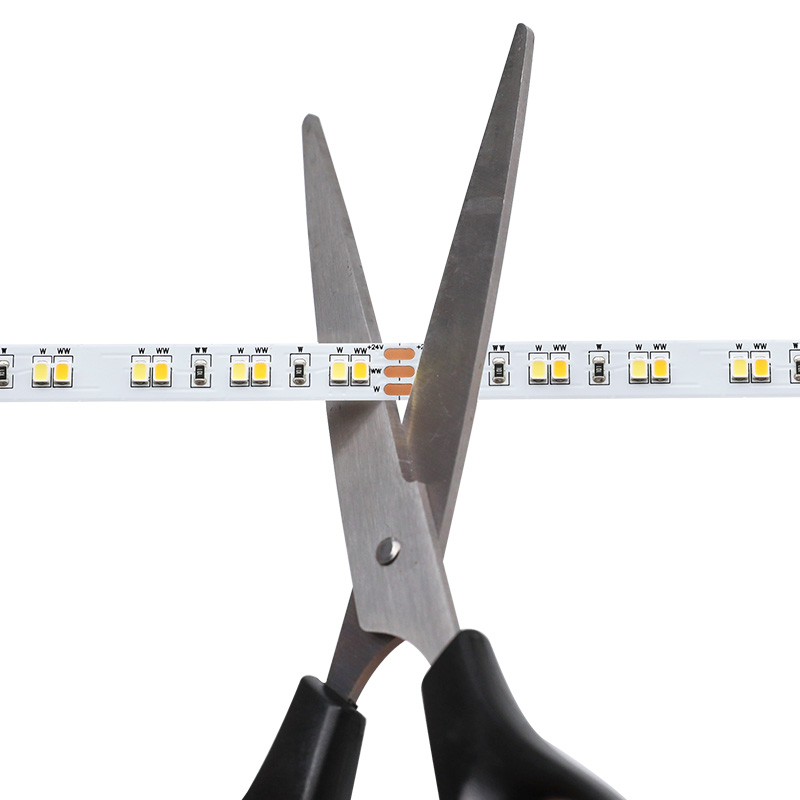

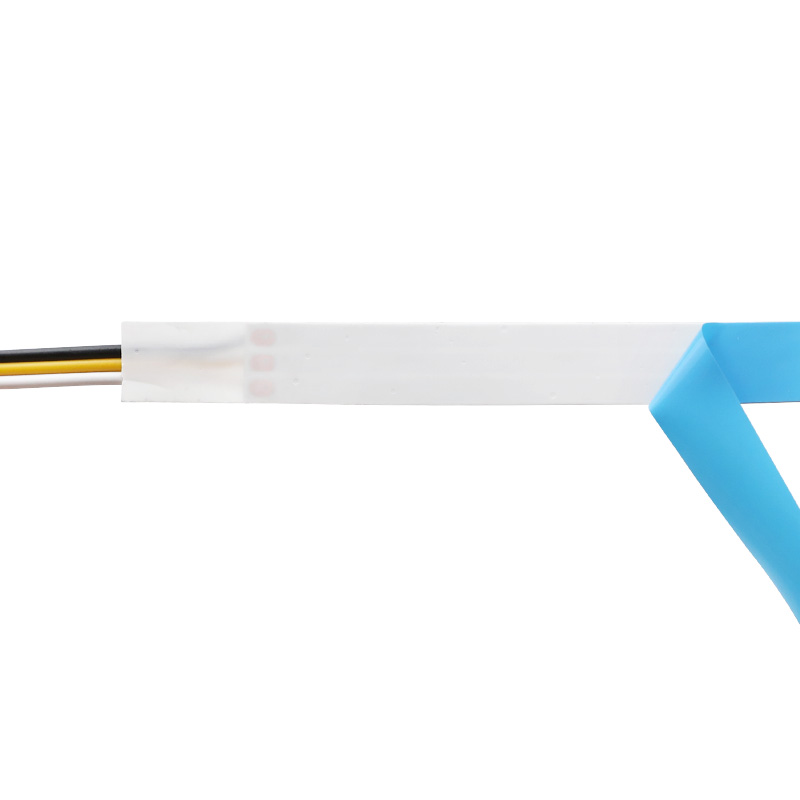

|You can cut the dimmable white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof dimmable white led strip lights type which will come with mounting brackets.|
►Can you cut LED strip lights and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
Trademark lighting Logo lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
