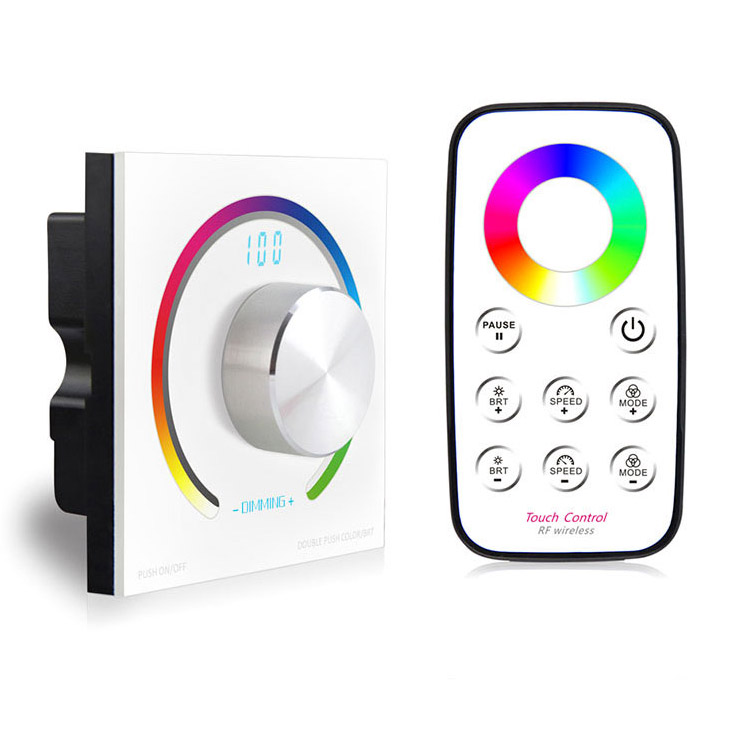

DC12V-24V Constant Voltage RGB Controller K3 T3
K series rotary controller is widely used for commercial /office/household lighting, workable for dimming, color temperature, RGB control .with digital display, display status is clear when at a glance. It compatible with our T1, T2, T3 wireless remote control, realize remote control function, thus can meet the demand of various occasions.
1. Automatically adapt to LED light which works from DC12V-24V.

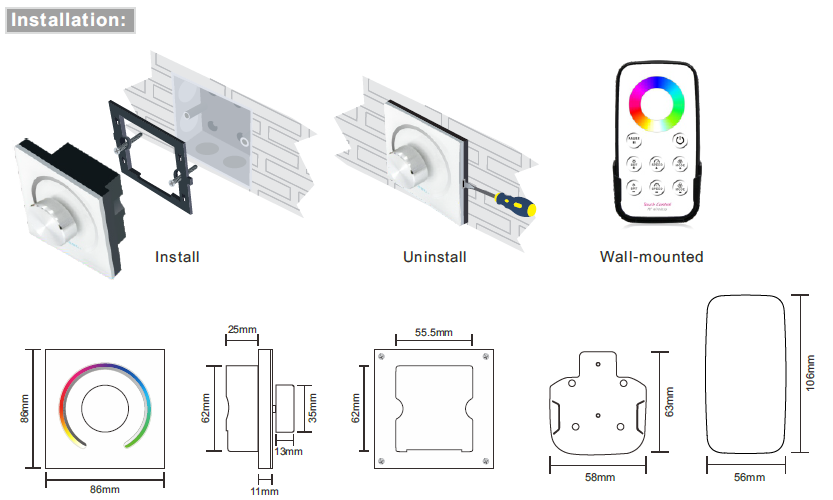

2. Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.
3. Workable for dimming, color temperature, RGB control.
4. 2048 grey scales per channel, the led lamp is more rich and vivid without flash.
5. Optional output frequency 0.5K、1K、2K、4K、8K.
6. Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.
7. Can compatible with T series wireless remote control in long distance.
8. Using Encoder rotary knob, instead of a potentiometer, more durable.
Standards and Certifications
Input Voltage: DC12V-24V
Load Current: 4A×3CH Max 12A
Optional output frequency: 0.5K、1K、2K、4K、8K
Grey Scale Level: 2048×3
Max Output Power: 144W(12V)/288W(24V)
Working Temperature: -20°C~55°C
Model: Wireless Remote(T3)
Input Voltage: 3V(CR2032)
Working Frequency: 433.92MHZ
Remote Distance: 30M
Working Temperature: -20°C~55°C
The Learning ID Method of Remote Control:
Remote control has been matched to the receiver before delivery, if deleted accidentally, you can learn ID as follow.

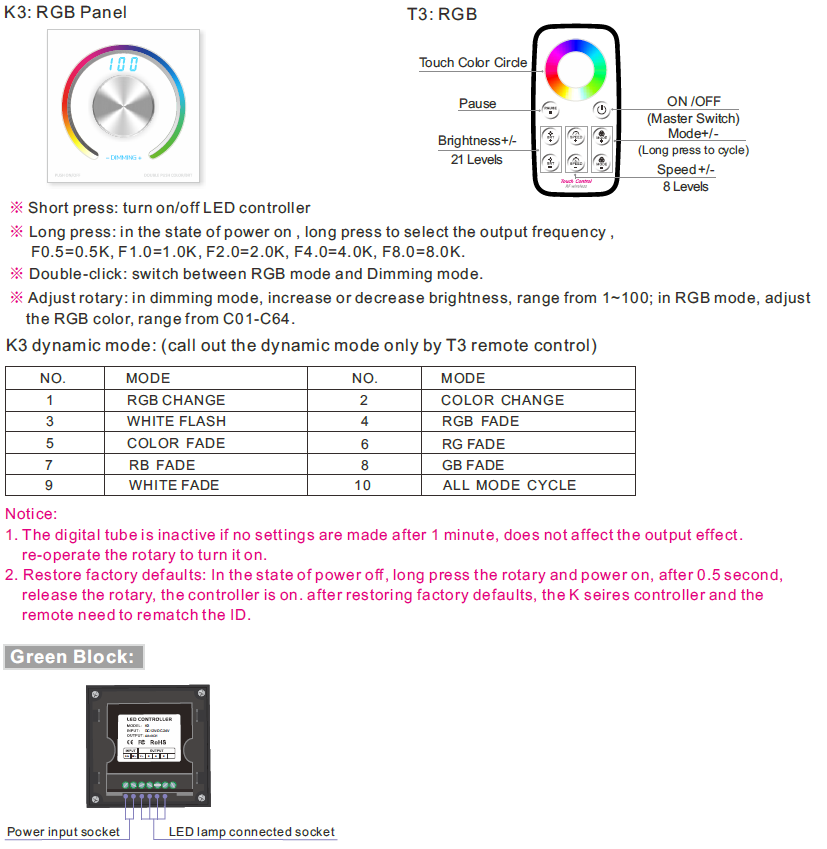

Learning ID: In the state of power off, long press rotary for 3 seconds, when the digital tube displays 'FF',then press any key on the remote control . The digital tube flashes 3 times, and the controller is ON, the remote and controller is matched.
The controller only matches to the same type remote control, the controller is inactive if no settings are made to it after 1 minute, press any key to turn it on before normal operation.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services
except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
7.Product has been updated.
1.Power Source Selection

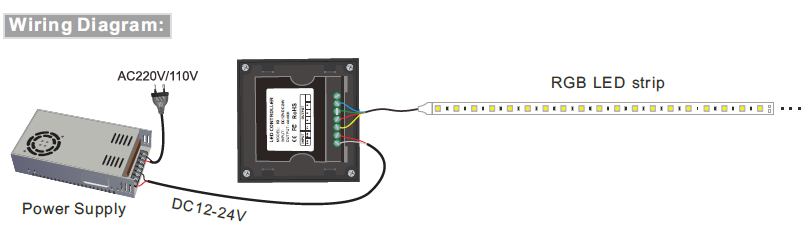

Power source must be DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of total, so please select at least 20% higher output power supply than the consumption of LED lights.
