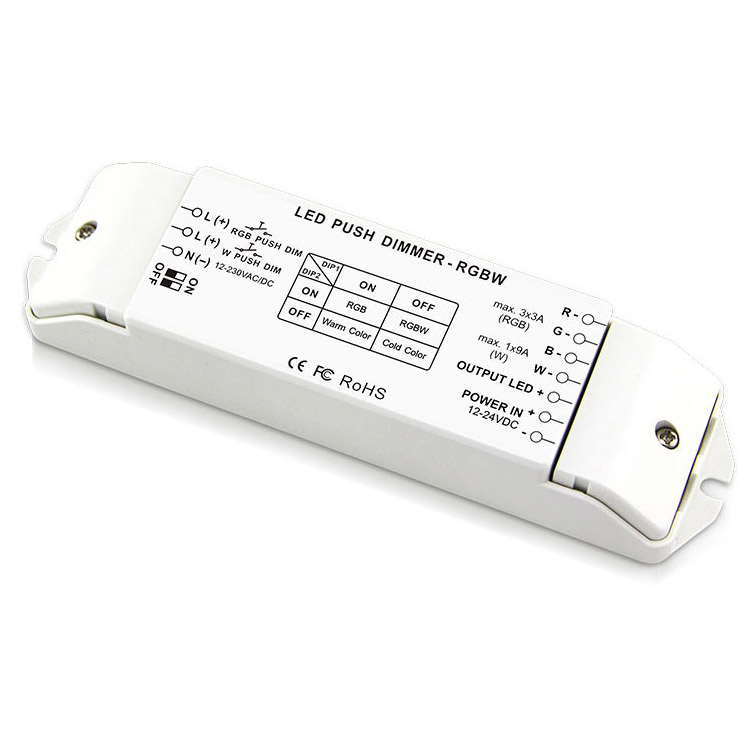

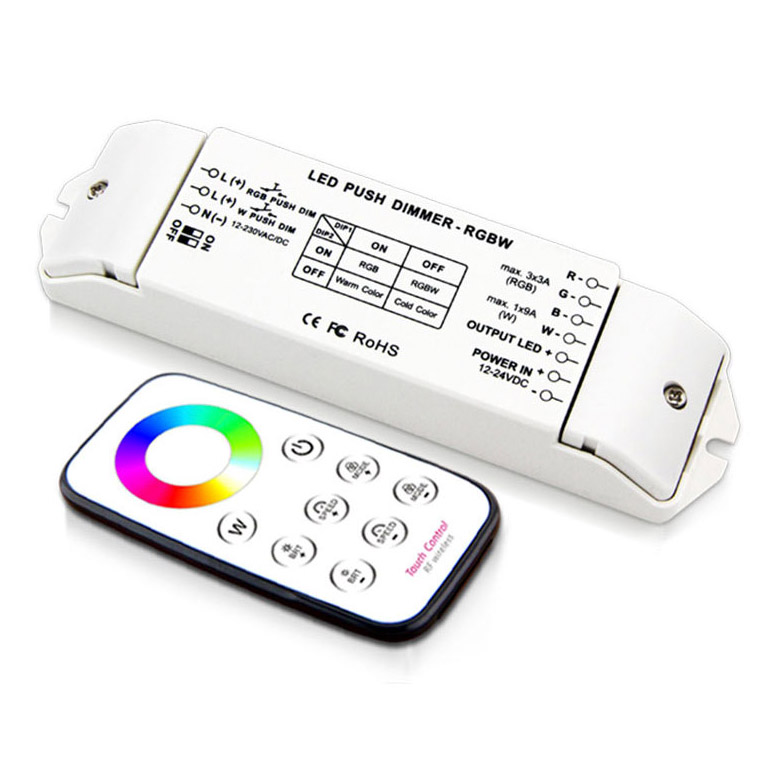

DC12V-24V Constant Voltage RGBW Controller BC-420RF
Adopts to PWM(Pulse-Width Modulation)digital brightness control technology. Users can choose their favorite dynamic color change tone by two DIP switch. Meanwhile, It can be controlled by the wireless touch remote control and duplex push dim button. Seeing is believing. This led controller is suitable for RGB & RGBW LED lamp, easy to use.
1. Automatically adapts to DC12V-24V.
2. 4 output channels, each channel 4096 grey scale, Lamplight soft and stable, without flicker
3. 4 dynamic color tune selectable.
4. Save parameter automatically.
5. Overcurrent protection, short circuit protection.
Standards and Certifications
Working voltage: DC12V-24V
Max output current: RGB: 3A×3CH W: 9A×1CH
Max output power: RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V)
Greyscale: 4096 levels×4
Work temp: -20-55℃
Weight (G.W): 145g
Working voltage: DC12V-24V
Working frequency: 433.92MHz
Remote distance: 40m-50m
3、Two pushbuttons description
The first button controls the RGB channel
1、Short press(< 0.5s), master switch;
2、Short press ON/OFF button two times(within 0.5s+0.5s), changing program between static color and dynamic color changing.
3、In the static color program, long press to change the brightness, long press again for the opposite direction, totally of 8 levels, 1s for one level.
4、In color changing program, long press to change the speed, long press again for the opposite direction, totally of 8 levels, 1s for one level.
The second button controls the W light.
1) Short press(<0.5s) to switch the light on/off;
2) Long press(>0.5s) to adjust the brightness of white light, within 1%~100%. After the adjustment, the change goes the opposite.
3) When the white light is off, long press to turn it on and dim.
2、Remote control button description:
4、Tables of changing modes
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except for the following cases:
1. Any defects caused by wrong operations.
2. Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4. Any damages due to transportation, breaking, flooded water after the purchase.
5. Any damages caused by an earthquake, fire, flood, lightning strike, etc. force majeure of natural disasters.
6. Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
