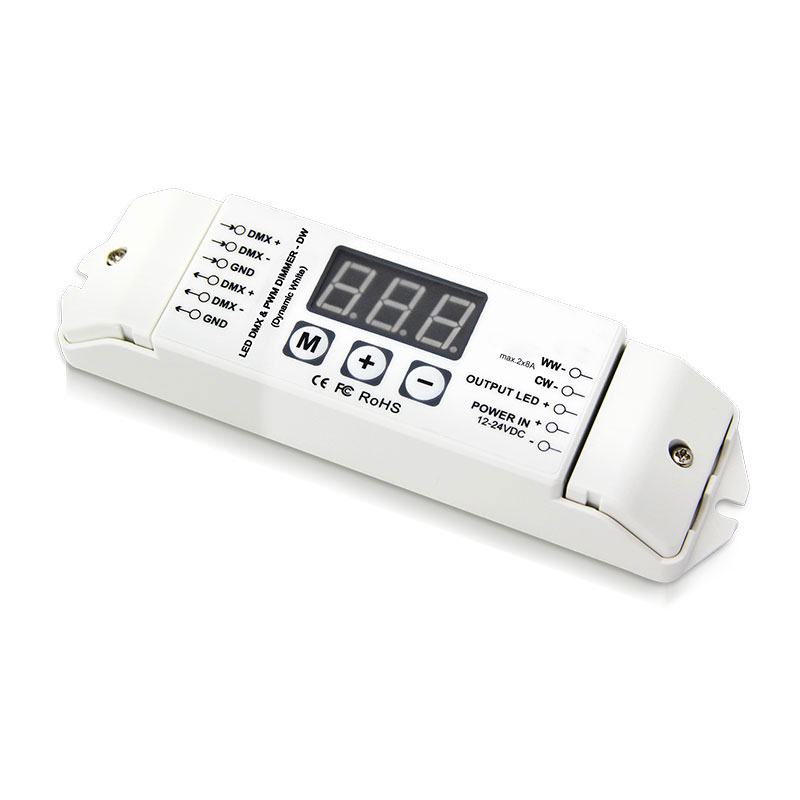

DC12V-24V DMX512 Constant Voltage Decoder BC-832
DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. The user can choose 1~2 output channels, max 8A output each channel, 4096 Grey Scales. It can be used as a DMX512 master or as DMX decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
1. Automatically adapt input voltage DC12V-24V.

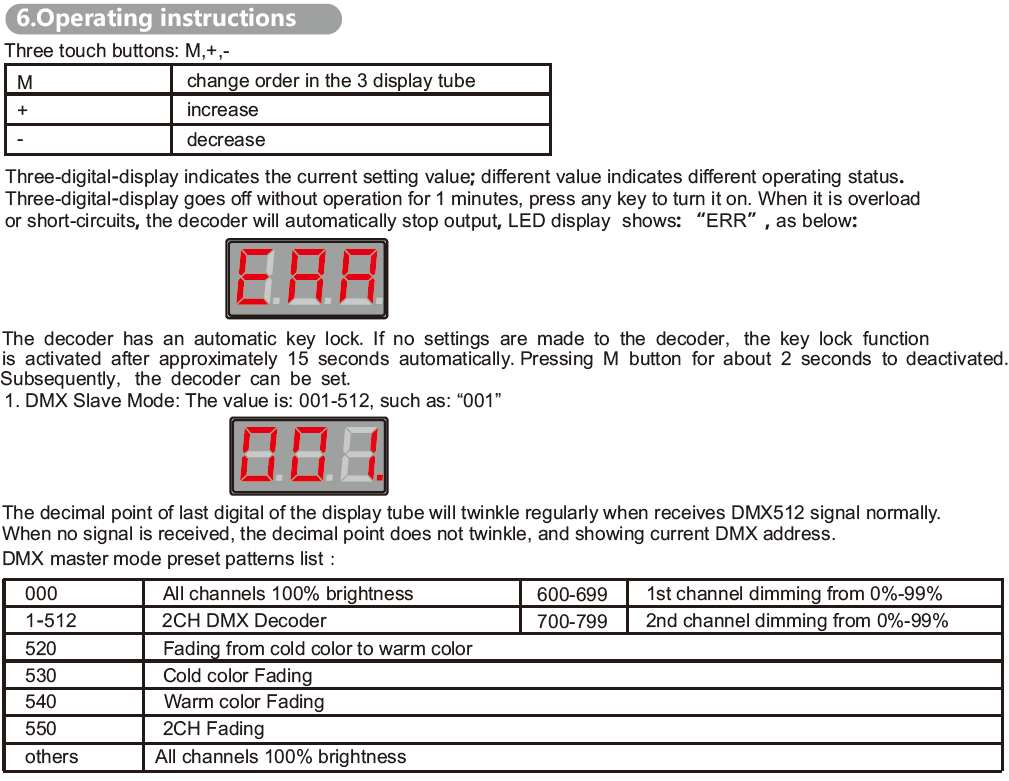

2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3. 2 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

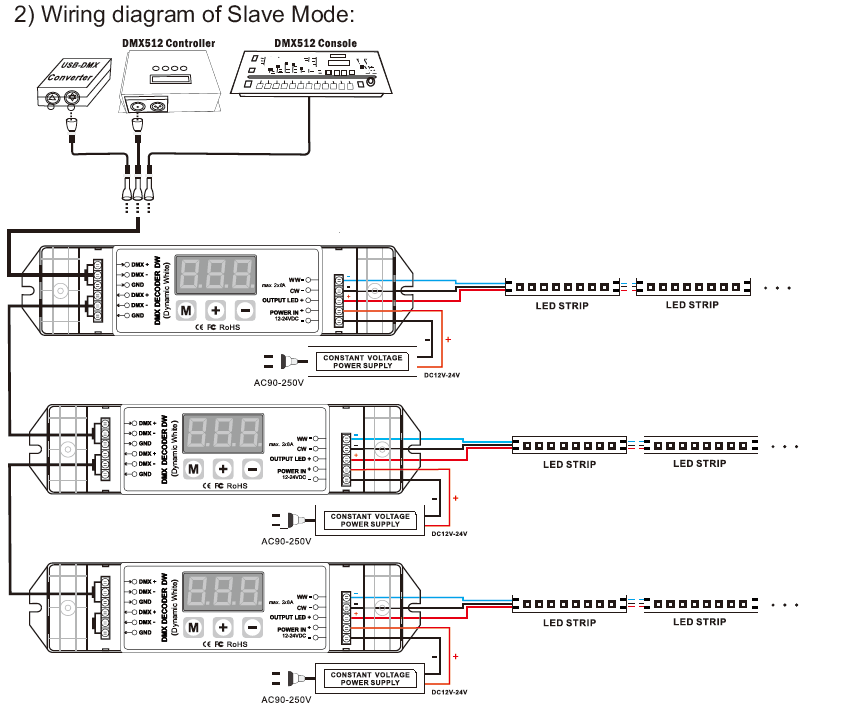

4. DMX Master mode, Slave mode available.

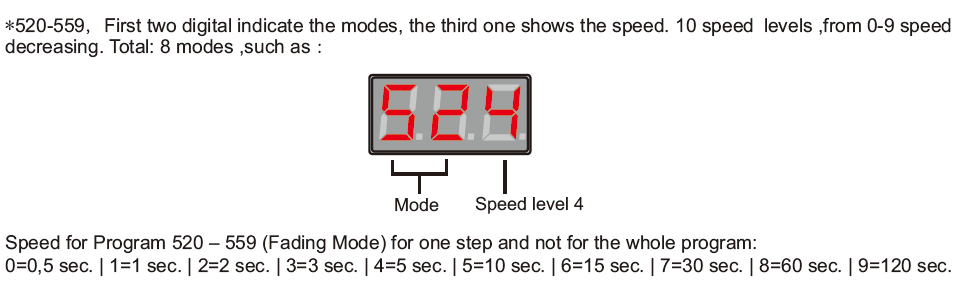

5. 4 color changing modes and 10-speed scales in master mode.
6. An indicator of the DMX512 signal receiving status.
7. Wrong wiring protection at DMX input port. Overcurrent protection and short circuit protection.
8. Power loss memory function.
Standards and Certifications
Input voltage: DC12V-24V
Max load current: 8A/CH×2
Max Output Power: 192W(12V)/384W(24V)
Grey Scale: 4096 levels×2
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWMX2
Decode Channel: 2CH
DMX512 socket: Terminal Block
Weight (G.W): 170g
1. To ensure your safety and product properly usage, please read the user manual carefully.
2. To avoid installed the product in minefield, strong magnetic field and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire.
4. Please install the product in a well ventilated area to ensure appropriate temperature environment.
5. The product must be worked with DC constant voltage power supply. Please check the consistence of input power with the product, if the output voltage of the power comply with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no shortcircuit, then power on！
7.Don't repair it by yourself whenever an error occur. Contact the supplier for any inquiry.

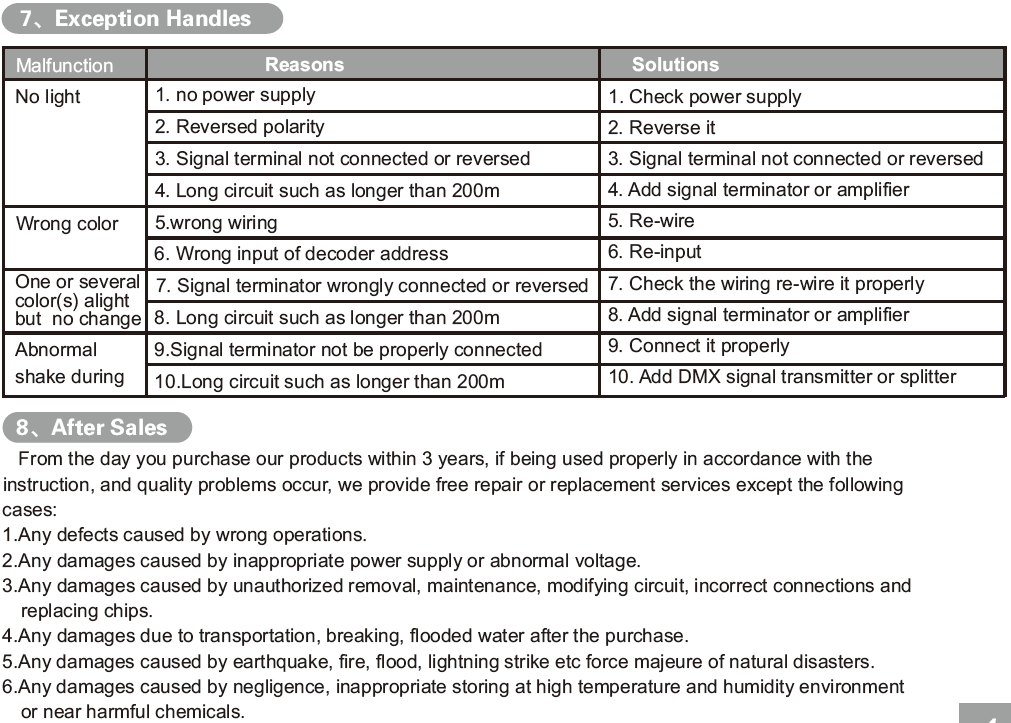

From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
