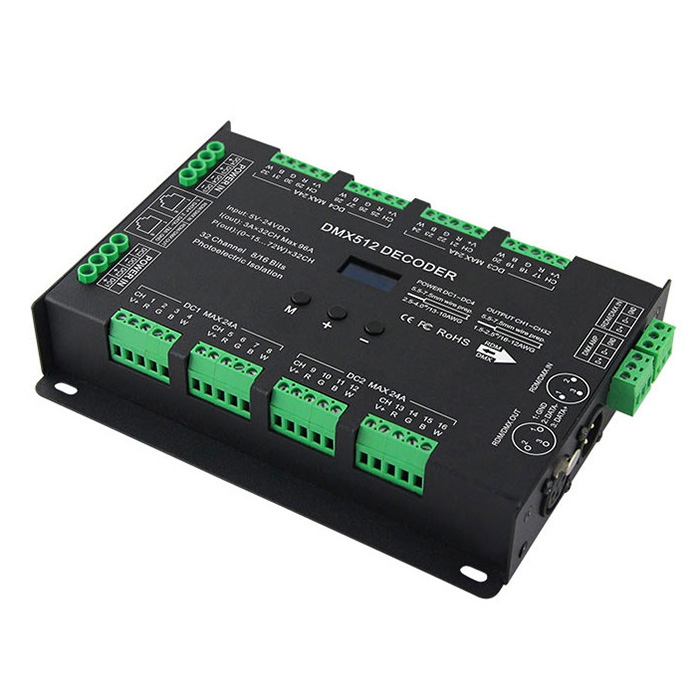

DC5V-24V 32CH DMX512 Constant Voltage Decoder BC-632
DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps. It adopts advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output, max 3A each channel, 65536 gray scales, workable for a single color, color temperature, RGB and RGBW led lamp.

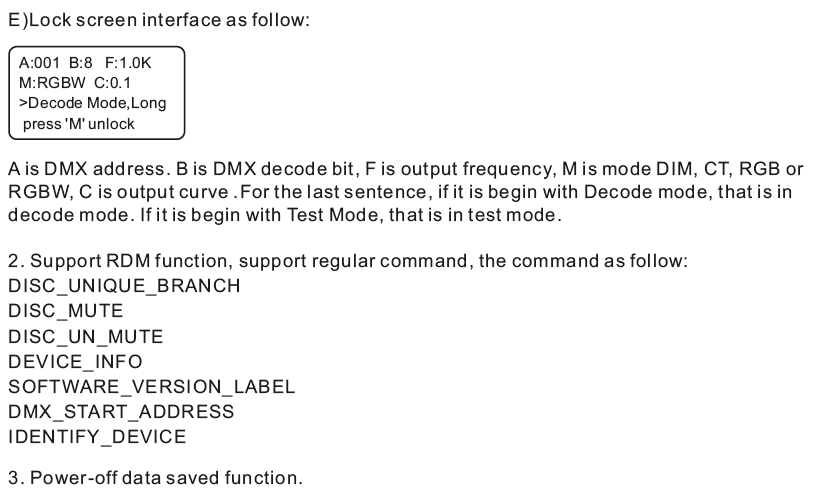

1. Support RDM function.
2. Selectable output frequency 1K、2K、4K、8K.

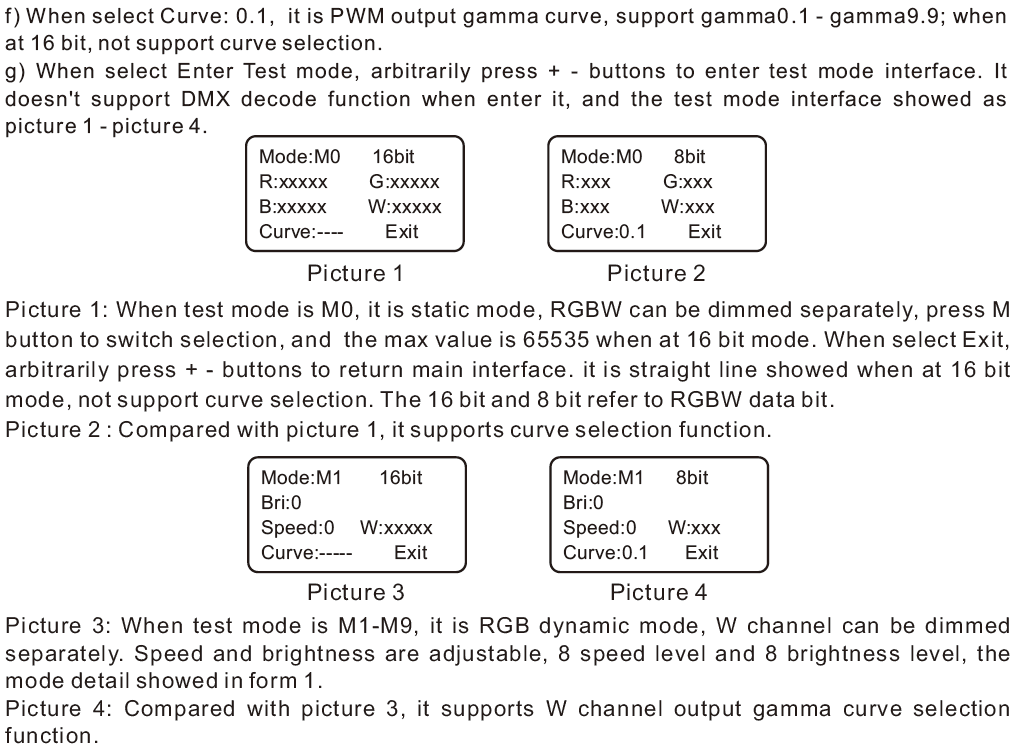

3. Output gamma curve can be adjusted.
4. DMX decoding supports 8 bits or 16 bits.
5. OLED display.
6. 32 channels output.
7. Power-off data saved function.
Standards and Certifications
Input voltage: DC5V-24V
Max load current: 3A/CH×32, Max 96A
Max output power: 480W(5V)/1152W(12V)/2304W(24V)
Scale Levels: 65536 levels
Input signal: DMX512/RDM, 8Bit、16Bit optional
Output Signal: Constant Voltage PWM×32CH
Decode channel: 32CH
DMX512 socket: XLR-3R/ Rj45/ Terminal block
Control mode: DIM /CT /RGB /RGBW 4 modes switch

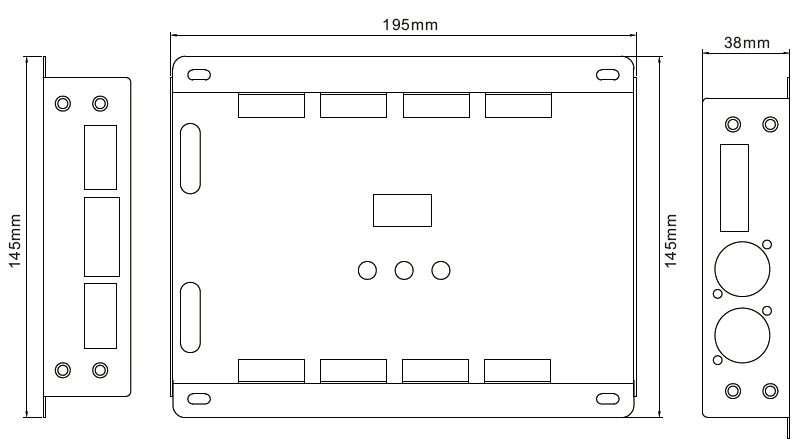

Dimension: L195 X W145 X H38(mm)
Weight (G.W): 810g
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller. (please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
Power Source Selection:
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least 20% higher output power supply than the consumption of LED lights.
