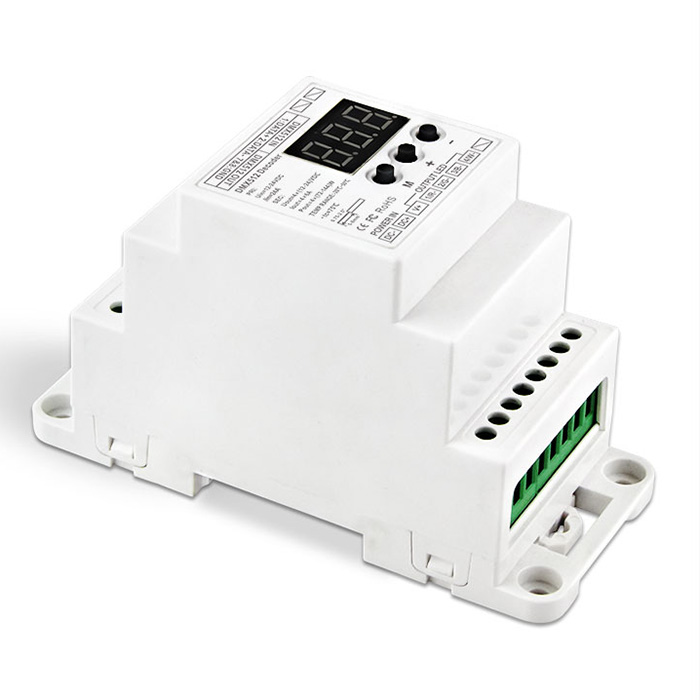

DC12V-24V 4CH Constant Voltage Decoder BC-834-DIN-RJ45
Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. The user can choose 1~4 output channels, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
1. Automatically adapts input voltage DC12V-24V.

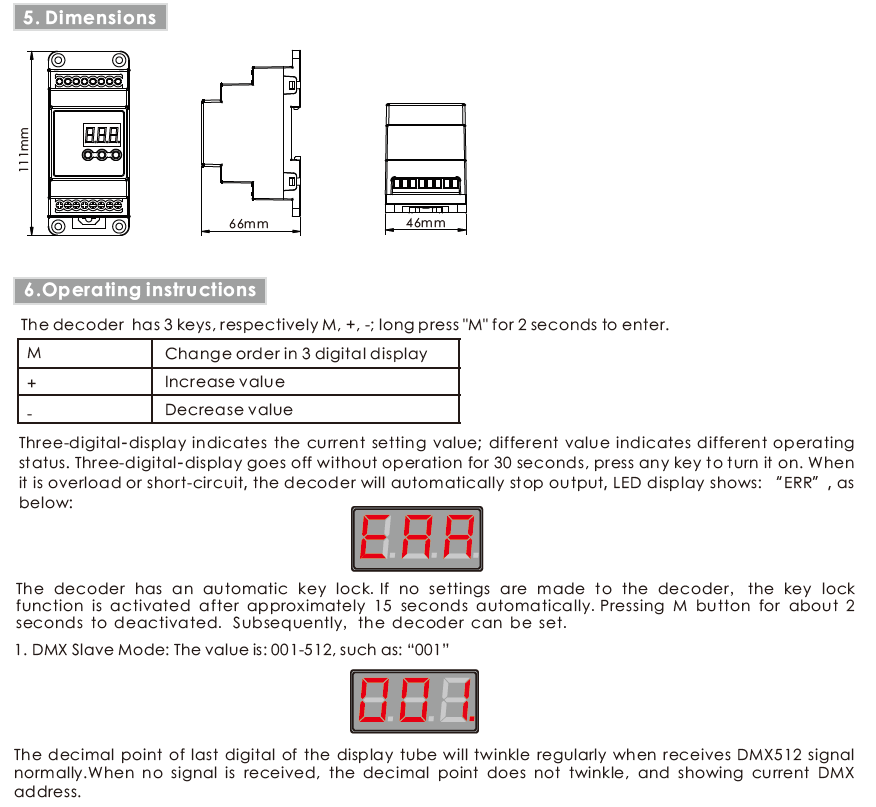

2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3. 4 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

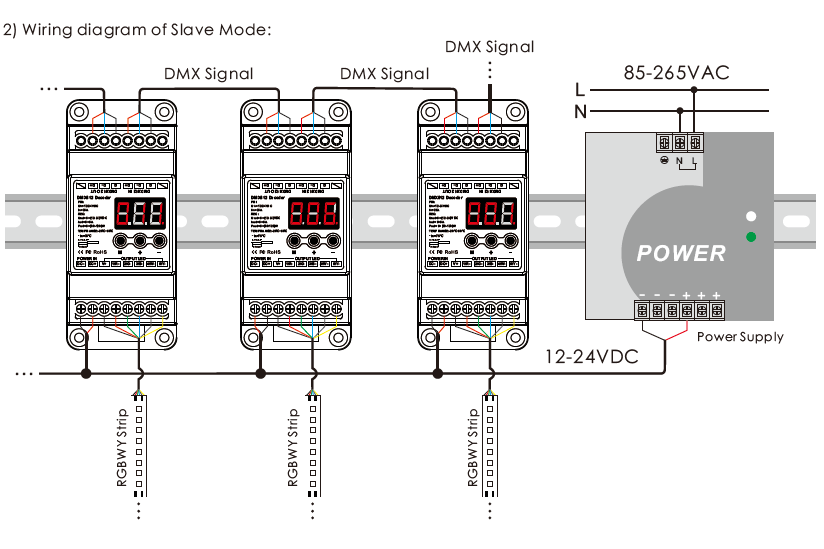

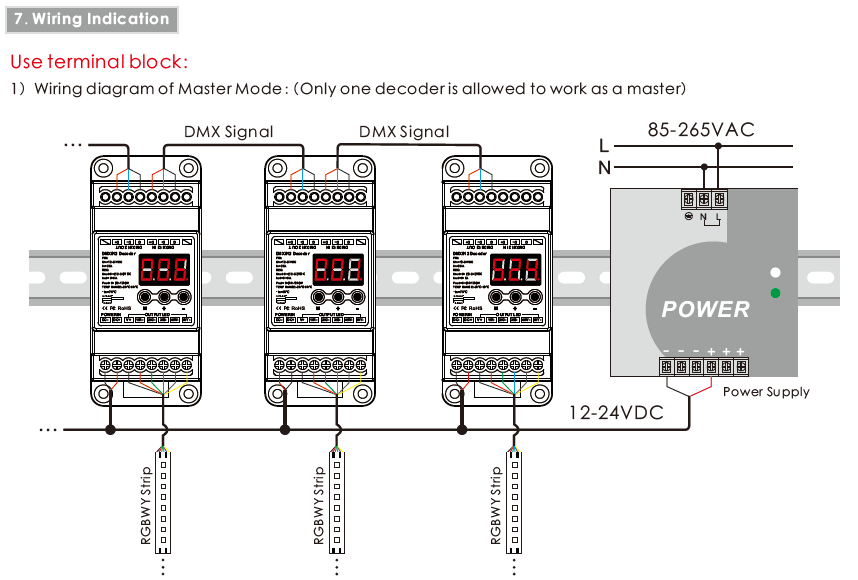

4. DMX Master mode, slave mode available.

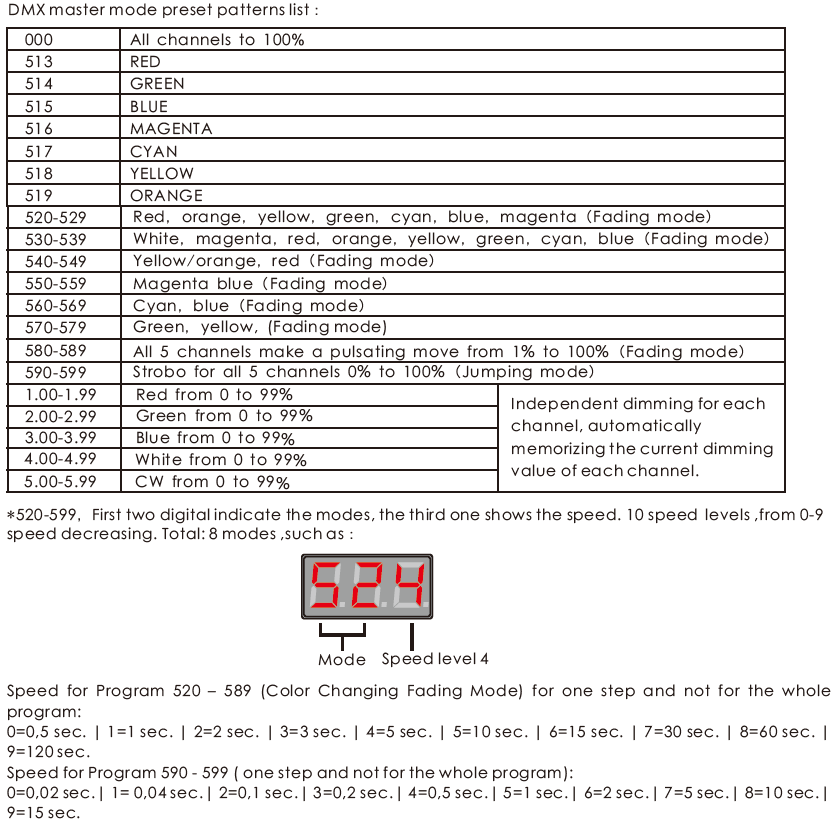

5. Built-in 8 color changing modes and 10-speed scales.
6. An indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8. Wrong wiring protection at DMX port, overcurrent protection, and short circuit protection.
9. The DIN rail style facilitates the installation of large-scale projects.
Standards and Certifications
Input voltage: DC12V-24V
Max load current: 6A×4CH
Max Output Power: 288W(12V)/576W(24V)
Grey Scale: 4096 levels×4
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 4CH

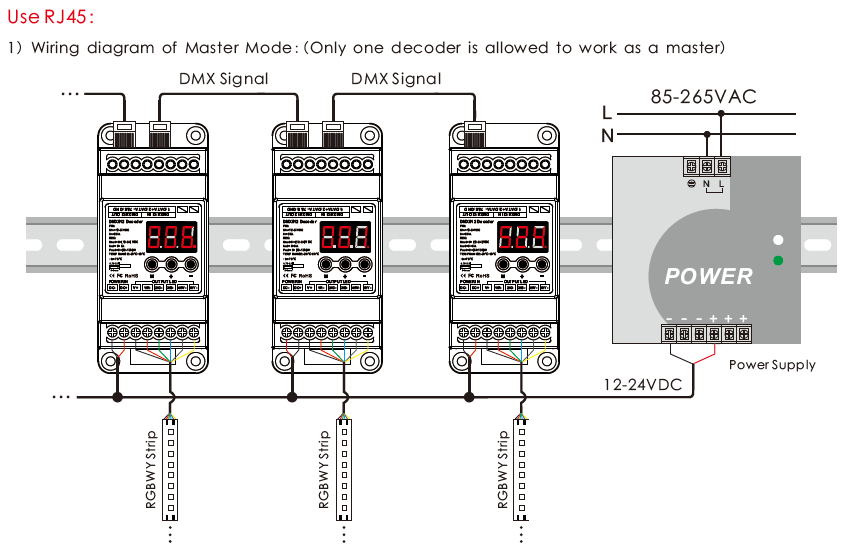

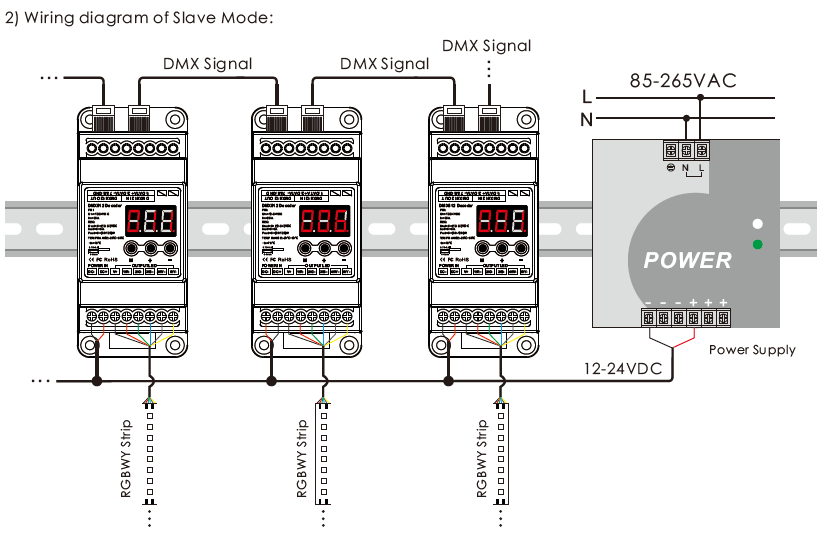

DMX512 socket: RJ45
Weight (G.W): 133g
1. To ensure your safety and product proper usage, please read the user manual carefully.
2. To avoid installed the product in a minefield, strong magnetic field, and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause a fire.
4. Please install the product in a well-ventilated area to ensure an appropriate temperature environment.
5. The product must be worked with a DC constant voltage power supply.
Please check the consistency of input power with the product, if the output voltage of the power
comply with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no
short-circuit, then power on！
7. Don't repair it by yourself whenever an error occurs. Contact the supplier for any inquiry.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except the
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
