DC12V-24V DMX512 Constant Voltage Decoder BC-854
Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. The user can choose 1~4 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
1. Automatically adapts input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stable without strobe flash.

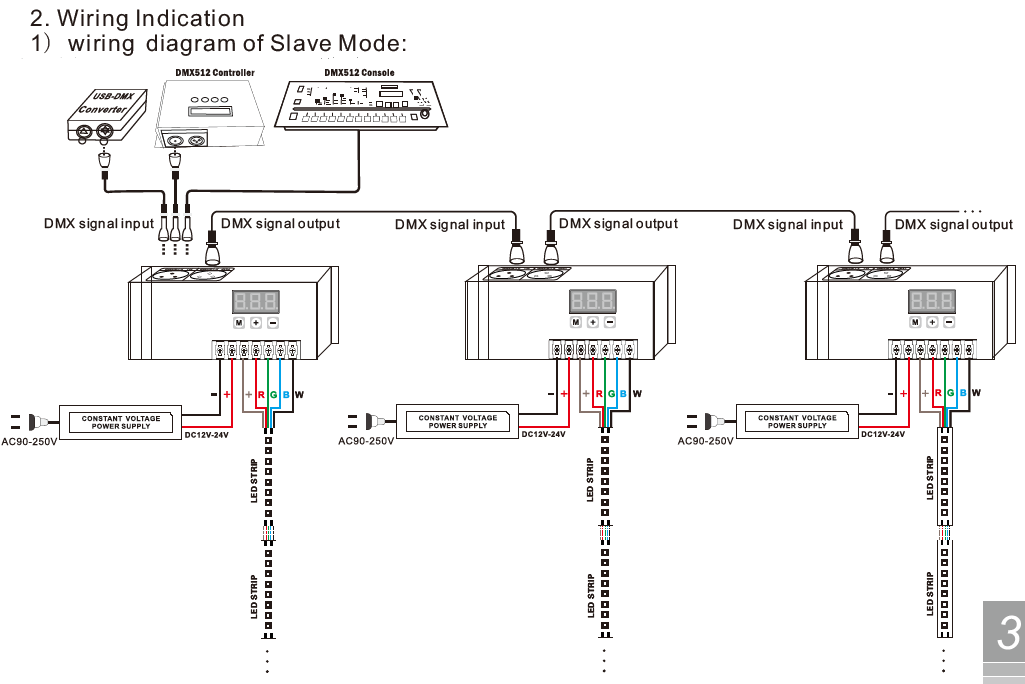

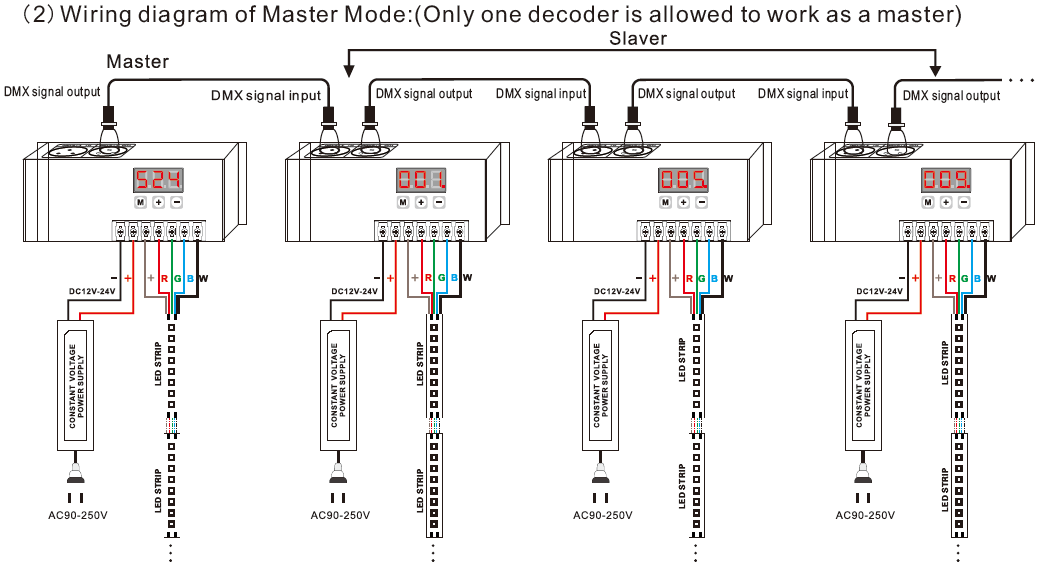

4. Support master mode or slave mode;

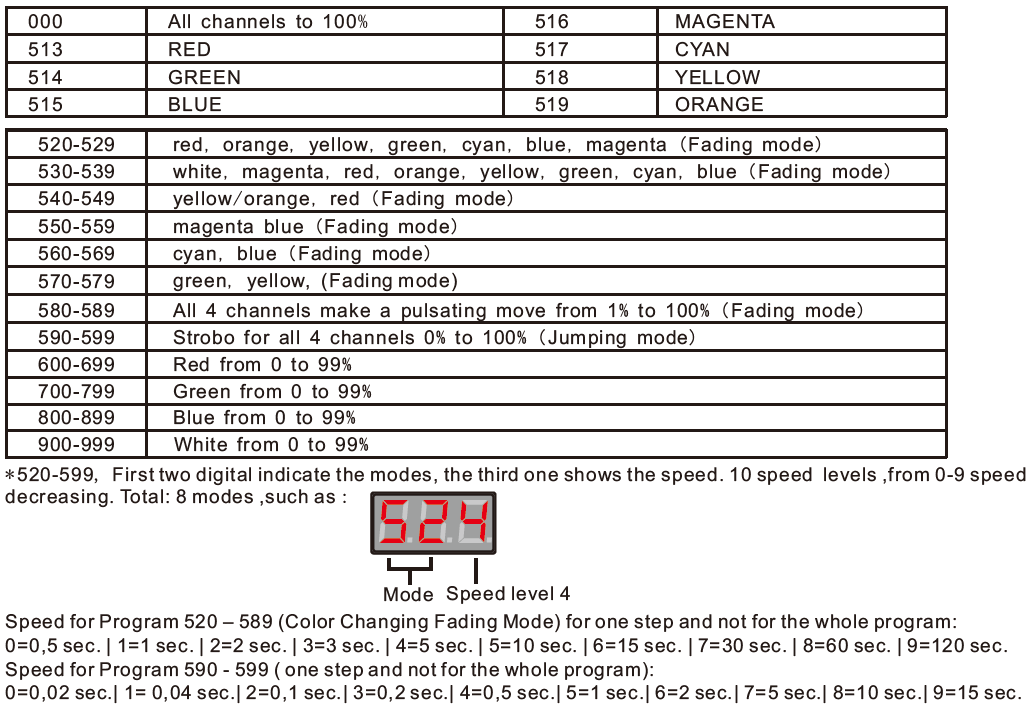

5. 8 color changing modes and 10-speed scales in master mode.
6. An indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8. Overcurrent protection and short circuit protection. Wrong wiring protection at DMX port.
9. Multiple DMX512 signal interface.
Standards and Certifications
Input voltage: DC12V-DC24V
Max load current: RGB:4A×3CH W:12A×1CH
Max output power: RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V)
Grey Scale: 4096 levels×4
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM×4
Decode Channel: 4CH
DMX512 socket: XLR-3R port/ RJ45 port/terminal block
Weight (G.W): 450g
1. To ensure your safety and product proper usage, please read the user manual carefully.
2. To avoid installed the product in a minefield, strong magnetic field, and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause a fire.
4. Please install the product in a well-ventilated area to ensure an appropriate temperature environment.
5. The product must be worked with a DC constant voltage power supply.
Please check the consistency of input power with the product, if the output voltage of the power comply with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no short-circuit, then power on！
7. Don't repair it by yourself whenever an error occurs. Contact the supplier for any inquiry.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
