DC24V 12W 35X25mm White/Yellow Light Full Color UCS1903 RGB/DMX512 Addressable Waterproof IP67 Aluminum Lens LED Linear Bar Light Wall Wash Landscape Lighting

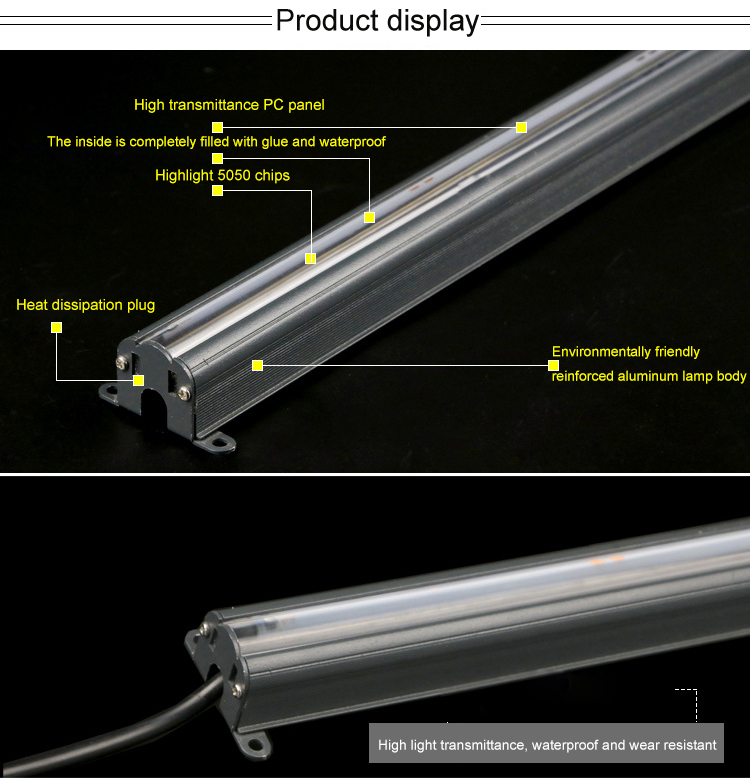

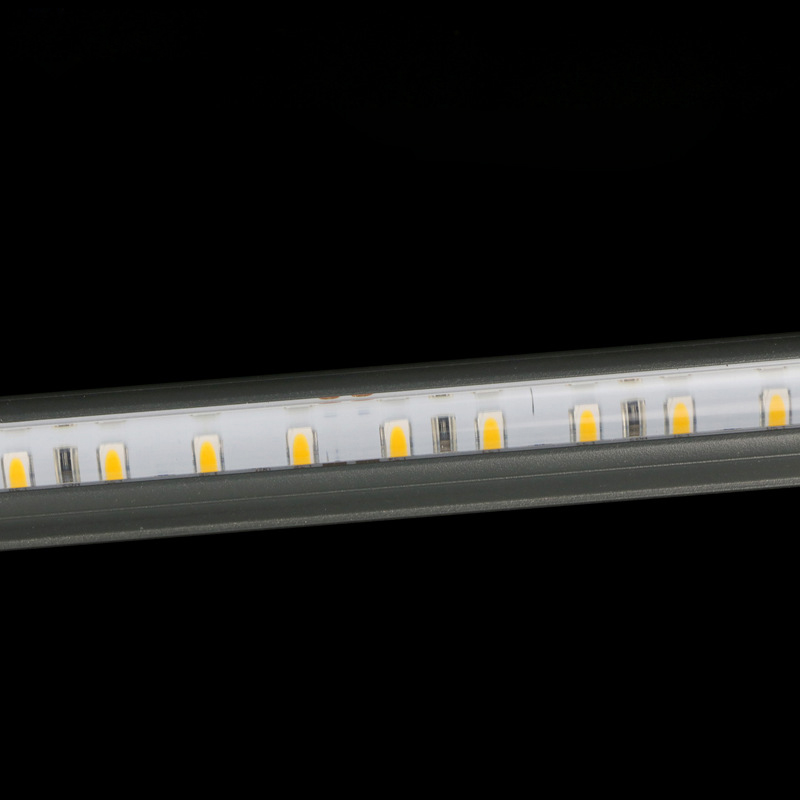

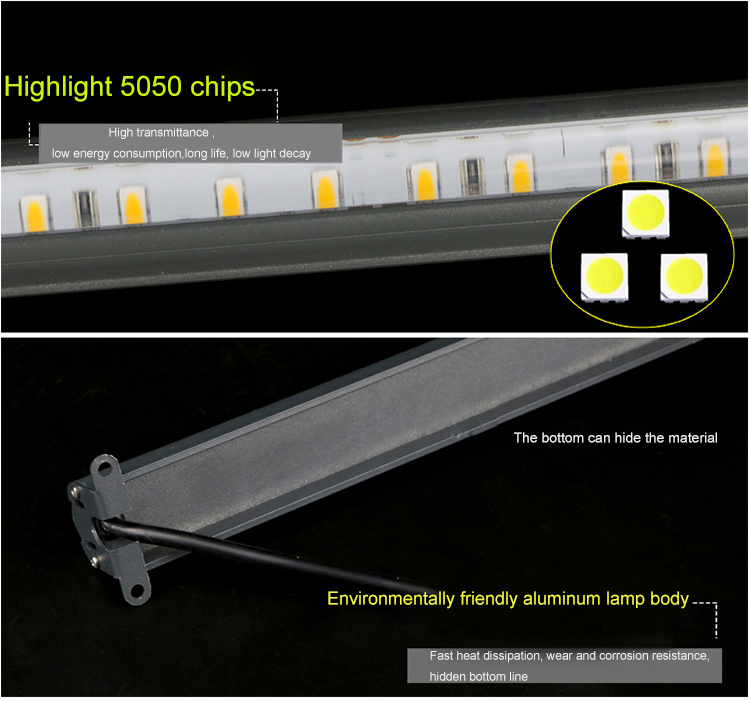

1. Highlight 5050 LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay.

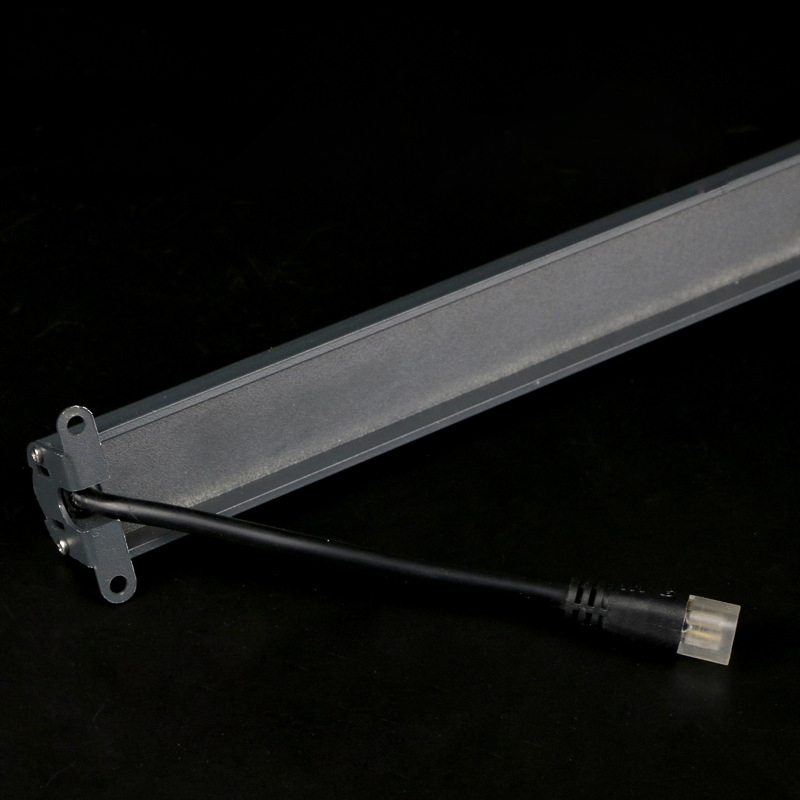

2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line.

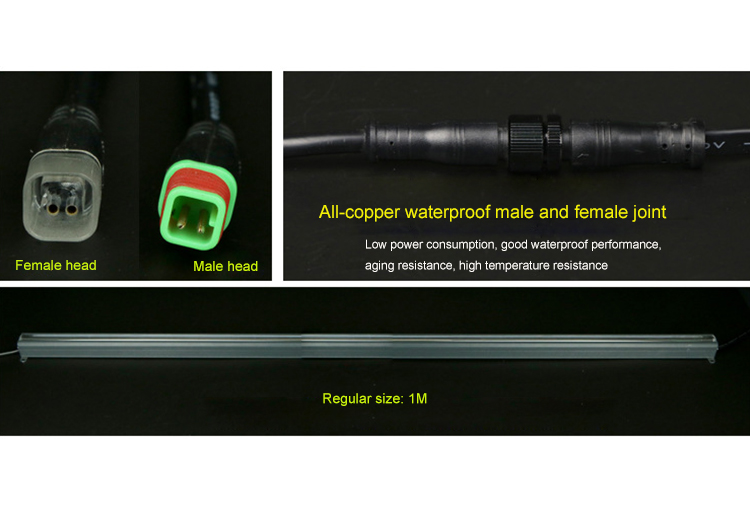

3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance.
4. Luminous effect of the Linear LED Lighting is divided into single color and full color, single color has Warm White/Daylight White/Yellow, it usually uses for lighting. Full color has DMX512 Addressable, it supports seven color gradual change, jump, full-color scanning, chasing, running water, stacking, horse lamp effect, can also use multiple point light source to form dazzle color screen, background screen, pattern, animation, and other effects, so it usually uses for decorating.
5. Pure aluminum thickened panel: The inside of Linear LED Lighting is completely filled with glue and waterproof treatment, protection of LED lamp beads, wear - resistant pressure.
6. Thickened aluminum bracket: Simple installation and easy to use.
Standards and Certifications
Item: 12W Aluminum Lens Linear Bar Light
Type: Aluminum Lens Linear Bar Light
Size of chip: 5050 SMD
Input voltage: DC24V
Rated power: 12 Watt/ piece
Lamp bead quantity: 48LED
Light Color: Warm White/Daylight White/Yellow/UCS1903/DMX512
Brightness: high brightness
Grey level: 256
Lighting angle: 120
Color temperature: 2700-6500K
Working temperature: -30~40°C
Luminous flux: 960LM
Control type: External control
Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
