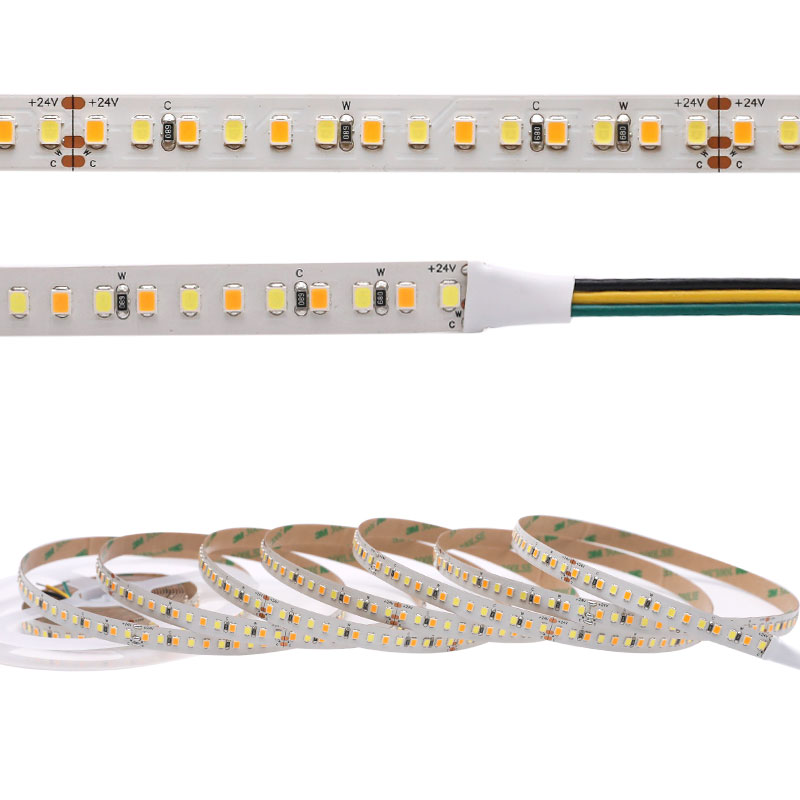

DC24V 2835SMD 840LEDs CCT LED Strip Light - Pure White+Warm White

Model: FSLSR-CCT-2835X840
DC24V 2835SMD 840LEDs CCT LED Strip Light - Pure White+Warm White
  • DC24V 2835SMD 840LEDs CCT LED Strip Light - Pure White+Warm White
  • DC24V 2835SMD 840LEDs CCT LED Strip Light -  Pure White+Warm White
  • DC24V 2835SMD 840LEDs CCT LED Strip Light -  Pure White+Warm White
  • DC24V 2835SMD 840LEDs CCT LED Strip Light -  Pure White+Warm White
  • DC24V 2835SMD 840LEDs CCT LED Strip Light -  Pure White+Warm White

Select Specifications:

Starting at: $36.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$36.98
5-9
$36.24
10-14
$35.13
15+
$33.65
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

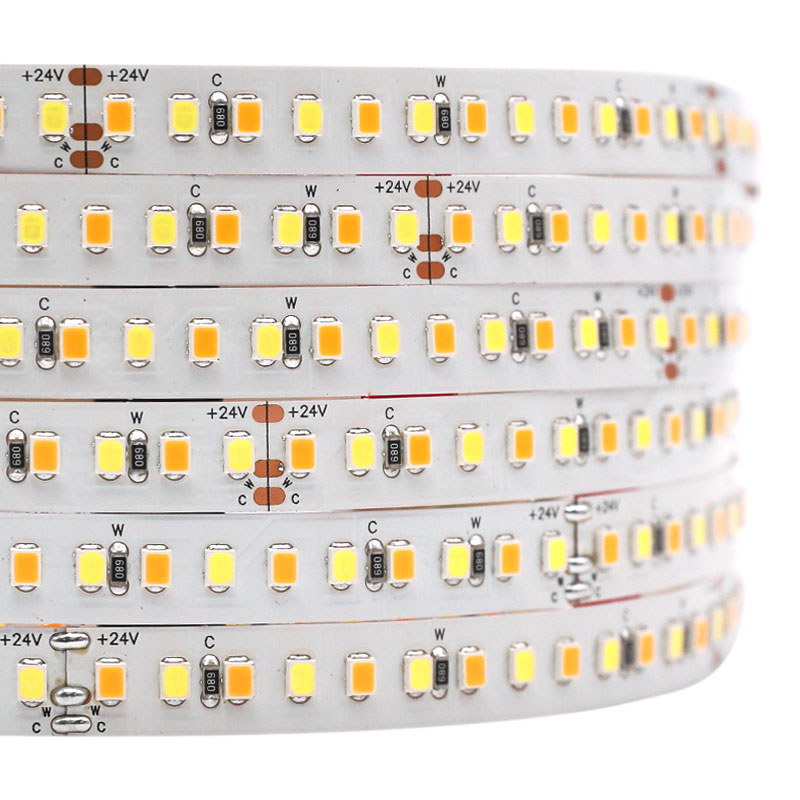

    ►2835SMD white LED: two 2835SMD white LEDs are a group, one is a warm white LED, one is a pure white/daylight white LED. 2835SMD LED Super bright variable white high power LED flexible tape lights. Epistar chip, 560LEDs/roll, 16.4ft(5 meters)Per Reel By Sale.

    ►24V CCT adjustable led strip lights: 24V DC operation. This dimmable white led strip can be cut into 14-LED segments (7 groups of one warm white LED and one pure white LED), so you could cut a different length for your led strip lighting project and request.

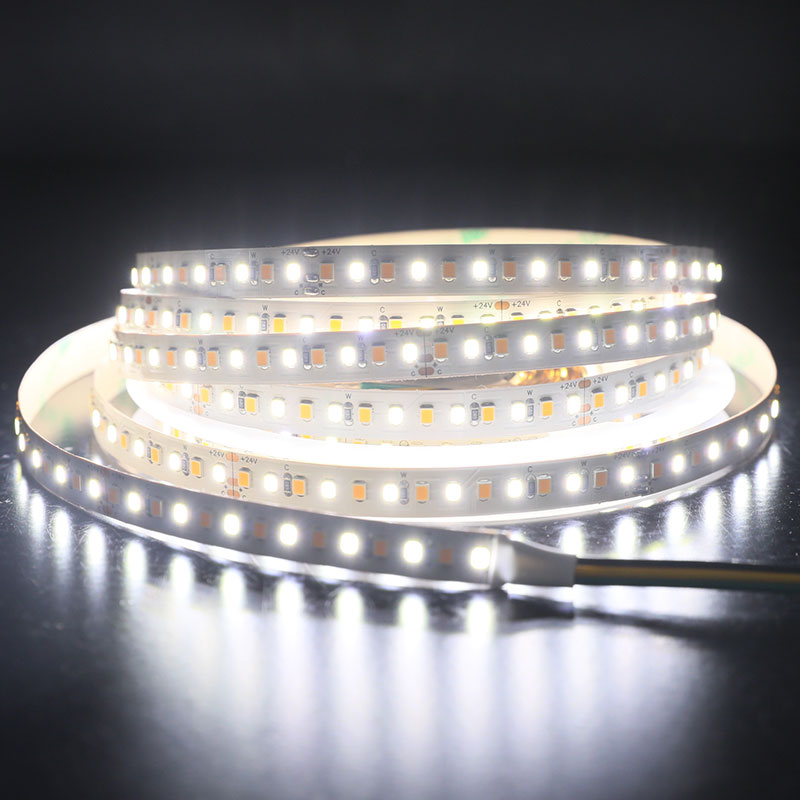

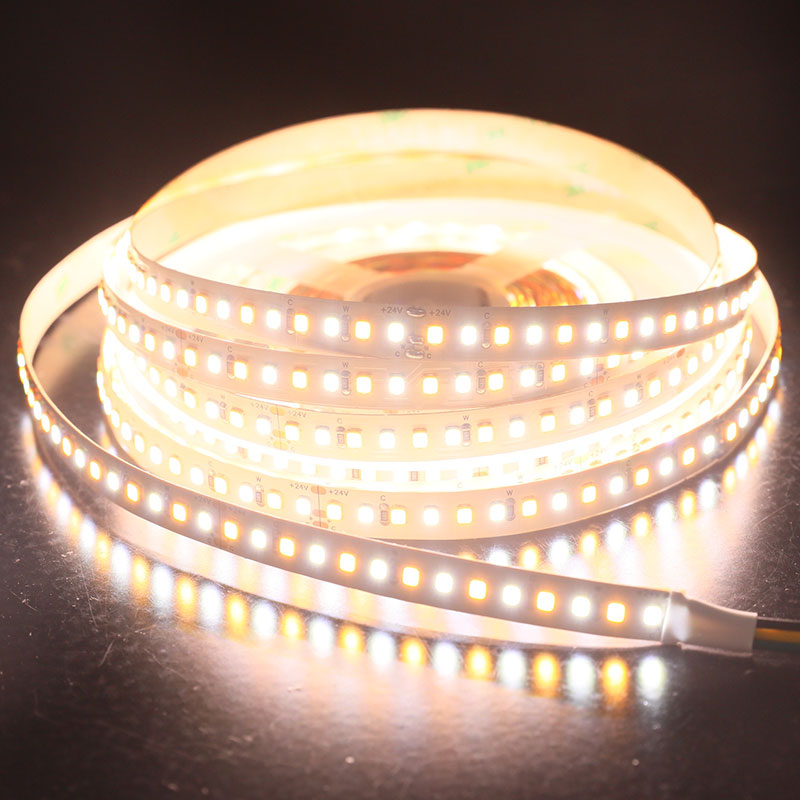

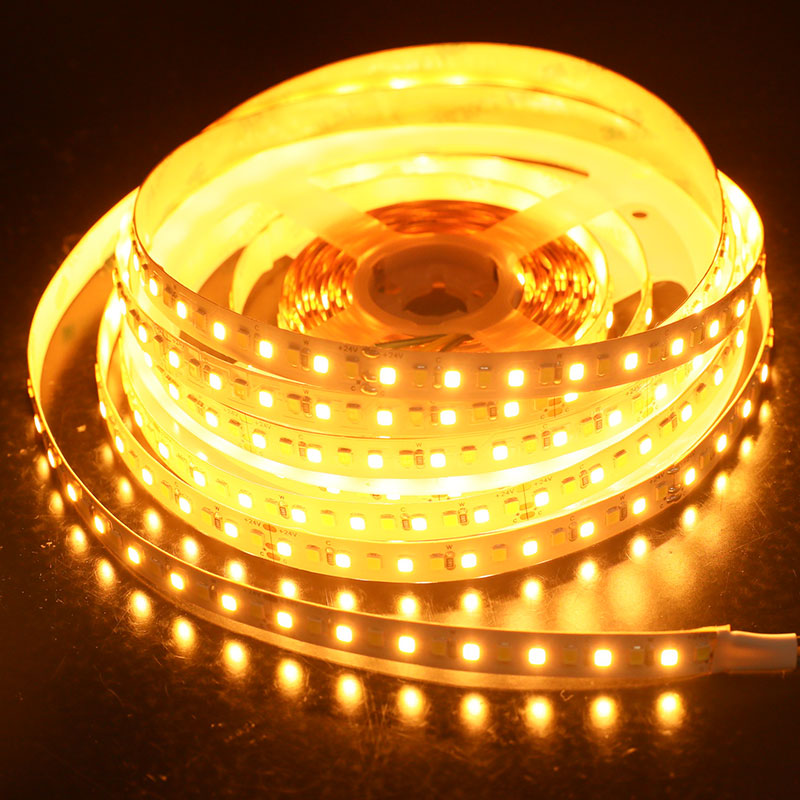

    ►CCT tunable white light color temperature from warm white to cool white: This CCT white led strip can individually light up warm white LED or daylight/pure white LED. Work with the CCT LED light controller, you can adjust the white color temperature from 2800K to 6500K and adjust the LED brightness from 0% to 100%.

    ►Waterproof optional IP20 vs IP67 waterproof LED strip: IP65, IP67, and IP68 outdoor waterproof dimmable white led strip lights are available. This tunable white led strip light can be used indoor and ourdoor to increase the lighting atmosphere, or increase the lighting brightness at night.

    High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents.

    Our brightest super flexible LED dual white color light strips soft and easy bent for installation. Available in 5 meters (197 in) flexible led light strips with adhesive backing and can be stuck just about anywhere.

    This CCT adjustable white LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.




    Standards and Certifications



    Product Specification

    LED Strip Type:   SMD 2835

    LED Chip:   Super bright Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White+Daylight White

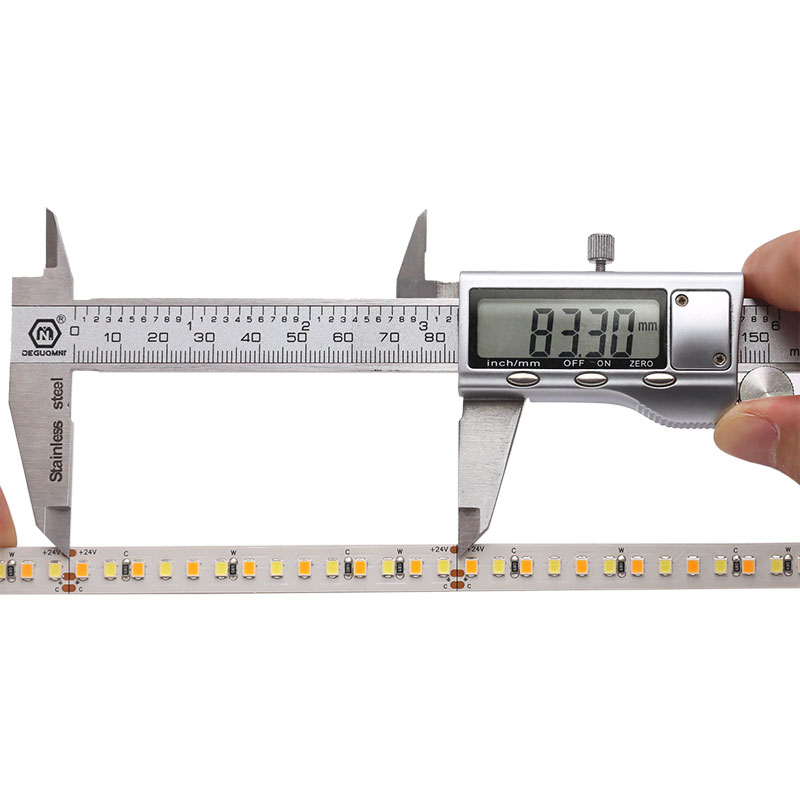

    Dimension:   16.4ft/roll, every 14 PCS LED can be cut

    LED Quantity:   840 LEDs per 5meter (16.4 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

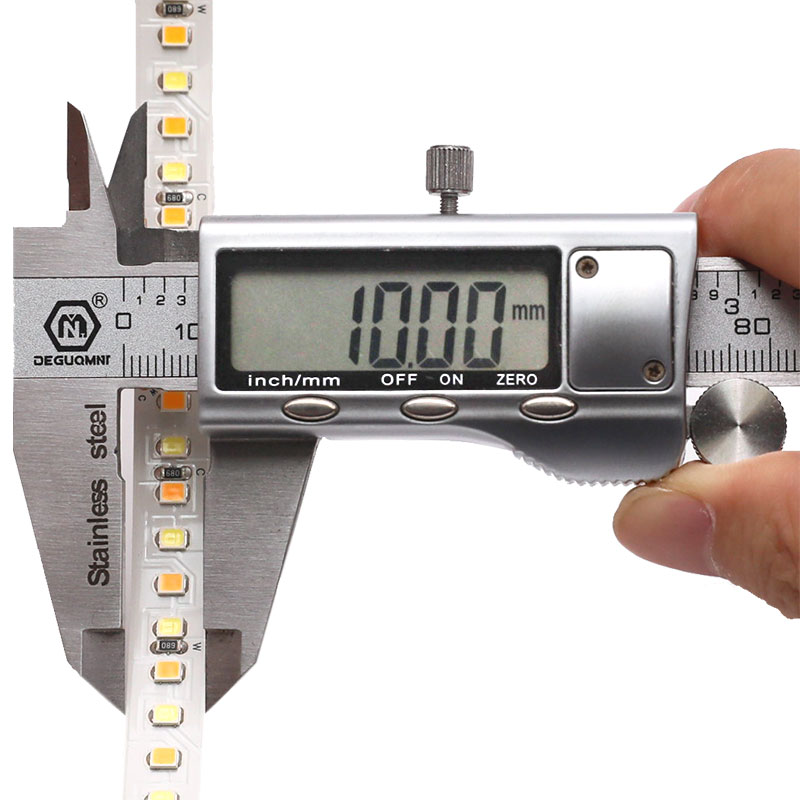

    Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   24V DC

    Working Power:   4.16A   100/16.4ft  Max

    Lamp Luminous Flux(lm):   11~13lm/LEDs   10080Lumens/16.4ft,  615Lumens/Ft,   100.8Lumens/watt

    Color Temperature CCT(White):  Warm White(2800-3500k), Daylight White(5000-6500k),Nature White(4000-5000k)

    Beam Pattern:   120 degree

    Water Proof:   Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional

    CRI (Ra>):  95

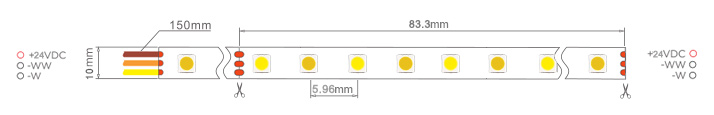

    Product Size:




    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.




    How to wire CCT tunable white LED strip lights?

    create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg

    The basics are all the similar. You will need a led strip light, a power supply(Please DC24V 150W power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know:  sales@superlightingled.com

    This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:

    How to calculate power for led strip lights?

    How to choose led strip light power supply?

    How to choose led strip light controllers?

    16.4/32.8 feet (5/10meter) Connection diagram


    65 feet (50meter) Connection diagram





    How to install dimmable white LED strip lights?

    create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg
     You can cut the dimmable white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.  The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.   IP67/IP68 waterproof dimmable white led strip lights type which will come with mounting brackets.

    Can you cut LED strip lights and how to reconnect:

    How to cut led strip lights? 

    How to connect led strip lights?

    Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.

    ►Knowledge about LED aluminum profile and LED neon lights:

    Ultimate Guide on Aluminum Profile for LED Strip Lighting

    What are LED neon lights?

    How to make LED neon lights?




    How to choose led strip lights

    Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.

    Different projects require different types of LED strips. When place order, please clear the following answers :

     What will you be lighting?

    This tape light can replace normal T8 tube or blub.

     Where will it be installed (Indoor or outdoor)?

    Indoor or outdoor? This may be related to waterproof grade choose.

     Do you want to dim your lights or control them with a remote or wall switch?

    If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.

     What overall look do you want to achieve?

    This lightings that you going to buy can be daily use or decoration use.

     What color do I need?

    This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.

     What materials am I looking?

    The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of  CE, RoHS, ETL, and TUV.

     Are there other lights in the area and if so, what color are they?

    In our company, we have a single colorcolor changing RGB RGBW led strips, high voltage led stripsprogrammable full color led strip lighting, please choose the lighting you like.




    Application

     Trademark lighting                              Logo lighting

     Channel letters lighting                       Lightboxes lighting

     Landscape layout lighting                    Stage decoration lighting

     Sign cabinets                                       Channel lights

     Cove LED lighting                                Edge lit signs

     Canopy illumination                            Off-grid lighting
