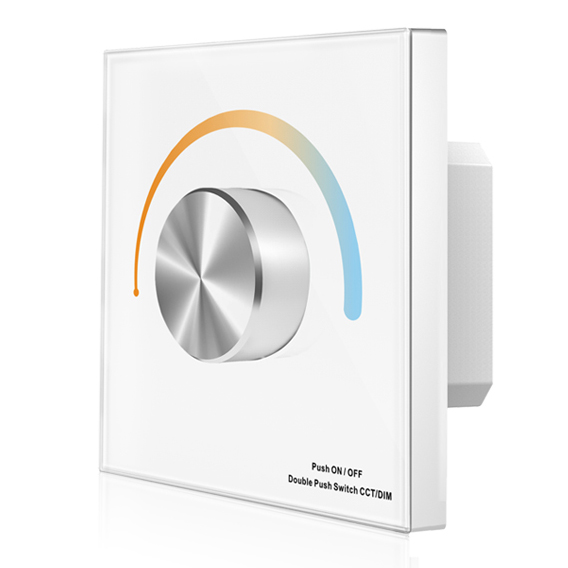

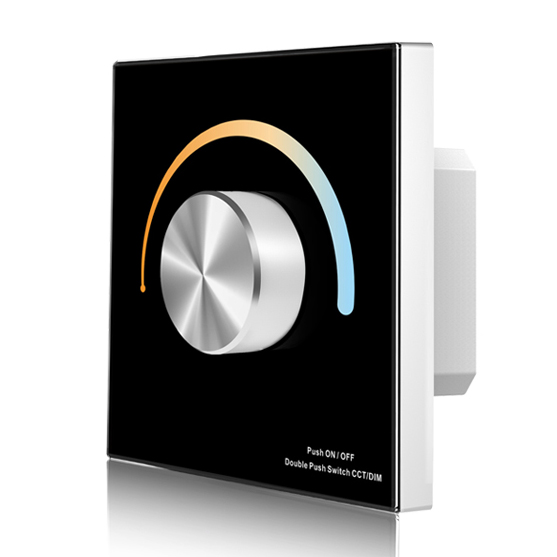

85-265VAC 1 Zone CCT Wall Mounted Rotary Panel T12-K
Rotary panel single color, dual color or RGB DMX512 master, can also be used as one zone RF remote.

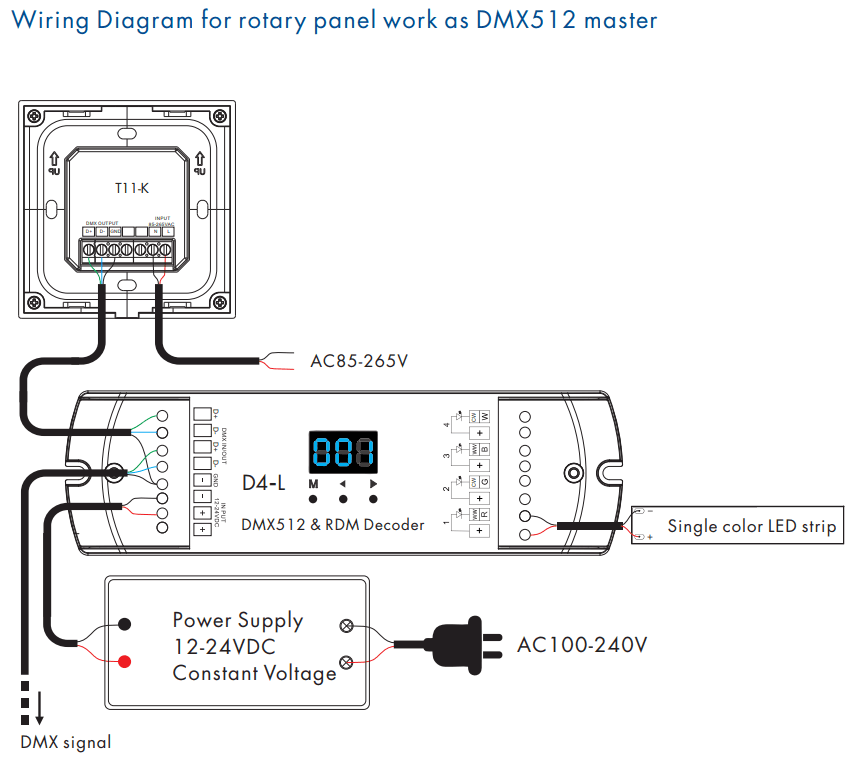

DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
When working as a DMX512 master, compatibility with Skydance’s 2.4G single zone or multiple zones remote control.

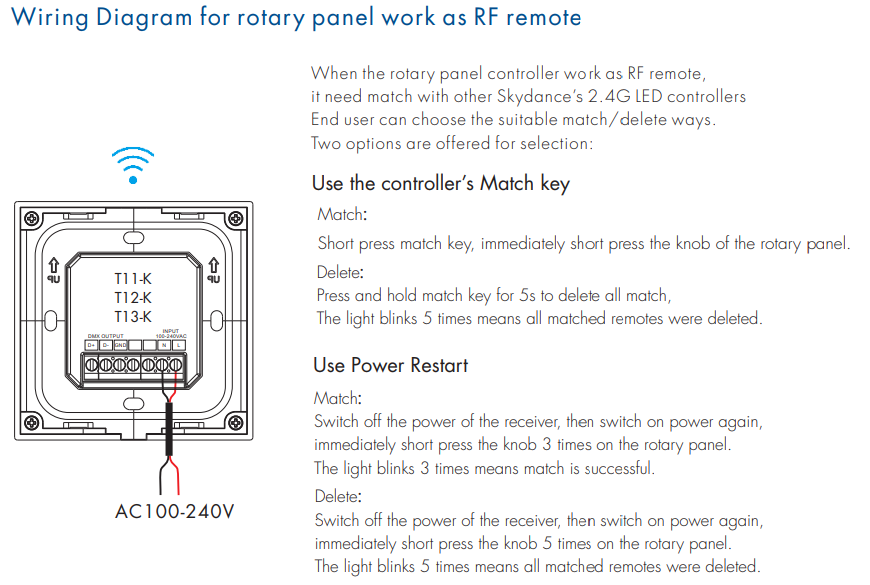

When used as RF remote, can remote control multiple Skydance’s 2.4G LED controllers.
Rotate the knob to change RGB color, color temperature or brightness.
256 levels 0-100% dimming smoothly without any flash.
Push/Rotate with chord tones and LED indicator.

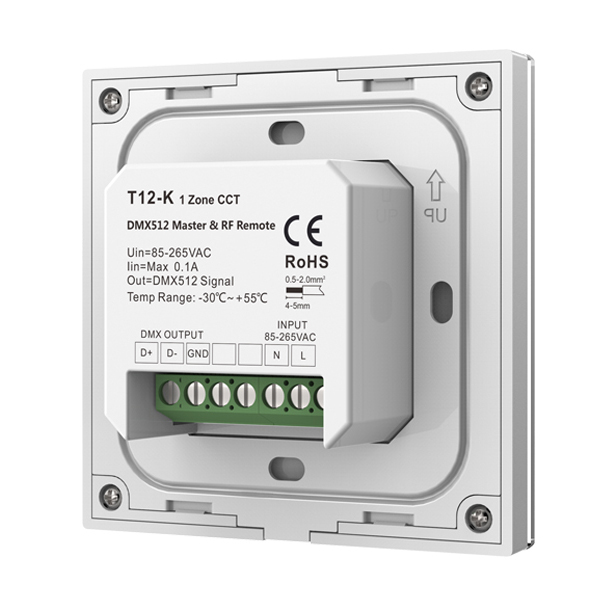

Input and Output
Input voltage; 85-265VAC
Input current: Max 0.1A
Output signal: DMX512, RF 2.4GHz
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Input signal: Rotary knob + RF 2.4GHz
RF Control distance: 30m
Dimming level: 256 levels
Dimming range: 0 -100%
Standards and Certifications
