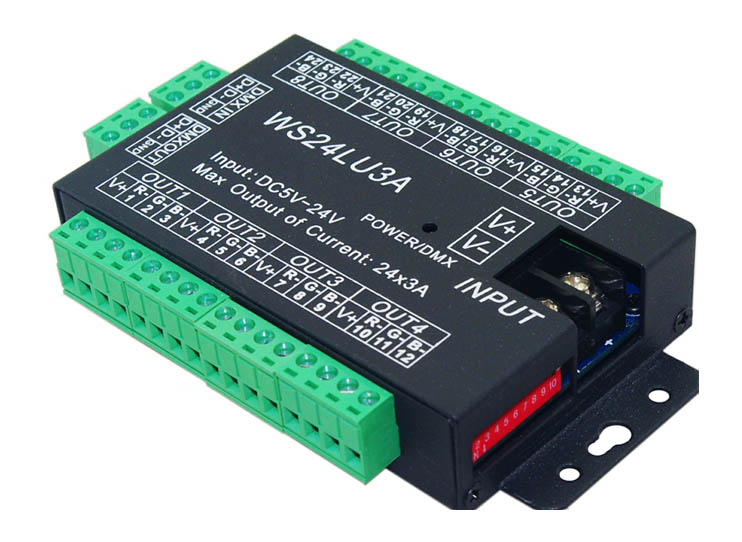

DC5/12/24V 24CH 8Group,DMX512 Decoder Controller 24 Channel Dmx Drive for Led Strip Light RGB Dump Node Module
Standards and Certifications
Decoder CH: 24 CH 8 group
Input Signal: DMX512/1990 digital signal
Output Signal: PWM signal,can drive 1A per channel
Power Supply: DC 12-24v
Power Dis: <1W
Size: 150*80*28mm,can be custom made

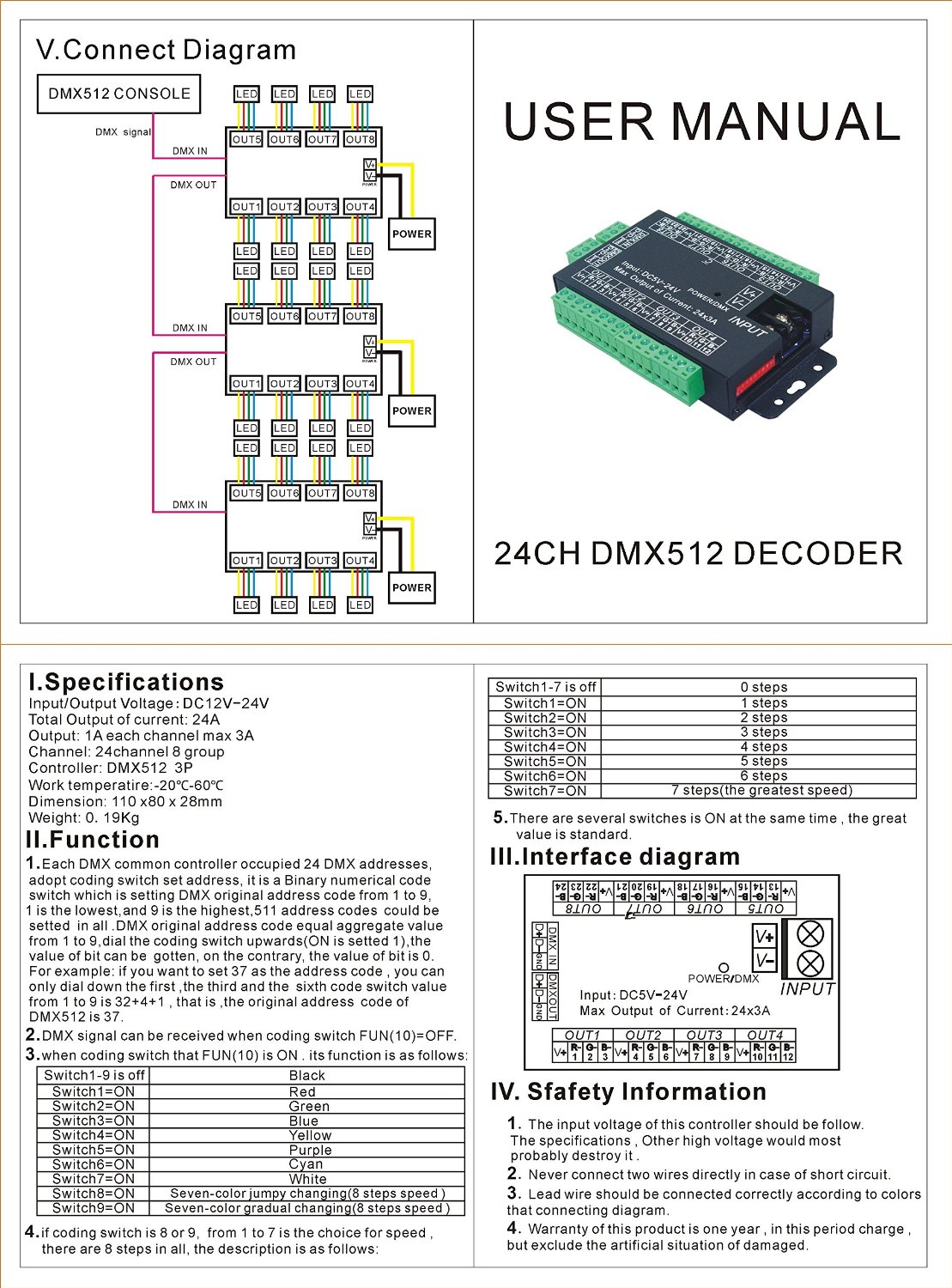

Connection way :
