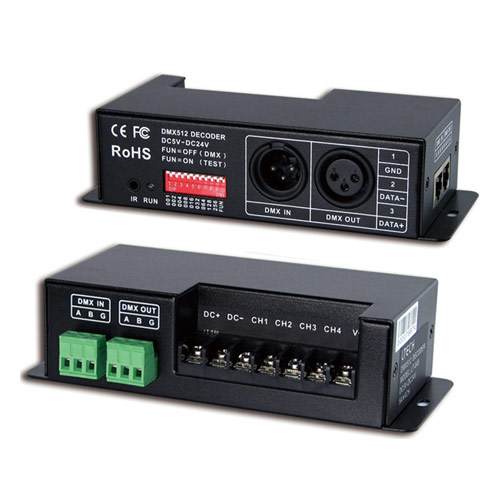

DC12/24V 5A 4Channel, Universal standard DMX512 Controller Decoder RJ45 Interface for RGB RGBW LED Strip Lights
Lifetime warranty on all DMX controllers. 4 Channel DMX Controller/Decoder can control up to 4 different 12VDC LED products or any RGB LED Light Bar or Strip. Controller can run in stand alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 5 Amps per channel - 20 Amps total. Includes male and female 3-pin XLR connectors.
Standards and Certifications
Applications Neccessary conversions of DMX to PWM signals for driving LEDs
Function Control four different 12VDC LED products or 1 RGB LED and 1 single color LED product using DMX console or standalone mode with onboard DIP switches
Operating Voltage ：12~24 Volts DC (use only 12VDC power with 12VDC LEDs)
Connection Mode ：Common Anode (+)
Output ：Four CMOS output
Maximum Load Current ：5 Amps/channel (20 Amps total)
Output Power ：240 Watts
Overall Size (L)：166 X (W)67 X (H)41 mm
Control Method ：DMX512 RJ45 / DMX512 3-pin XLR / Standalone DIP switches
Standalone Modes ：9 total (7 static and 2 dynamic) see desc. below
Operating Temperature ： -25~60°C

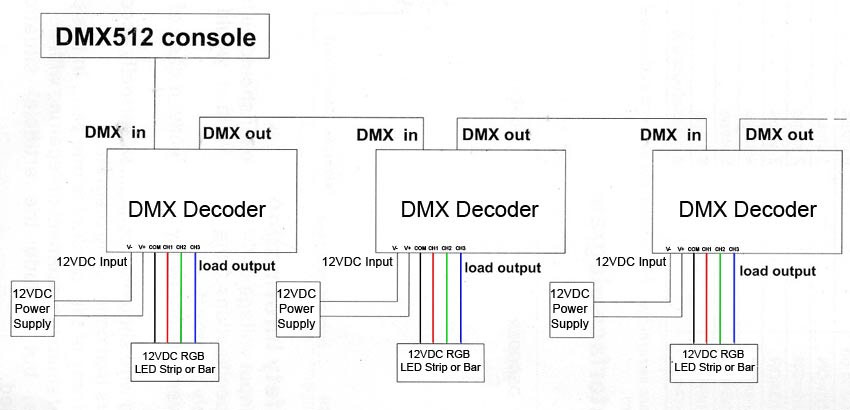

Connection way :
