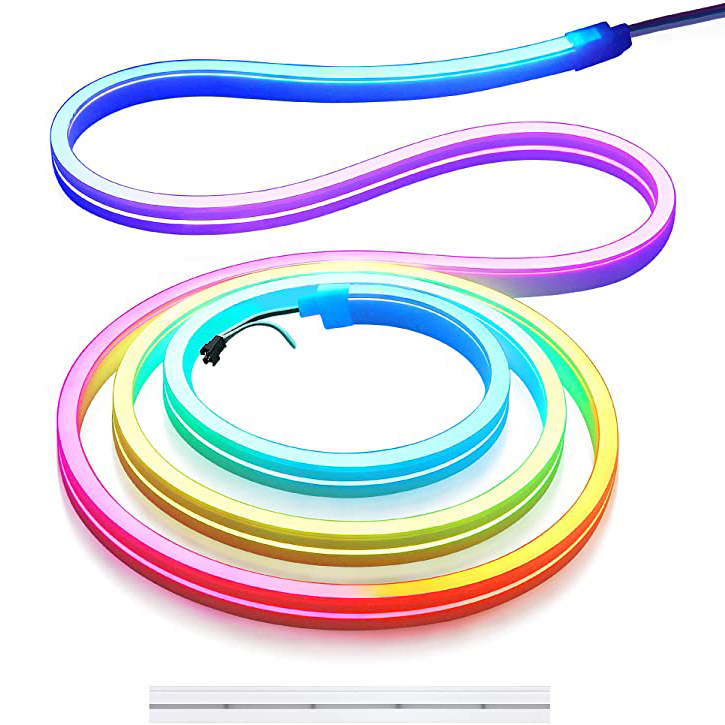

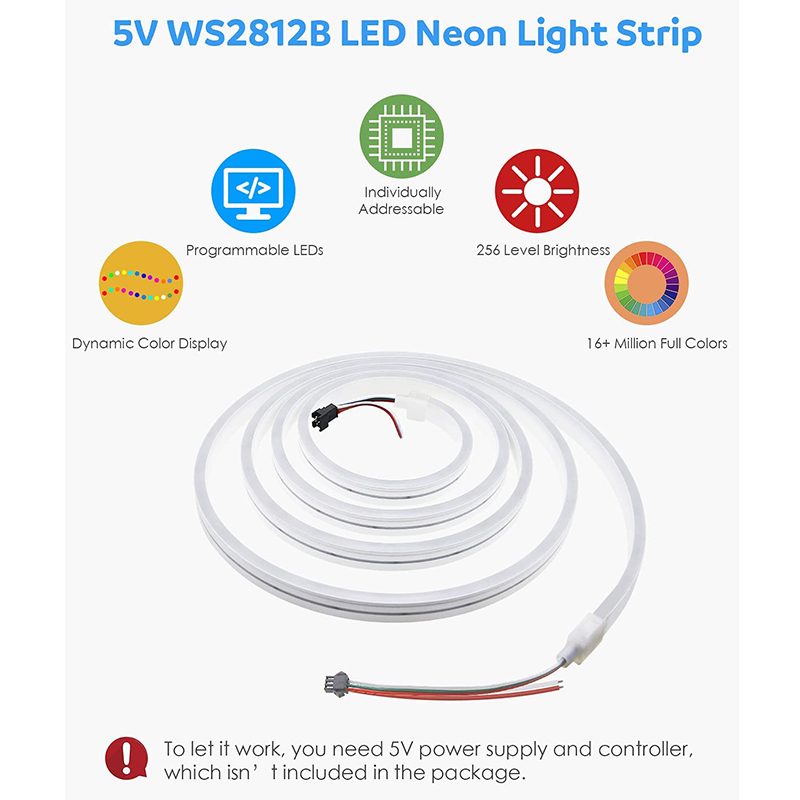

DC5V Narrow 6 x12 mm 96LEDs/m Addressable Neon Digital LED Tube Light With WS2812B Dream Color Programmable Flexible LED Strip Lights, 3.28~6.56Ft Per roll
1. Single row LED Neon Tube Light Flexible LED Strip Lights with 96LEDs/m WS2812B Built-in 5050SMD(Surface Mounted Devices)

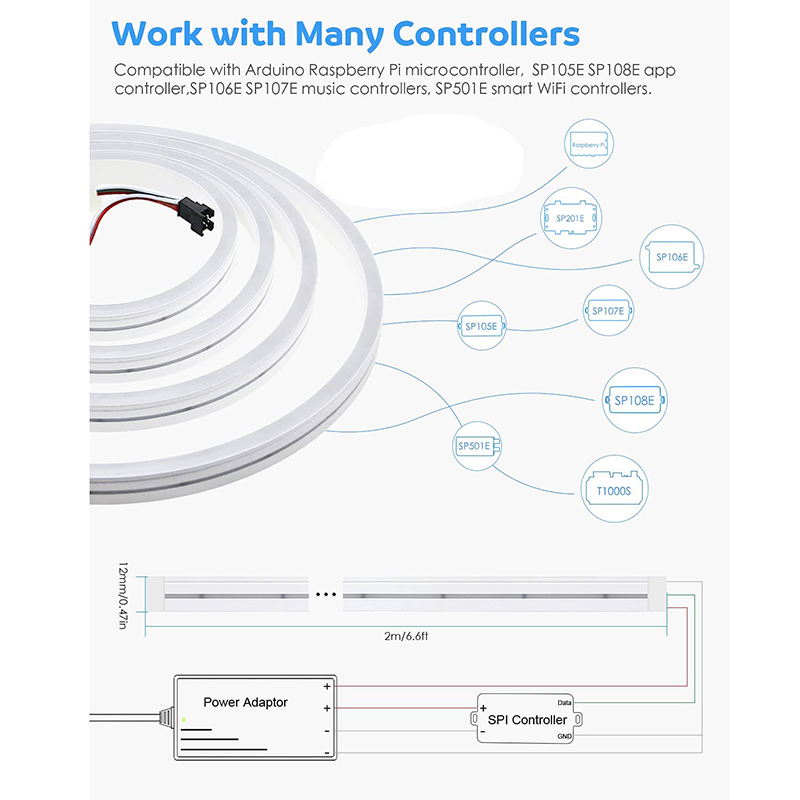

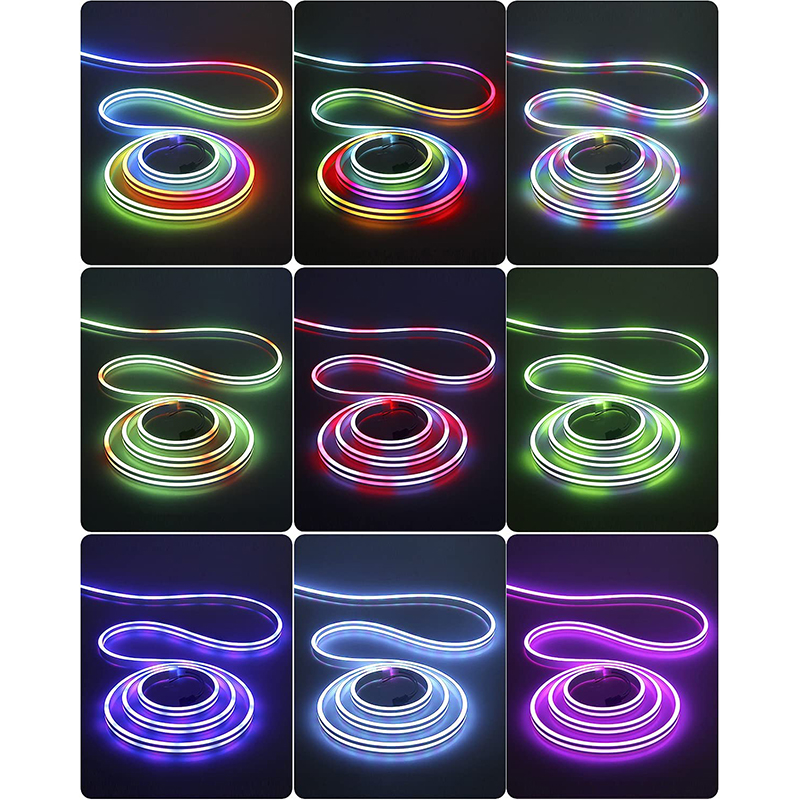

2. Universal WS2812B dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes.

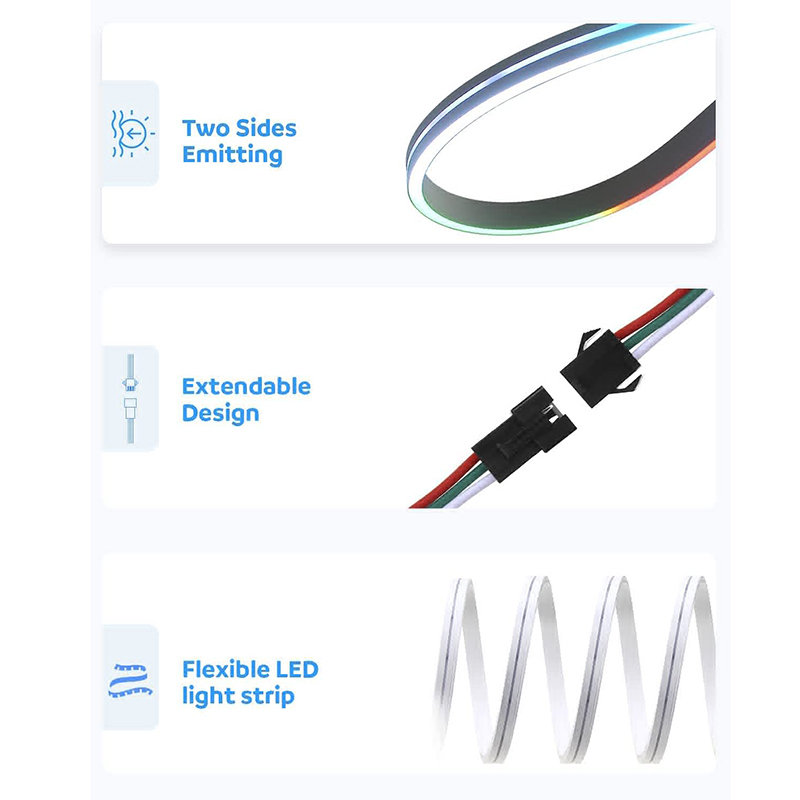

3. Dome and flat Shape, Soft and easy bent for installation.
4. DC5V , Less drop voltage.

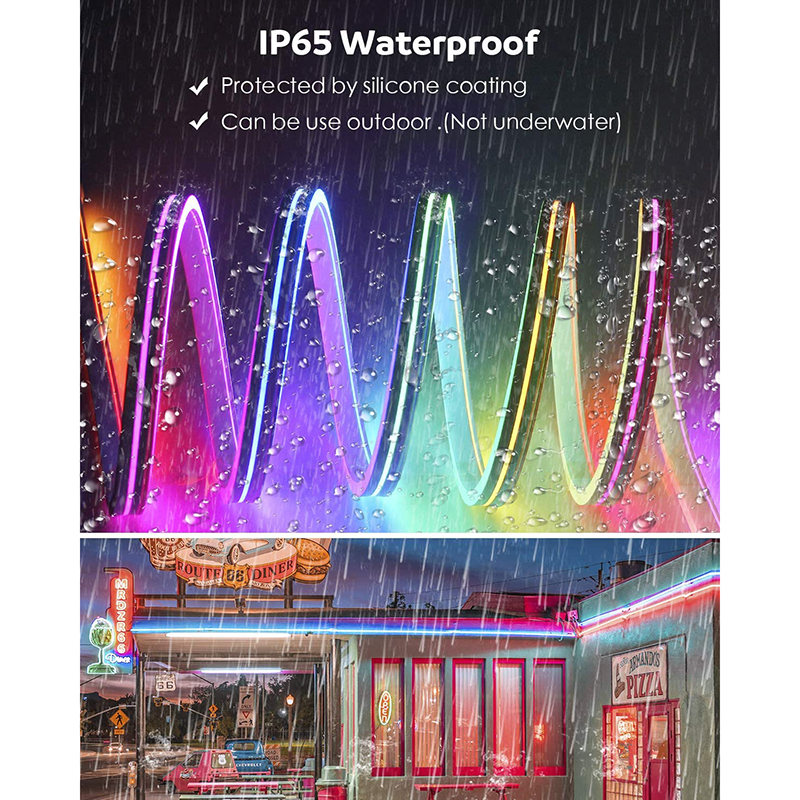

5. Outdoor Use Waterproof IP67(silicone resin), food-grade silicone, safer and more environmentally friendly.
6. Life is longer than ordinary PVC Rubber Tube. Weather Resistance, Anti-UV, perfect heat dissipation.
7. 2meter(6.56')/1meter(3.28') Per Reel By Sale.
Standards and Certifications
LED Strip Type: SMD 5050 Dream Color
LED Chip: WS2812B IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 6.56ft/roll, every 1 LED can be cut(DC5V)
LED quantity: 96 LEDs per meter
IC Quantity: 96 LEDs per meter

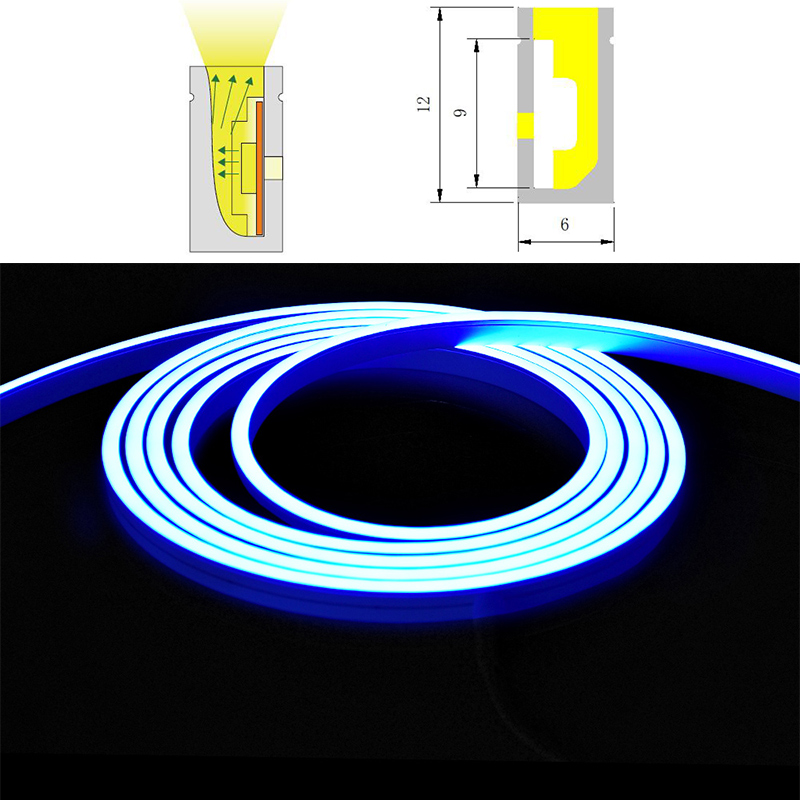

Dimensions: L100cm(39.4 in ) x W0.6cm(0.24 in ) x H1.2cm(0.47in )/ L200cm(78.4 in ) x W0.6cm(0.24 in ) x H1.2cm(0.47in )
Input Voltage(V): 5V DC
Working Power: 14.4W/3.28ft
Lumen Per LED: 20-22Lumen
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Waterproof IP67
Warranty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
