12V WS2811 Waterproof Addressable LED Neon Strip Lights, No Light Spot

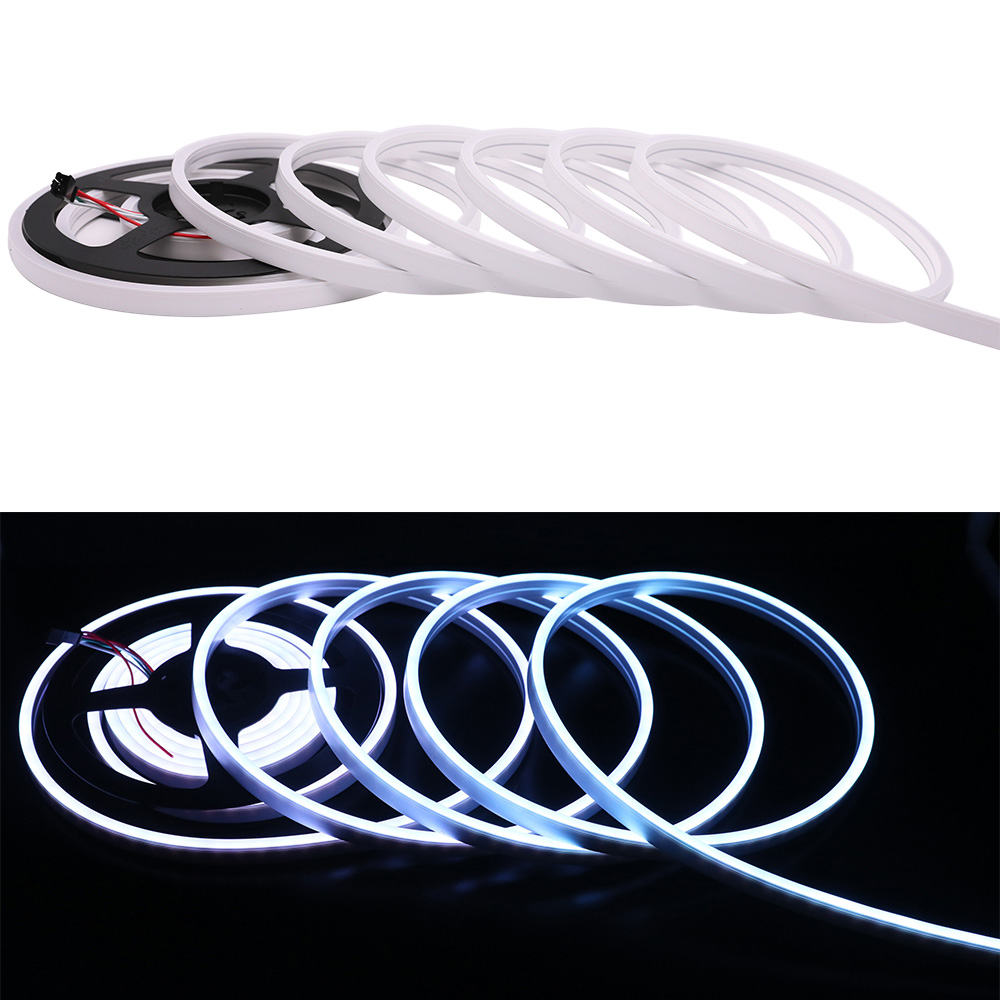

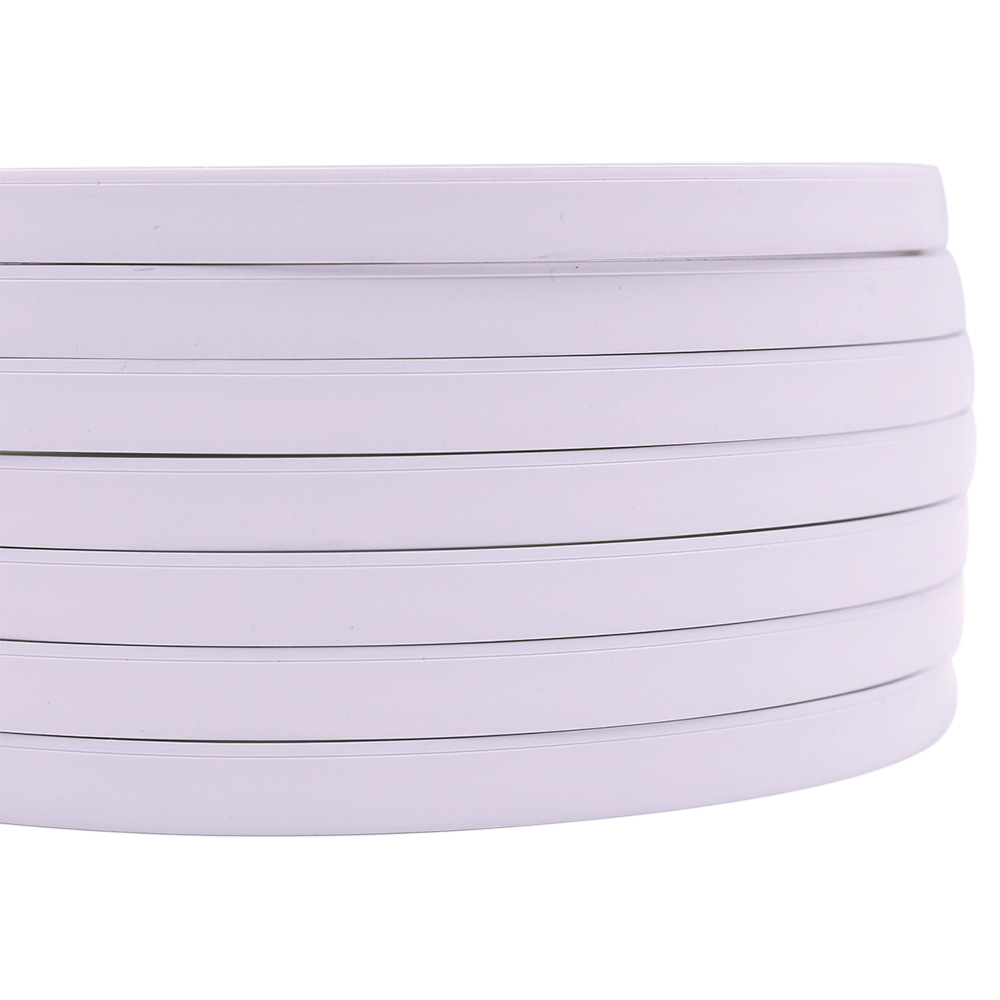

This led neon light strip has a width of 12mm and a height of 6mm, the housing is a milky white soft silicone tube, the silicone channel can evenly diffuse the LED strip lighting, creating a uniform and soft light effect. The food-grade silicone material is waterproof and moisture-resistant, with strong sealing, and is suitable for indoor and outdoor lighting, more environmentally friendly, high temperature and weather resistance, anti-aging and shock resistance, shockproof and waterproof, and can fit various smooth surface materials.

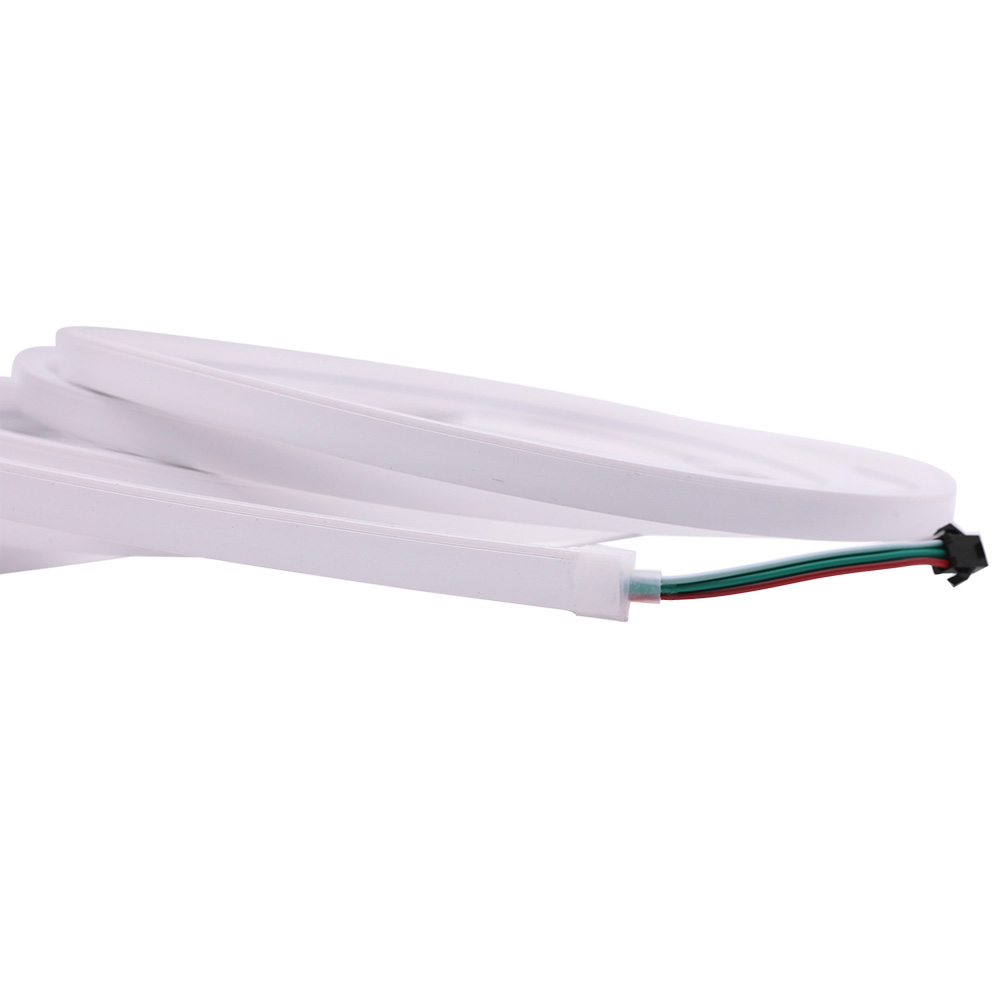

The WS2811 addressable led strip is wrapped in the silicone sleeve, which is insulated and flame-retardant, and can be used in multiple environments. It has strong flexibility and can be bent arbitrarily, and the neon strip light is not easy to de-soldered when it is bent.

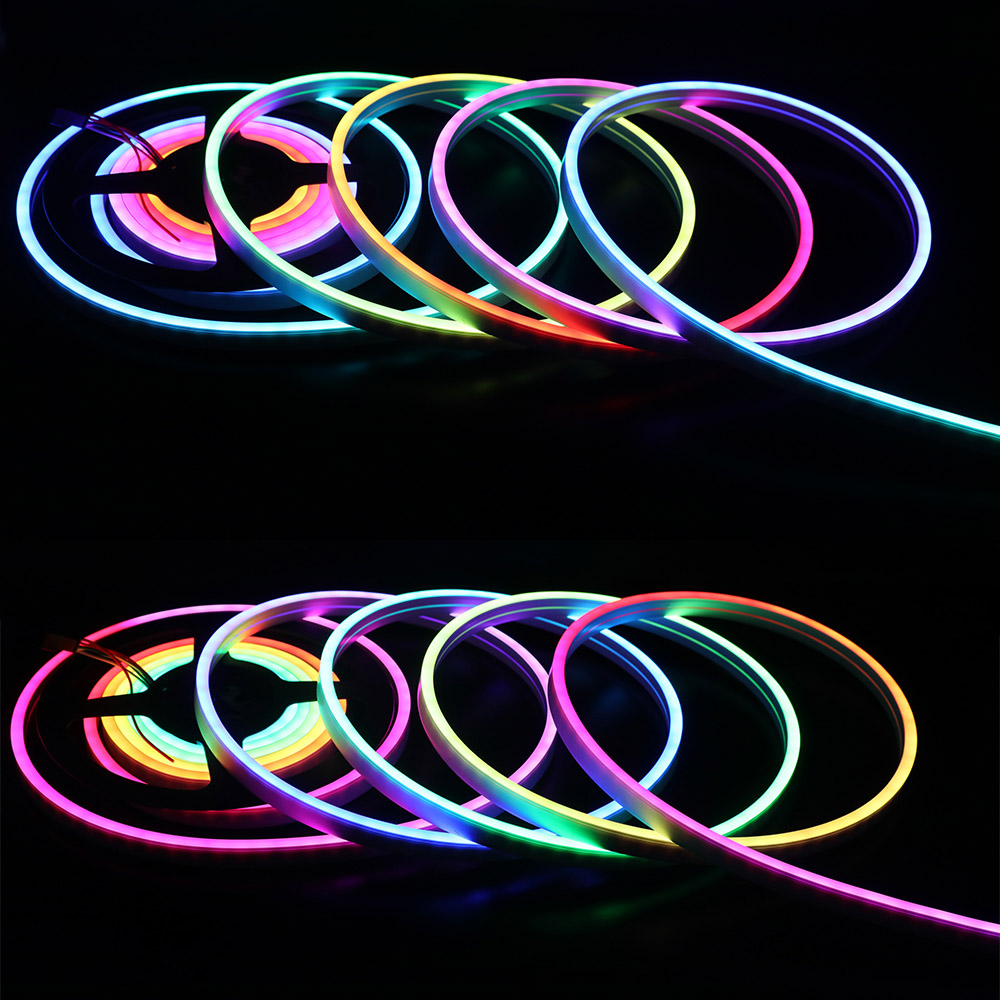

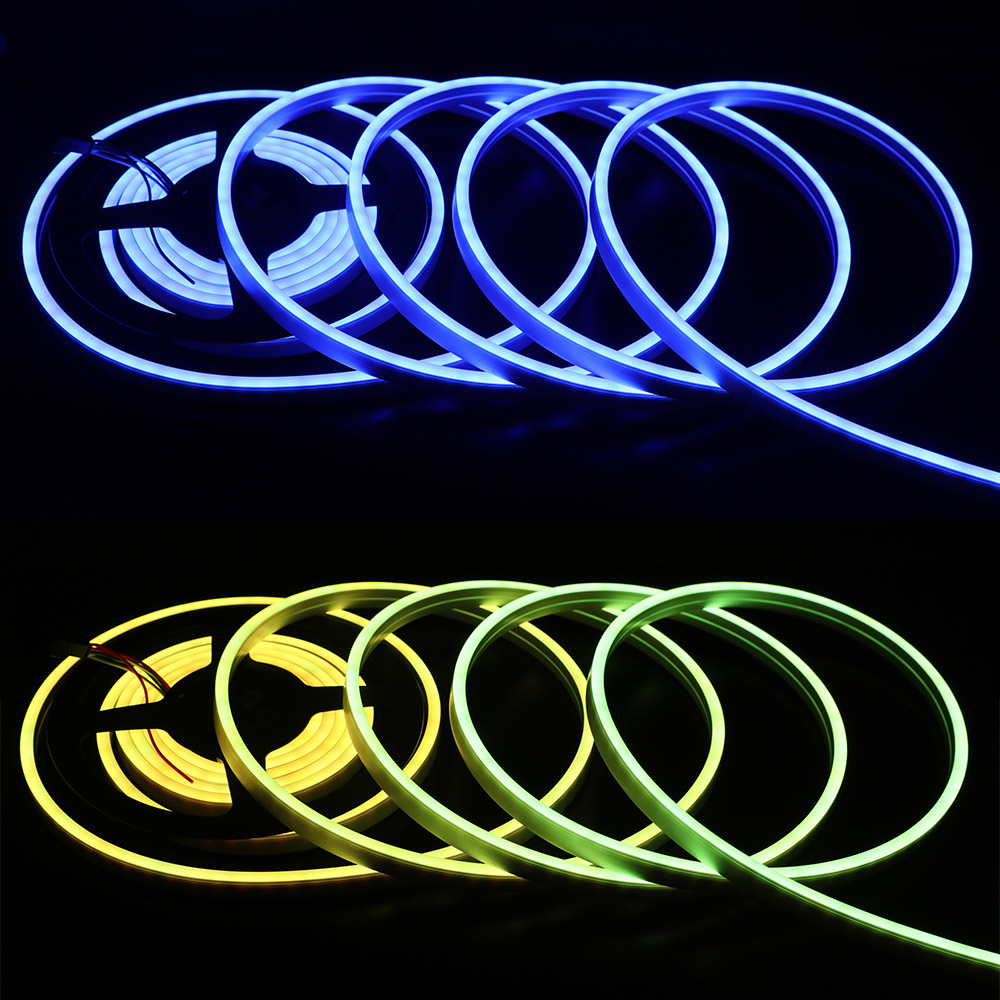

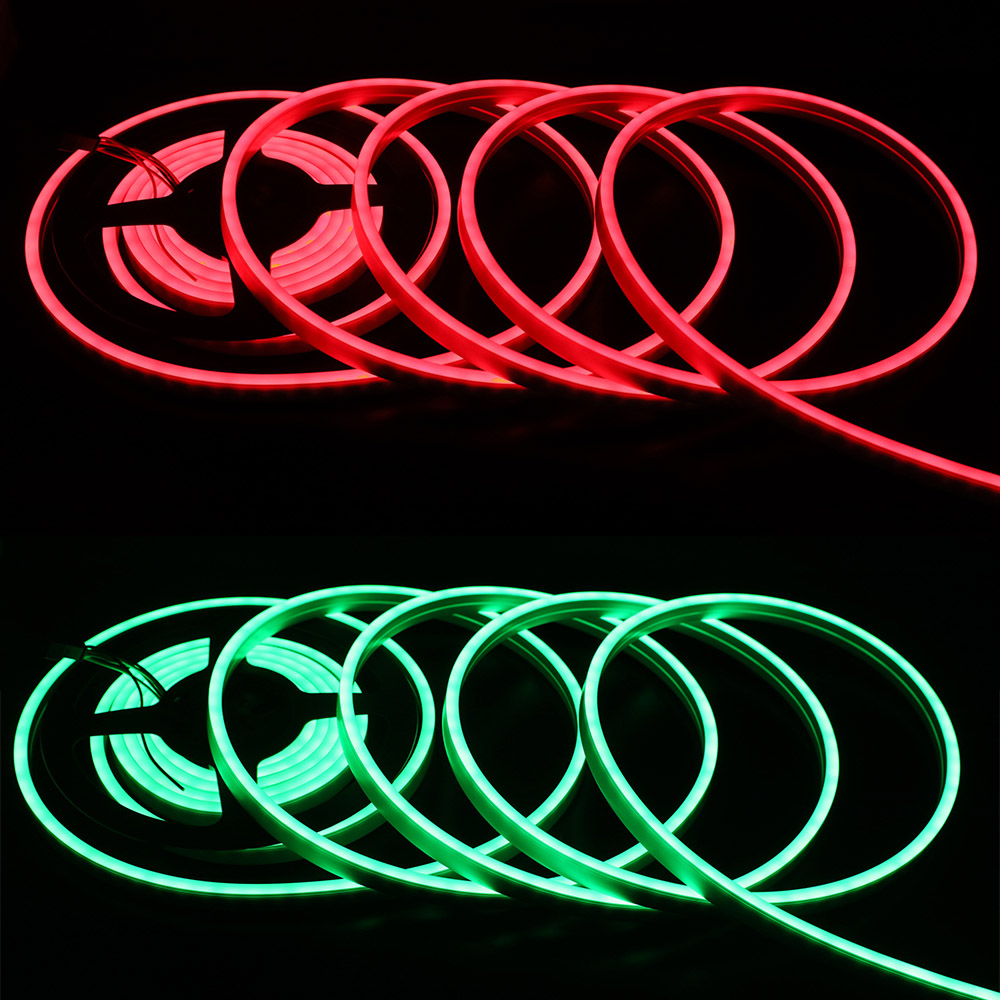

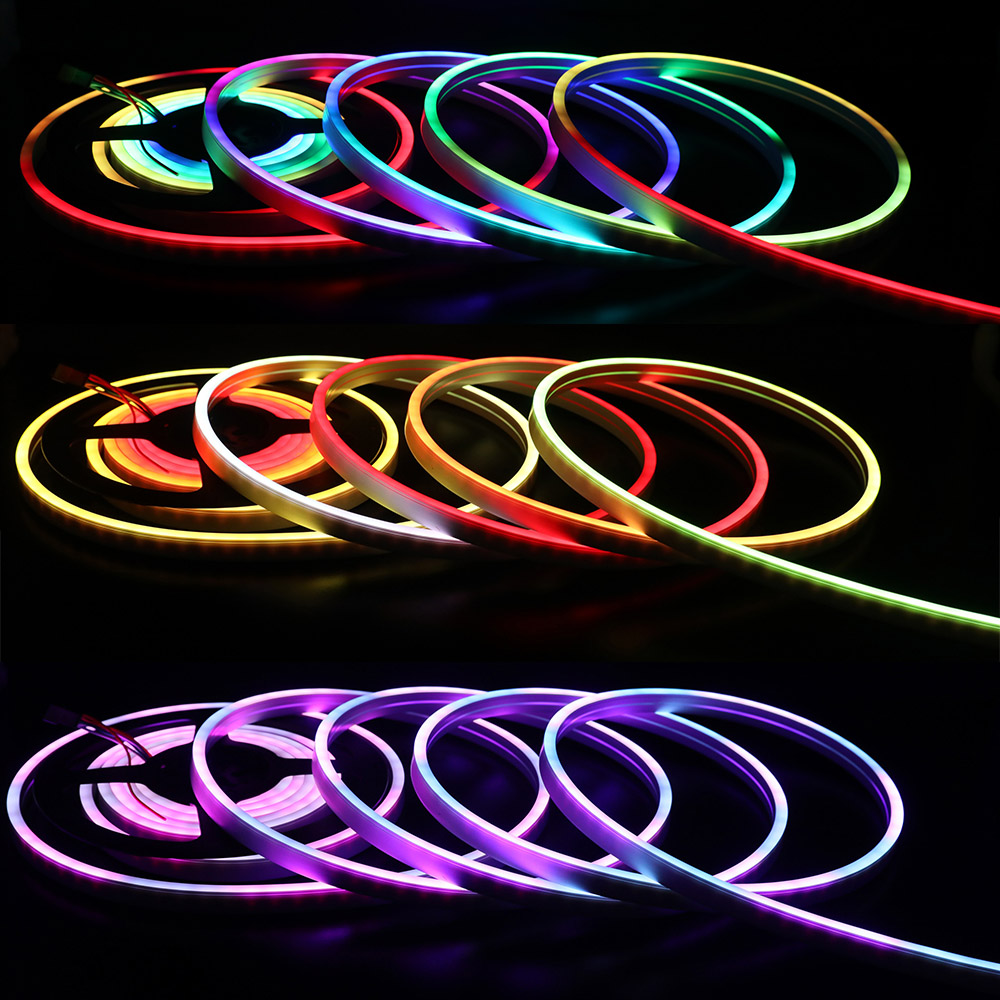

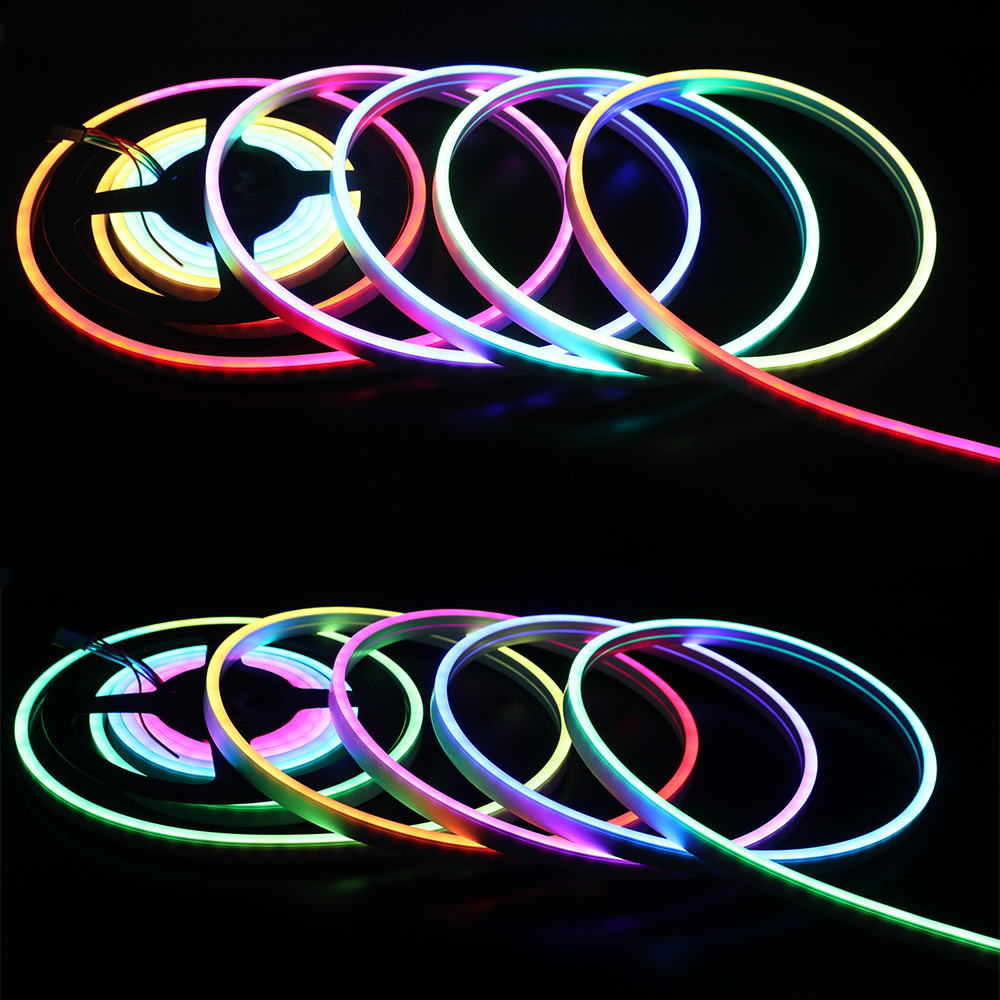

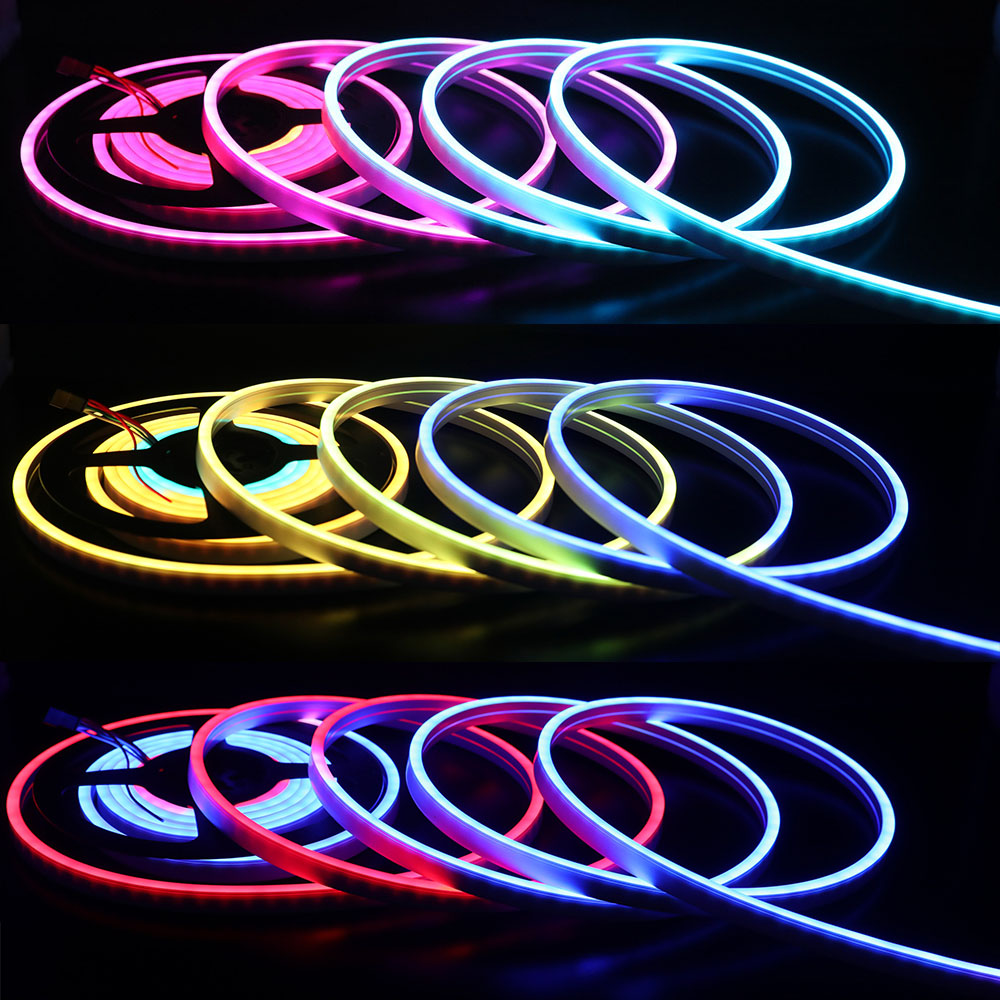

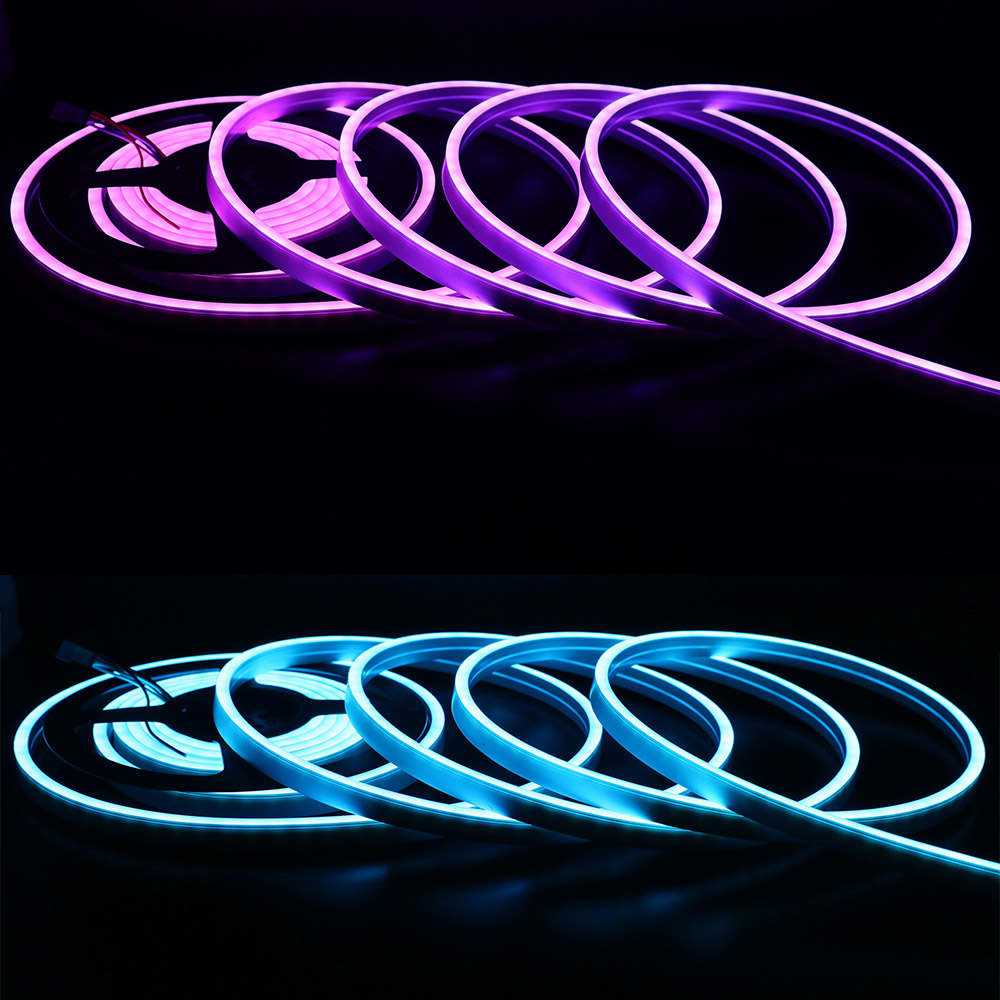

This neon strip is controlled by WS2811 IC chip, 96 lights per meter, one IC controls three lights, a variety of different light colors can be presented on the neon led strip, which is widely used in decorative lighting and advertising lighting. Use with 12V dream color addressable SPI controller and 12V LED power supply.
Please note: The LED neon light can be cut, but we do not suggest you cut the lights by yourself. We can customize the length for you if you need it.
Standards and Certifications
LED Strip Type: SMD 5050
Color: Addressable RGB
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

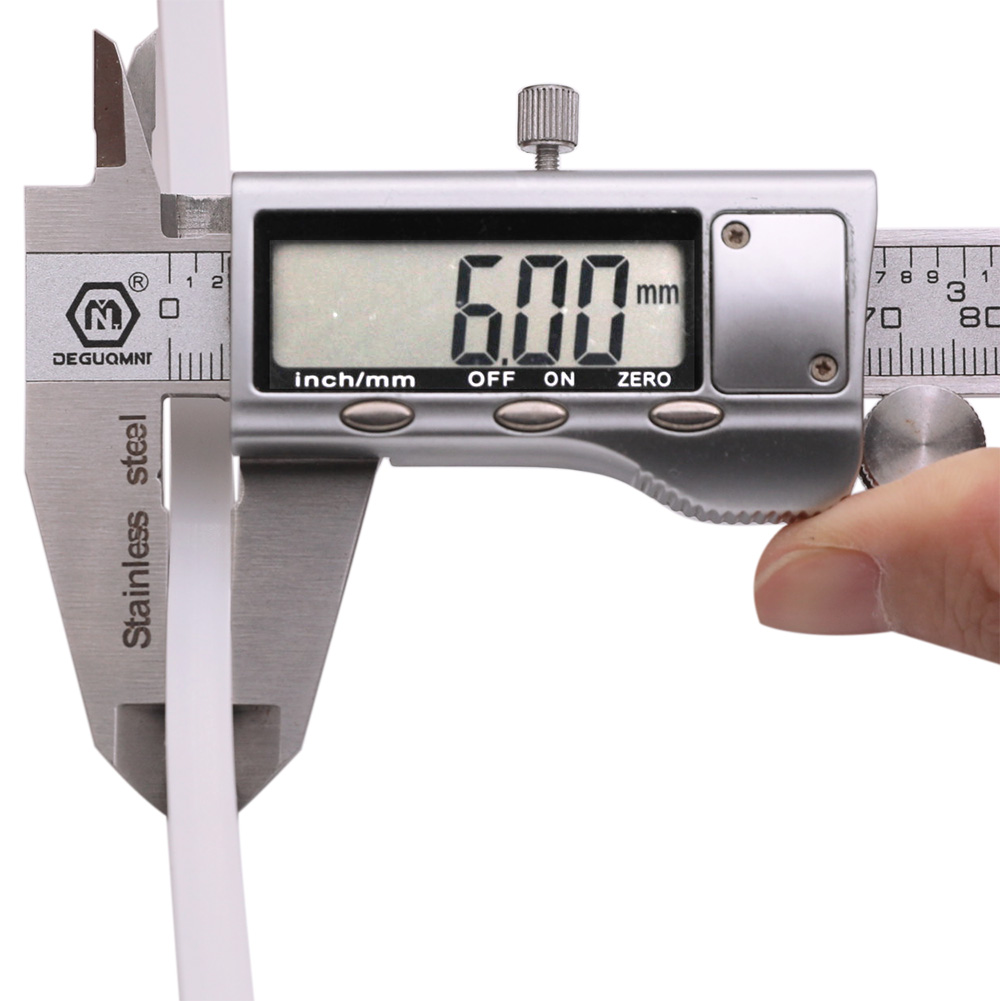

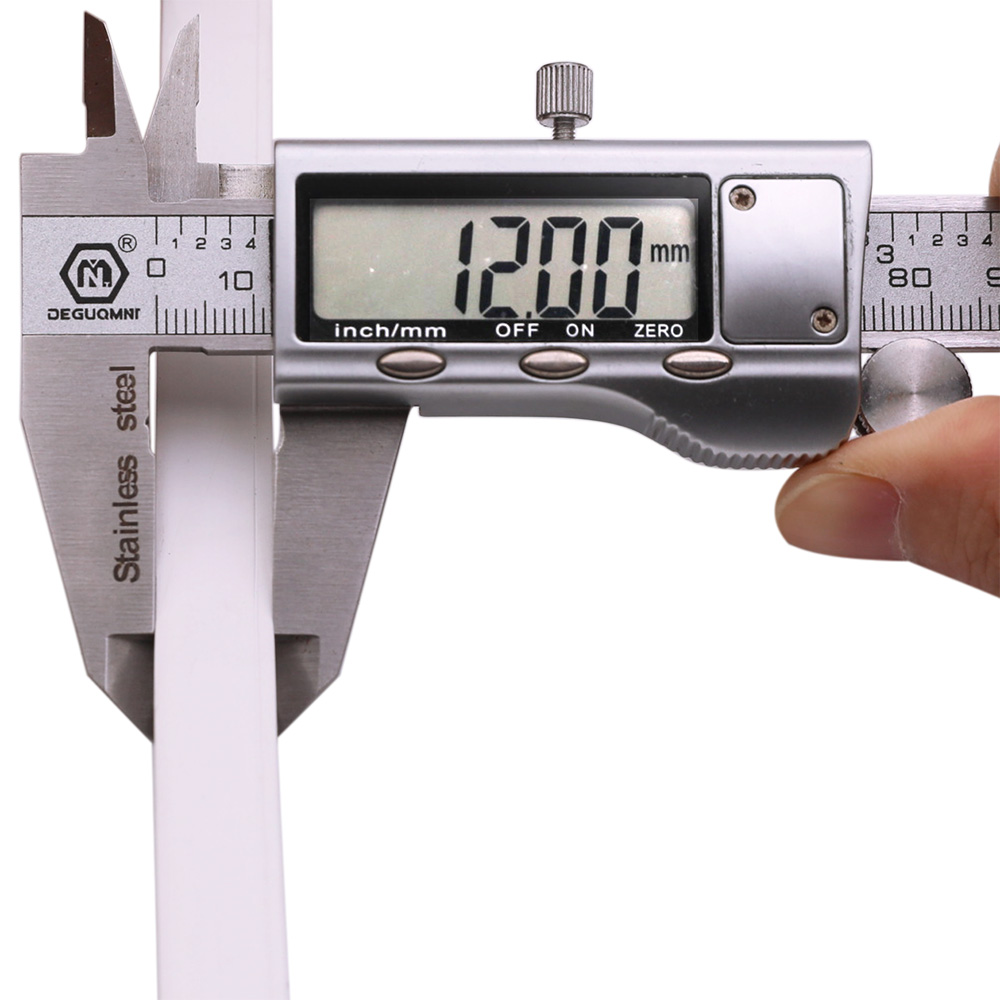

Dimension: 5000 mm * 12mm * 6mm
LED Quantity: 96 LEDs per meter
IC Quantity: 32 LEDs per meter
Input Voltage(V): 12VDC
Working Power: 14.4W/m, 72W/16.4ft
Material: Food-grade Silicone
Water Proof: Waterproof IP67
Beam Pattern: 120 degree
Warantty: 3 years

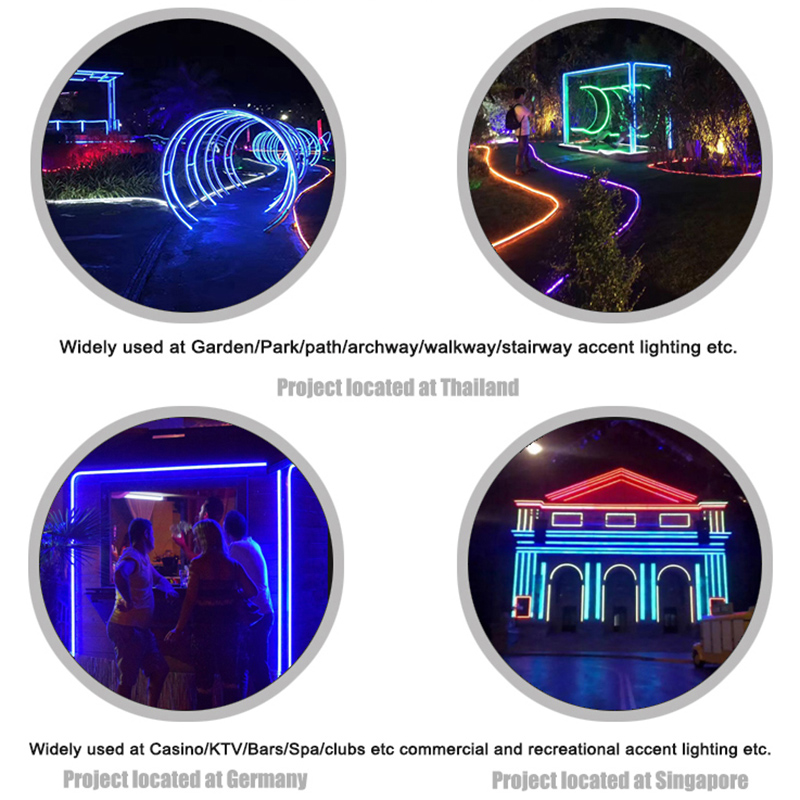

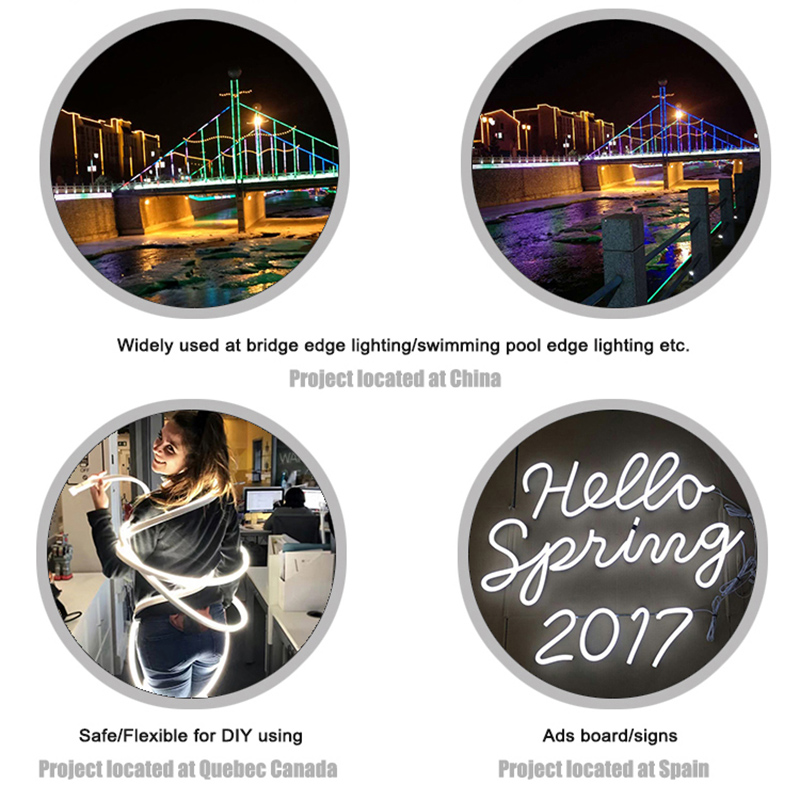

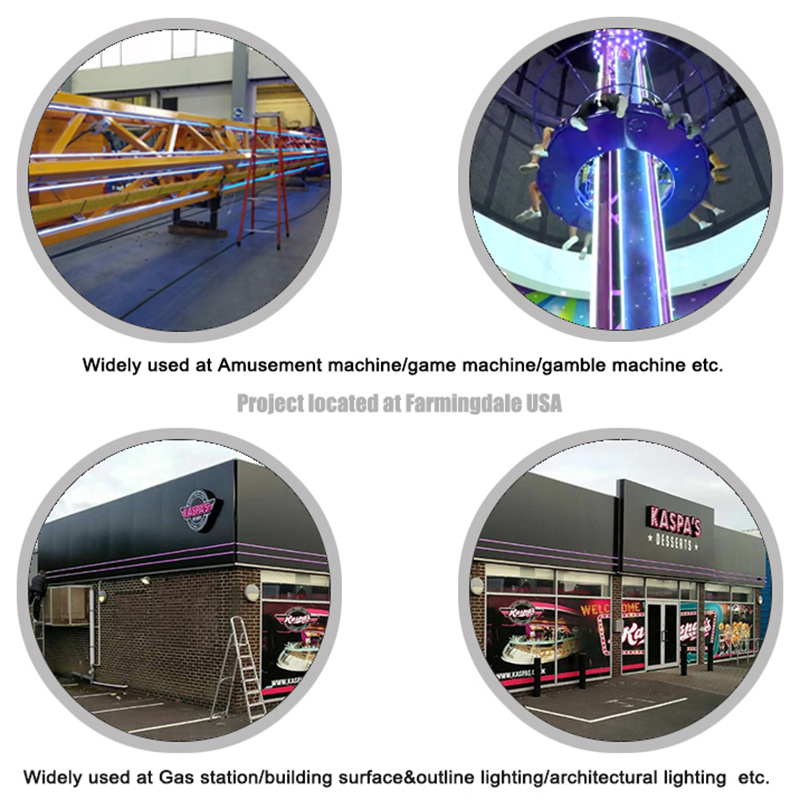

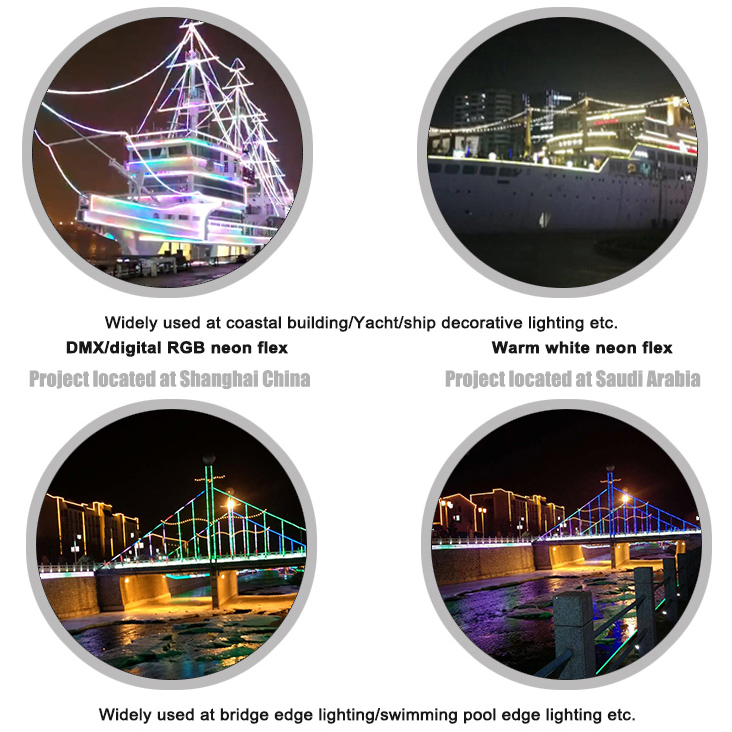

Applications - How To Wire Addressable LED Strip Lights?
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
