DCE-108-600-H2R LED Intelligent Driver For home lighting

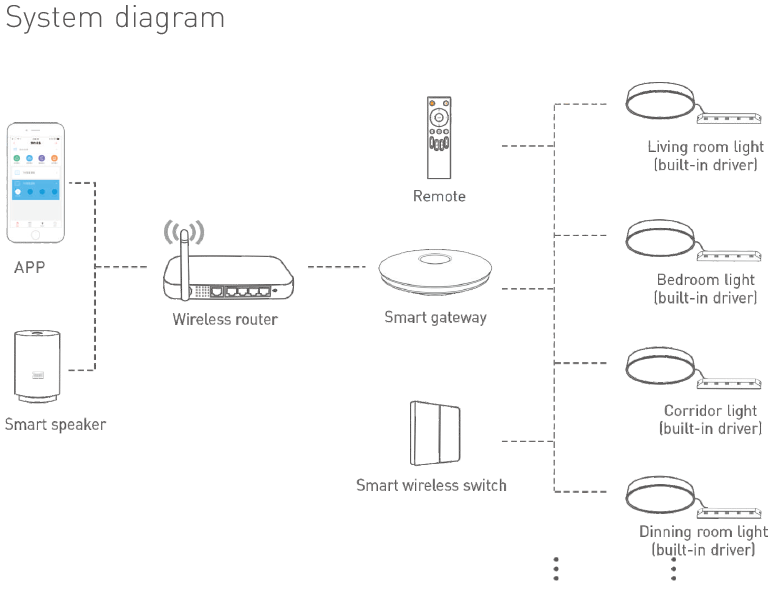

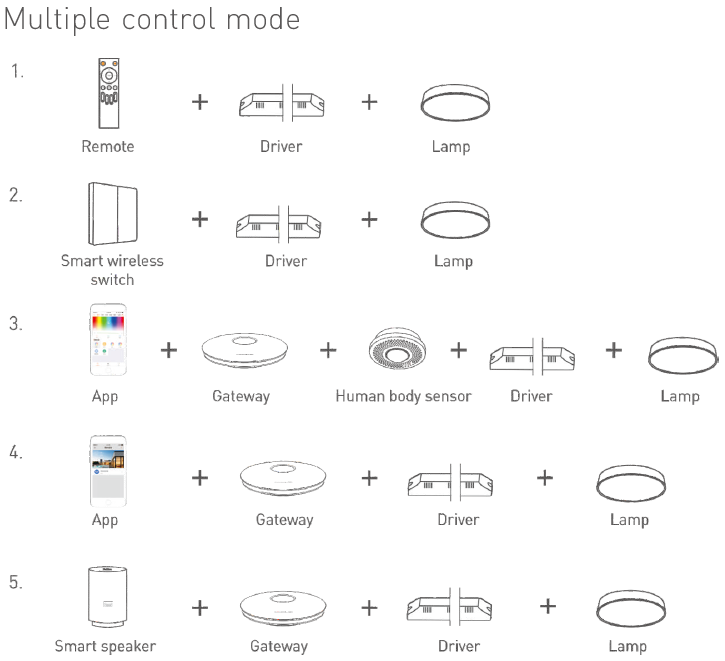

The LED intelligent driver is one of the products of Xiaolei Intelligent Lighting System, which is suitable for home lighting. It is stepless dimming, flicker-free and achieves high-frequency exemption assessment level. Supporting multi-control methods to a different application. Working with the gateway to realize APP control, smart voice control, scene control and timing control. And it also can work with the remote, wall switch and wireless dimming panel
control to meet the different application requirement.
This product can be used with the gateway, smart wireless switch, etc. For the specific operation method, please refer to the instruction manual of the relevant product.
