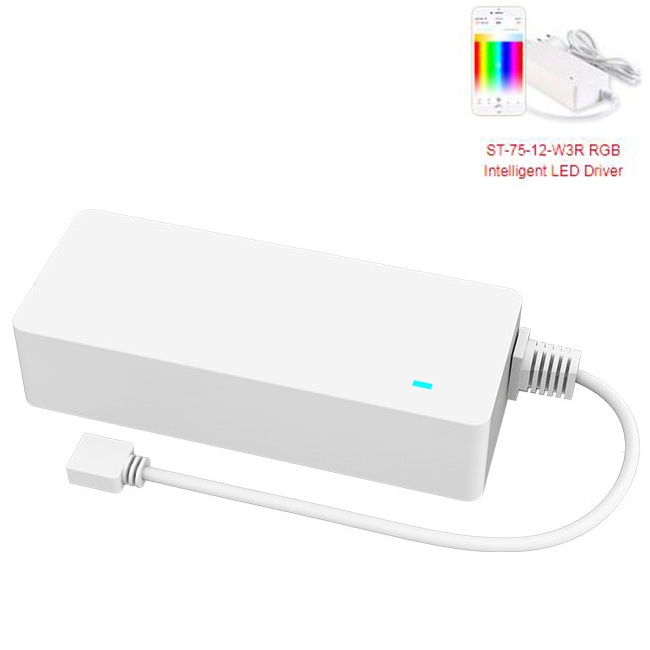

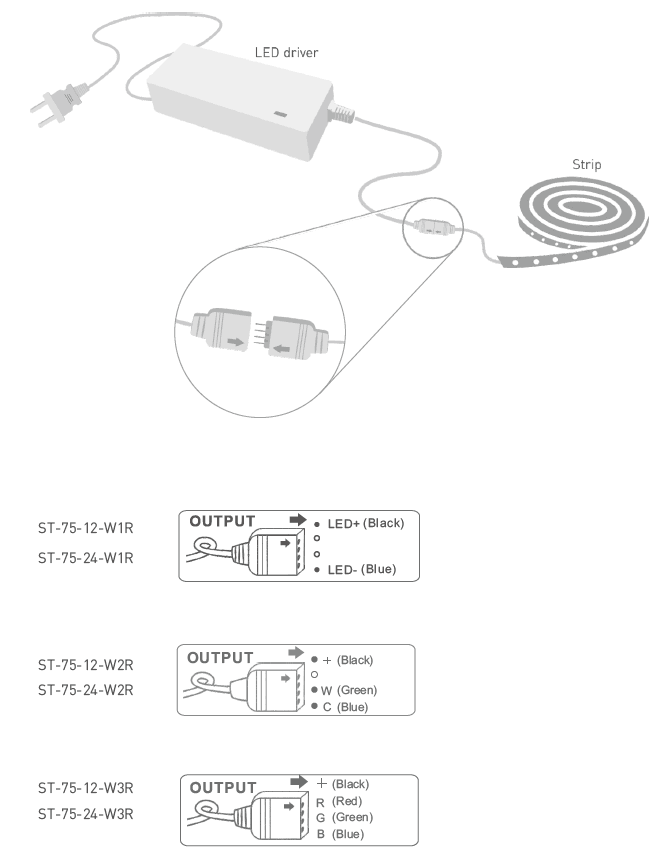

ST-75-12-W3R RGB Intelligent LED Driver
Xiaolei intelligent LED driver is one of the products in Xiaolei Intelligent Lighting System. It is suitable for home lighting, enable to adjust the color of light and stepless dimming without flicker. It also supports a variety of control modes: when equipped with a gateway, APP control, intelligent audio voice control, scene control, timing control can be realized. Also can be controlled by remote and wireless dimmer panel, which meets the application of different scenes to make life more intelligent.

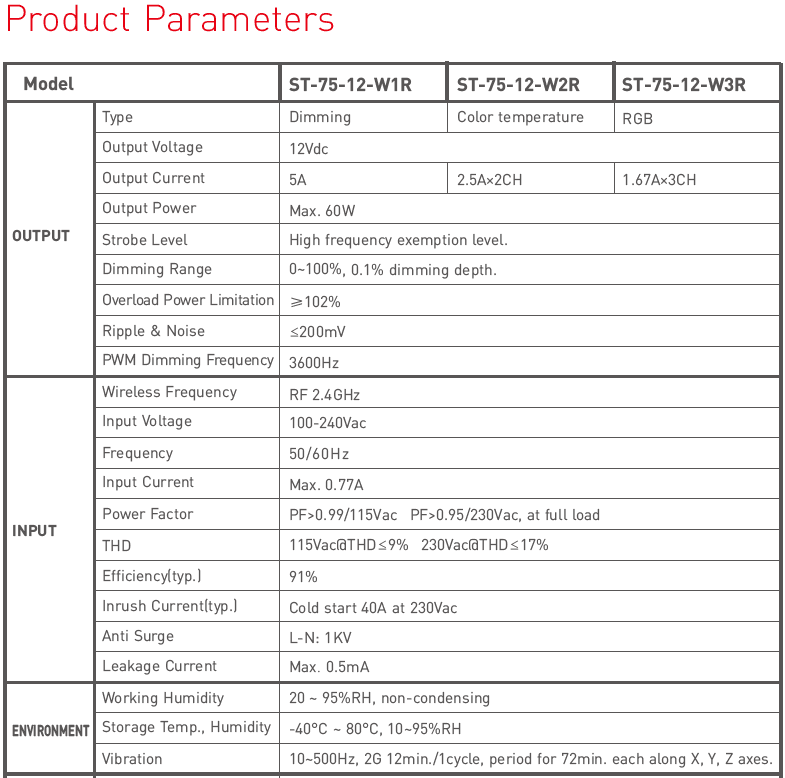

Wireless signal: RF 2.4GHz.

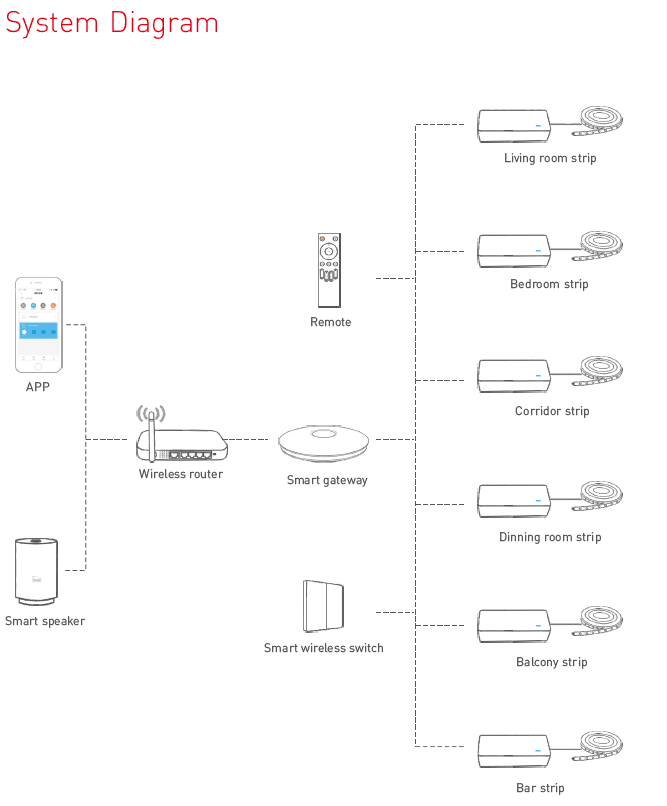

Controlled by wireless panel, remote and intelligent gateway via RF signal.
Controlled by mobile phone.

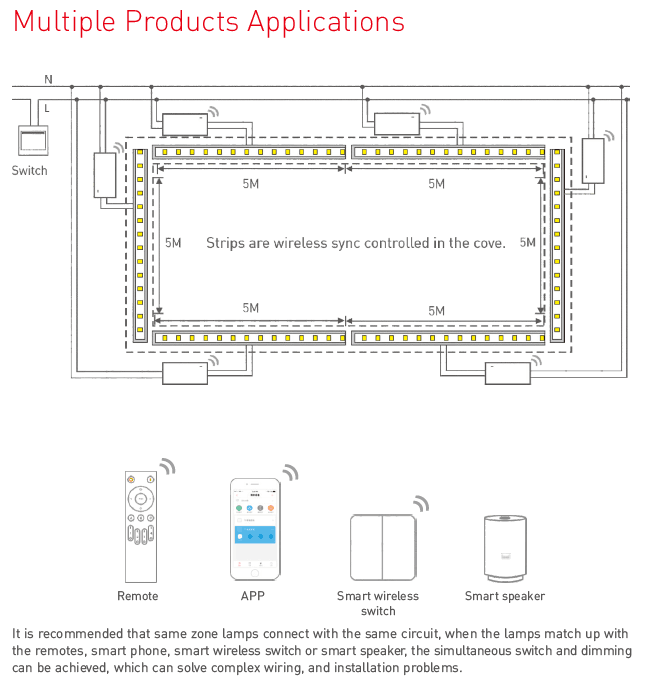

Multiple driver’s effect synchronizations can be achieved.
Dimming range from 0-100%, LED start at 0.1% possible.
0~100% flicker-free, achieve the level of exemption assessment.
Active PFC function.
100~240Vac wide voltage input.

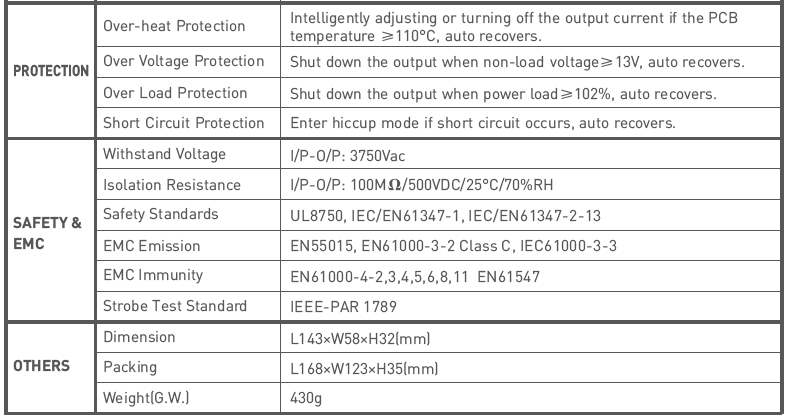

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor application forⅠ/Ⅱ/Ⅲ.
2 years warranty.
