DMX512 Master Controller XC-D For led light strip waterproof
Din-rail DMX master, which receives RF signal from remoter, and sends international standard DMX512/1990 signal to DMX512 decoders, so that the DMX controller can be remote controlled.

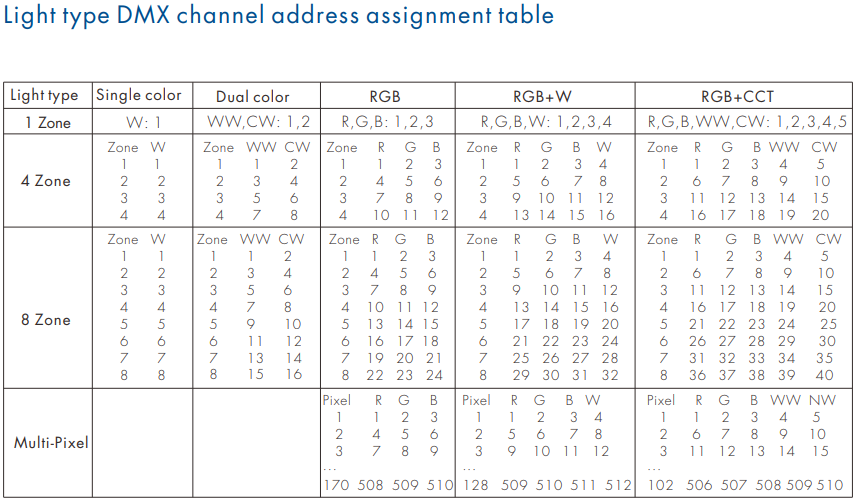

Can be set as 1/4/8 zone single color, dual color, RGB, RGB+W, RGB+CCT light type by key,and match the same type 1/4/8 zone remoter optional.
Digital numeric display, simple to change mode, speed, brightness, color temperature.
Can connect more than one constant voltage or constant current DMX decoder, or direct control LED lamps with DMX decode chip.
Adopt 2.4GHz wireless technology, can accept up to 8 remoter control.

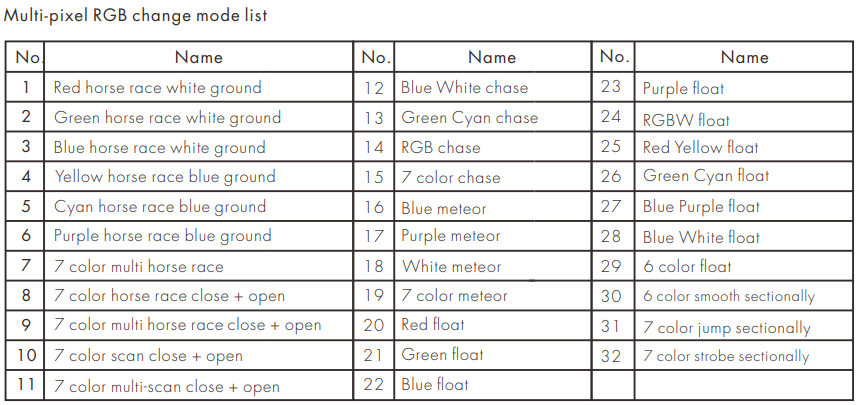

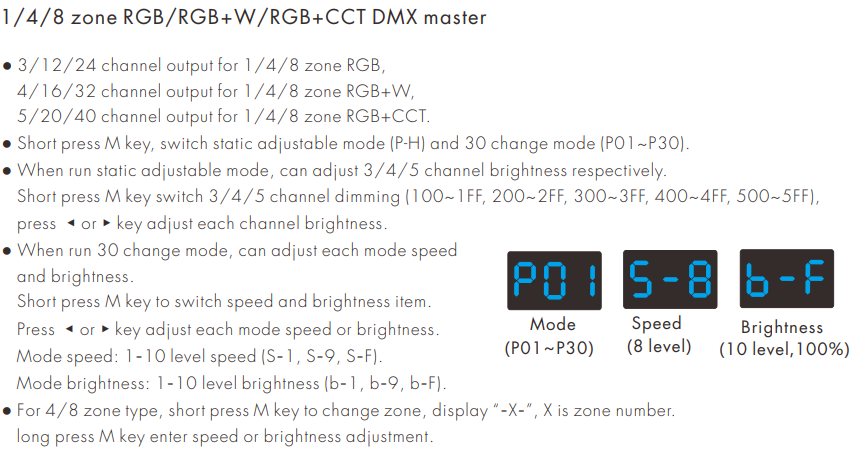

For RGB or Multi-pixel RGB type, built in 30 or 32 change mode, adjustable speed and brightness.
