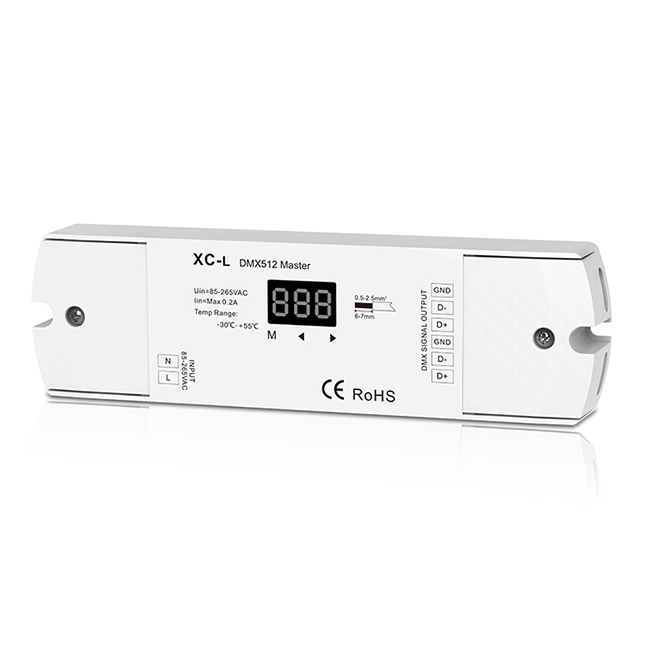

DMX512 Master Controller XC-L For single color dual color RGBRGBW or LED strip lights string
Universal DMX512 master with digital display, can work as stand-alone mode or RF mode.
DMX signal output, comply to standard protocol DMX512, compatiible with DMX decoder from any supplier.
Under stand-alone mode(no need remote), can be set as 1/4/8 zone single color, dual color, RGB, RGB+W, RGB+CCT light type by key.
Under RF mode, full compatibility with a variety of 1/4/8 zone single color dimming, dual color, RGB/RGBW or RGB+CCT remote. ● Digital numeric display, simple to change mode, speed, brightness or color temperature.
For RGB type, built in 30 mode, include static color, jump, flash or gradual change style.
For multi-pixel RGB type, built in 32 mode, include horse-race, chase, flow, trail or gradual change style.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
User can customize own RGB dynamic mode list by APP for advanced function.

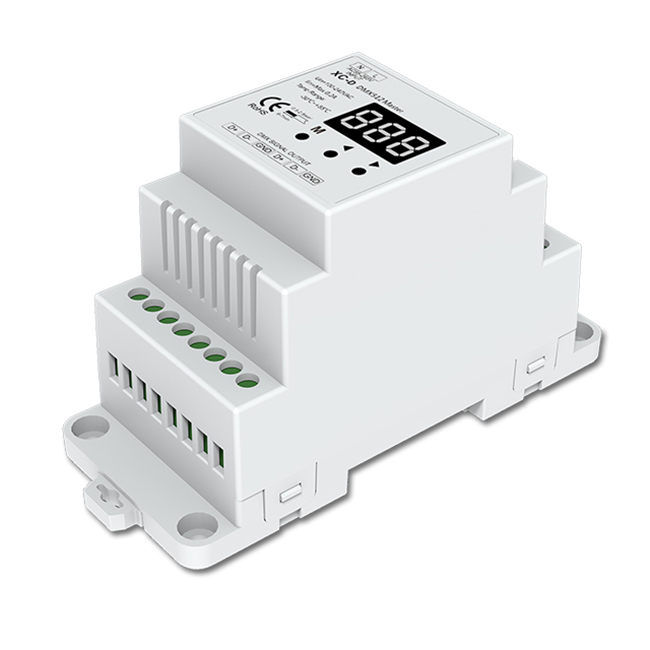

For XC-D, din rail or screw mounted optional.
Standards and Certifications
