Product Information

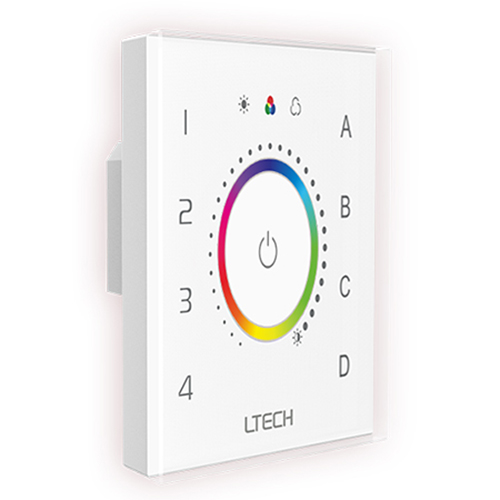

The Ltech EDT3 is a sophisticated DALI master controller designed for intuitive and precise control of RGB LED lighting. Encased in an elegant 86x86mm glass panel, this dimmer touch panel is the ideal user interface for high-end residential, commercial, and architectural lighting projects. It operates on the DALI standard protocol, supporting advanced DT8 (x-y coordinate) color control for seamless integration into any modern DALI lighting system. Power is supplied directly from the DALI bus, simplifying installation and eliminating the need for additional wiring. With dedicated controls for RGB color, saturation, and brightness, plus 4-zone management and scene memory, the EDT3 provides comprehensive and effortless command over your ambient lighting.
Key Features
Intuitive RGB & Saturation Control
Features a highly responsive touch circle for smooth adjustment of RGB color, saturation, and overall brightness.
DALI DT8 Compliant
Adopts DALI standard protocols IEC62386-102, 207, & 209, ensuring compatibility and advanced DT8 color control.
Comprehensive Zone & Scene Management
Independently control up to 4 zones and save/recall 4 custom lighting scenes with dedicated touch keys.
Flexible DALI Addressing
Supports unicast, group, and broadcast modes, easily configured via rotary switches for system flexibility.
Bus-Powered Simplicity
Draws its minimal power (<6mA) directly from the DALI bus, simplifying wiring and installation.
Tactile Feedback
Built-in touch vibration provides physical confirmation of user input for a premium interactive experience.
Technical Highlights
- Standard DALI Protocol: Fully compliant with IEC62386 for seamless interoperability.
- DT8 Color Control: Supports advanced x-y coordinate color control for precise color rendering.
- Multi-Mode Operation: Easily set addresses for Unicast, Group, or Broadcast control.
- Wide Temperature Range: Operates reliably in extreme temperatures from -30°C to 55°C.
Product Specifications
| Parameter | Details |
|---|---|
| Model | EDT3 |
| Power Supply | DALI Power |
| Power Consumption | < 6mA@16V |
| Input Signal | DALI |
| DALI Protocol | IEC62386-102, IEC62386-207, IEC62386-209 |
| Control Type | DT8 (RGB Color Control) |
| Dimming Interface | Touch Panel |
| Control Modes | Unicast, Group, Scene, Broadcast |
| Working Temperature | -30°C ~ 55°C |

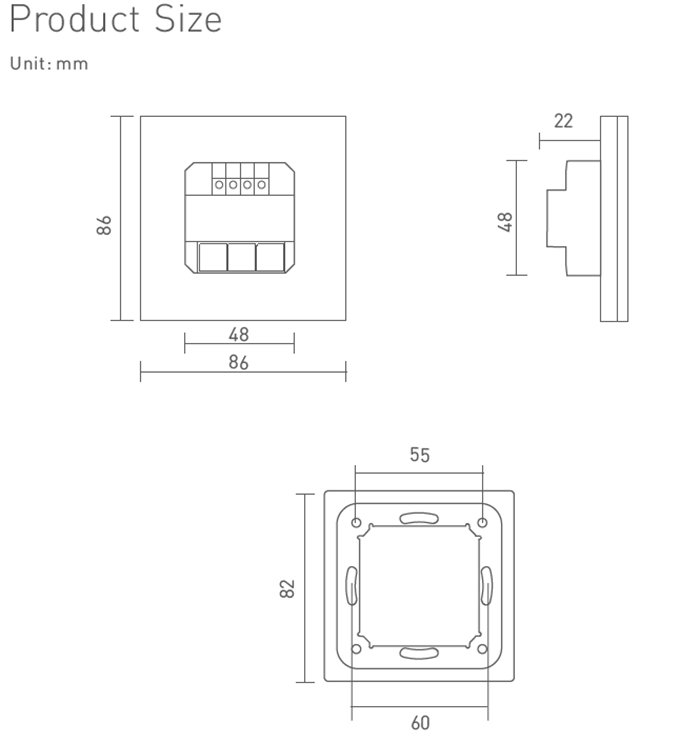

| Dimensions | 86 × 86 × 37 mm (L×W×H) |
| Package Size | 113 × 112 × 50 mm (L×W×H) |
| Weight (Gross) | 240g |
Application Scenarios
How to Install & Configure Your DALI Touch Panel

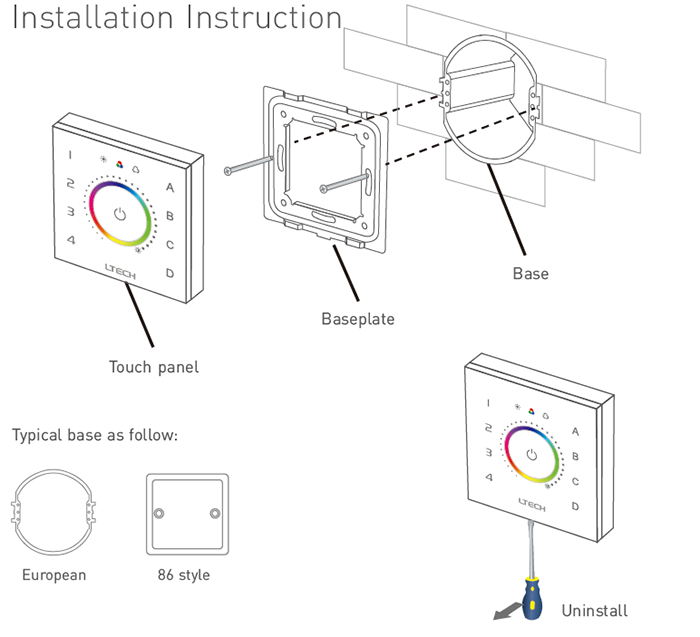

- Mounting: Secure the panel base into a standard European 86-style wall box.

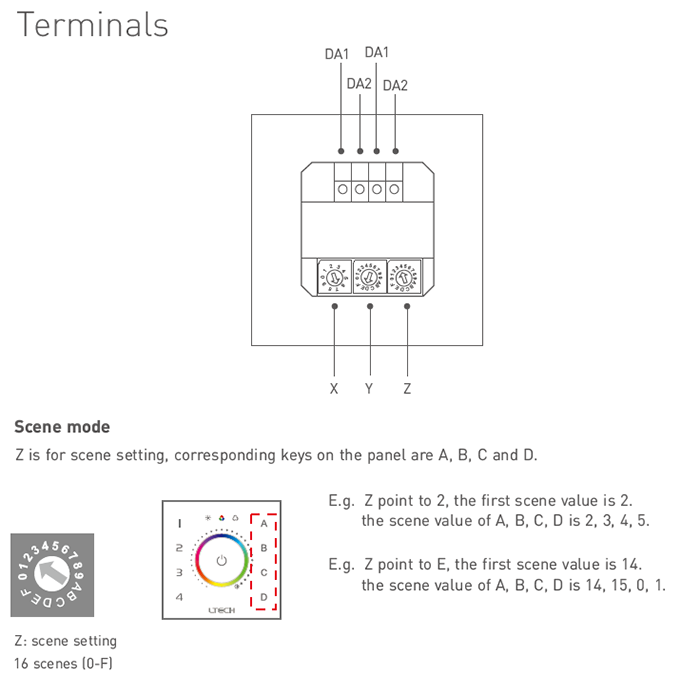

- Wiring: Connect the two terminals labeled 'DA1' and 'DA2' on the back of the panel to your DALI bus line. Polarity is not critical for DALI connections.

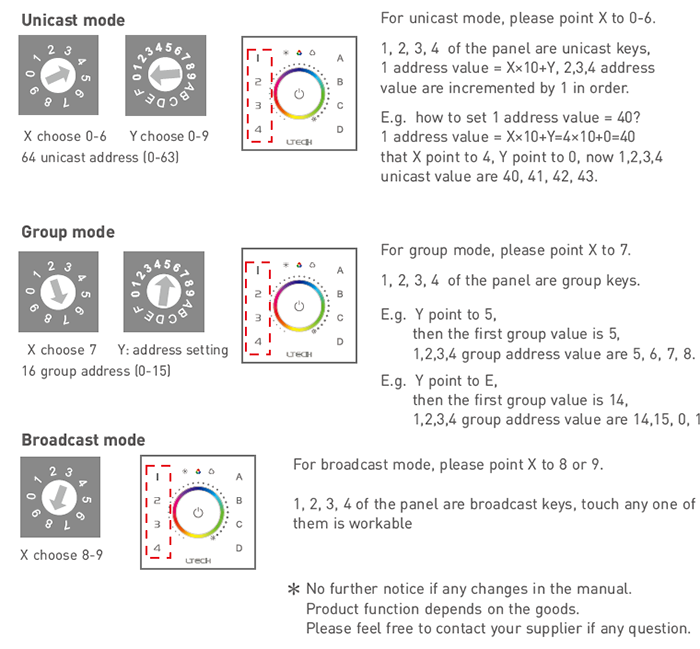

- Addressing: Before attaching the touch panel to the base, use the rotary dials (X, Y, Z) on the back to set the desired control mode and starting addresses. For example, to set unicast addresses starting from 40, point X to 4 and Y to 0.
- Final Assembly: Clip the glass touch panel onto the installed base.

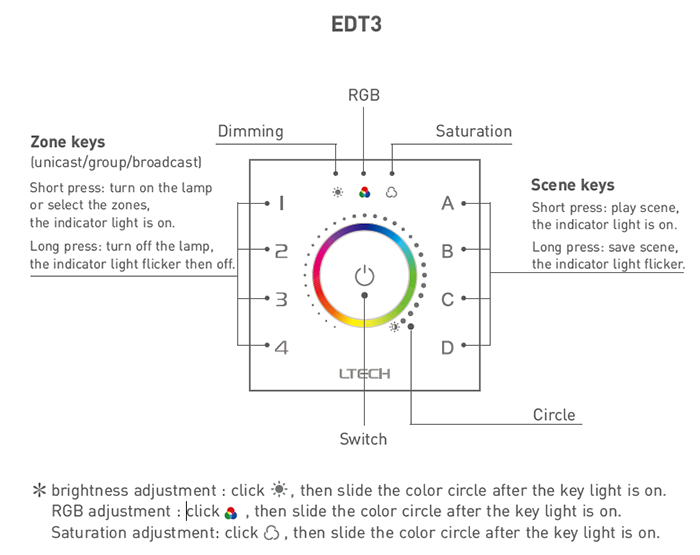

- Control: Short-press a zone key (1-4) to select it. Then, use the touch keys for brightness, RGB, or saturation, and slide your finger on the color circle to adjust. Short-press a scene key (A-D) to recall a saved scene.
- Scene Programming: To save a lighting state, adjust the lights to your desired setting, then long-press one of the scene keys (A, B, C, or D) until the indicator light flickers.

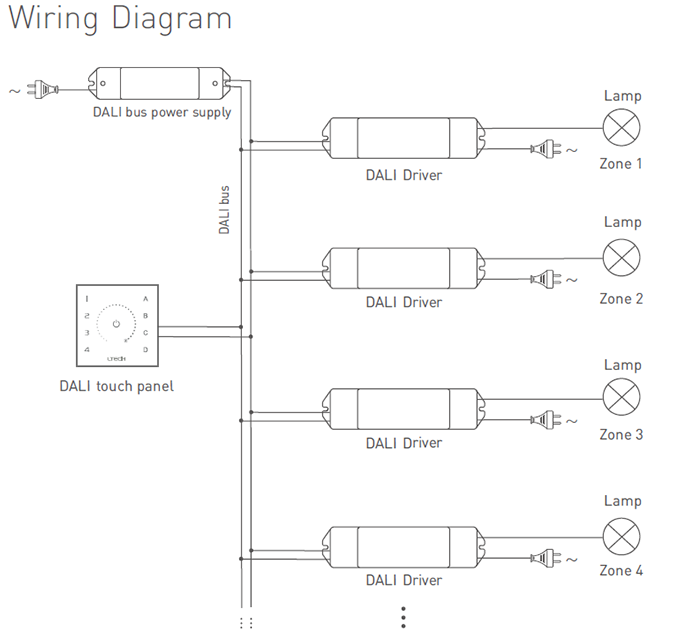

- This panel is a DALI master controller and must be used within a DALI system that includes a DALI bus power supply.
- The panel does not connect directly to mains power (110V/220V AC).
- This device sends control signals to DALI drivers; it does not power LED strips directly.
- For detailed addressing tables and calculations, please refer to the product datasheet available in the Downloads section below.
What's in the Box
- ✓1 x EDT3 DALI RGB Touch Panel
- ✓1 x User Manual
⇩ Downloads & Documents
PDFEDT3
Frequently Asked Questions
Q: What is a DALI lighting system?
A:DALI stands for Digital Addressable Lighting Interface. It's a professional, standardized protocol for digital lighting control that allows for individual addressing of fixtures, two-way communication, and robust, scalable installations.
Q: Does this touch panel power my RGB LED Light Strip?
A:No. This is a DALI master controller. It sends commands over the DALI bus to DALI drivers, which then control and power the LED strips.
Q: How is the EDT3 different from the EDT1 and EDT2 models?
A:The EDT3 is specifically for RGB color control. The EDT1 is designed for single-color dimming, and the EDT2 is for CCT (tunable white) color temperature adjustment.
Q: Do I need a separate power supply for this panel?
A:No, the panel is powered directly by the DALI bus. However, your DALI bus itself requires a dedicated DALI power supply to function.
Q: What kind of wall box is required for installation?
A:The EDT3 is designed to fit a standard European 86x86mm style electrical wall box.
Q: Can I use this panel without a DALI system?
A:No, this product is designed exclusively for use within a DALI-compliant lighting control system.
